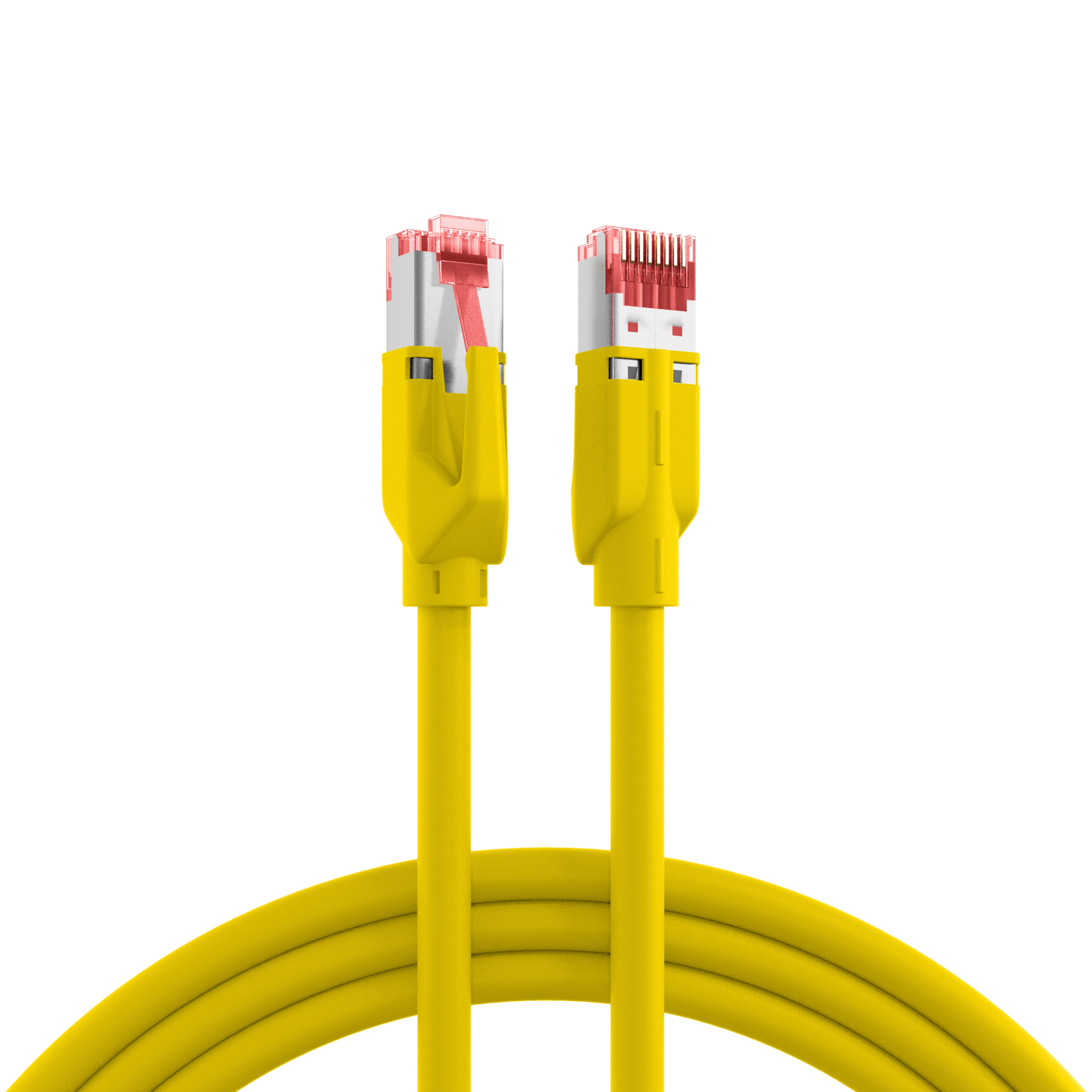

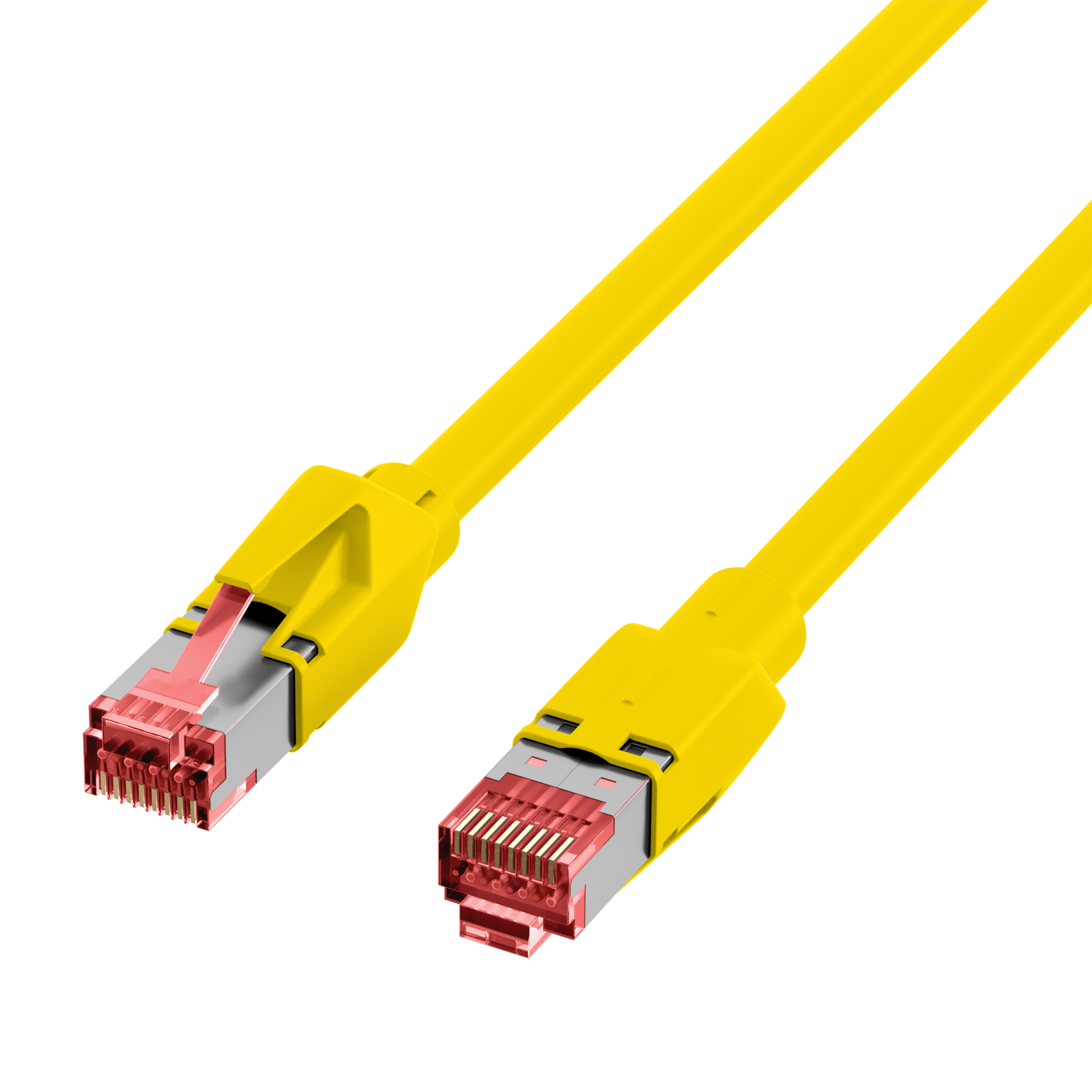

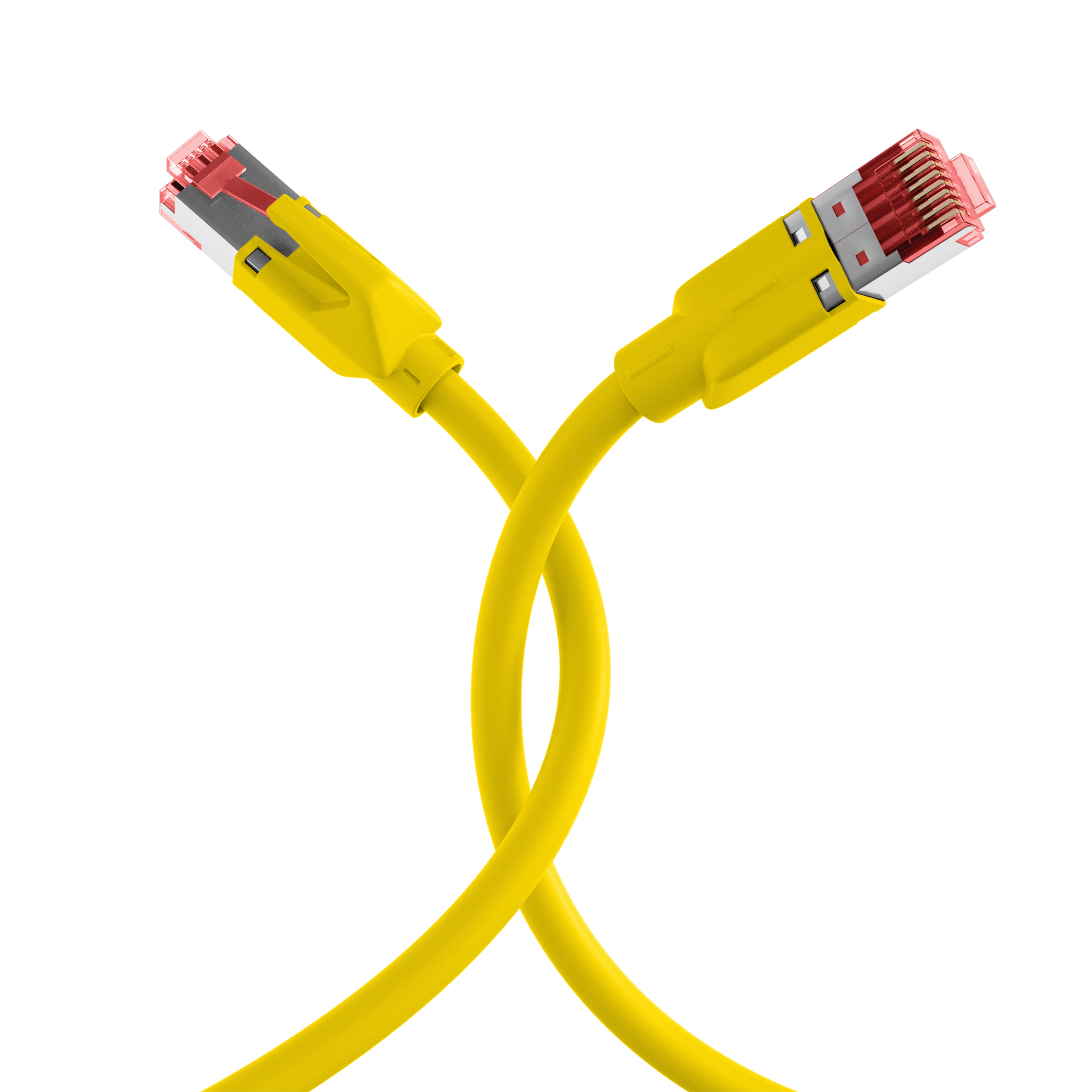

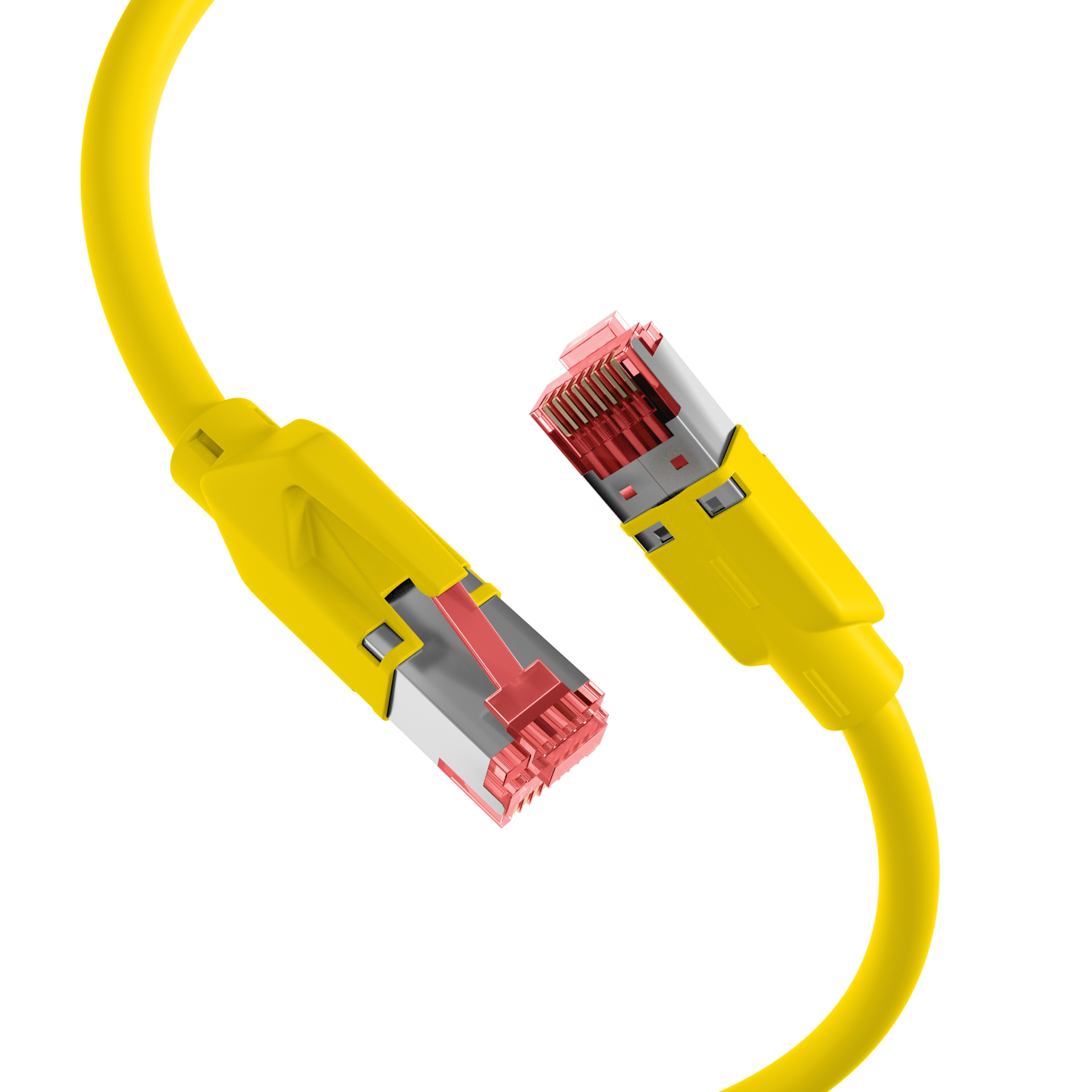

RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow
Prices only visible for logged in users
RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 0,5m
Item number:
K0700GE.0,5
Product information for RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 0,5m
RJ45 Patchkabel Cat.7 S/FTP LSZH TM21
Das Cat.6A (TIA) Patchkabel erfüllt die Anforderungen für 2,5Gbit, 5Gbit und 10Gbit Ethernet und hat vergoldete Kontakte.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG26/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material. Zusätzlich bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich -20 – 60 °C.
Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt dabei bis zu 500 MHz.
Das Cat.6A (TIA) Patchkabel erfüllt die Anforderungen für 2,5Gbit, 5Gbit und 10Gbit Ethernet und hat vergoldete Kontakte.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG26/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material. Zusätzlich bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich -20 – 60 °C.
Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt dabei bis zu 500 MHz.
Technical properties
AWG-size: | 26/7 |
---|---|
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | put-on |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | >32.5 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | yellow |
Colour outer sheath: | yellow |
Conductive shield: | 360° shield contact |
Conductor Material: | Copper |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 Standard |
Contacts: | 50 µ" gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame retardant: | acc. IEC60332-1 |
Halogen-free: | acc. IEC60754-2 |
Halogen free: | True |
Jacket Material: | LSZH |
Length imprint: | False |
Locking lever: | True |
Low smoke: | acc. IEC61034 |
Mating cycles: | ≥750 |
Model: | Shielded |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.5 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** |
Raw cable: | Cat.7 |
Suitable for degree of protection (IP): | IP20 |
Temperature Range (Operation): | -20 – 60 °C |
Temperature Range (Storage): | 0 – 50 °C |
Temperature range: | -20 – 60 °C |
Transmission: |
2.5Gbit 5Gbit 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Variants
Item no. | Name | Length | Längentoleranz | |
---|---|---|---|---|
K0700GE.0,15 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 0,15m | 0.15 m | ±5 % | |
K0700GE.0,25 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 0,25m | 0.25 m | ±5 % | |
K0700GE.0,5 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 0,5m | 0.5 m | ±5 % | |
K0700GE.1 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 1m | 1.0 m | ±5 % | |
K0700GE.1,5 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 1,5m | 1.5 m | ±5 % | |
K0700GE.2 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 2m | 2.0 m | ±5 % | |
K0700GE.3 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 3m | 3.0 m | ±5 % | |
K0700GE.5 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 5m | 5.0 m | ±5 % | |
K0700GE.7,5 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 7,5m | 7.5 m | ±5 % | |
K0700GE.10 | RJ45 Patch Cord Cat.7 S/FTP LSZH TM21 yellow 10m | 10.0 m | ±5 % |
