Roof Fan Unit, 2 x Fan, 1U, RAL7035

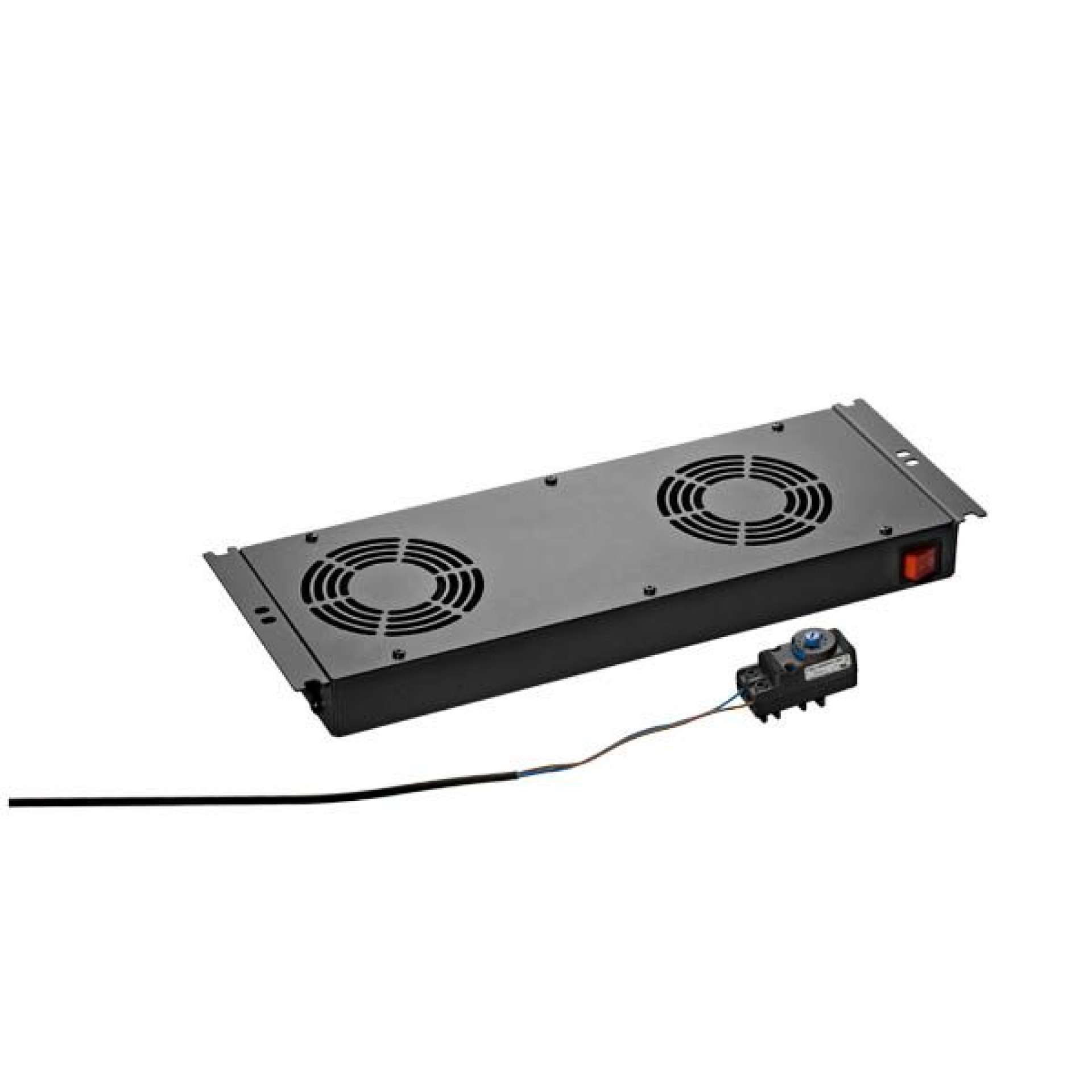

Roof Fan Unit, 2 x Fan, for Network/Server Cabinets CLASSIC
Item number:
691654V3
EAN no.:
4049759051570
Product information for Roof Fan Unit, 2 x Fan, for Network/Server Cabinets CLASSIC
For installation in roof of all network and server cabinets Classic
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
Technical properties
| Air circulator: | True |
|---|---|
| Built as slide-in ventilator: | True |
| Degree of protection: | IP20 |
| EMC-version: | True |
| Mounting method: | Screw mounting |
| Operating voltage at AC 50 Hz: | 230 – V |
| Roof ventilator: | True |
| Suitable for 19 inch rack mounting: | True |
| Suitable for wall built-in: | False |
| Voltage type: | AC |
| With filter: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
