Sice Cover/Air Routing for EFB-Server W=800
Prices only visible for logged in users

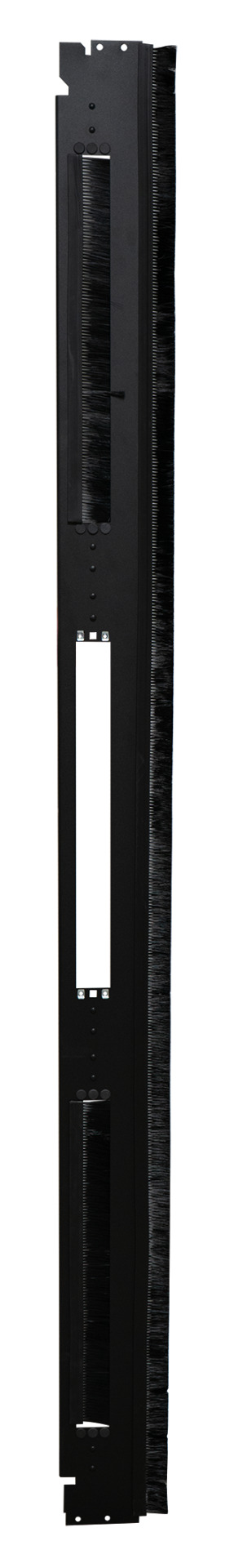

Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035
Item number:
ESV-SA3428.GR
EAN no.:
4049759244354
Product information for Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035
For covering the area beside the 19“ level in cabinets EFB-Server in width 800 mm
Serves to control the air flow and prevents the mixing of warm and cold air
Sealing to side walls with brush strip
With cutouts 3 x 19" 1U per side for cable routing or accessory mounting
Mounting openings for cable routing brackets
Toolless mounting left- and right-sided of the 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless), brush strips
Serves to control the air flow and prevents the mixing of warm and cold air
Sealing to side walls with brush strip
With cutouts 3 x 19" 1U per side for cable routing or accessory mounting
Mounting openings for cable routing brackets
Toolless mounting left- and right-sided of the 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless), brush strips
Technical properties
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Metal |
| Model: | Cover |
| Mounting position: | Cable space |
Variants
| Item no. | Name | Number of height units | For Cabinet Width | Colour | Breite | Höhe | RAL-Nummer | |
|---|---|---|---|---|---|---|---|---|
| ESV-SA3428.GR | Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035 | 42 U | 800 mm | grey | 146 mm | 1923 mm | 7035 | |
| ESV-SA3478.GR | Side Cover/Air Routing for ESV 47U W=800, Set 2 Pieces, RAL7035 | 47 U | 800 mm | grey | 146 mm | - | 7035 | |
| ESV-SA3428.TS | Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL9005 | 42 U | 800 mm | black | 146 mm | 1923 mm | 9005 | |
| ESV-SA3478.TS | Side Cover/Air Routing for ESV 47U W=800, Set 2 Pieces, RAL9005 | 47 U | 800 mm | black | 146 mm | - | 9005 |
