Sliding Rails, Telescopic
Prices only visible for logged in users

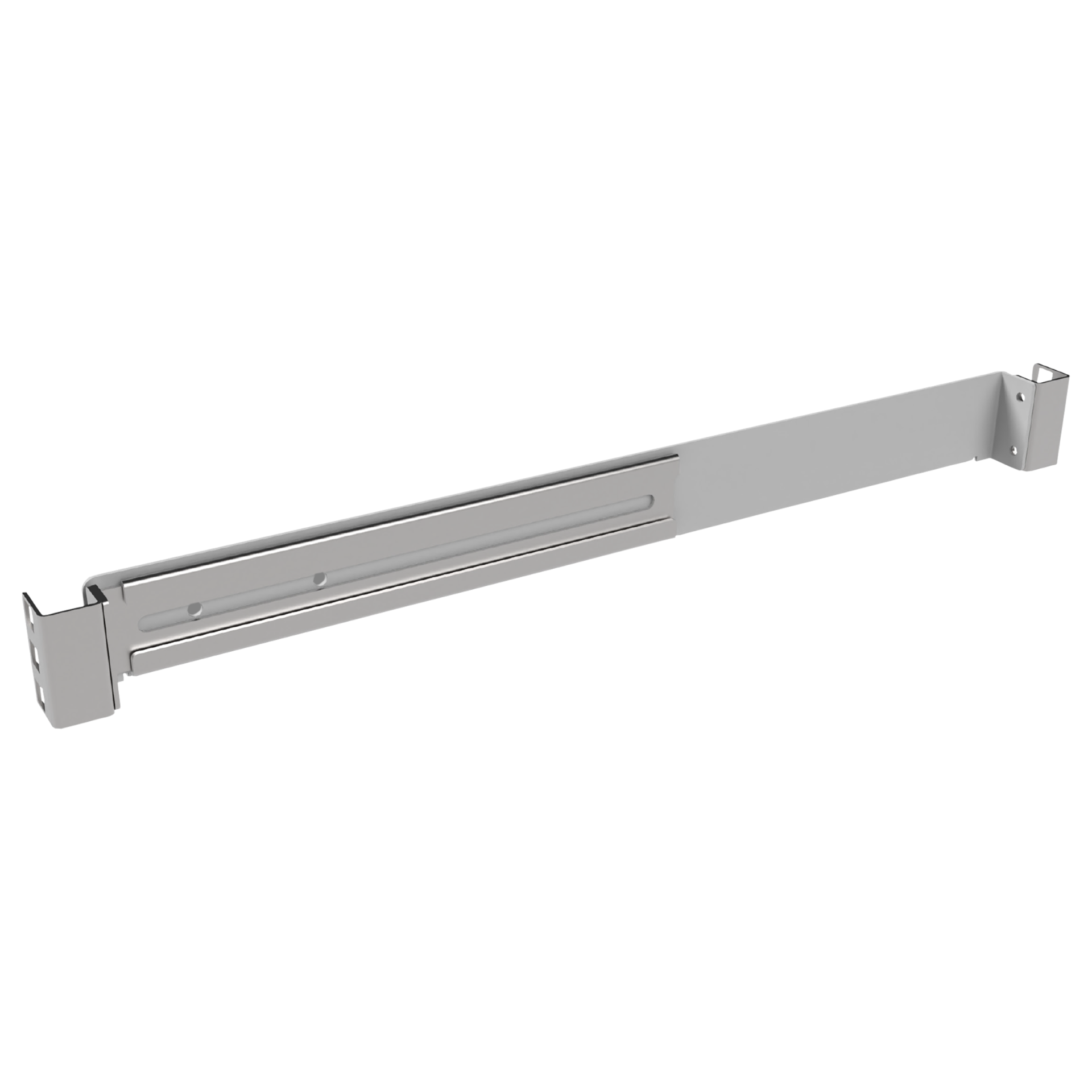

Sliding Rails, Teleskopic, for Depth 800, Set 2 Pieces L/R
Item number:
691652T.08
Product information for Sliding Rails, Teleskopic, for Depth 800, Set 2 Pieces L/R
For mounting of heavy devices in network or server cabinets
Mounting at the front and rear-sided 19" profiles
Material steel, galvanised
Max. load 100 kg
PU 2 pieces (each 1 left/right) incl. mounting screws
Mounting at the front and rear-sided 19" profiles
Material steel, galvanised
Max. load 100 kg
PU 2 pieces (each 1 left/right) incl. mounting screws
Technical properties
| Cabinet Series: | Universal |
|---|---|
| Material: | Metal |
| Model: | Sliding rail |
Variants
| Item no. | Name | Adjustment | Colour | Suitable for enclosure building height | Max. Load Capacity | Breite | Höhe | Für Schranktiefe | |
|---|---|---|---|---|---|---|---|---|---|
| 691652T.06 | Sliding Rails, Teleskopic, for Depth 600, Set 2 Pieces L/R | 285 – 425 mm | Zinc | 600 mm | 100 kg | 62 mm | 44 mm | 600 mm | |
| 691652T.08 | Sliding Rails, Teleskopic, for Depth 800, Set 2 Pieces L/R | 485 – 625 mm | Zinc | 800 mm | 100 kg | 62 mm | 44 mm | 800 mm | |
| 691652T.10 | Sliding Rails, Teleskopic, for Depth 1000, Set 2 Pieces L/R | 685 – 825 mm | Zinc | 1000 mm | 100 kg | 62 mm | 44 mm | 1000 mm |
