Partially Assembled Splice Boxes LC-Duplex plastic adapter, non-sliding version, OM2
Prices only visible for logged in users

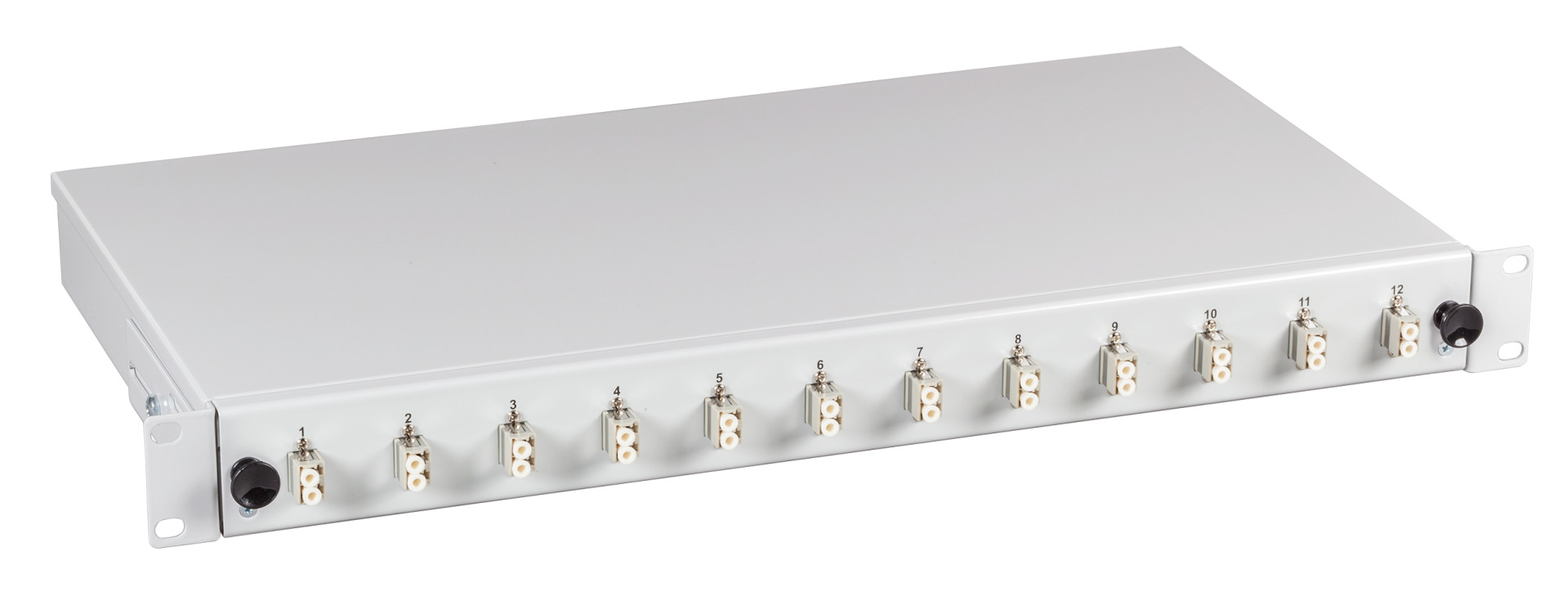

Splicebox partially assembled LC OM2 not extendable 12 Adapter
Item number:
B60901.12
EAN no.:
4049759172336
Product information for Splicebox partially assembled LC OM2 not extendable 12 Adapter
Partly assembled splice box with adapters
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing not sliding unit
front panel screwed
plastic adapters
cable entries at the rear
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing not sliding unit
front panel screwed
plastic adapters
cable entries at the rear
Technical properties
| Adapters: | LC |
|---|---|
| Depth: | 244.0 mm |
| Fibre class: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Variants
| Item no. | Name | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| B60901.6 | Splicebox partially assembled LC OM2 not extendable 6 Adapter | LC-Duplex | grey | 12 | 6 | 7035 | LC-Duplex | beige | |
| B60901.12 | Splicebox partially assembled LC OM2 not extendable 12 Adapter | LC-Duplex | grey | 12 | 12 | 7035 | LC-Duplex | beige | |
| B60901.24 | Splicebox partially assembled LC OM2 not extendable 24 Adapter | LC-Duplex | grey | 24 | 24 | 7035 | LC-Duplex | beige | |
| B60901TS.12 | Splicebox bk partially assembled LC OM2 not extendable 12 Adapter | LC-Duplex | black | 12 | 12 | 9005 | LC-Duplex | beige | |
| B60901TS.24 | Splicebox bk partially assembled LC OM2 not extendable 24 Adapter | LC-Duplex | black | 24 | 24 | 9005 | LC-Duplex | beige |
