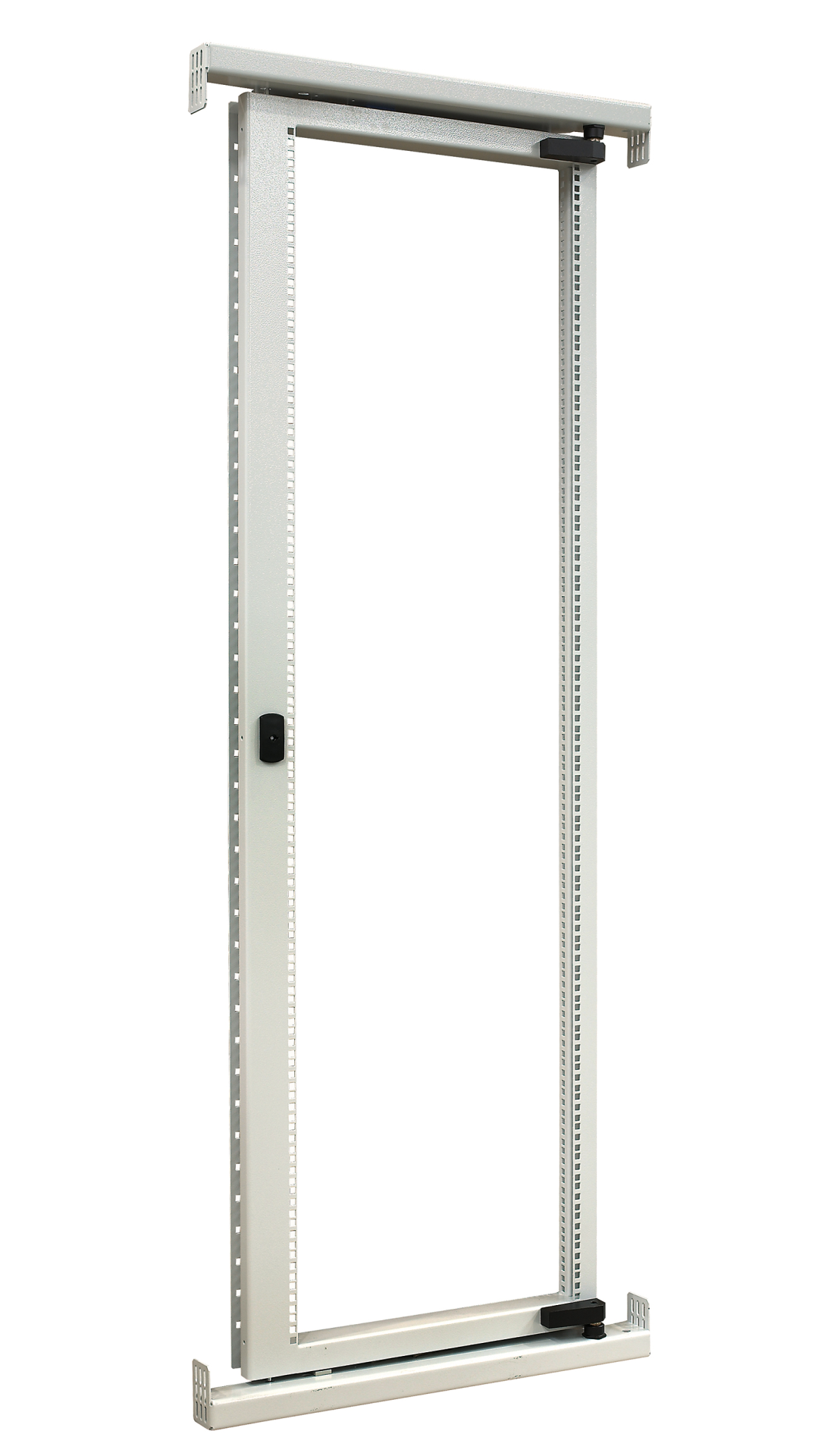

Swing Frame for PRO 42/40U, asymmetrical
Swing Frame for PRO 42U, Cabinet Width 800 mm RAL9005
Item number:
PRO-SWR428A.TS
EAN no.:
4049759296933
Product information for Swing Frame for PRO 42U, Cabinet Width 800 mm RAL9005

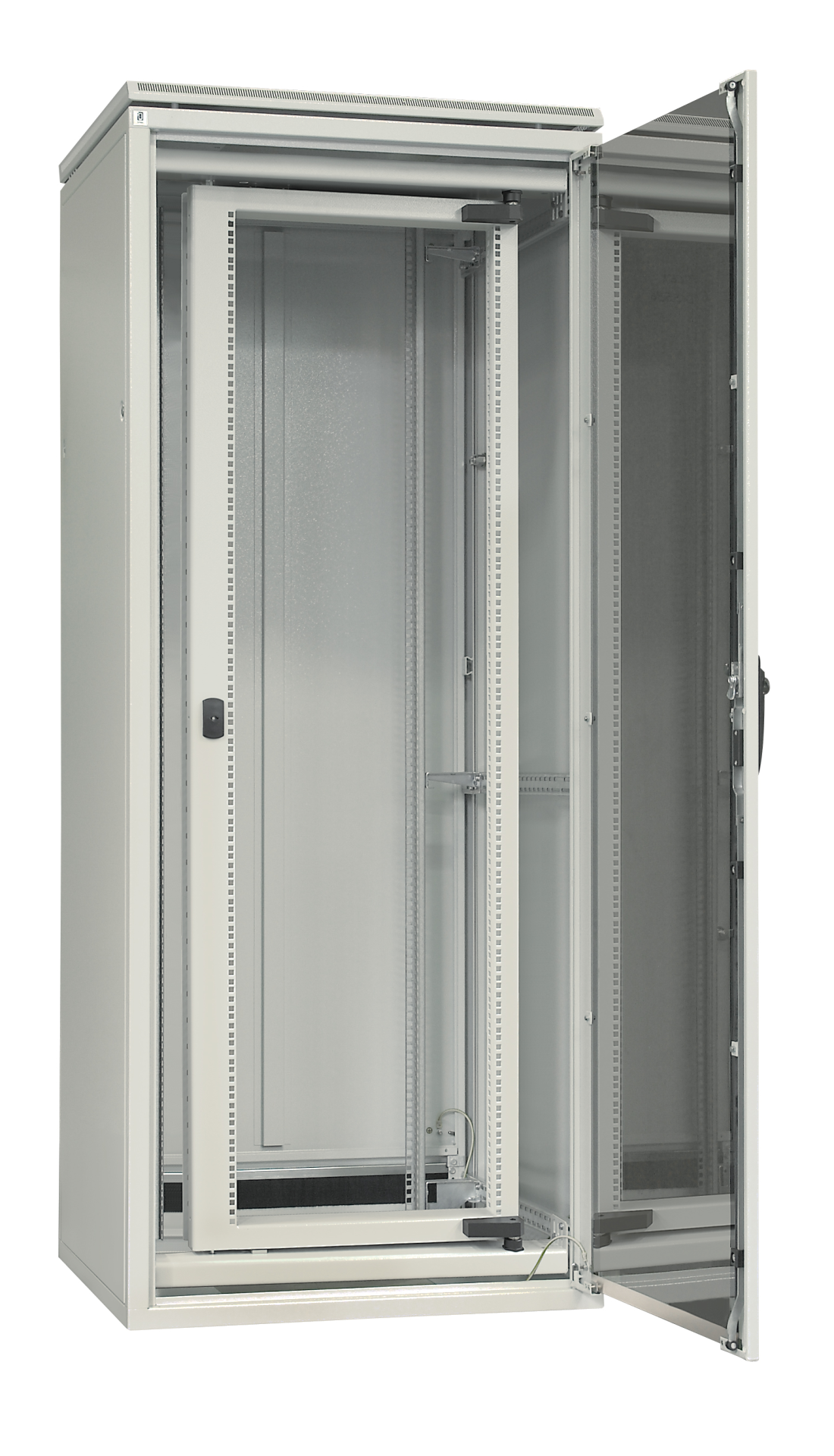

19" swing frame for mounting in 800 mm wide cabinets PRO
Usable height 40U
Max. mounting depth 440 mm (width 800 mm) resp. 180 mm (width 600 mm) due to asymmetrical construction
With door fixing and locking with 2 x latch
Frame stop left and right possible due to turn around 180°
Opening angle max. 120°
Max. load 150 kg
Material Steel sheet, steel profiles
Paint finish RAL7035, light grey
Usable height 40U
Max. mounting depth 440 mm (width 800 mm) resp. 180 mm (width 600 mm) due to asymmetrical construction
With door fixing and locking with 2 x latch
Frame stop left and right possible due to turn around 180°
Opening angle max. 120°
Max. load 150 kg
Material Steel sheet, steel profiles
Paint finish RAL7035, light grey
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Material: | Metal |
| Model: | Swing frame |
Variants
| Item no. | Name | Max. Load | Color | Suitable for enclosure building height | Width | RAL-number | For Cabinet Width | |
|---|---|---|---|---|---|---|---|---|
| PRO-SWR428A.GR | Swing Frame for PRO 42U, Cabinet Width 800 mm RAL7035 | 150 kg | grey | 42 U | 800 mm | 7035 | 800 mm | |
| PRO-SWR428A.TS | Swing Frame for PRO 42U, Cabinet Width 800 mm RAL9005 | 150 kg | black | 42 U | 800 mm | 9005 | 800 mm |
