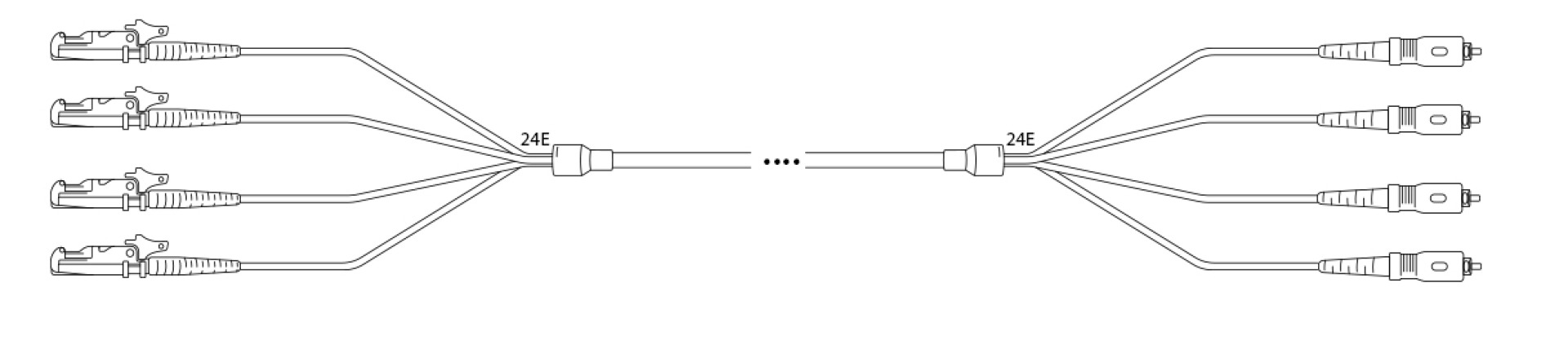

Universal Cable U-DQ(ZN) BH G657A 9/125µm E2000®-APC/SC
U-DQ(ZN)BH G657A 9/125µm E2000®-APC/SC 24E 1,0m
Item number:
O8822.1
EAN no.:
4049759208608
Product information for U-DQ(ZN)BH G657A 9/125µm E2000®-APC/SC 24E 1,0m
Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
Technical properties
| Category: | G657A1 |
|---|---|
| Coding: | 1:1 |
| Colour outer sheath: | black |
| Connector connection 1: | E2000®-APC |
| Connector connection 2: | SC |
| Crossed: | False |
| Fibre type: | G657A1 9/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Operating Temperature: | -20 – 60 °C |
| Storage Temperature: | -40 – 80 °C |
| With rodent protection: | True |
Variants
| Item no. | Name | Number of connectors connection 1 | Length | Number of connectors connection 2 | Number of fibres | |
|---|---|---|---|---|---|---|

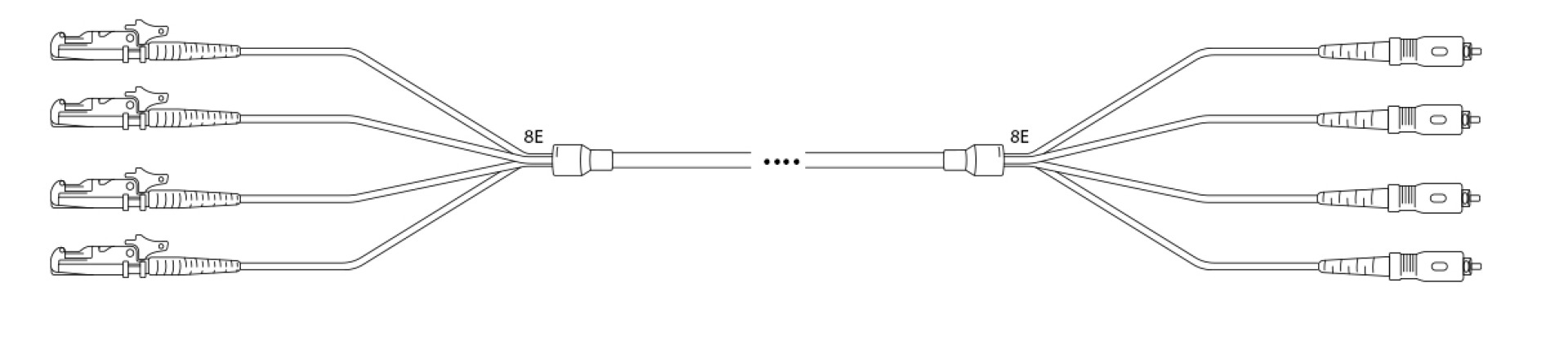

| O8464.1 | U-DQ(ZN)BH G657A 9/125µm E2000®-APC/SC 8E 1,0m | 8 | 1.0 m | 8 | 8 | |
| O8809.1 | U-DQ(ZN)BH G657A 9/125µm E2000®-APC/SC 12E 1,0m | 12 | 1.0 m | 12 | 12 | |
| O8822.1 | U-DQ(ZN)BH G657A 9/125µm E2000®-APC/SC 24E 1,0m | 24 | 1.0 m | 24 | 24 | |
| O8803.1 | U-DQ(ZN) BH G657A 9/125µm E2000®-APC/SC 4E 1,0m | 4 | 1.0 m | 4 | 4 |
