VKA Housing incl. Mounting Kit 20pairs (Series 1)
VKA2 Housing incl. Base Plate and VKA Mounting Kit 20pairs
Item number:
46017N.1V20
EAN no.:
4049759283391

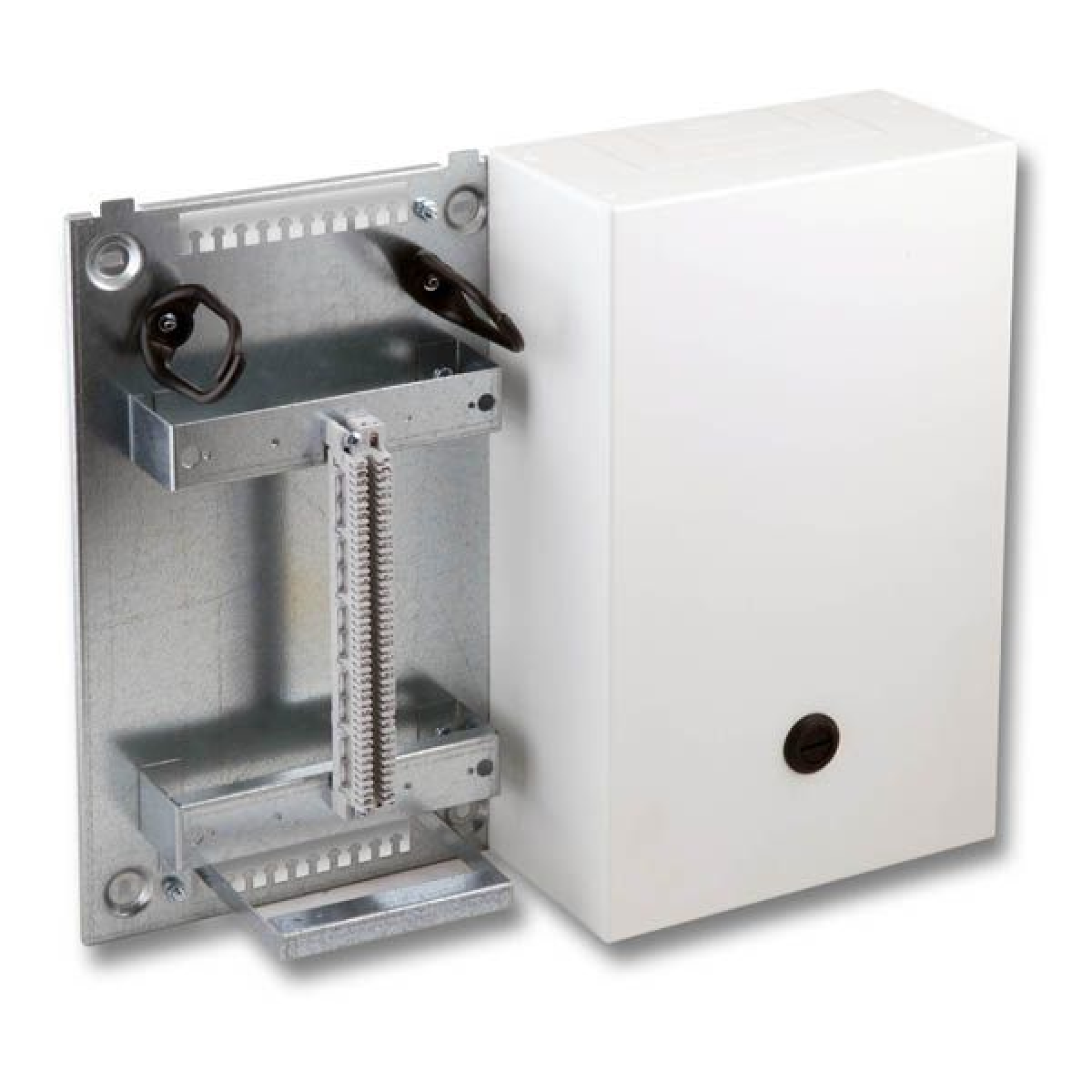

Product information for VKA2 Housing incl. Base Plate and VKA Mounting Kit 20pairs
Consisting of sheet steel box with base plate and cover with latch
With assembled mounting kit 20pairs (for LSA module 1/20 20pairs)
With assembled mounting kit 20pairs (for LSA module 1/20 20pairs)
Technical properties
| 110-compatible: | False |
|---|---|
| Colour: | White |
| DIN-compatible: | False |
| Degree of protection: | IP30 |
| LSA: | True |
| Material: | Steel plate |
| Model: | Distributor enclosure |
| Mounting dimension (standardised): | 170 mm |
| Mounting method: | Surface mounted (plaster) |
| With connecting lugs: | False |
Variants
| Item no. | Name | DIN-compatible | Type | Max. number of dual cores | Number of mountable connection strips | Breite | Höhe | Tiefe | Gewicht | Modul-Steckplätze | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46017N.1V20 | VKA2 Housing incl. Base Plate and VKA Mounting Kit 20pairs | False | VKA2 | 100 | 5 | 200 mm | 330 mm | 120 mm | 2,58 kg | 1 x 5 | |
| 46018N.1V20 | VKA4 Housing incl. Base Plate and VKA Mounting Kit 20pairs | False | VKA4 | 200 | 10 | 330 mm | 330 mm | 120 mm | 3,84 kg | 2 x 5 | |
| 46019N.1V20 | VKA8 Housing incl. Base Plate and VKA Mounting Kit 20pairs | False | VKA8 | 400 | 20 | 330 mm | 550 mm | 120 mm | 5,83 kg | 4 x 5 | |
| 46020N.1V20 | VKA12 Housing incl. Base Plate and VKA Mounting Kit 20pairs | False | VKA12 | 600 | 30 | 550 mm | 550 mm | 120 mm | 8,74 kg | 6 x 5 |
