Wall Bracket for Projectors, extendable, 926-1528mm, Black
Wall Bracket for Projectors, extendable, 926-1528mm, Black
Item number:
ICA-PM-21
Product information for Wall Bracket for Projectors, extendable, 926-1528mm, Black
ICA-PM 21 hort Throw Projector Wall Mount is perfect for most short throw projectors weighing up to 15kg.
A telescopic arm with column design allows for positioning the projector perfectly for optimal viewing angles.
The convenient adjustable support arms fit most short throw projectors and the integrated cable management keeps a neat and clean appearance.

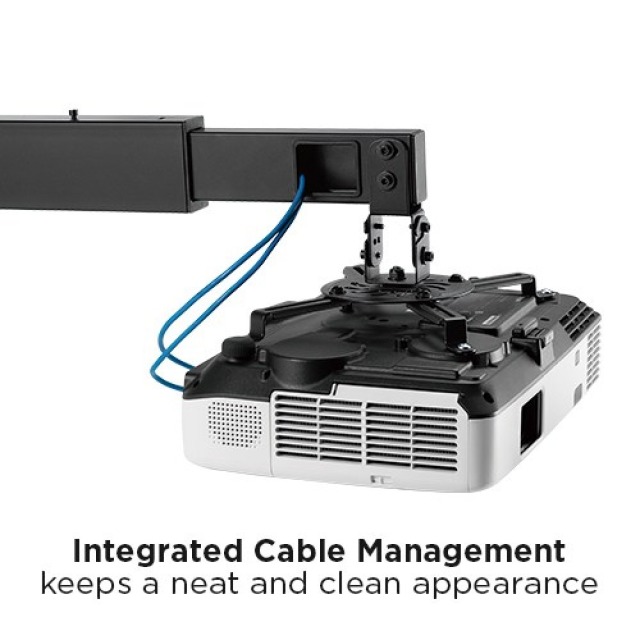

Integrated cable management elegantly conceals all cables connected to the projector.
Features

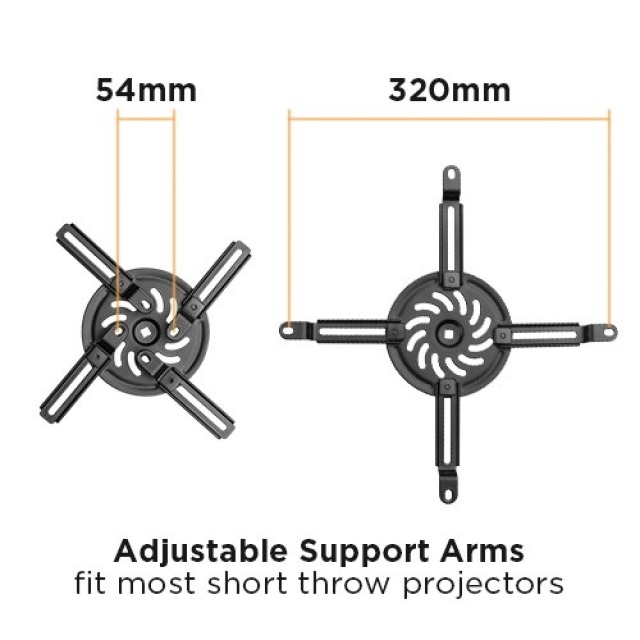

Adjustable support arms: Easily fit most projectors
Swivel joint: offers maximum viewing flexibility
Adjustable length for your different choices
360° rotating joint for optimal viewing angles
Tilt Design: Allows maximum viewing capability
Integrated cable management: keep everything organized and tidy

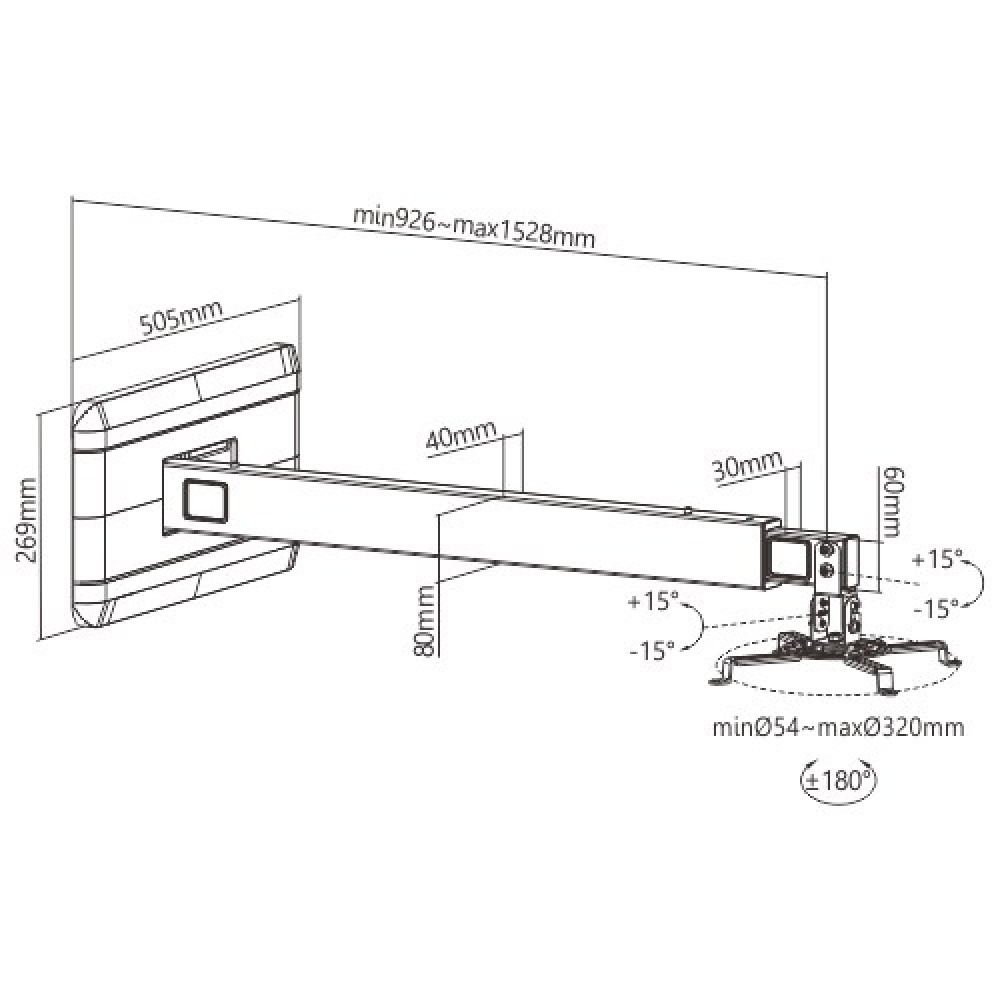

Technical specifications
Material: steel, plastic
Surface finish: powder coating
Color: black with fine texture
Dimensions: 1662 x 505 x 269 mm
Maximum weight supported: 15 kg
Mounting range: 54 ~ 320mm
Tilt range: +15° ~ -15°
Rotation: + 180° ~ -180°
Extension range: 926 ~ 1528mm
Integrated cable management
Package Contents
Wall support for ICA-PM 21 projectors
Hardware and installation instructions
A telescopic arm with column design allows for positioning the projector perfectly for optimal viewing angles.
The convenient adjustable support arms fit most short throw projectors and the integrated cable management keeps a neat and clean appearance.
Integrated cable management elegantly conceals all cables connected to the projector.
Features
Adjustable support arms: Easily fit most projectors
Swivel joint: offers maximum viewing flexibility
Adjustable length for your different choices
360° rotating joint for optimal viewing angles
Tilt Design: Allows maximum viewing capability
Integrated cable management: keep everything organized and tidy
Technical specifications
Material: steel, plastic
Surface finish: powder coating
Color: black with fine texture
Dimensions: 1662 x 505 x 269 mm
Maximum weight supported: 15 kg
Mounting range: 54 ~ 320mm
Tilt range: +15° ~ -15°
Rotation: + 180° ~ -180°
Extension range: 926 ~ 1528mm
Integrated cable management
Package Contents
Wall support for ICA-PM 21 projectors
Hardware and installation instructions
Technical properties
| Colour: | black |
|---|---|
| Lifting capacity: | 15.0 kg |
| Mounting method: | Wall |
| Number of joints: | 2 |
| Suitable for: | Projector |
