19" 1U Subrack
19" 1U Subrack for 3x 7DU plug-in modules, aluminum front, grey
Item number:
53711.100
EAN no.:
4049759294953
Product information for 19" 1U Subrack for 3x 7DU plug-in modules, aluminum front, grey
19"/1U subrack for 21DU
1U aluminum front panel for mounting in 19"-units
Body of the 1U subrack made of powder-coated sheet steel
21TE module carrier for plug-in modules
Scope of delivery:
1 x subrack mounted

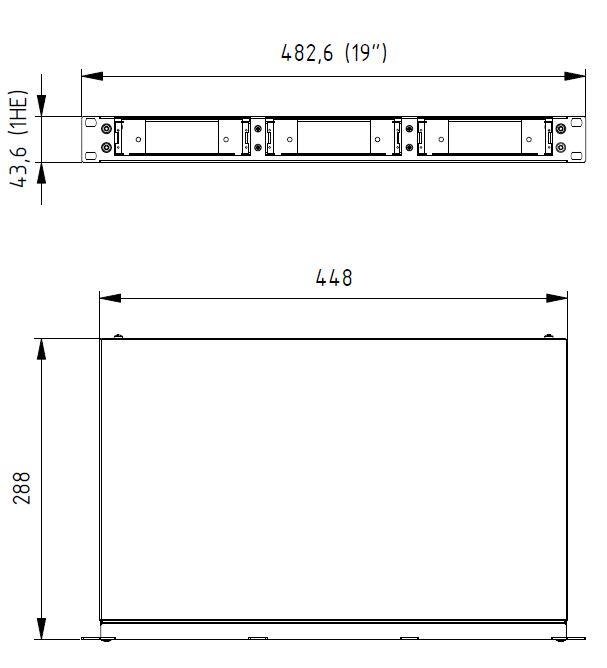

dimensions: 483 x 43.6 x 288 mm
1U aluminum front panel for mounting in 19"-units
Body of the 1U subrack made of powder-coated sheet steel
21TE module carrier for plug-in modules
Scope of delivery:
1 x subrack mounted
dimensions: 483 x 43.6 x 288 mm
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Depth: | 288 mm |
| Height: | 43.6 mm |
| Modular spacing (MW): | 21 DU |
| Rail mounting possible: | False |
| Side-by-side housing: | False |
| Surface finishing: | Powder coating |
| Type of enclosure: | Open |
| Wall mounting possible: | False |
| Width: | 483 mm |
| With integrated PCB-mounting connection system: | False |
| With screening: | False |
| With ventilation slots: | True |
| max. Modules: | 3 |
