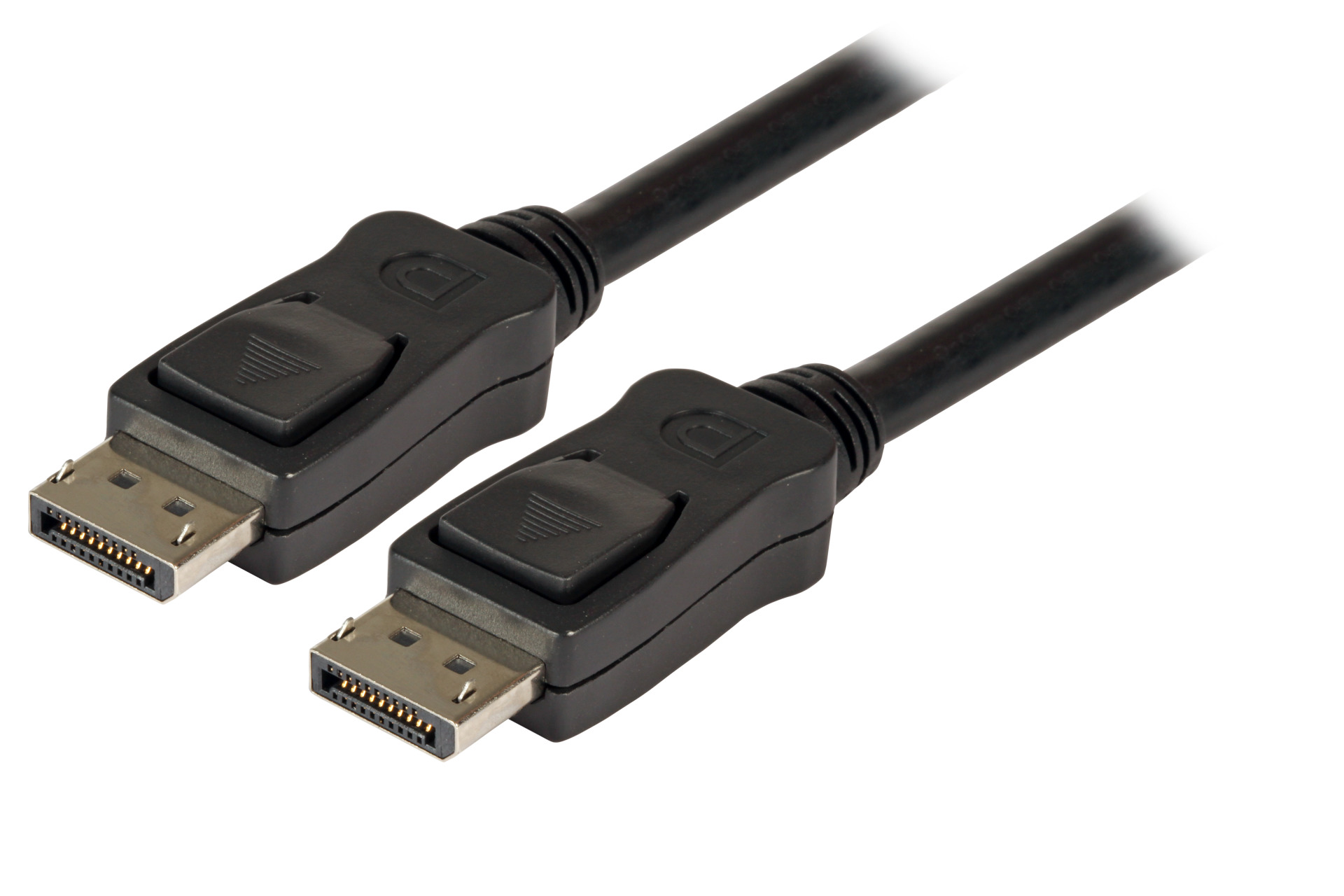

DisplayPort 1.4 Cable, 8K 60Hz
DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 5m, black
Item number:
K5567SW.5
EAN no.:
4049759233099
Product information for DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 5m, black
According to DisplayPort1.4 standard
Resolution up to 8K Ultra HD (7680 x 4320 @ 60Hz)
Conform to HDCP2.2
DisplayPort plugs and contacts gold plated
Tripple shielding
Conductor: bare copper, Jacket: PVC
Pin 20: DP_PWR not connected
Housing with 360° shielding, moulded and DP lock
Resolution up to 8K Ultra HD (7680 x 4320 @ 60Hz)
Conform to HDCP2.2
DisplayPort plugs and contacts gold plated
Tripple shielding
Conductor: bare copper, Jacket: PVC
Pin 20: DP_PWR not connected
Housing with 360° shielding, moulded and DP lock
Technical properties
| Connection type connection 1: | plug |
|---|---|
| Connection type connection 2: | plug |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 20 |
| Type of connector connection 1: | DisplayPort (DP) |
| Type of connector connection 2: | DisplayPort (DP) |
Variants
| Item no. | Name | Colour | Length | |
|---|---|---|---|---|
| K5567SW.1 | DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 1m, black | black | 1.0 m | |
| K5567SW.2 | DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 2m, black | black | 2.0 m | |
| K5567SW.3 | DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 3m, black | black | 3.0 m | |
| K5567SW.5 | DisplayPort 1.4 Cable 8K 60Hz,A-A M-M, 5m, black | black | 5.0 m |
