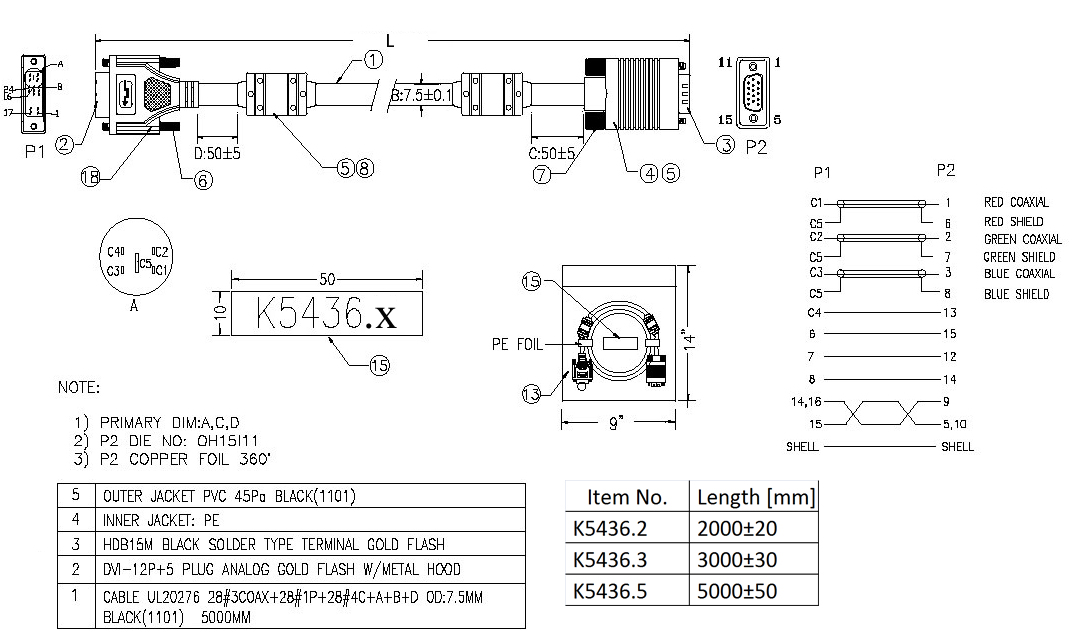

DVI/VGA Monitorkabel
DVI-A 12+5 to VGA HD-DSub 15, M-M, AWG 28, 3,0m, black
Item number:
K5436.3
EAN no.:
4049759054557
Product information for DVI-A 12+5 to VGA HD-DSub 15, M-M, AWG 28, 3,0m, black
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Contacts gold plated, plugs moulded
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Adapter cable from DVI-A to VGA
Conductor: bare copper, Jacket: PVC
Contacts gold plated, plugs moulded
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Adapter cable from DVI-A to VGA
Technical properties
| Connection type connection 1: | Plug |
|---|---|
| Connection type connection 2: | Plug |
| Number of poles connection 1: | 17 |
| Number of poles connection 2: | 15 |
| Type of connector connection 1: | DVI 12+5 |
| Type of connector connection 2: | VGA DBHD15 |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
