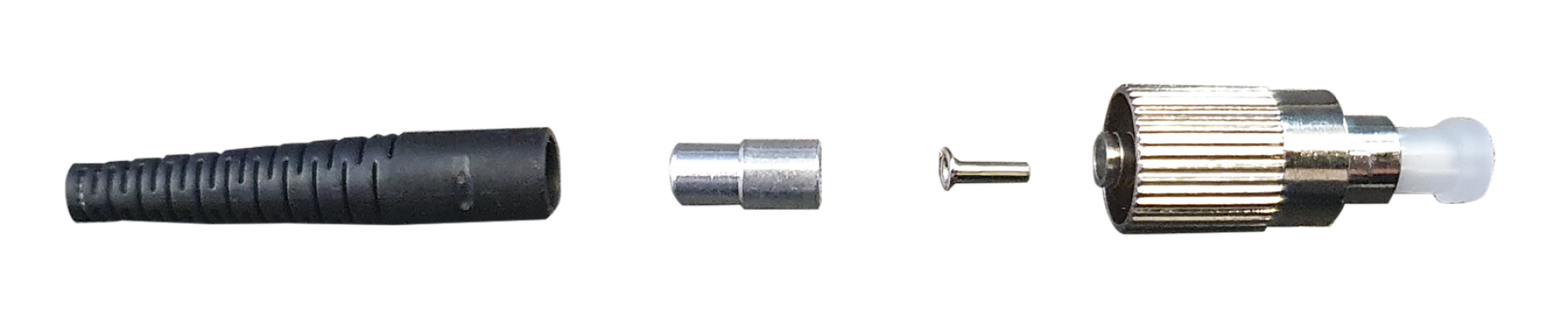

FC Connector Set with plug, ferrule and boot
FC/PC-connector Singlemode black boot
Item number:
53227.3
EAN no.:
4049759078911
Product information for FC/PC-connector Singlemode black boot
FC plug set different versions
Technical properties
| Connection type: | Crimping |
|---|---|
| Durchmesser Ferrulenöffnung: | 127 µm |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating Temperature: | -40 – 75 °C |
| Storage Temperature: | -55 – 85 °C |
| Type of connector: | FC |
Variants
| Item no. | Name | Cable Ø | Colour | APC version | Fibre class | Suitable for type of fibre | Einfügedämpfung | Rückflussdämpfung | |
|---|---|---|---|---|---|---|---|---|---|
| 53216.3 | FC/PC-connector Multimode ceramic, black boot | 3.0 mm | black | False | - | Multimode | 0,3 dB | - | |
| 53216.4 | FC/PC-connector Multimode ceramic, red boot | 2.0 mm | red | False | - | Multimode | 0,3 dB | - | |
| 53227.3 | FC/PC-connector Singlemode black boot | 3.0 mm | black | False | OS2 | Singlemode | typ, 0,15 dB | 50 dB | |
| 53227.4 | FC/PC-connector Singlemode red boots | 3.0 mm | red | False | OS2 | Singlemode | typ, 0,15 dB | 50 dB | |
| 53227.5 | FC/APC8°-connector Singlemode | 3.0 mm | green | True | OS2 | Singlemode | typ, 0,15 dB | 50 dB |
necessary tools
