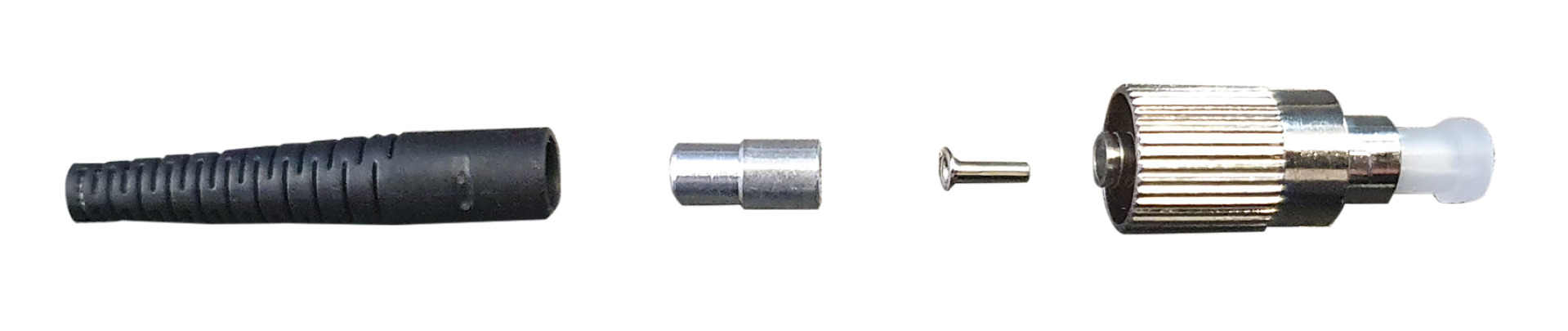

FC Connector Set with plug, ferrule and boot
FC/PC-connector Multimode ceramic, black boot
Item number:
53216.3
EAN no.:
4049759023447
Product information for FC/PC-connector Multimode ceramic, black boot
FC plug set different versions
Technical properties
| Connection type: | Crimping |
|---|---|
| Durchmesser Ferrulenöffnung: | 127 µm |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating temperature: | -40 – 75 °C |
| Storage Temperature: | -55 – 85 °C |
| Type of connector: | FC |
Variants
| Item no. | Name | Color | Suitable for type of fibre | APC version | Cable Ø | Insertion Loss | Fibre class | Return Loss | |
|---|---|---|---|---|---|---|---|---|---|

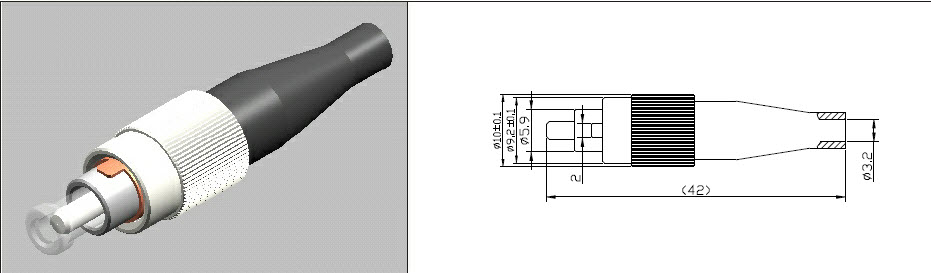

| 53216.3 | FC/PC-connector Multimode ceramic, black boot | black | Multimode | False | 3.0 mm | 0.3 dB | - | - | |

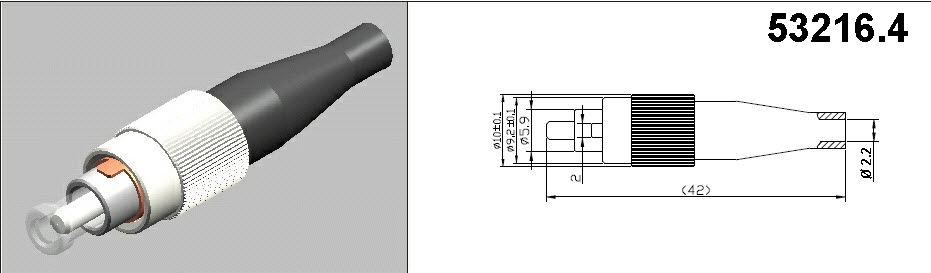

| 53216.4 | FC/PC-connector Multimode ceramic, red boot | red | Multimode | False | 2.0 mm | 0.3 dB | - | - | |
| 53227.3 | FC/PC-connector Singlemode black boot | black | Single mode | False | 3.0 mm | typ. 0.15 dB | OS2 | 50 dB | |
| 53227.4 | FC/PC-connector Singlemode red boots | red | Single mode | False | 3.0 mm | typ. 0.15 dB | OS2 | 50 dB | |
| 53227.5 | FC/APC8°-connector Singlemode | Green | Single mode | True | 3.0 mm | typ. 0.15 dB | OS2 | 50 dB |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
necessary tools
