U-DQ(ZN)BH 50/125µ OM3 2000N 4 - 24

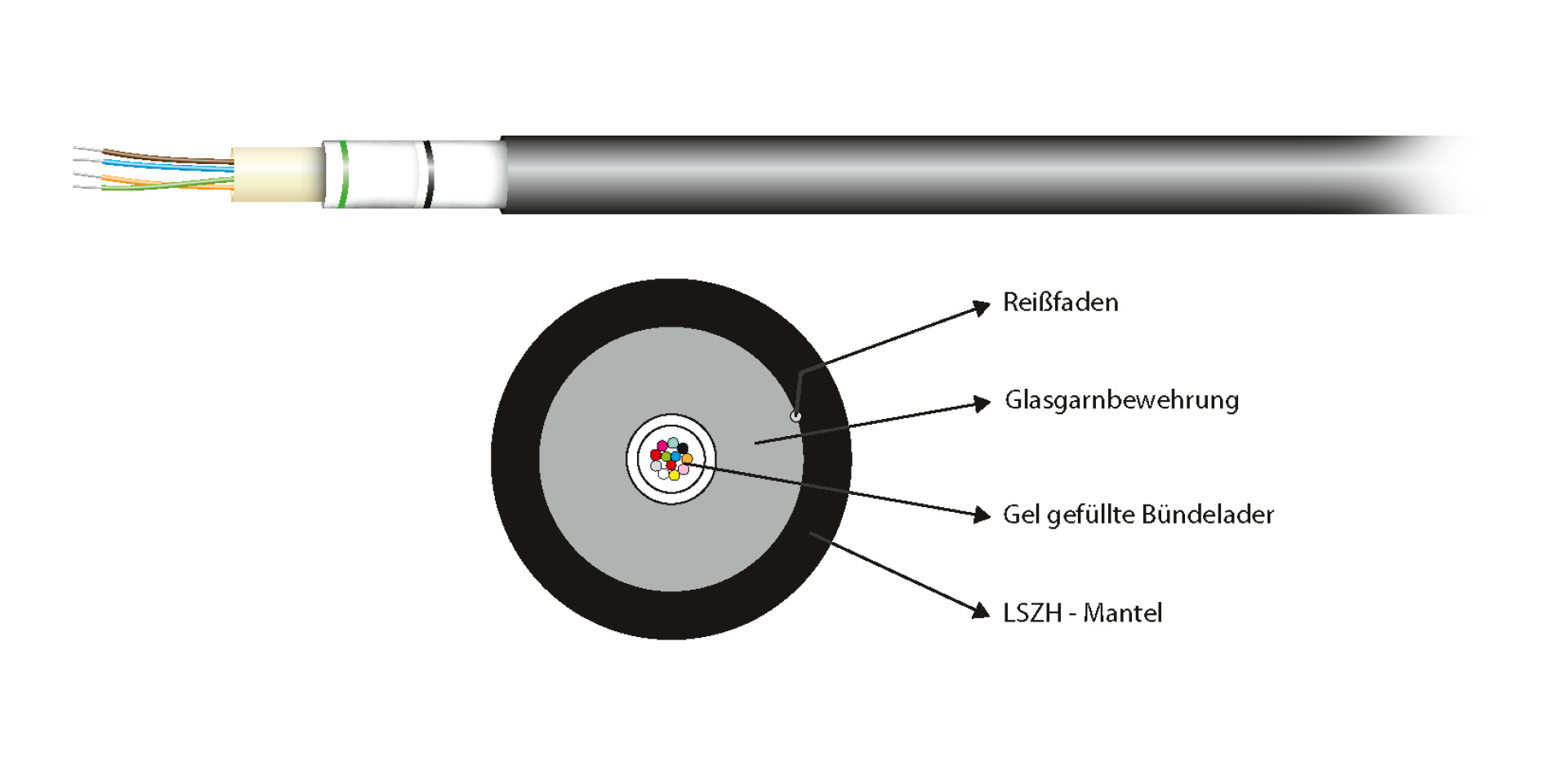

INFRALAN® U-DQ(ZN)BH 12G 50/125µ, OM3, LSZH black CPR Dca
Item number:
54512.1A-CPR
EAN no.:
4049759258375
Product information for INFRALAN® U-DQ(ZN)BH 12G 50/125µ, OM3, LSZH black CPR Dca
Areas of application:
For connecting buildings
To the campus cabling
For direct burial (according to installation instructions)
For insertion in plastic pipe systems
For installation in cable ducts and on platforms
Saving of splicing work at building entrance
Characteristics:
Easy to process construction
Tearing thread for opening/removing the cable sheath
Gel-free cable construction for clean and quick installation
Small dimensions
High installation stability
Fire behaviour tested and certified according to
Construction Products Ordinance (see Euro Fire Class)
The cable diameter can vary
For connecting buildings
To the campus cabling
For direct burial (according to installation instructions)
For insertion in plastic pipe systems
For installation in cable ducts and on platforms
Saving of splicing work at building entrance
Characteristics:
Easy to process construction
Tearing thread for opening/removing the cable sheath
Gel-free cable construction for clean and quick installation
Small dimensions
High installation stability
Fire behaviour tested and certified according to
Construction Products Ordinance (see Euro Fire Class)
The cable diameter can vary
Technical properties
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| Application: | Inside/outside |
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 150 N/cm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame-retardant: | according to EN 60332-1 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 dB/km |
| IL max. (dB/km) 1300nm: | 0.7 dB/km |
| Jacket Material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | acc. EN 61034-2 |
| Low smoke (according to EN 61034-2): | True |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.8 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Variants
| Item no. | Name | CPR-Class | Category | Tensile force max. | Cable Ø | Number of fibres | Aufbau | Außendurchmesser ca. | Biegeradius | VDE-Bezeichnung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54504.1A-CPR | INFRALAN® U-DQ(ZN)BH 4G 50/125µ, OM3, LSZH black CPR Dca | Dca | OM3 | 2000 N | 6.0 mm | 4 | 4G ( 1 x 4 ) Multimode OM3 | 6,0 mm | 60 mm | U-DQ(ZN)BH 4G50/125 | 40 kg/km | |
| 54508.1A-CPR | INFRALAN® U-DQ(ZN)BH 8G 50/125µ, OM3, LSZH black CPR Dca | Dca | OM3 | 2000 N | 6.0 mm | 8 | 8G ( 1 x 8 ) Multimode OM3 | 6,0 mm | 60 mm | U-DQ(ZN)BH 8G50/125 | 40 kg/km | |
| 54512.1A-CPR | INFRALAN® U-DQ(ZN)BH 12G 50/125µ, OM3, LSZH black CPR Dca | Dca | OM3 | 2000 N | 6.0 mm | 12 | 12G ( 1 x 12 ) Multimode OM3 | 6,0 mm | 60 mm | U-DQ(ZN)BH 12G50/125 | 40 kg/km | |
| 54524.1A-CPR | INFRALAN® U-DQ(ZN)BH 2x12G 50/125µ, OM3, LSZH black CPR-Dca | Dca | OM3 | 2000 N | 7.2 mm | 24 | 24G ( 2 x 12 ) Multimode OM3 | 7,2 mm | 72 mm | U-DQ(ZN)BH 24G50/125 | 52 kg/km |
