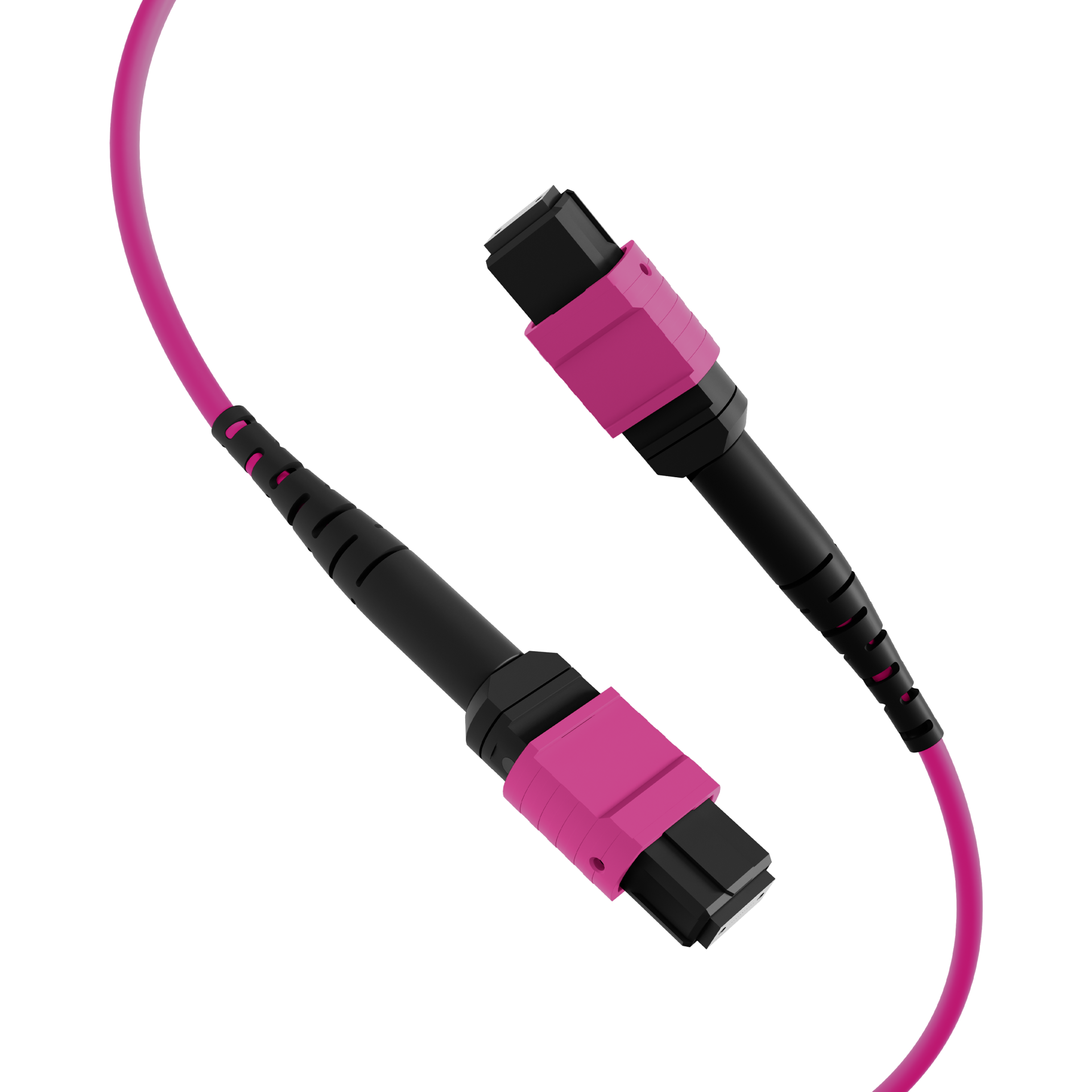

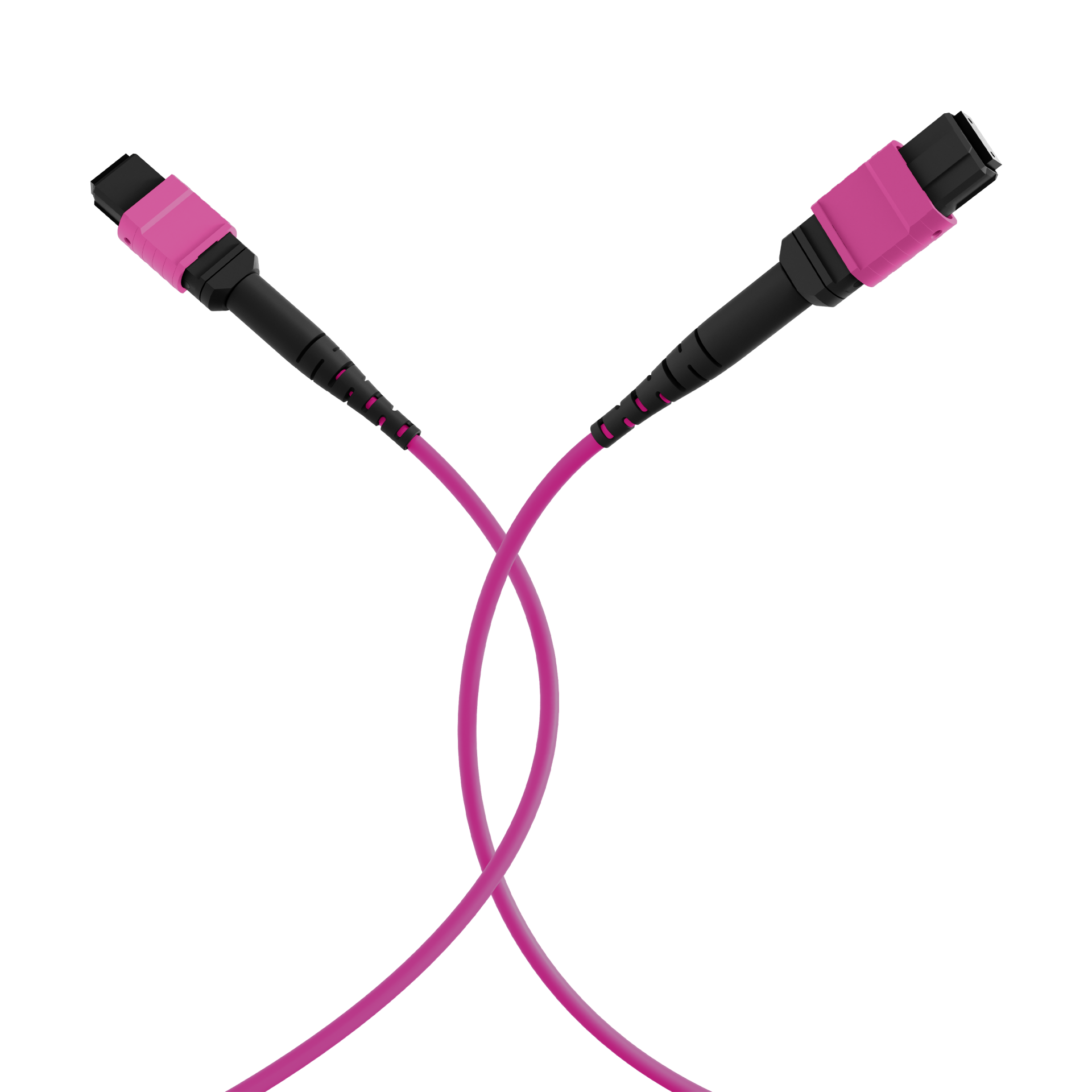

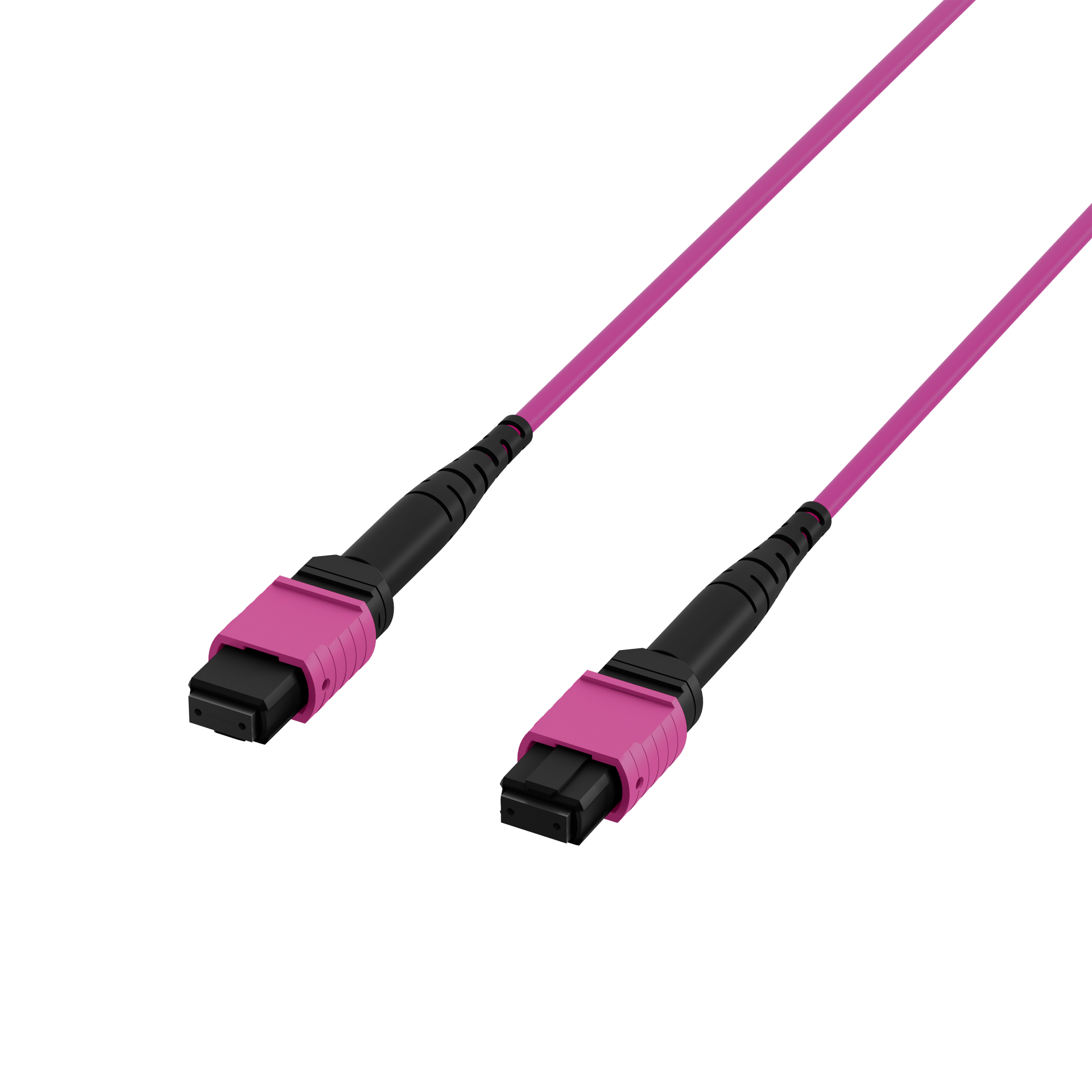

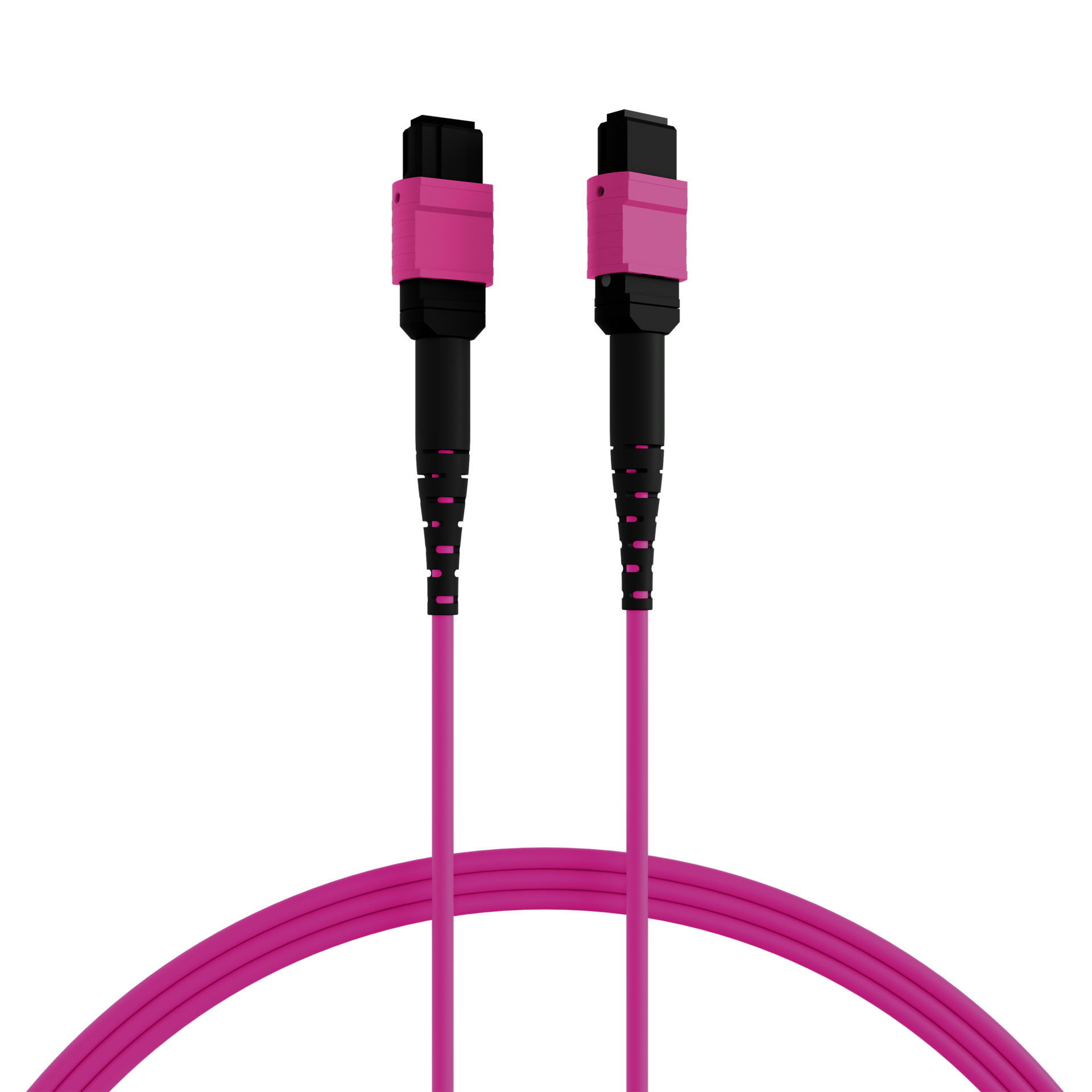

MTP®-F/MTP®-F 24-fiber matrix Patch cable OM4, Code A
MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 25m
Item number:
MTPF24MTPFOM4-25-A
EAN no.:
4049759237141
Product information for MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 25m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Technical properties
| Cable diameter: | 9.0 mm |
|---|---|
| Category: | OM4 |
| Coding: | Type A straight |
| Colour outer sheath: | erica violet |
| Connector connection 1: | MTP-F |
| Connector connection 2: | MTP-F |
| Fibre type: | OM4 50/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket material: | LSZH |
| Operating temperature: | 0 – 50 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Variants
| Item no. | Name | Number of fibres | Number of connectors connection 2 | Number of connectors connection 1 | Length | |
|---|---|---|---|---|---|---|
| MTPF24MTPFOM4-5-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 5m | 24 | 2 x MTP® female | 2 x MTP® female | 5.0 m | |
| MTPF24MTPFOM4-10-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 10m | 24 | 2 x MTP® female | 2 x MTP® female | 10.0 m | |
| MTPF24MTPFOM4-15-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 15m | 24 | 2 x MTP® female | 2 x MTP® female | 15.0 m | |
| MTPF24MTPFOM4-20-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 20m | 24 | 2 x MTP® female | 2 x MTP® female | 20.0 m | |
| MTPF24MTPFOM4-25-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 25m | 24 | 2 x MTP® female | 2 x MTP® female | 25.0 m | |
| MTPF24MTPFOM4-30-A | MTP®(F)-MTP®(F) Patch cable OM4 24 fibers Typ A LSZH erica-violet 30m | 24 | 2 x MTP® female | 2 x MTP® female | 30.0 m |
