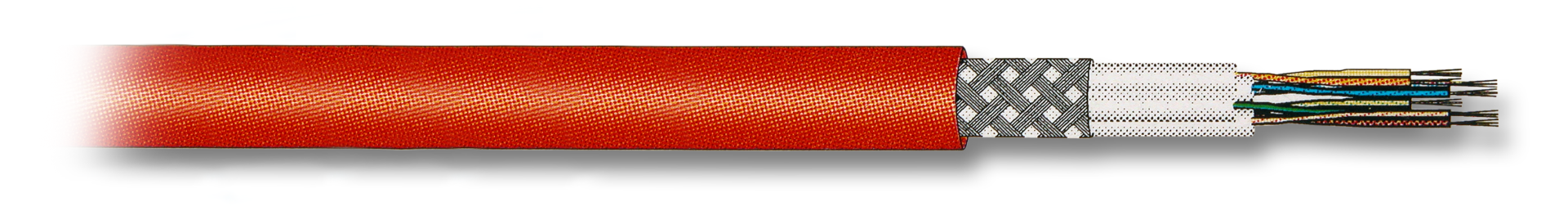

Patch cable UC900M SS26 4P PUR red
Prices only visible for logged in users
Patchkabel UC900M SS26 4P PUR red 100m ring
Item number:
99760.100
Product information for Patchkabel UC900M SS26 4P PUR red 100m ring
Cat.7 patch cable - exceeds the requirements of ISO/IEC11801, IEC61156-6, EN50173-1 and EN50288-4-2. Resistance against mineral-oil, ASTM-oil and UV-radiation. Suitable for outdoor use, but not for direct burial.
Successor for 99710.1
Successor for 99710.1
Technical properties
| (Halogenfree): | acc. EN 50267-1 |
|---|---|
| AWG-size: | 26/7 |
| Bending radius (dynamic): | 50 mm |
| Bending radius (static): | 25 mm |
| Cable: | IEC 61156-6 |
| Cable Construction: | S/FTP |
| Cable type: | Draka UC900 SS26 Cat.7 PUR |
| Cabling standards: | ISO/IEC 11801 |
| Capacity to earth: | 1500 pF/km |
| Category: | 7 |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Cu, blank |
| Core identification: | Colour |
| Core insulation: | Foam-Skin PP |
| Coupling attenuation: | 80 dB |
| Delay skew: | 12 ns/100m |
| Flame-retardant: |
acc. EN 60332-1 acc. IEC 60754-2 acc. IEC 61034 |
| Halogen free (acc. EN 50267-2-2): | True |
| Halogen free (according to EN 60754-1/2): | True |
| Impedance: | 100 ± 5 Ohm |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | Polyurethane (PUR) |
| Loop resistance: | 290 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | False |
| Max. Freuqency: | 1000 MHz |
| NVP value: | 79 % |
| Operating temperature, fix: | -30 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | C |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| UV resistance: | no |
Variants
| Item no. | Name | Number of cores | Length | Colour outer sheath | Type | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99760.100 | Patchkabel UC900M SS26 4P PUR red 100m ring | 8 | 100.0 m | red | simplex | 18 kg/km | 38 kg/km | 100 N | 6,0 mm | 565 MJ/km | |
| 99760.500 | Patch cable UC900M SS26 4P PUR 500m red | 8 | 500.0 m | red | simplex | 18 kg/km | 38 kg/km | 100 N | 6,0 mm | 565 MJ/km | |
| 99760.1 | Patch cable UC900M SS26 4P PUR red | 8 | 1.0 m | red | simplex | 18 kg/km | 38 kg/km | 100 N | 6,0 mm | 565 MJ/km |
