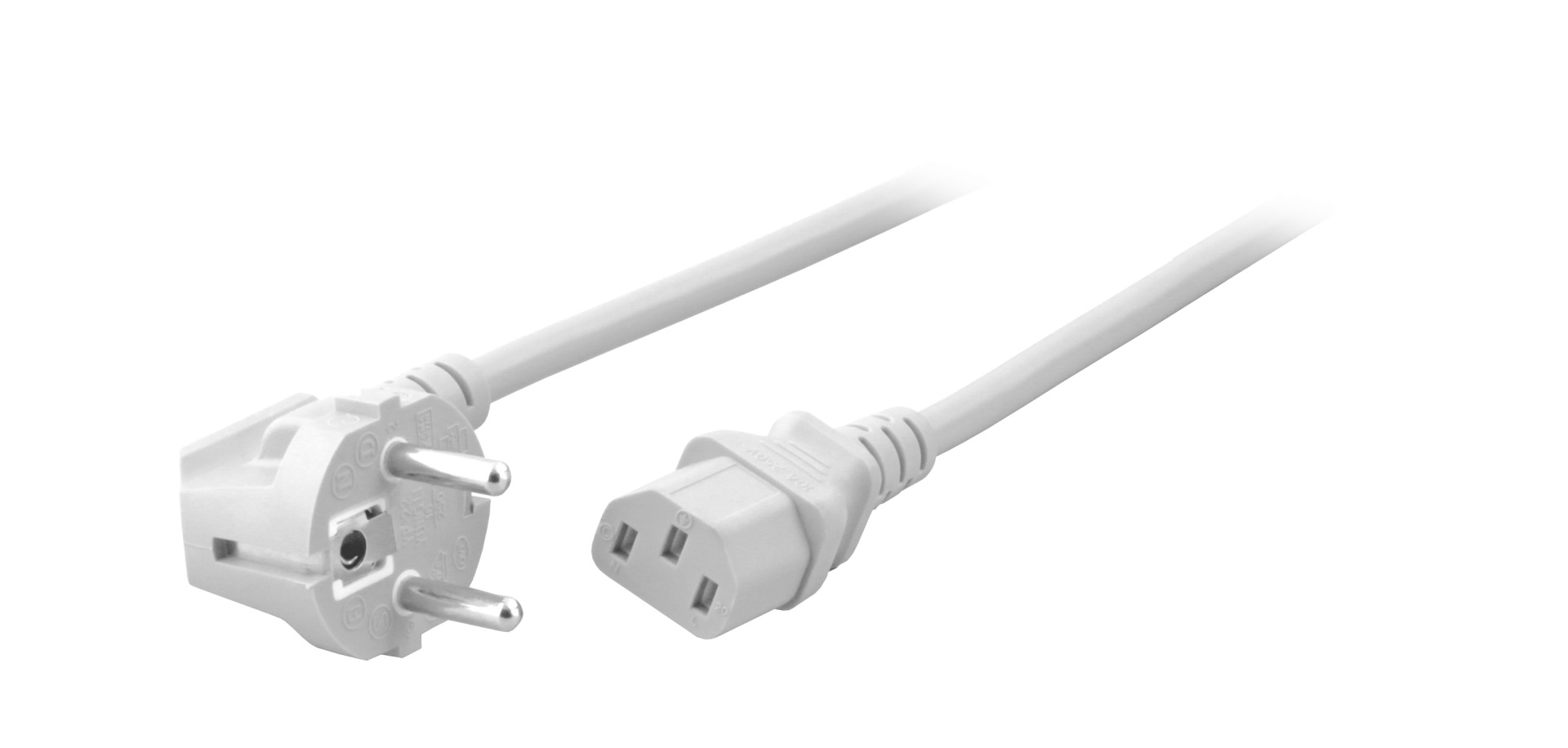

Power Cable CEE7/7 90° - C13, White
Power Cable CEE7/7 90° - C13 180°, White, 3.0 m, 3 x 1.00 mm²
Item number:
EK588WS.3V2
EAN no.:
4049759269715
Product information for Power Cable CEE7/7 90° - C13 180°, White, 3.0 m, 3 x 1.00 mm²
Coloured power cords for clearly assignment of device - cable - outlet
No time-intensive search or tracing of cables
CEE7/3 Plug CEE7/7 90° - C13 180° (IEC jack)
Cable H05VV-F 3G 0.75 qmm
10 A / 250 V VDE tested
The coloured power cords enable an instant visual assignment of devices and the corresponding power cord.
No time-intensive search or tracing of cables
CEE7/3 Plug CEE7/7 90° - C13 180° (IEC jack)
Cable H05VV-F 3G 0.75 qmm
10 A / 250 V VDE tested
The coloured power cords enable an instant visual assignment of devices and the corresponding power cord.
Technical properties
| (Halogenfree): | False |
|---|---|
| Colour outer sheath: | weiß |
| Connection 1: | Schutzkontaktstecker (Typ F), rechtwinklig |
| Connection 2: | Kaltgerätebuchse gerade |
| Jacket material: | Polyvinylchlorid (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | Nein |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | Ja |
| Spiralized cable: | Nein |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | Nein |
Variants
| Item no. | Name | Colour outer sheath | With protective conductor | Length | Leiternennquerschnitt | Außendurchmesser ca. | |
|---|---|---|---|---|---|---|---|
| EK588WS.1,8V2 | Power Cable CEE7/7 90° - C13 180°, White, 1.8 m, 3 x 0.75 mm² | weiß | Ja | 1,8 m | 0,75 mm² | 6,5 mm | |
| EK588WS.3V2 | Power Cable CEE7/7 90° - C13 180°, White, 3.0 m, 3 x 1.00 mm² | weiß | Ja | 3.0 m | 1,00 mm² | 7,0 mm |
