RJ45 Patchkabel Cat.6 U/UTP PVC

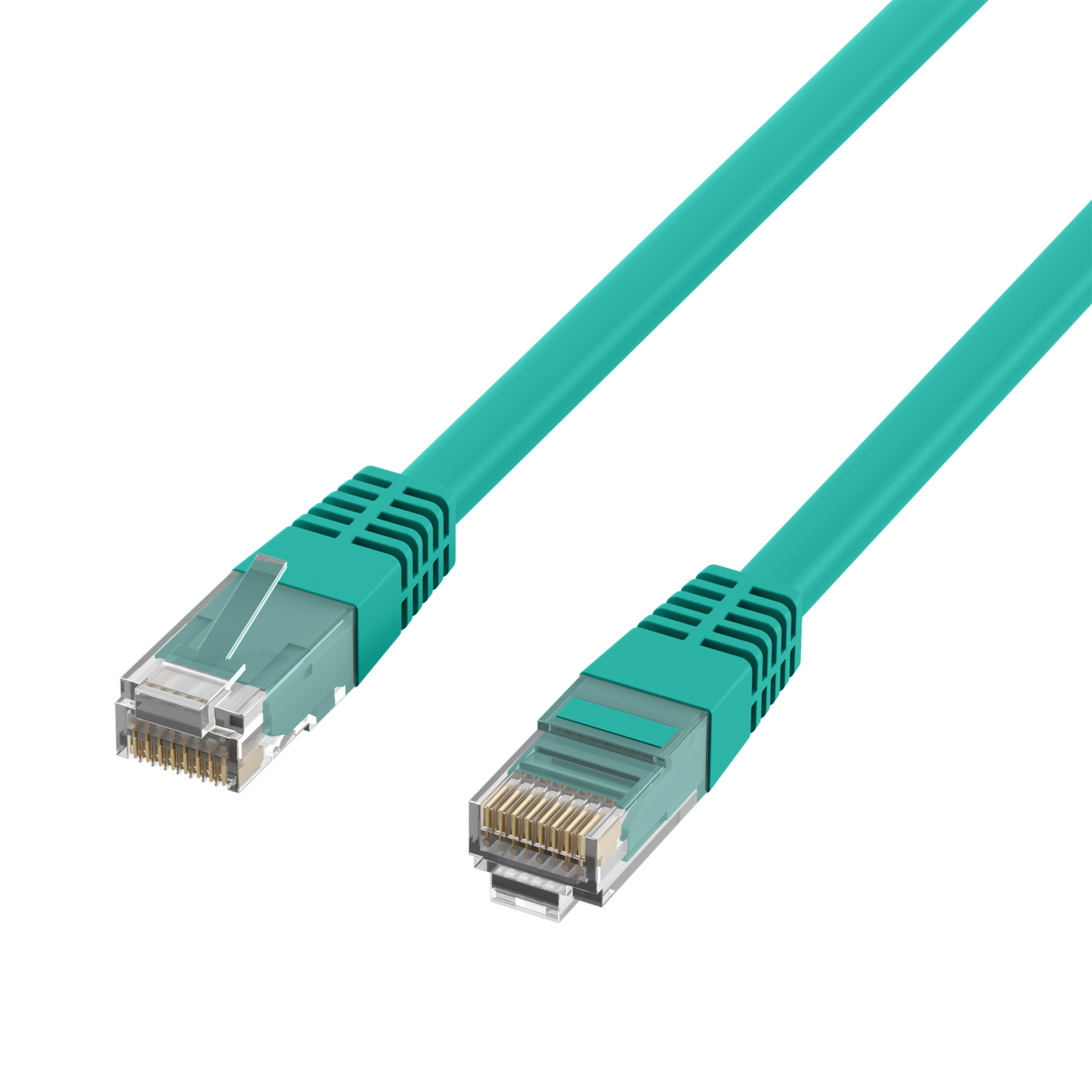

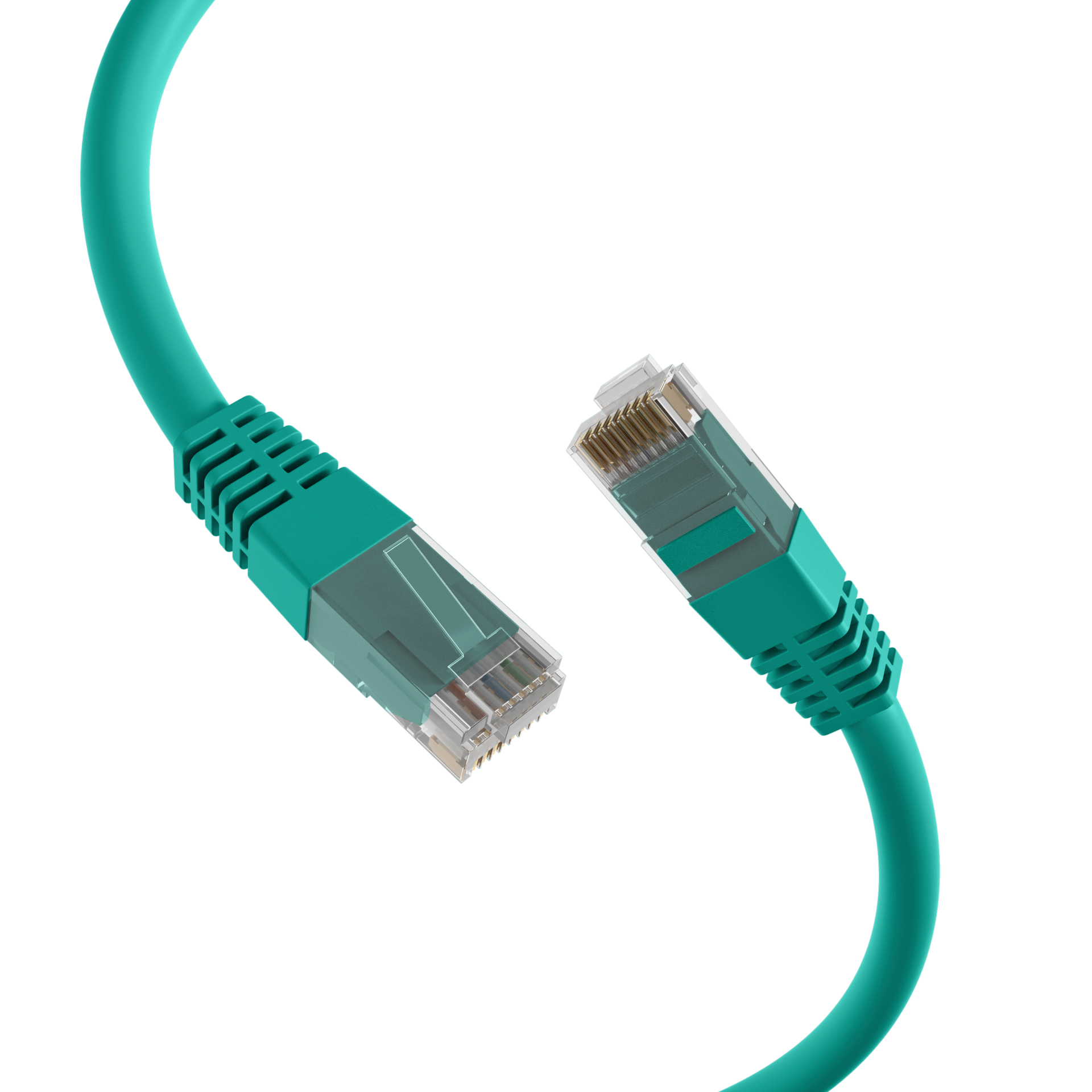

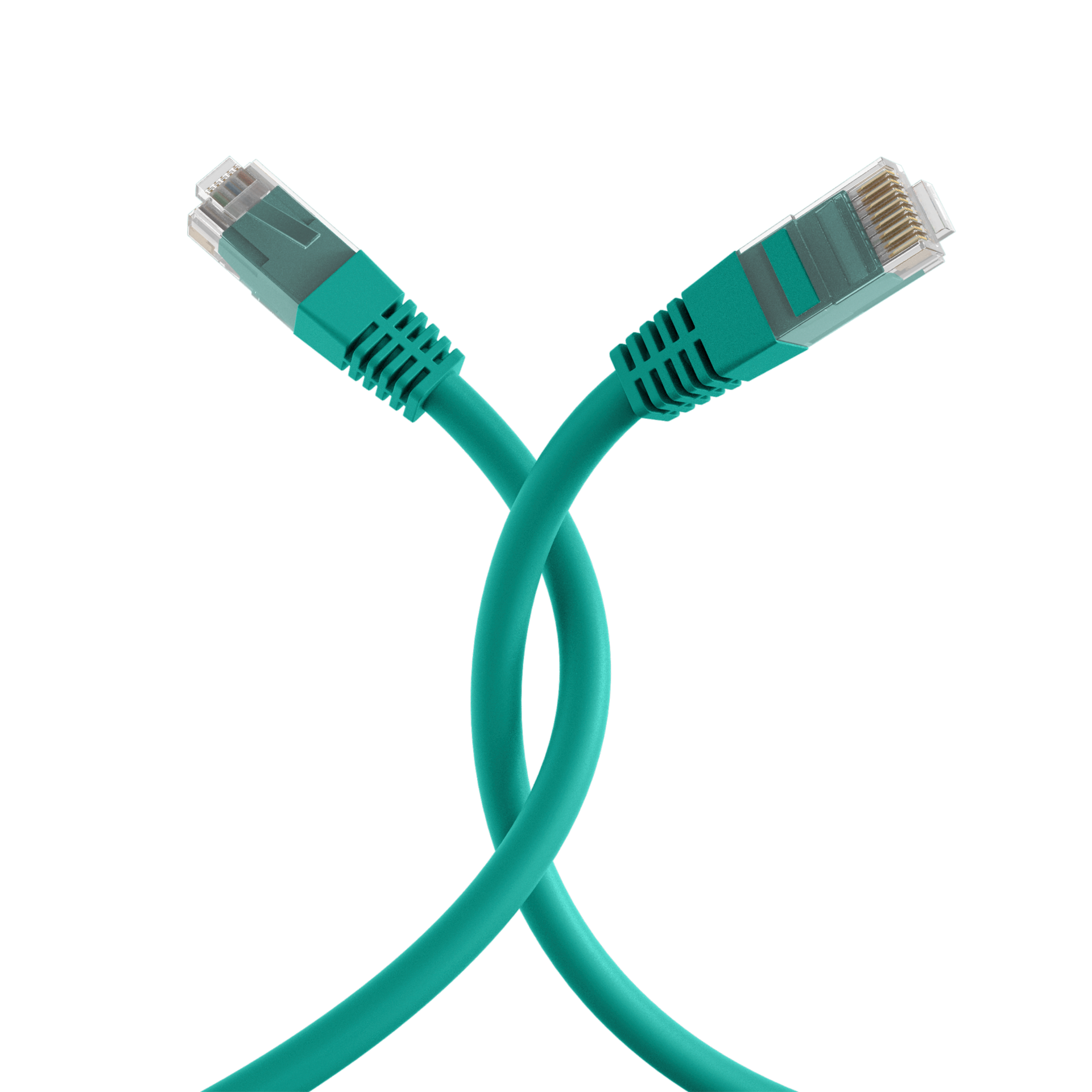

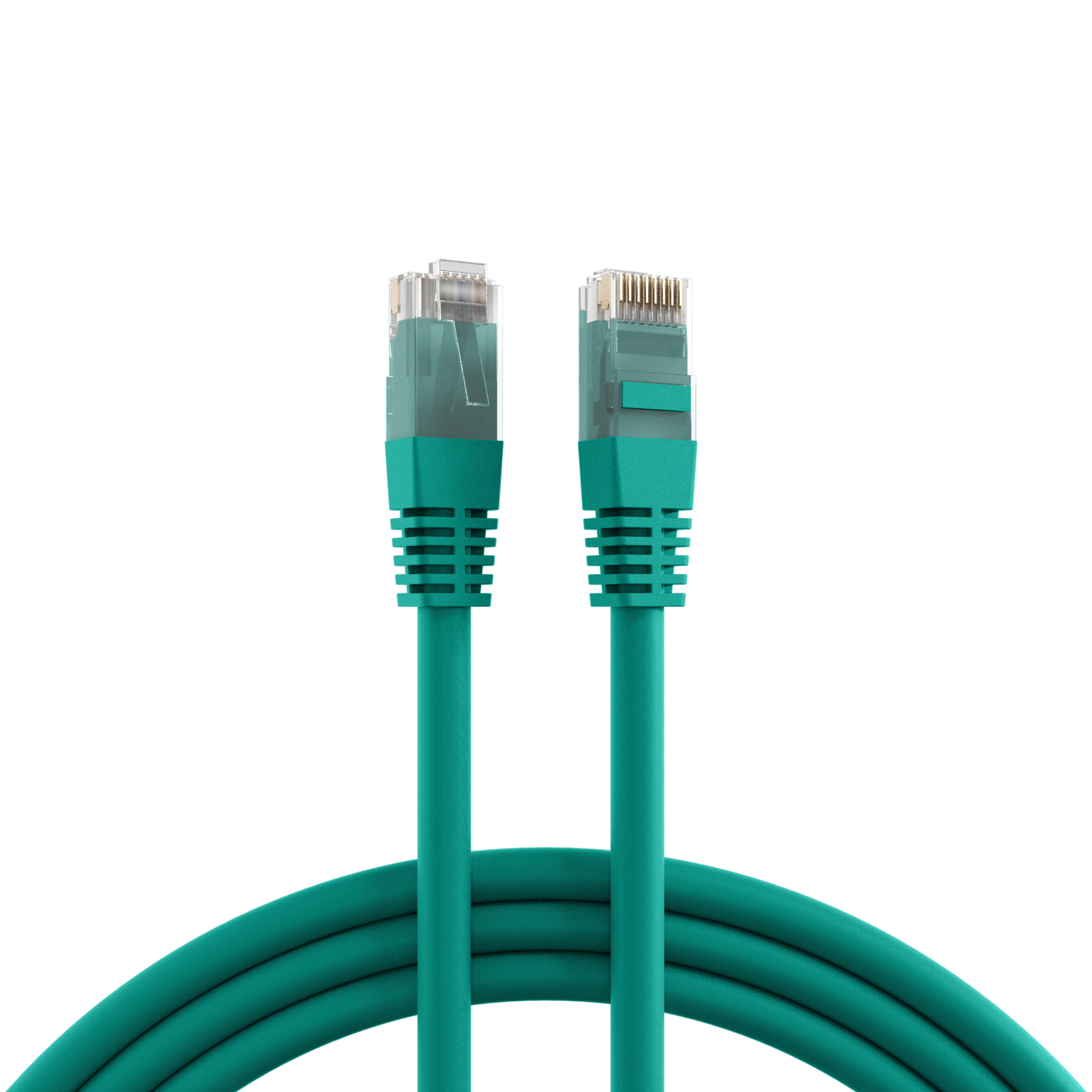

RJ45 Patch Cord Cat.6 U/UTP PVC CCA green 0,5m
Item number:
K8100GN.0,5
EAN no.:
4049759033156
Product information for RJ45 Patch Cord Cat.6 U/UTP PVC CCA green 0,5m
RJ45 patch cable Cat.6 U/UTP PVC CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
Technical properties
| (Halogenfree): | False |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | angespritzt |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6 |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | rot |
| Conductive shield: | No |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-4 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | False |
| Flame retardant: | nach IEC60332-1 |
| Halogen-free: | No |
| Impedance: | 100 |
| Jacket material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | False |
| Mating cycles: | >750 |
| Model: | unshielded |
| NVP value: | 0 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | Nein |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 70 °C |
| Outer diameter of the cable: | 5,9 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 250MHz |
| Test voltage: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8100GN.0,25 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA green 0,25m | 0.25 m | ±5 % | |
| K8100GN.0,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA green 0,5m | 0.5 m | ±5 % | |
| K8100MA.30 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA magenta 30m | 30,0 m | ±5 % | |
| K8100OR.1 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA orange 1m | 1,0 m | ±5 % |
