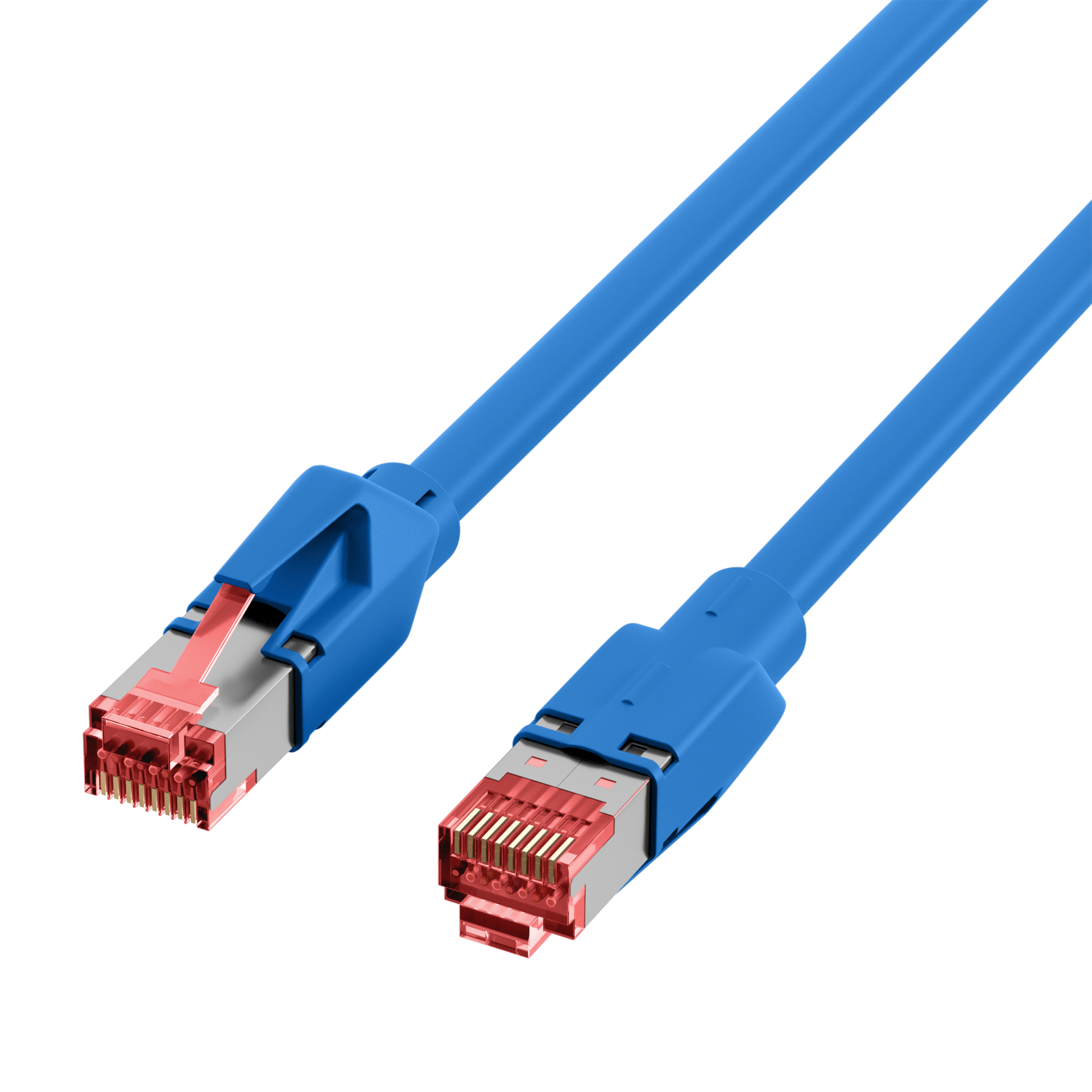

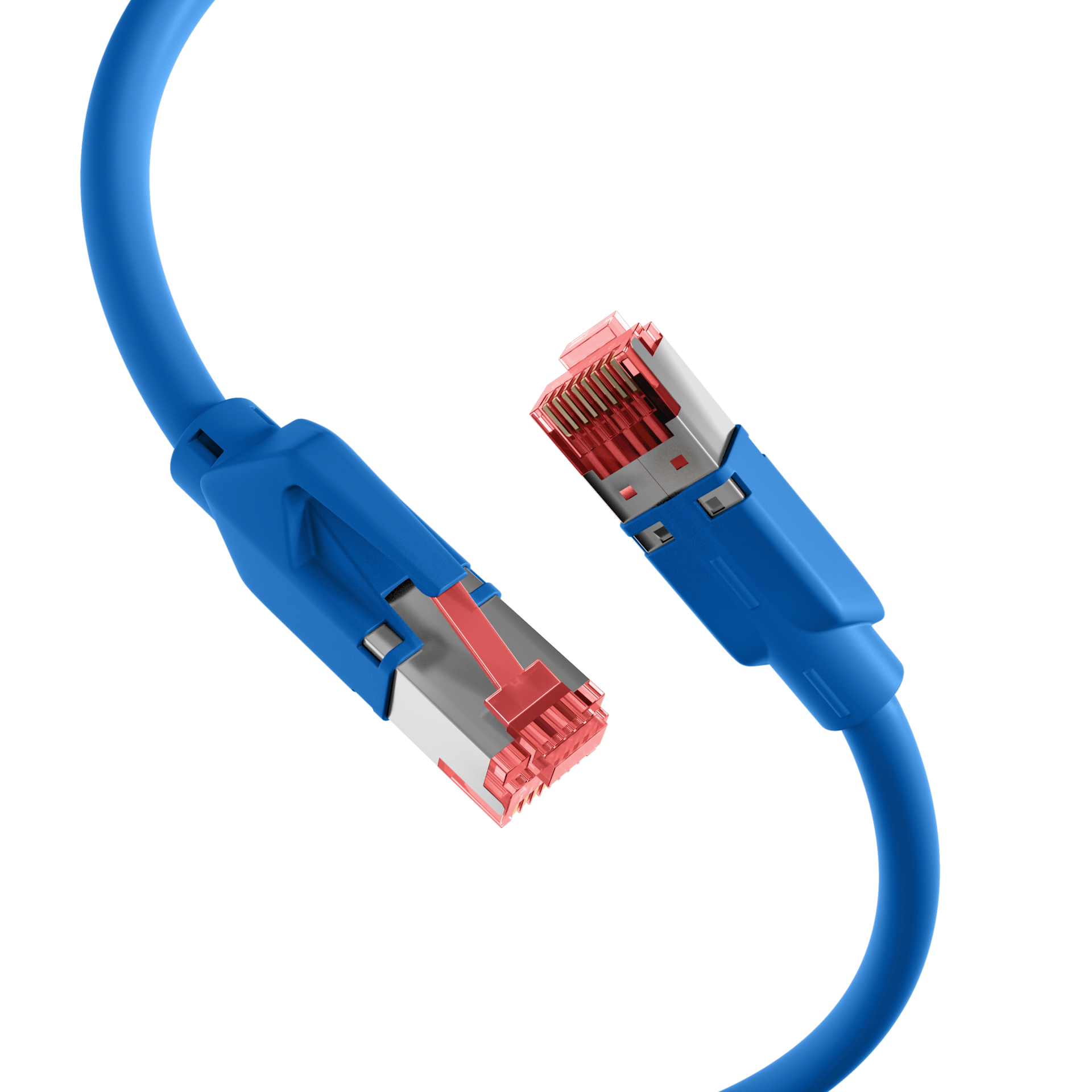

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue
Prices only visible for logged in users
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,15m
Item number:
K8054.0,15
EAN no.:
4049759198862
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,15m
The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable UC900 SS27 from Draka and TM21 connectors from Hirose.
Cross section 4 x 2 x AWG27/7
Mounted anti-kink grommet
Cross section 4 x 2 x AWG27/7
Mounted anti-kink grommet
Technical properties
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Halogen free: | True |
| Impedance: | 100 ±25 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket Material: | LSZH |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 V DC, 1min |
| Total screening: | ca. 45 % |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8054.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,15m | 0.15 m | ±5 % | |
| K8054.025 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,25m | 0.25 m | ±5 % | |
| K8054.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,5m | 0.5 m | ±5 % | |
| K8054.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1m | 1.0 m | ±5 % | |
| K8054.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1,5m | 1.5 m | ±5 % | |
| K8054.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m | 2.0 m | ±5 % | |
| K8054.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 3m | 3.0 m | ±5 % | |
| K8054.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 5m | 5.0 m | ±5 % | |
| K8054.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 7,5m | 7.5 m | ±5 % | |
| K8054.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 10m | 10.0 m | ±5 % | |
| K8054.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 15m | 15.0 m | ±5 % | |
| K8054.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 20m | 20.0 m | ±5 % | |
| K8054.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 25m | 25.0 m | ±5 % | |
| K8054.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 30m | 30.0 m | ±5 % | |
| K8054.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 40m | 40.0 m | ±5 % | |
| K8054.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 50m | 50.0 m | ±5 % |
