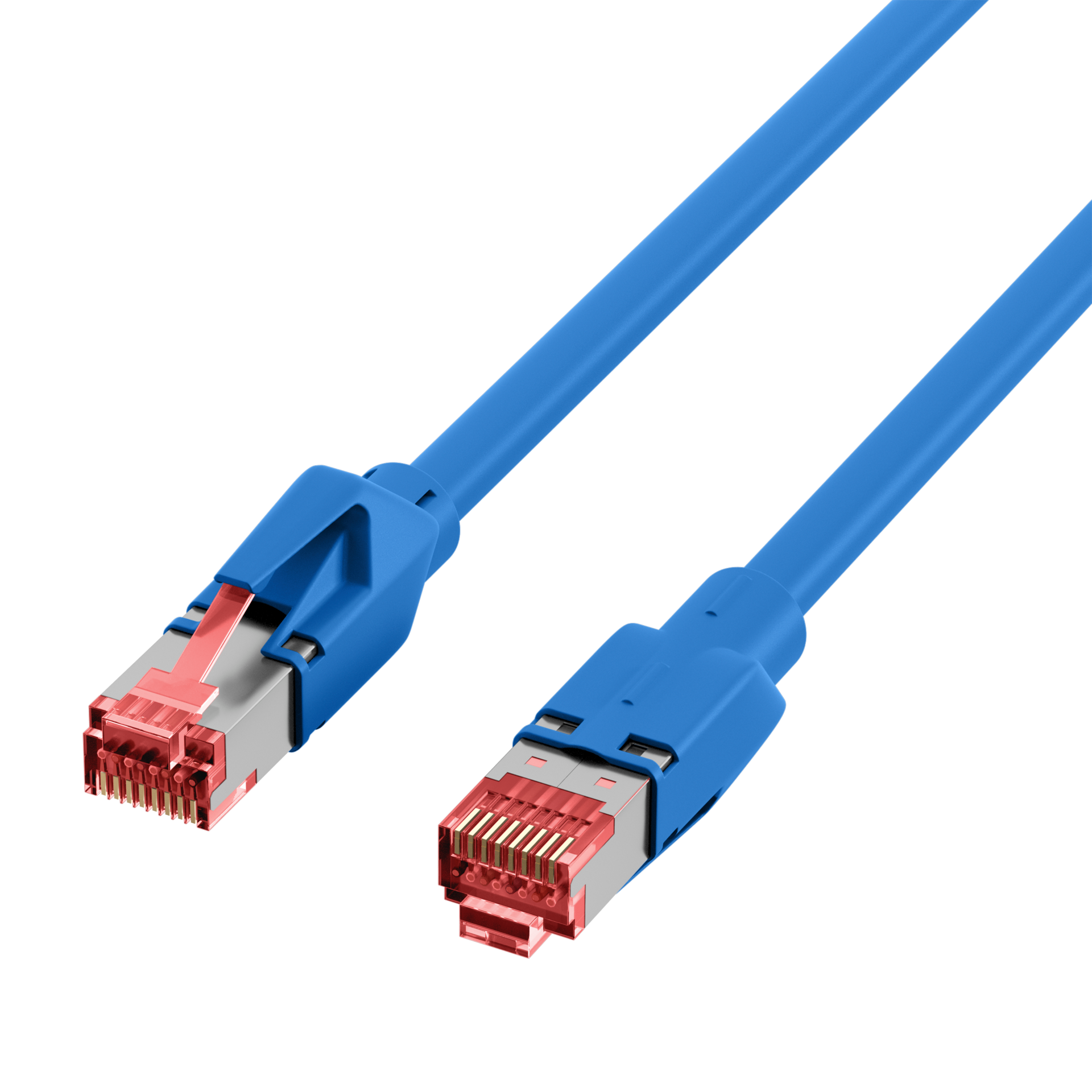

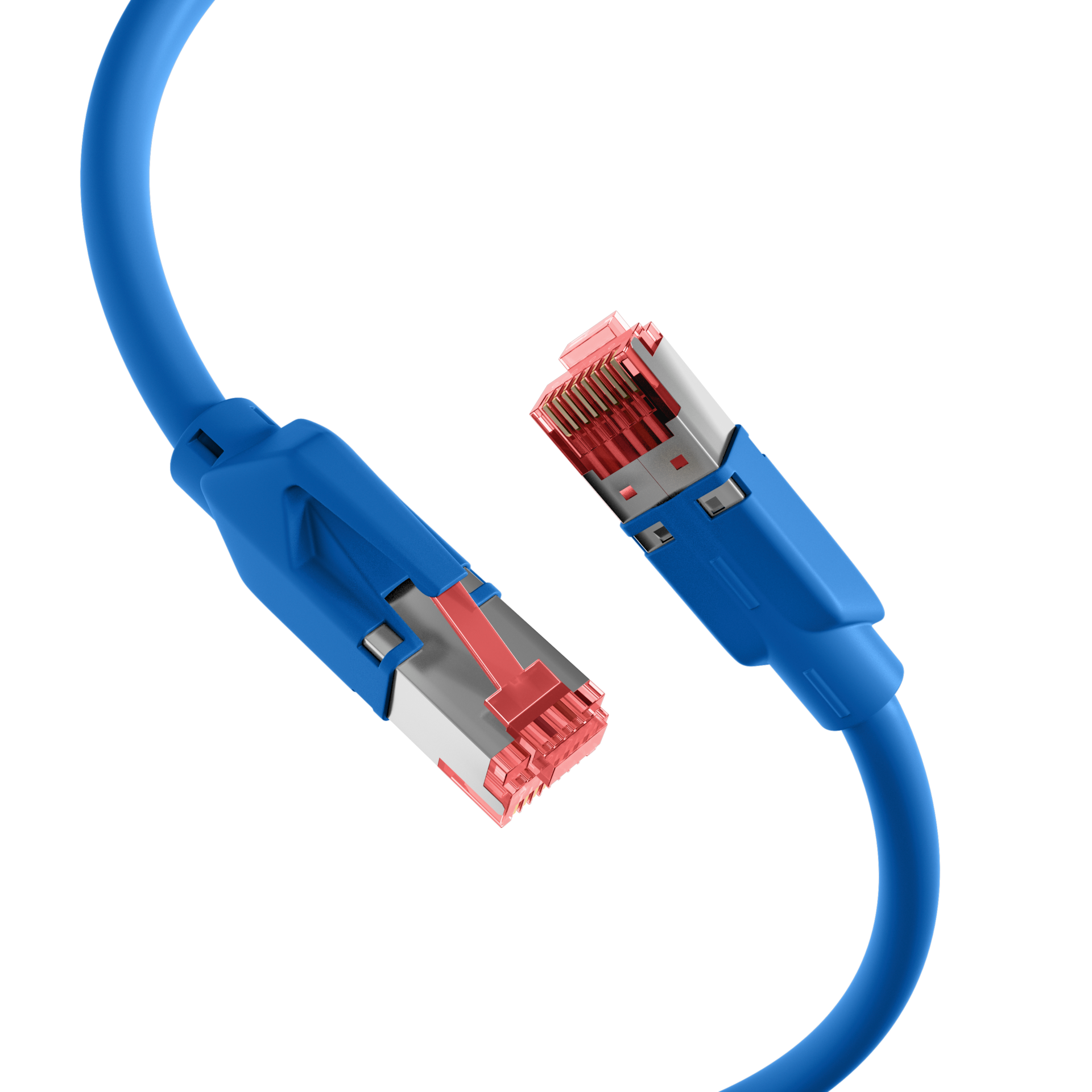

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 25m
Item number:
K8054.25
EAN no.:
4049759031756
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 25m
RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 500 MHz.
Technical properties
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Impedance: | 100 ±25 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | ca. 45 % |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8054.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,15m | 0.15 m | ±5 % | |
| K8054.025 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,25m | 0.25 m | ±5 % | |
| K8054.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,5m | 0.5 m | ±5 % | |
| K8054.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1m | 1.0 m | ±5 % | |
| K8054.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1,5m | 1.5 m | ±5 % | |
| K8054.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m | 2.0 m | ±5 % | |
| K8054.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 3m | 3.0 m | ±5 % | |
| K8054.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 5m | 5.0 m | ±5 % | |
| K8054.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 7,5m | 7.5 m | ±5 % | |
| K8054.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 10m | 10.0 m | ±5 % | |
| K8054.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 15m | 15.0 m | ±5 % | |
| K8054.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 20m | 20.0 m | ±5 % | |
| K8054.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 25m | 25.0 m | ±5 % | |
| K8054.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 30m | 30.0 m | ±5 % | |
| K8054.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 40m | 40.0 m | ±5 % | |
| K8054.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 50m | 50.0 m | ±5 % |
