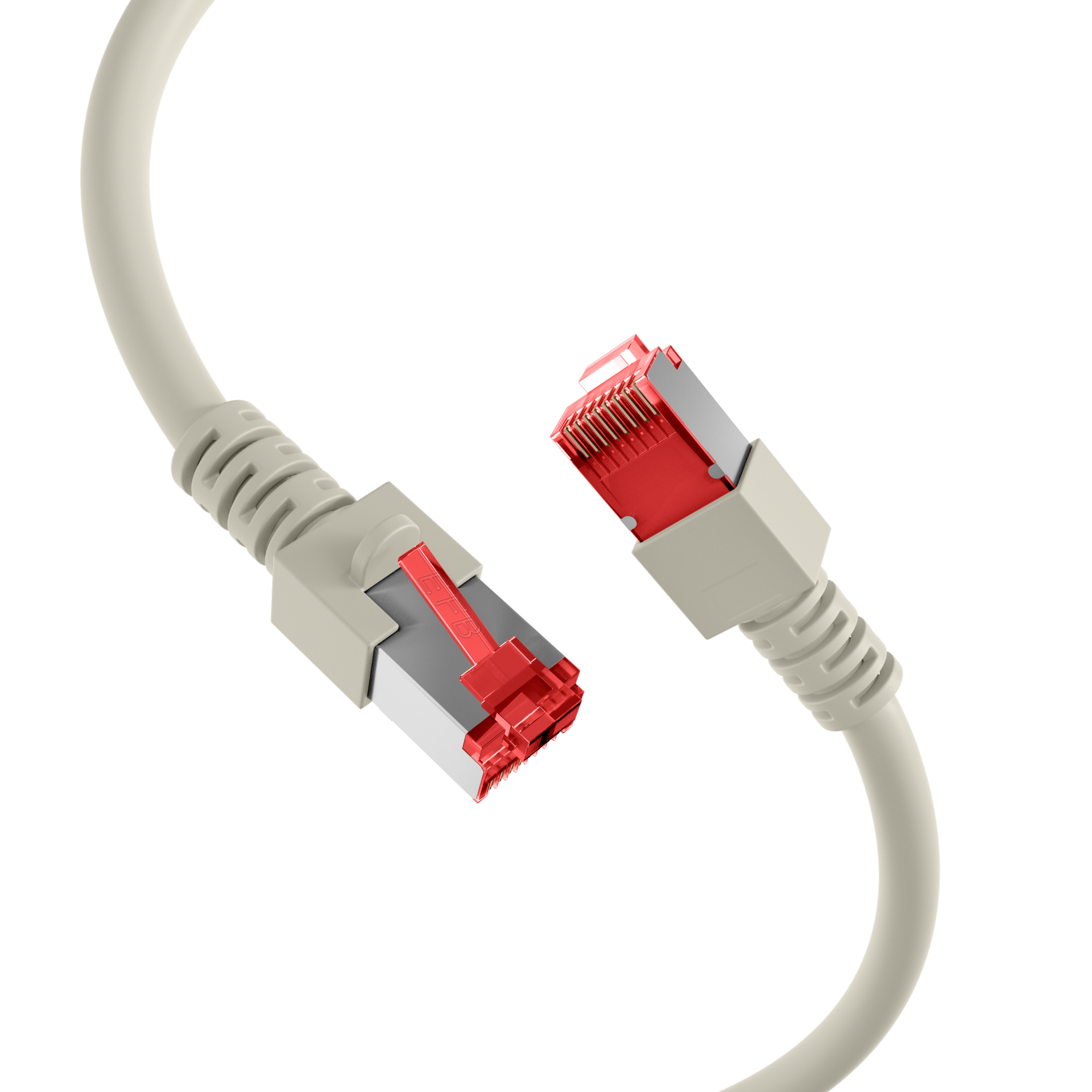

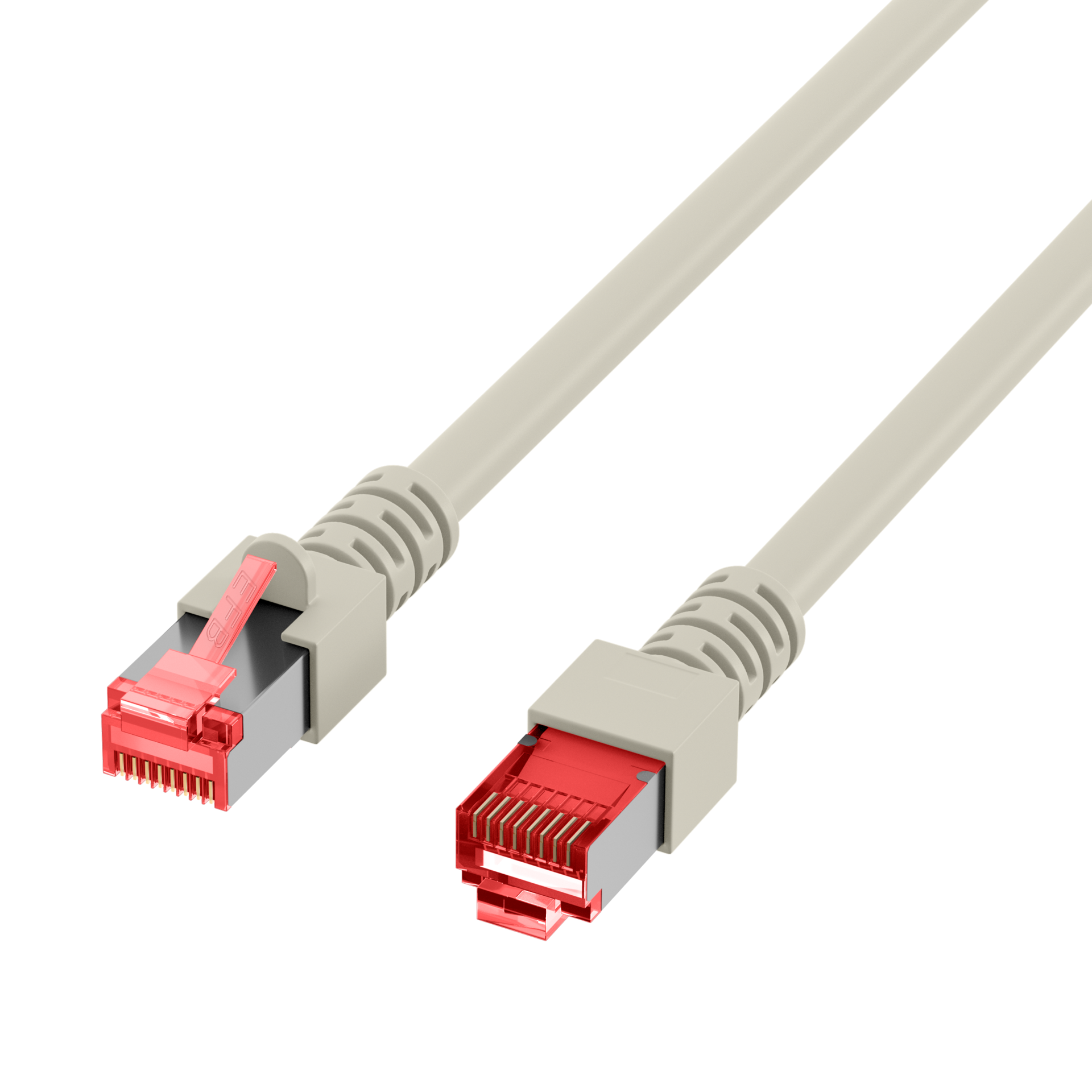

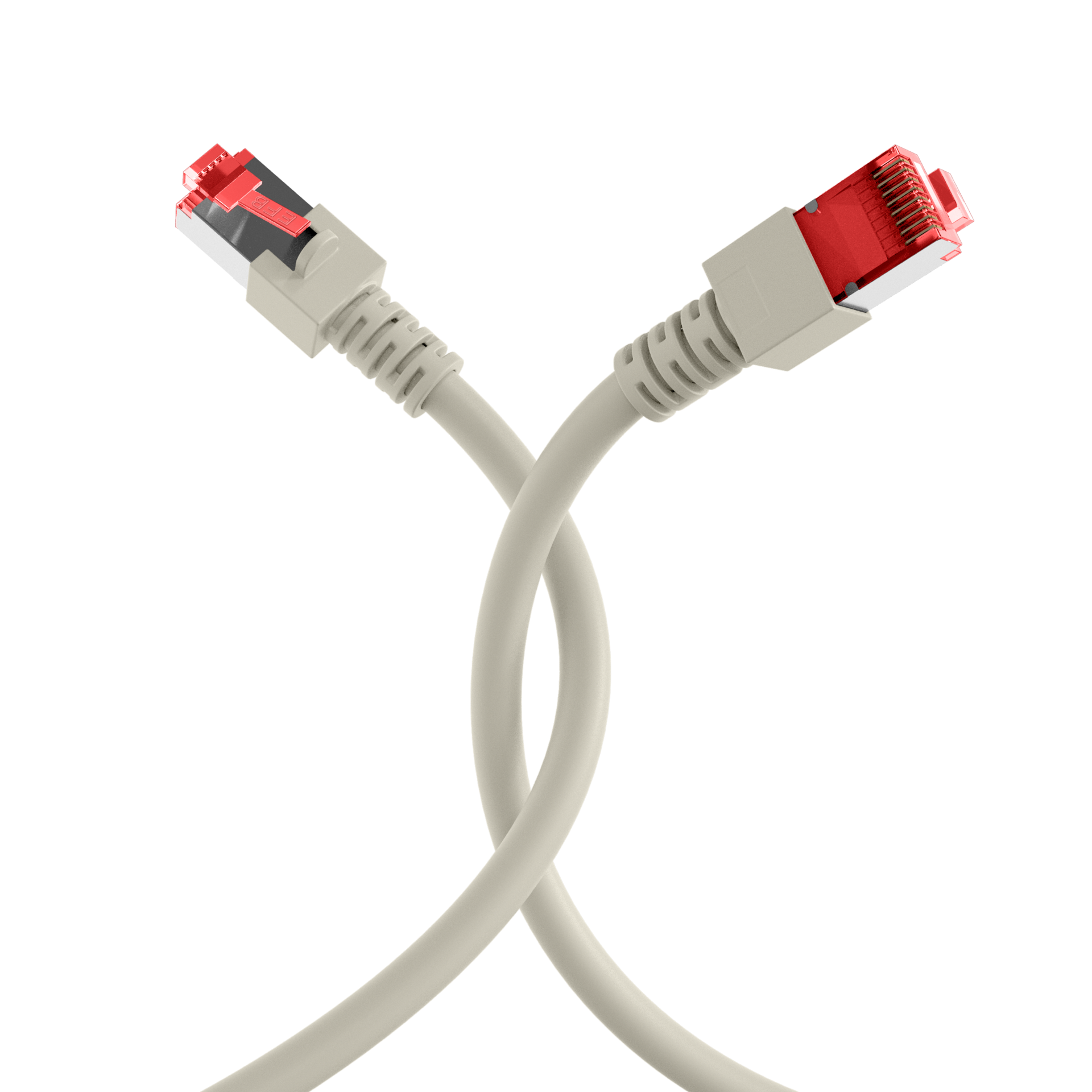

RJ45 Patchkabel Cat.6 S/FTP LSZH grey
RJ45 Patchkabel Cat.6 S/FTP LSZH,grau 35m
Item number:
K5510.35
EAN no.:
4049759115630
Product information for RJ45 Patchkabel Cat.6 S/FTP LSZH,grau 35m
RJ45 patch cable Cat.6 S/FTP LSZH
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
Technical properties
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >31 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6 |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-5 |
| Connector type: | RJ45 standard |
| Contact Resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 |
| Insulation Resistance: | 10 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 0 % |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 6.2 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
| Resistance unbalance: | ≤ 5 |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 250MHz |
| Temperature Range (Installation): | -20 – 60 |
| Temperature Range (Operation): | -20 – 75 |
| Temperature Range (Storage): | -20 – 60 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
