Partially Assembled Splice Boxes SC- SC, non-sliding version, OS2

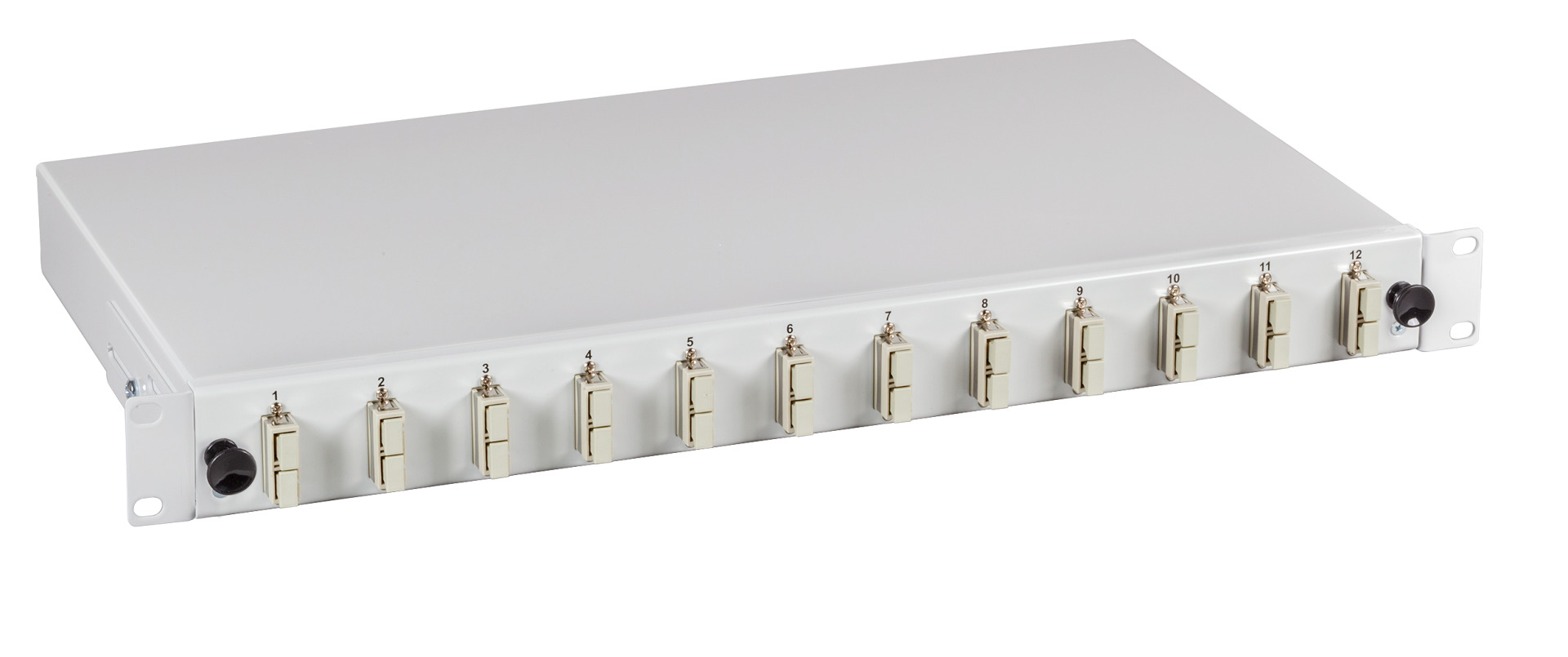

Splicebox bk partially assembled SC SM not extendable 24 Adapter
Item number:
B60223TS.24
EAN no.:
4049759149772
Product information for Splicebox bk partially assembled SC SM not extendable 24 Adapter
Partly assembled splice box with adapters
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing
depth adjustable
front panel screwed
coloured adapters
cable entries at the rear
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing
depth adjustable
front panel screwed
coloured adapters
cable entries at the rear
Technical properties
| Adapters: | SC |
|---|---|
| Depth: | 244.0 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Variants
| Item no. | Name | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| B60223.6 | Splicebox partially assembled SC SM not extendable 6 Adapter | SC-Duplex | grey | 12 | 6 | 7035 | SC-Duplex | blau | |
| B60223.12 | Splicebox partially assembled SC SM not extendable 12 Adapter | SC-Duplex | grey | 12 | 12 | 7035 | SC-Duplex | blau | |
| B60223.24 | Splicebox partially assembled SC SM not extendable 24 Adapter | SC-Duplex | grey | 24 | 24 | 7035 | SC-Duplex | blau | |
| B60223TS.12 | Splicebox bk partially assembled SC SM not extendable 12 Adapter | SC-Duplex | black | 12 | 12 | 9005 | SC-Duplex | blau | |
| B60223TS.24 | Splicebox bk partially assembled SC SM not extendable 24 Adapter | SC-Duplex | black | 24 | 24 | 9005 | SC-Duplex | blau |
