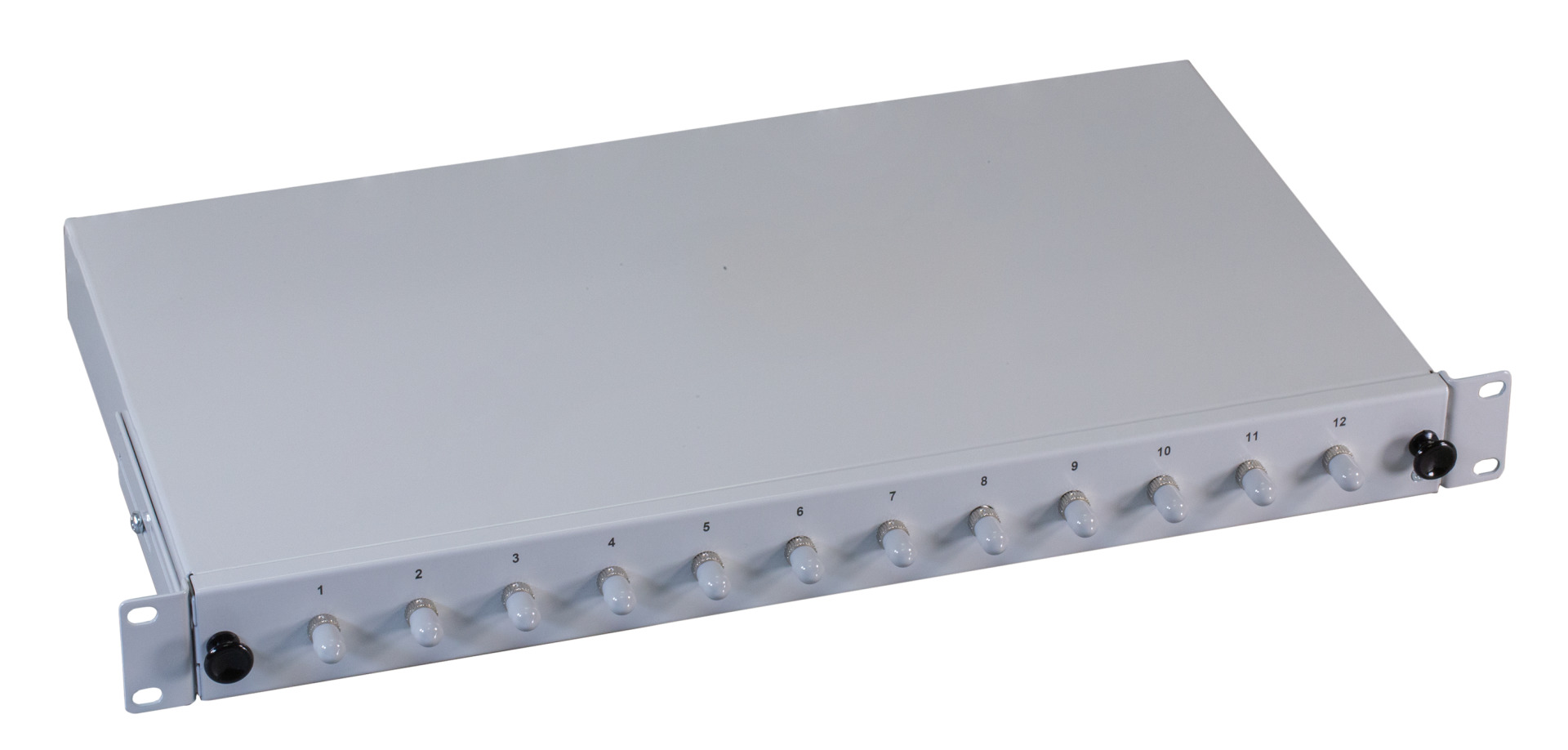

Splicebox sliding unit, with ST metal adapter and pigtails, OM4

Prices only visible for logged in users

Splicebox ST 50/125µ OM4 extendable 6 Pigtails/6 Adapter
Item number: B71006.6OM4
EAN no.: 4049759173661
Piece

Product information for Splicebox ST 50/125µ OM4 extendable 6 Pigtails/6 Adapter

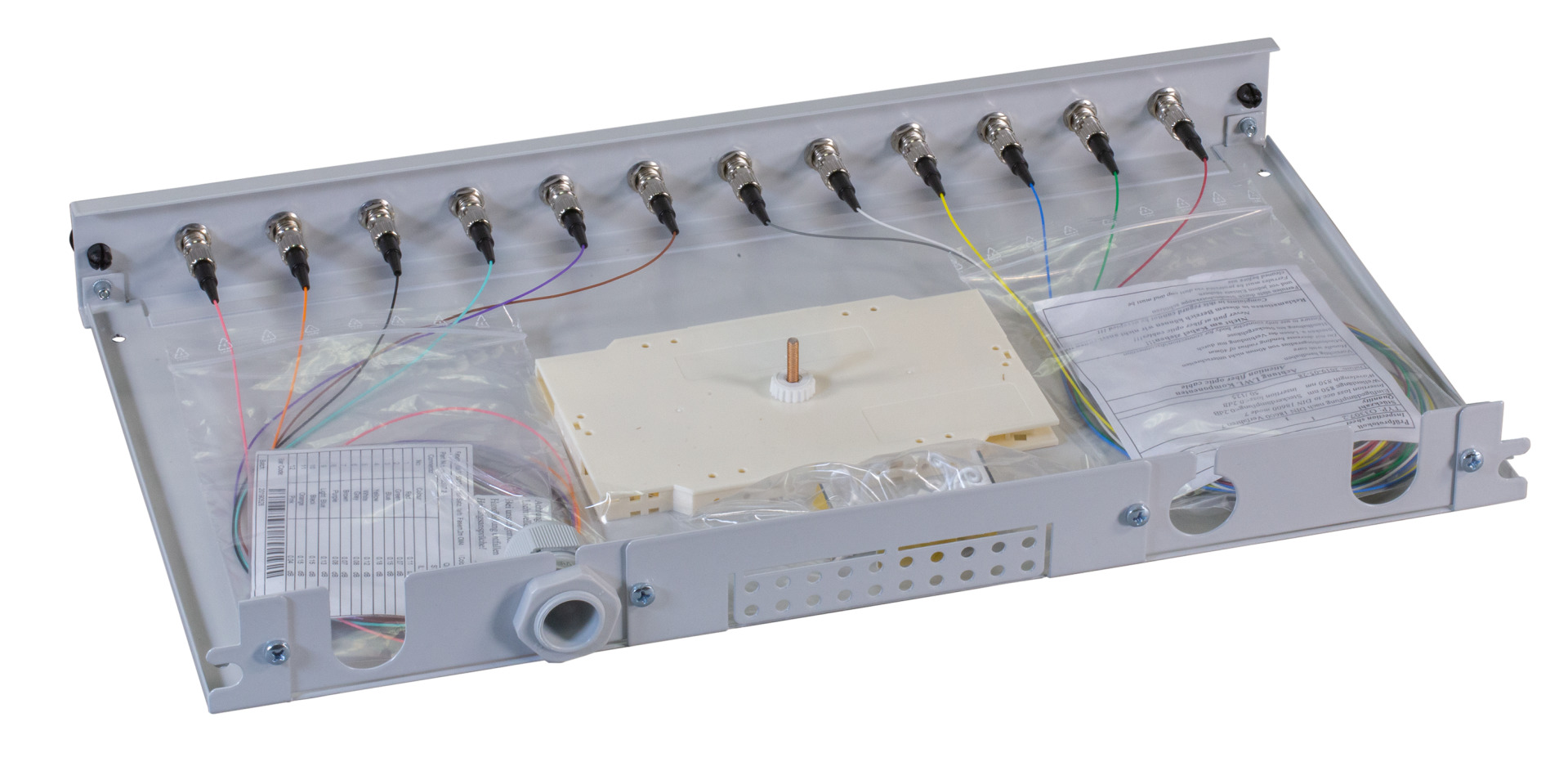

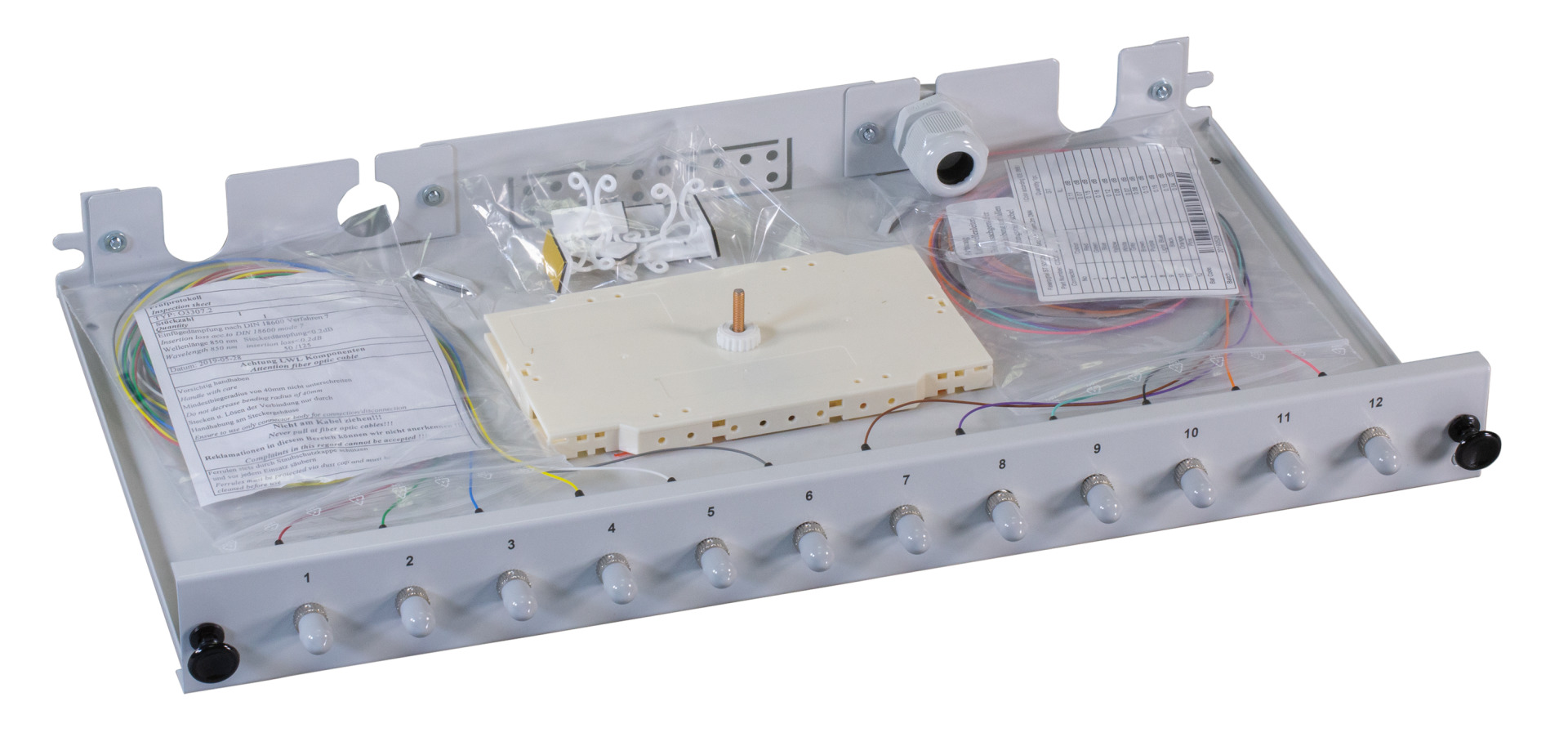

completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!

Technical properties

Adapter material: Metall adapter
Adapters: ST
Depth: 244.0 mm
Fibre class: OM4
Fibre type: Multi mode 50/125
Height: 44.5 mm
Mounting method: 482.6 mm (19 inch) mounting
Number of height units: 1 U
Pigtails prepared: not stripped
Sliding: sliding version
Width: 483.0 mm
With front plate: True
With housing: True
With pigtails: True

Variants

Item no. Name Suitable for number of couplings/adapters With number of couplings/adapters Colour Type of connector external Pigtail RAL-Nummer Steckverbindertyp innen Kupplungsfarbe
B71006.6OM4 Splicebox ST 50/125µ OM4 extendable 6 Pigtails/6 Adapter 12 6 grey ST 6 x ST 7035 ST metall
B71006.12OM4 Splicebox ST 50/125µ OM4 extendable 12 Pigtails/12 Adapter 12 12 grey ST 12 x ST 7035 ST metall
B71006.24OM4 Splicebox ST 50/125µ OM4 extendable 24 Pigtails/24 Adapter 24 24 grey ST 24 x ST 7035 ST metall

accessory

M20 Cable Glands grey, RAL7035
PG16 Cable Glands conical grey, RAL7035
Miller® Fiber Cleaning Tapes
FO marking strips " Warnung vor Laserstrahlung", PU 10

necessary tools

Professional Fiber Optic Tool Case
Ferrule Cleaner for SC,FC and ST-adapters for 2.5mm ferrule
