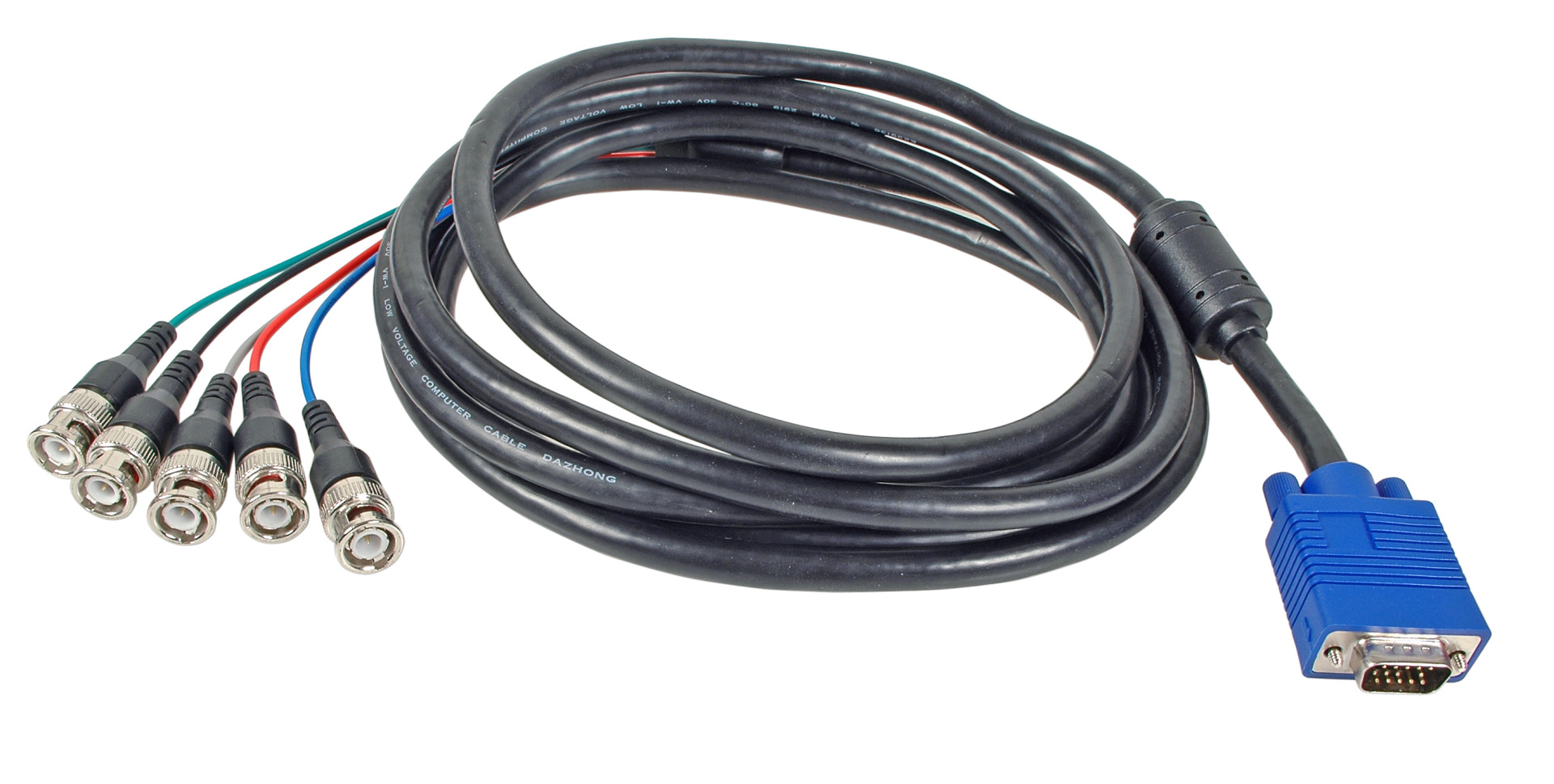

SVGA/HDTV Monitorkabel auf 5 x BNC Stecker
SVGA/HDTV Cable,5m 15p.HDD-S->5xBNC-S
Item number:
EK553SW.5V2
EAN no.:
4049759255770
Product information for SVGA/HDTV Cable,5m 15p.HDD-S->5xBNC-S
Construction: 5 x coax 75 Ohm, 1 ferrite core
Shielded
Moulded
Shielded
Moulded
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | silver-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. mating cycles: | 1500 |
| Model: | Round Cable |
| Number of poles connection 1: | 15 |
| Number of poles connection 2: | 15 |
| Number of shieldings: | triple |
| Operating temperature: | -5 – 45 |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 33.5*16*46mm |
| Scope of delivery: | 1xVGA-5BNC Cable |
| Shielded: | True |
| Storage Temperature: | -20 – 70 |
| Supported video standards: | 1920x1200 |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | VGA DBHD15 |
| Type of connector connection 2: | 5 x BNC-S |
| Type of locking: | Screw Locking |
| Type of packaging: | plastic bag |
| Type of signal: | Analog |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1x5m |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
