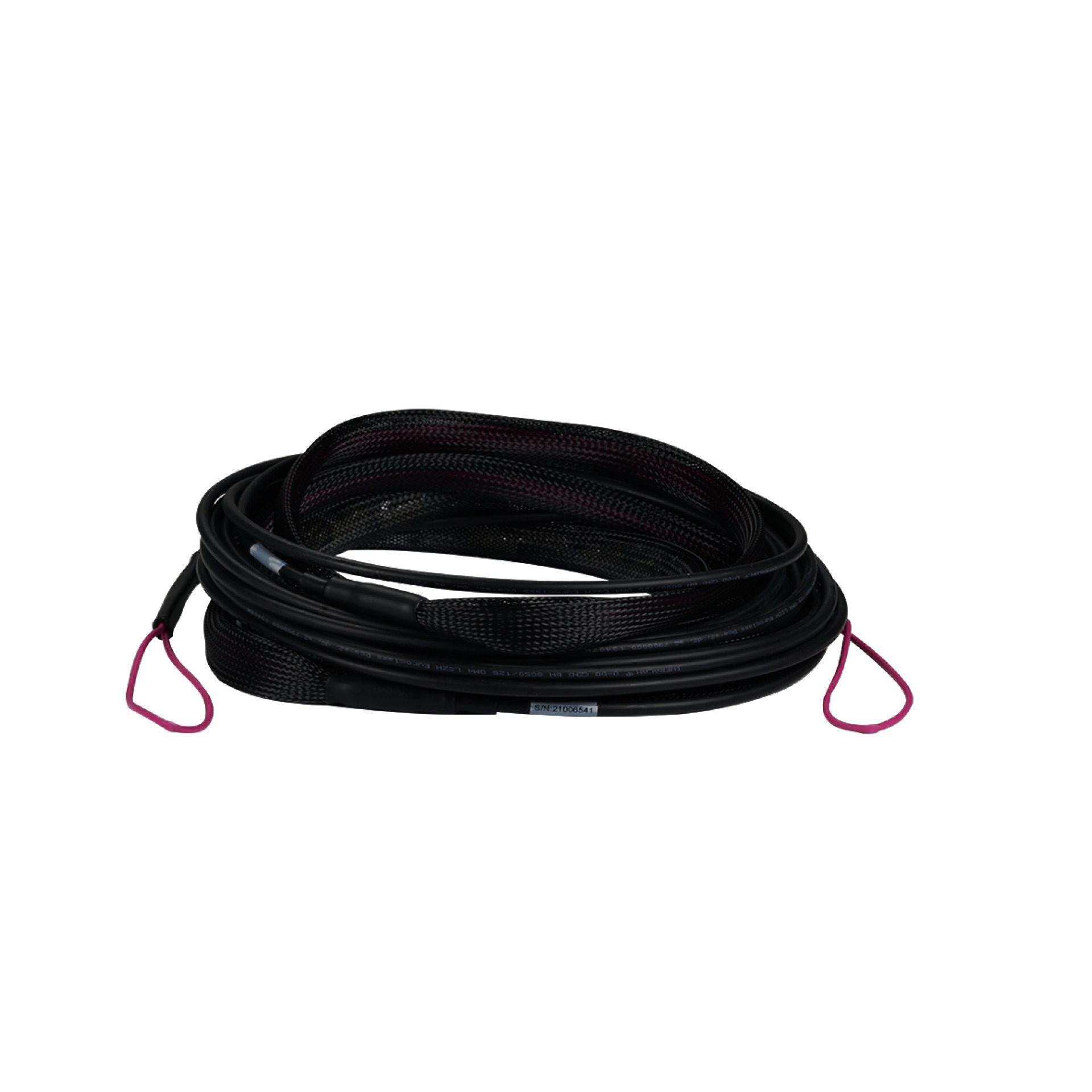

Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4
Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4 160m
Item number:
O8301L160OM4
EAN no.:
4049759275891
Product information for Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4 160m
EFB sets standards in high quality
For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.
Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol
Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test
Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided
Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca

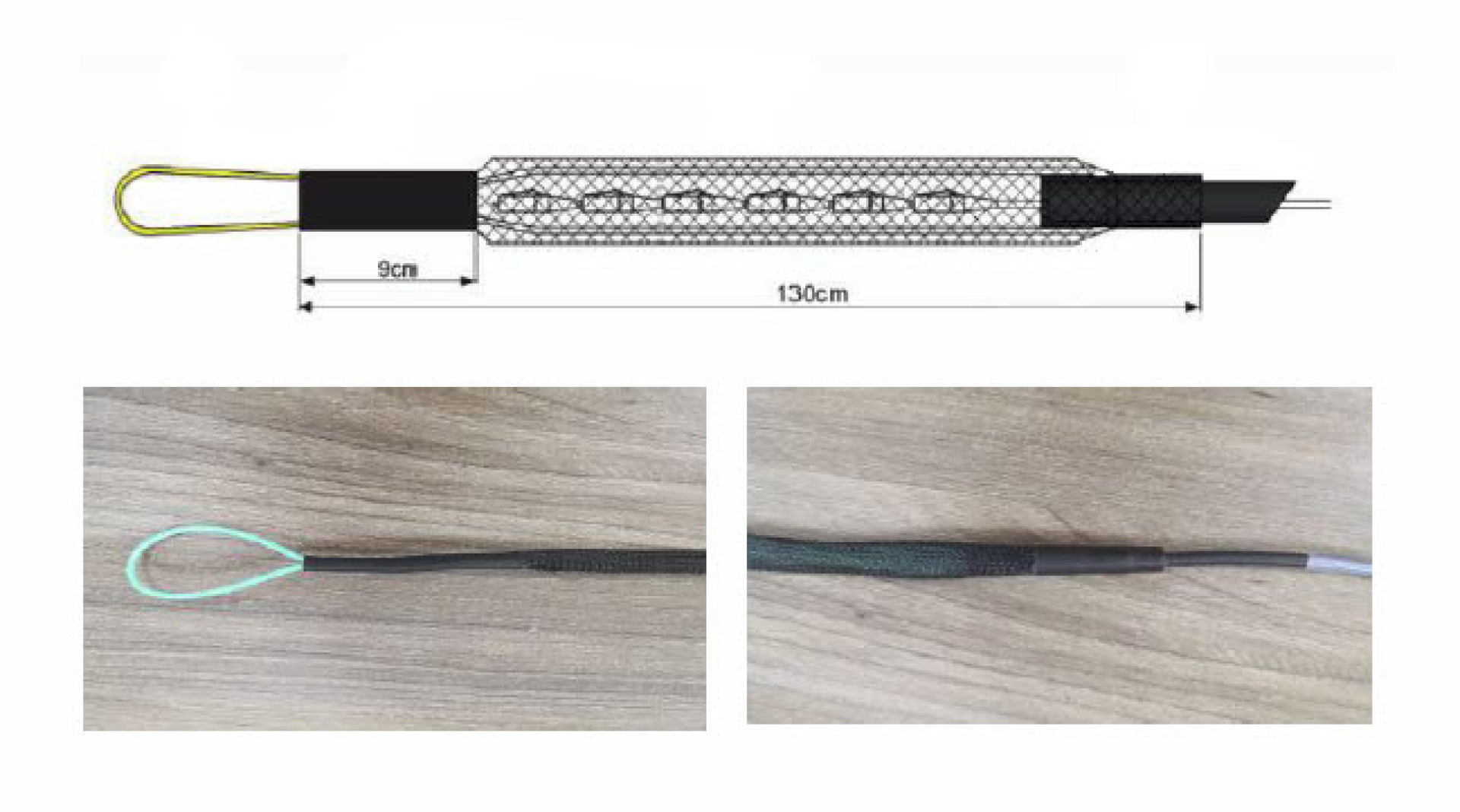

Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm
For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.
Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol
Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test
Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided
Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Multifiber |
| Cable type: | U-DQ (ZN) BH |
| Cable Ø: | 6.0 mm |
| Category: | OM4 |
| Colour outer sheath: | black |
| Connector Conform to Standard: | IEC 61754-4 |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Dimension Cable divider: | 11.5 x 50 mm |
| Fibre type: | Multi mode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Max. Tension: | 200 N |
| Min. Bending radius (Dynamic): | 180 mm |
| Min. Bending radius (Static): | 90 mm |
| Number of fibers: | 4 |
| Operating Temperature: | 0 – 50 °C |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -20 – 70 °C |
| Type of connector connection 1: | 4 x SC |
| Type of connector connection 2: | 4 x SC |
Variants
| Item no. | Name | Length | Length tolerance | |
|---|---|---|---|---|
| O8301L10OM4 | Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4 10m | 10.0 m | ±5 % | |
| O8301L160OM4 | Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4 160m | 160.0 m | ±5 % | |
| O8301L70OM4 | Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM4 70m | 70.0 m | ±5 % |
