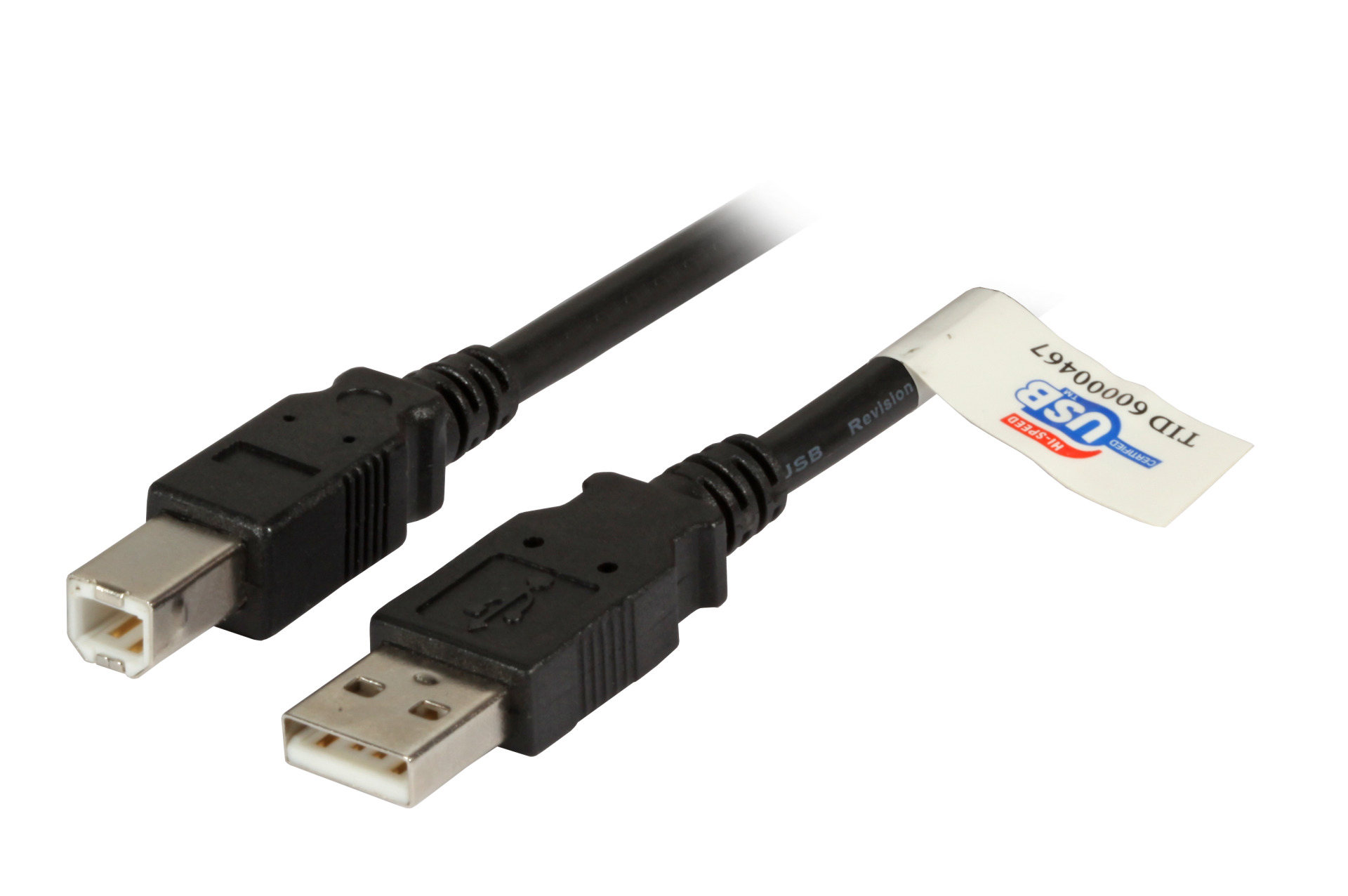

USB2.0 Connection Cable Type-A Plug to Type-B Plug, Premium
USB2.0 Connection Cable A-B, M-M, 3.0m, black, Premium
Item number:
K5256SW.3
EAN no.:
4049759053383
Product information for USB2.0 Connection Cable A-B, M-M, 3.0m, black, Premium
Supports data transmission rates up to 480 Mbit/s. Wire construction: AWG28 / AWG20. Shielded: Foil + 80% braiding. Plug moulded.
Technical properties
| 3D: | Nein |
|---|---|
| ARC: | Nein |
| Backwards compatible: | Ja |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 50 mm |
| CEC: | Nein |
| Cable set: | Nein |
| Chip: | Nein |
| Compliant with: | Scanner,Printer,External hard drive,Medical equipment |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | vergoldet |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | Nein |
| Dust cover: | Nein |
| HDMI Power: | Nein |
| HDMI certified: | Nein |
| HEC (Ethernet channel): | Nein |
| Halogenfree: | Nein |
| Kink protection: | Nein |
| MSA: | Nein |
| MST: | Nein |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 1500 |
| Model: | Rundkabel |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Number of shieldings: | doppelt |
| PCIe Data transfer: | Nein |
| Plug dimensions Side 1: | 36.7mm x 12mm x 4.5mm |
| Plug dimensions Side 2: | 36.5mm x 8mm x 6.6mm |
| Printing: | HI-SPEED USB Revision 2.0 SHIELDED 28AWG/1PR+20AWG/2C VW-1 80°C 30V |
| Scope of delivery: | 1 x USB Kabel |
| Shielded: | Ja |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -20 – 80 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-B |
| Type of packaging: | Plastiktüte |
| Type of signal: | Digital |
| VESA certified: | Nein |
| VRR: | Nein |
| Various lengths cable set: | 2 x 0.5m |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 Monate |
| With termination resistor: | Nein |
| eARC: | Nein |
Variants
| Item no. | Name | Color | Length | Durchmesser | AWG | |
|---|---|---|---|---|---|---|
| K5256SW.0,5 | USB2.0 Connection Cable A-B, M-M, 0.5m, black, Premium | schwarz | 0.5 m | 5,0 mm | 20+28AWG | |
| K5256SW.1 | USB2.0 Connection Cable A-B, M-M, 1.0m, black, Premium | schwarz | 1,0 m | - | - | |
| K5256SW.1,5 | USB2.0 Connection Cable A-B, M-M, 1.5m, black, Premium | schwarz | 1,5 m | 5,0 mm | 20+28AWG | |
| K5256SW.1,8 | USB2.0 Connection Cable A-B, M-M, 1.8m, black, Premium | schwarz | 1,8 m | - | - | |
| K5256SW.3 | USB2.0 Connection Cable A-B, M-M, 3.0m, black, Premium | schwarz | 3.0 m | - | - | |
| K5256SW.5 | USB2.0 Connection Cable A-B, M-M, 5.0m, black, Premium | schwarz | 5.0 m | - | - |
