VKA Base Plate with Cover, unassembled
Prices only visible for logged in users

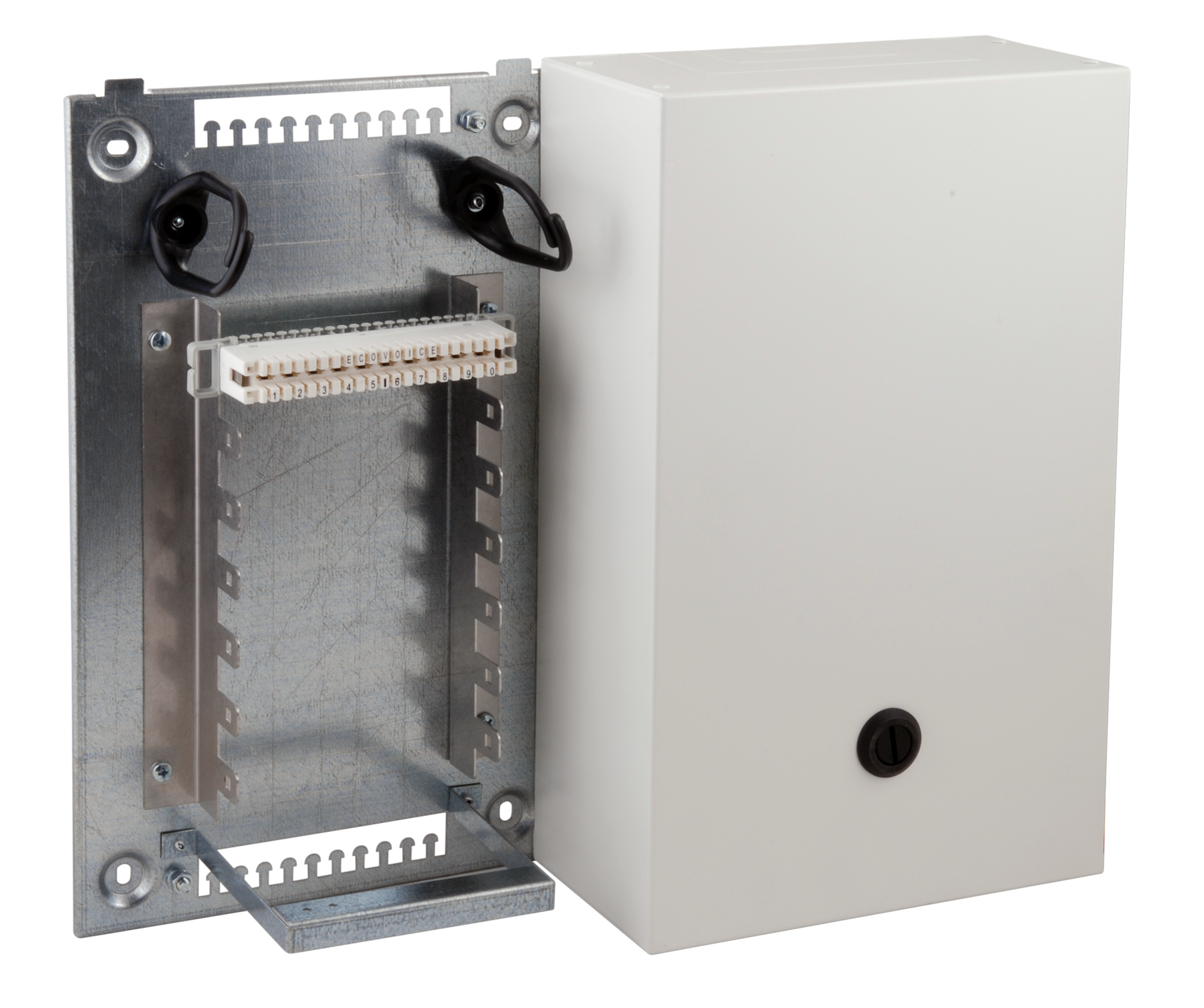

VKA2 Base Plate with Cover, WxHxD = 200 x 330 x 120 mm
Item number:
46017N.1V1
Product information for VKA2 Base Plate with Cover, WxHxD = 200 x 330 x 120 mm
Consisting of sheet steel box with base plate and cover with latch
VKA mounting kits for 10pairs and 20pairs can be screwed on the base plate
Cable entries on the bottom and the top of the cover
Colour of the cover: RAL9016 traffic white
Protection degree IP30
Sheet of paper for connection registration
Advice: weight including mounting kit
VKA mounting kits for 10pairs and 20pairs can be screwed on the base plate
Cable entries on the bottom and the top of the cover
Colour of the cover: RAL9016 traffic white
Protection degree IP30
Sheet of paper for connection registration
Advice: weight including mounting kit
Technical properties
| 110-compatible: | False |
|---|---|
| Colour: | White |
| DIN-compatible: | False |
| Degree of protection: | IP30 |
| LSA: | True |
| Material: | Steel plate |
| Model: | Distributor enclosure |
| Mounting dimension (standardised): | 96/170 mm |
| Mounting method: | Surface mounted (plaster) |
| With connecting lugs: | False |
Variants
| Item no. | Name | Type | Breite | Höhe | Gewicht | |
|---|---|---|---|---|---|---|
| 46017N.1V1 | VKA2 Base Plate with Cover, WxHxD = 200 x 330 x 120 mm | VKA2 | 200 mm | 330 mm | 2,42 kg | |
| 46018N.1V1 | VKA4 Base Plate with Cover, WxHxD = 330 x 330 x 120 mm | VKA4 | 330 mm | 330 mm | 3,52 kg | |
| 46019N.1V1 | VKA8 Base Plate with Cover, WxHxD = 330 x 550 x 120 mm | VKA8 | 330 mm | 550 mm | 5,19 kg | |
| 46020N.1V1 | VKA12 Base Plate with Cover, WxHxD = 550 x 550 x 120 mm | VKA12 | 550 mm | - | 7,78 kg |
