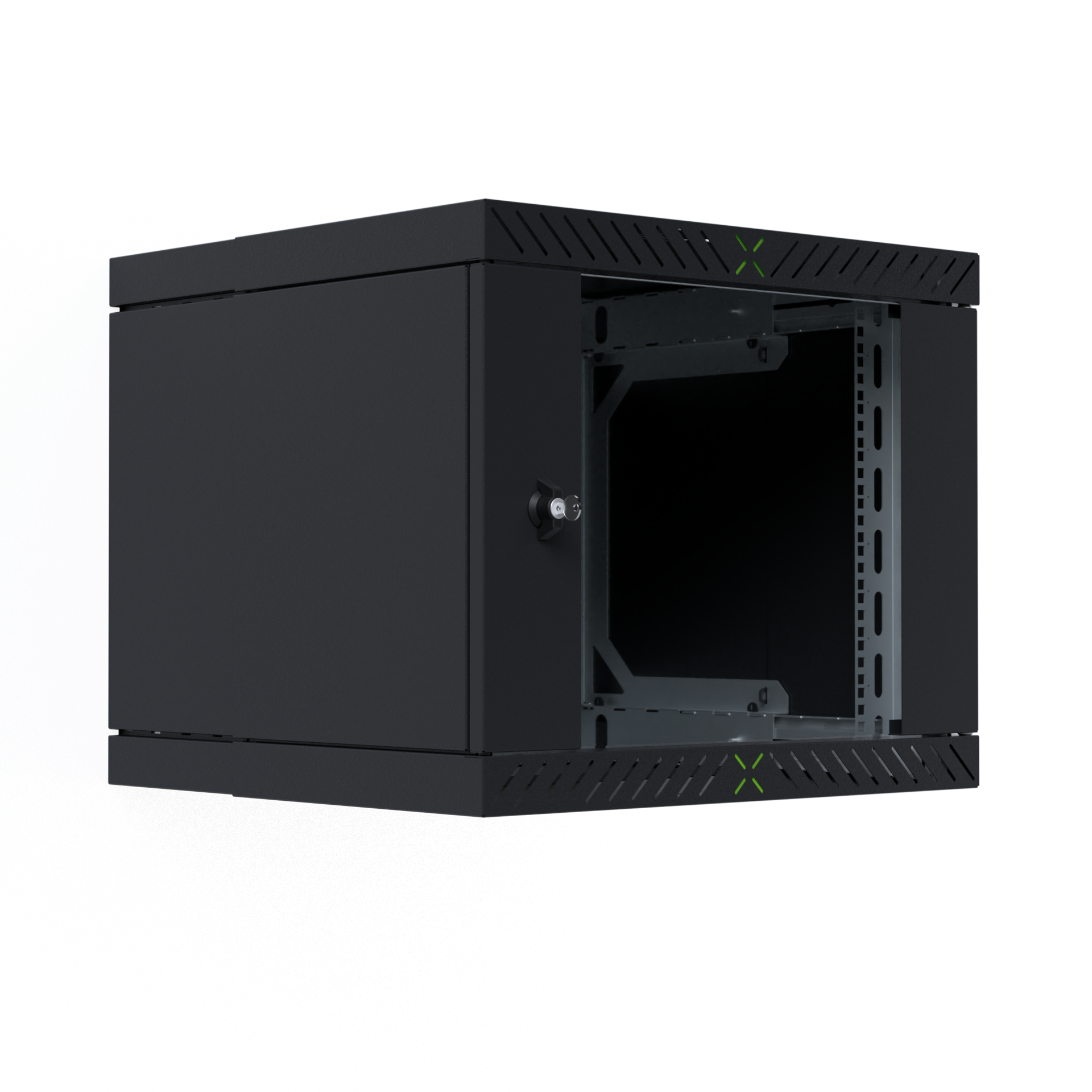

Wall Cabinet X-Rack w. glass door 400-600mm
Wall Cabinet X-Rack w. glass door 400-600mm 9U Black RAL9005
Item number:
WGX-0906TS.G1
EAN no.:
4049759322991
Product information for Wall Cabinet X-Rack w. glass door 400-600mm 9U Black RAL9005
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembled

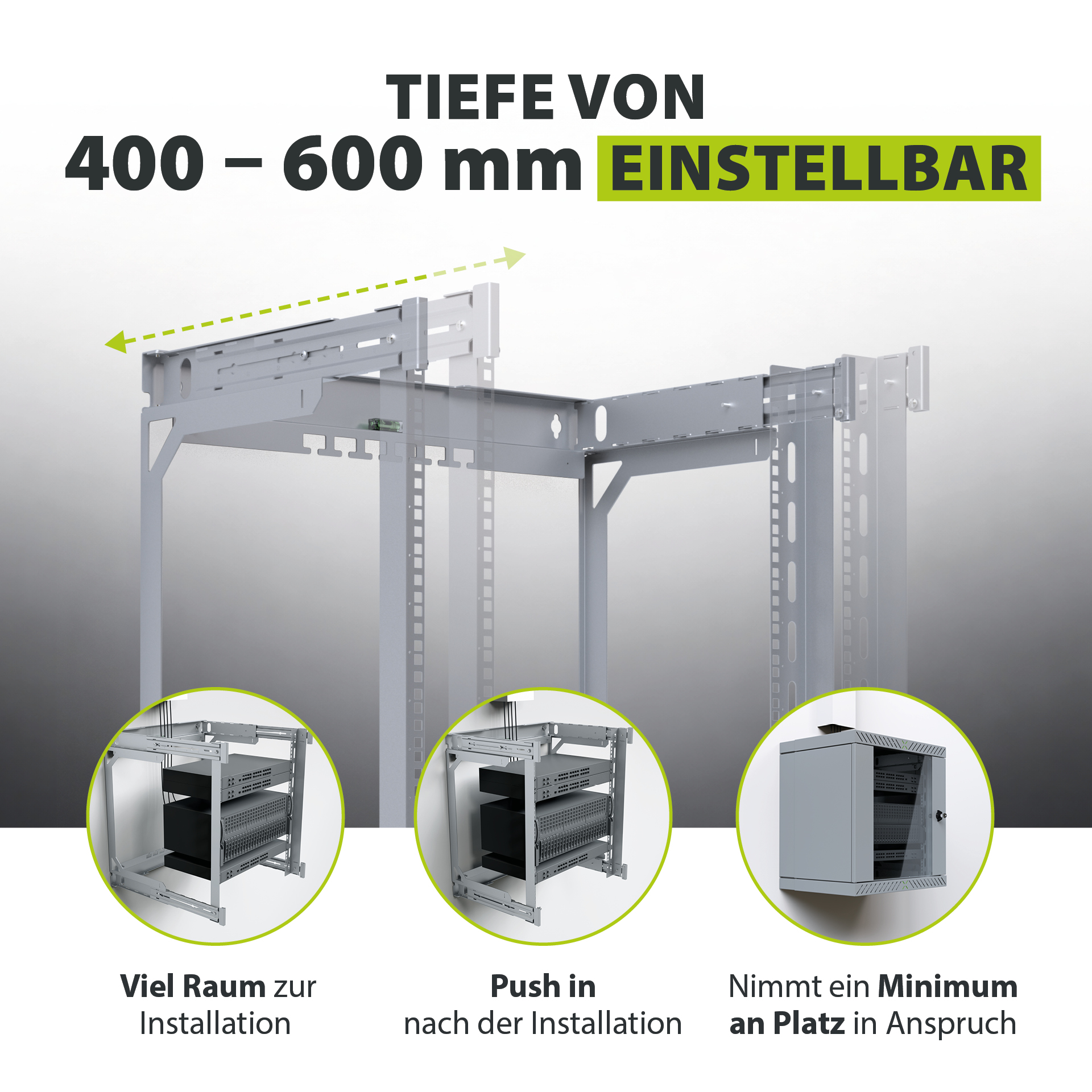

Housing continuously depth adjustable from 400 .. 600 mm
Secured side walls, can only be removed after opening front door
Inside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mm

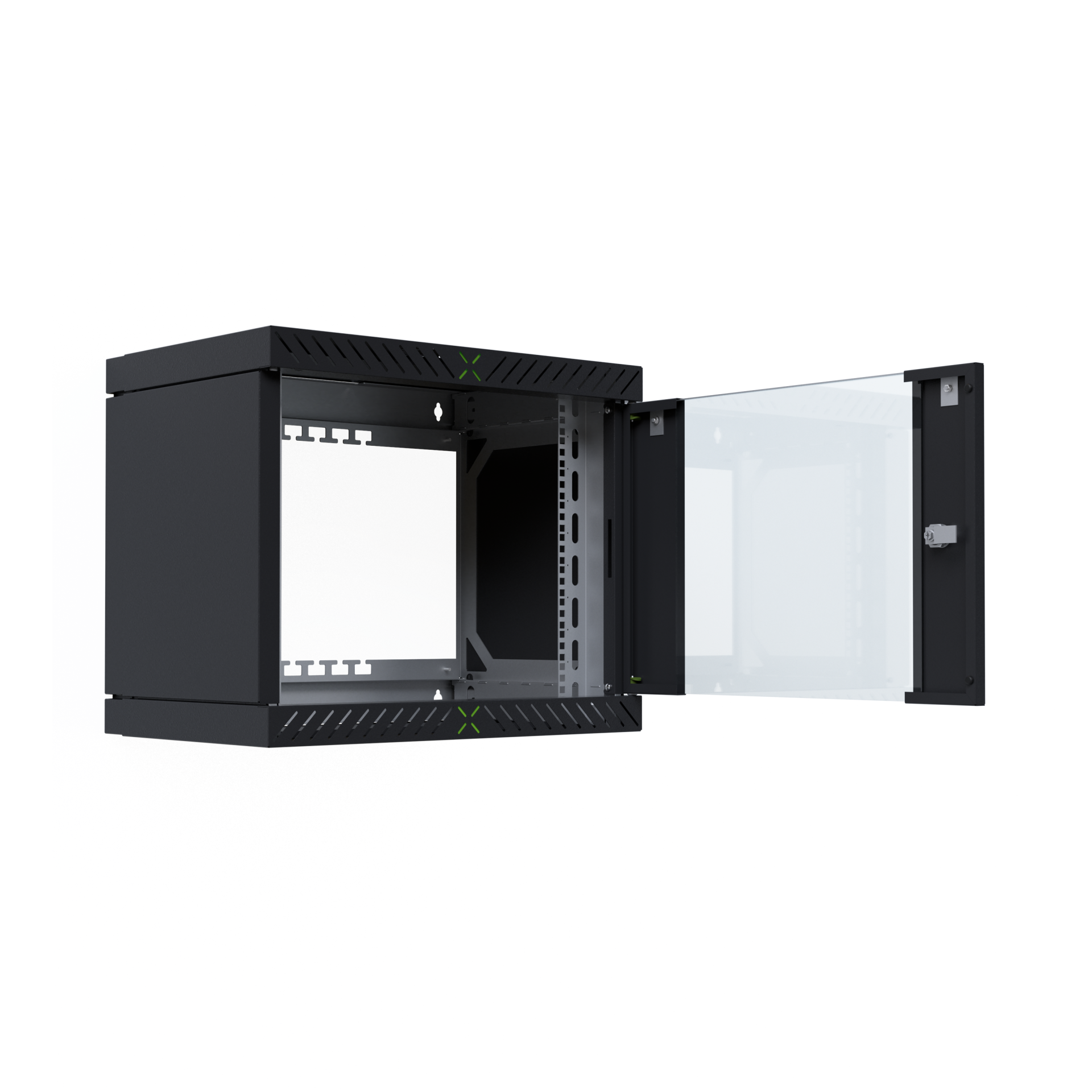

Front door with window of certified safety-glass (4 mm) and latch locking
Door stop changeable due to stable, spring-loaded metal hinges
Door angle adjustable due to adjustable hinges
Door opening angle 120°

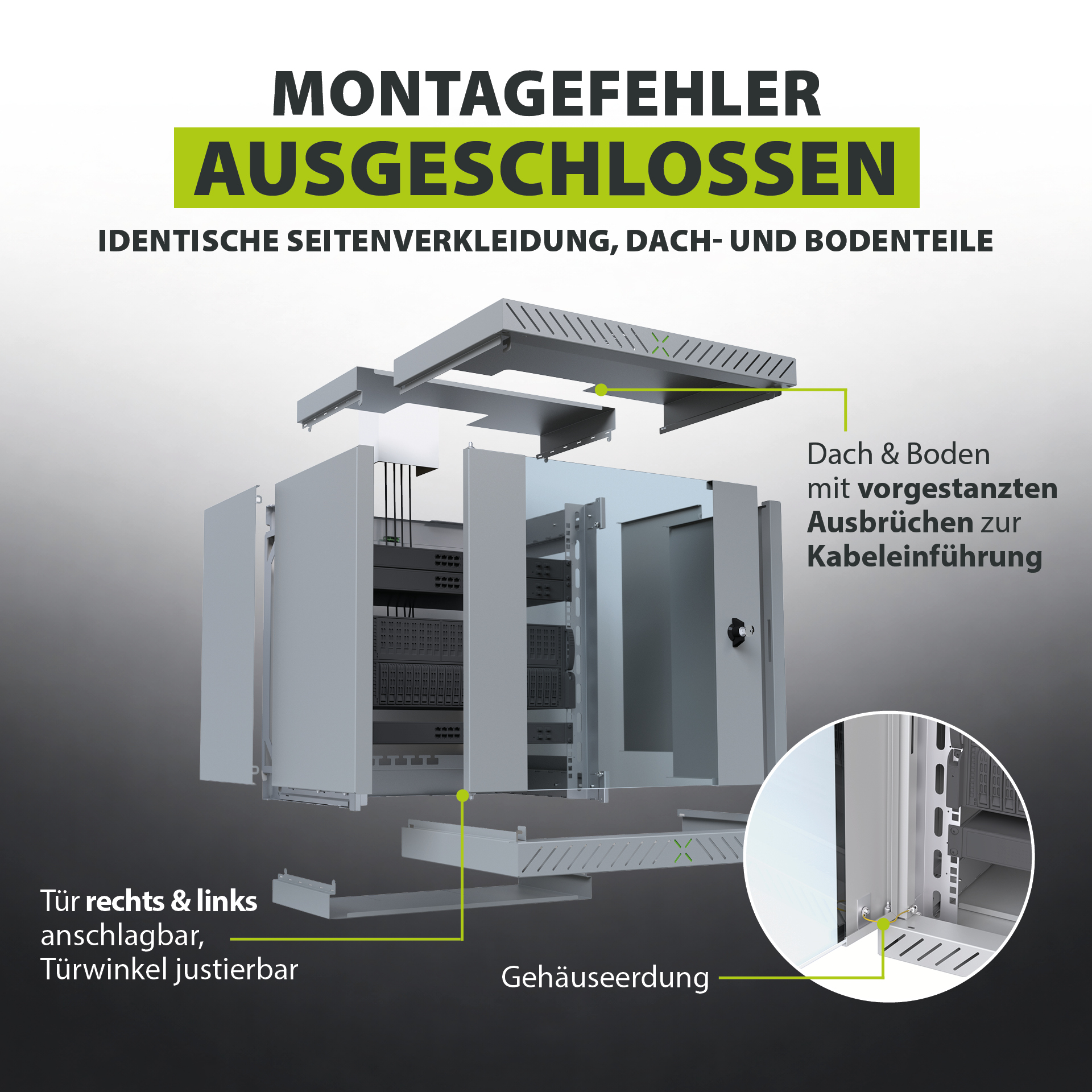

Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)

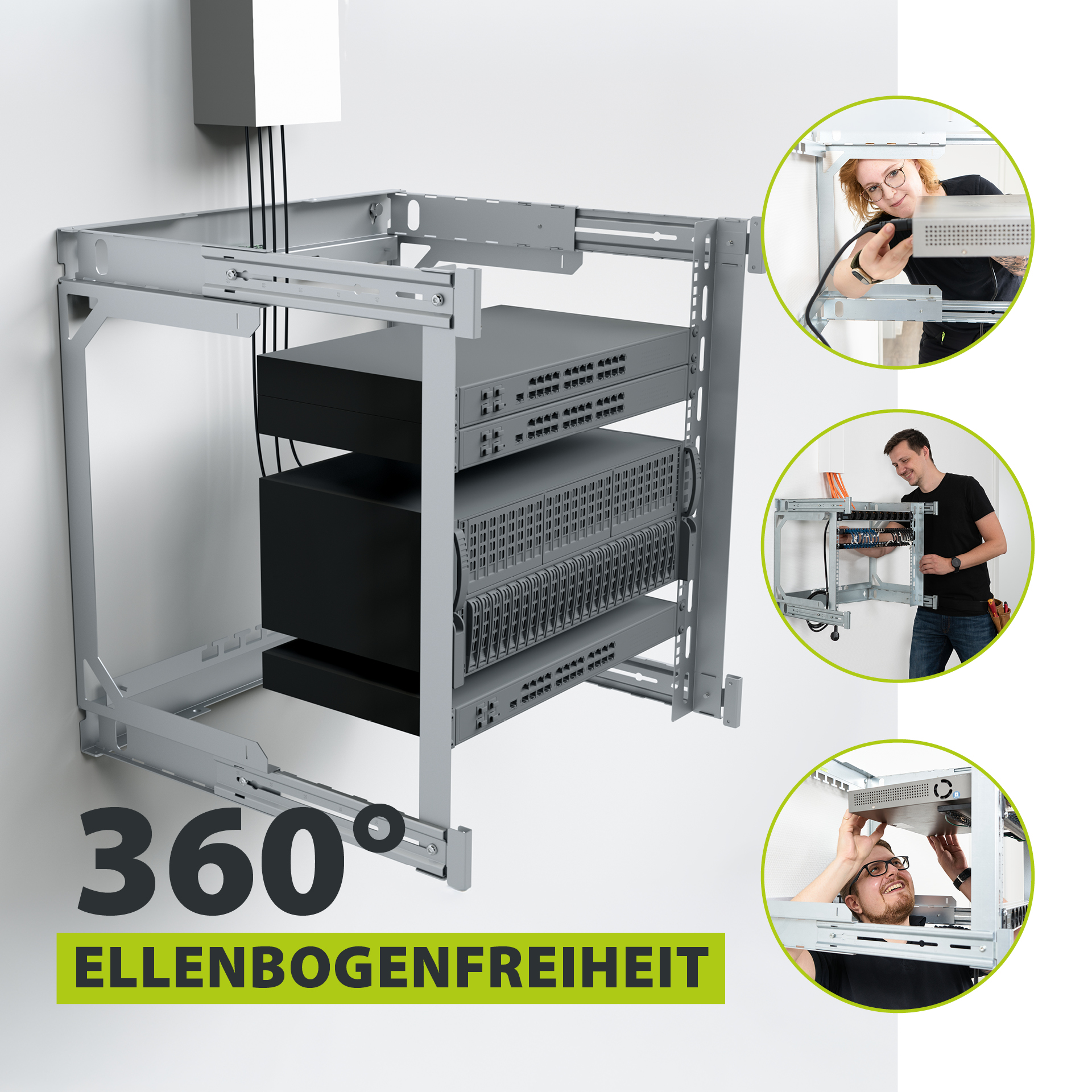

Rear sided open frame with additionally positions for cable management
Roof and bottom prepared for accommodation of single fan Art.-No. 691664
Cabinet parts inside completely grounded, M5 grounding bolt at base frame
Max. load 60 kg (statically equally distributed), protection degree IP20
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x key, earthing cable
Delivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Housing continuously depth adjustable from 400 .. 600 mm
Secured side walls, can only be removed after opening front door
Inside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mm
Front door with window of certified safety-glass (4 mm) and latch locking
Door stop changeable due to stable, spring-loaded metal hinges
Door angle adjustable due to adjustable hinges
Door opening angle 120°
Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)
Rear sided open frame with additionally positions for cable management
Roof and bottom prepared for accommodation of single fan Art.-No. 691664
Cabinet parts inside completely grounded, M5 grounding bolt at base frame
Max. load 60 kg (statically equally distributed), protection degree IP20
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x key, earthing cable
Delivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Technical properties
| Cabinet Series: | X-Rack |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 3 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Variants
| Item no. | Name | Width | Height | Number of height units | Max. Load | Depth | Colour | RAL-Nummer | |
|---|---|---|---|---|---|---|---|---|---|
| WGX-0906GR.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 9U Grey RAL7035 | 600 mm | 500 mm | 9 U | 60 kg | 400-600 mm | grey | 7035 | |
| WGX-0906TS.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 9U Black RAL9005 | 600 mm | 500 mm | 9 U | 60 kg | 400-600 mm | black | 9005 | |
| WGX-1206GR.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 12U Grey RAL7035 | 600 mm | 600 mm | 12 U | 60 kg | 400-600 mm | grey | 7035 | |
| WGX-1206TS.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 12U Black RAL9005 | 600 mm | 600 mm | 12 U | 60 kg | 400-600 mm | black | 9005 | |
| WGX-1506GR.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 15U Grey RAL7035 | 600 mm | 766 mm | 15 U | 60 kg | 400-600 mm | grey | 7035 | |
| WGX-1506TS.G1 | Wall Cabinet X-Rack w. glass door 400-600mm 15U Black RAL9005 | 600 mm | 766 mm | 15 U | 60 kg | 400-600 mm | black | 9005 |
