19" Network Cabinets PRO-Modular, 800x1000 mm

Prices only visible for logged in users

19" Network Cabinet PRO-Modular 47U, 800x1000 mm, RAL7035
Item number: PRO-4780GR.0D
EAN no.: 4049759218539
Piece

Product information for 19" Network Cabinet PRO-Modular 47U, 800x1000 mm, RAL7035

19" rack frame according to DIN41494
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

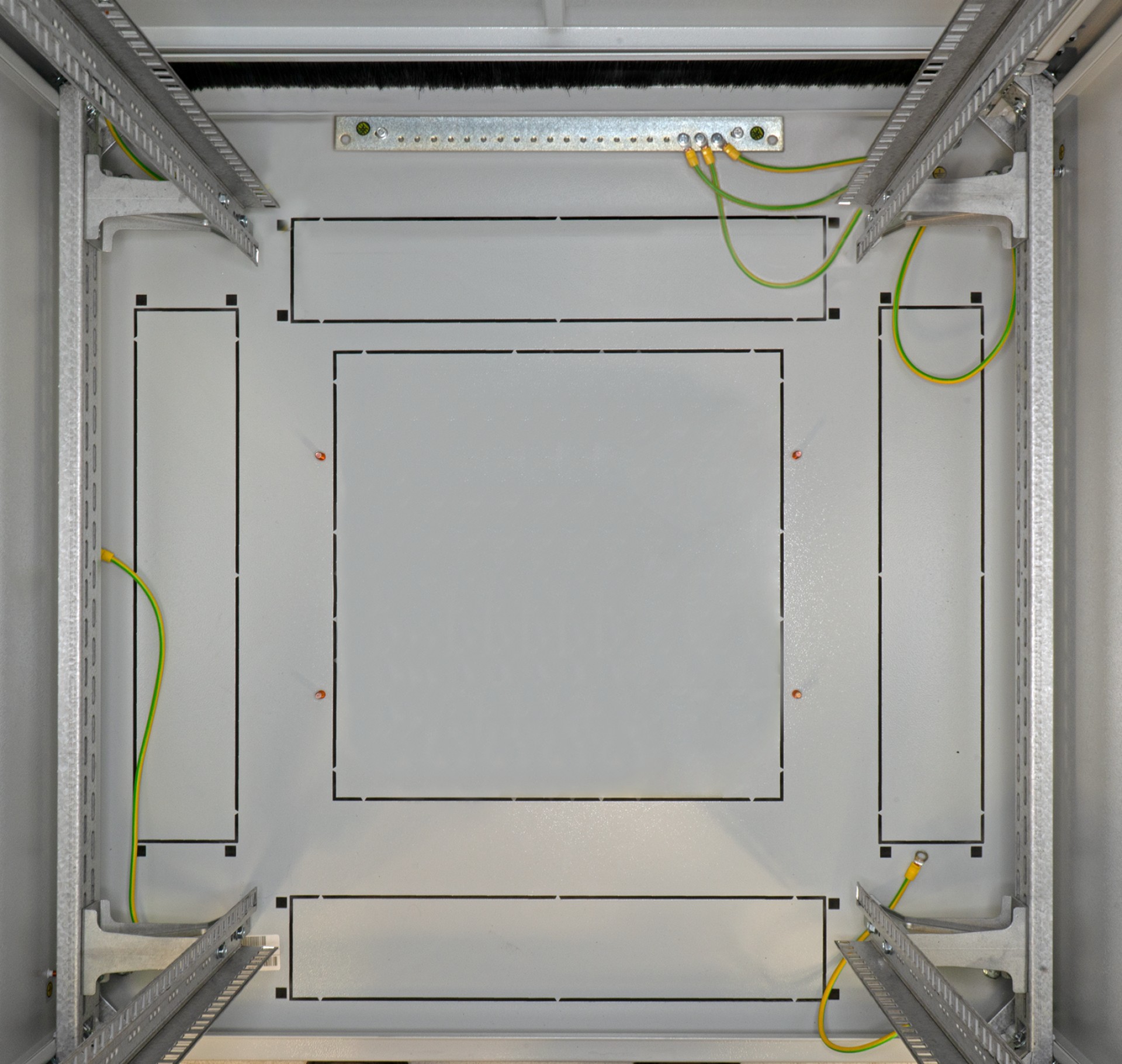

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

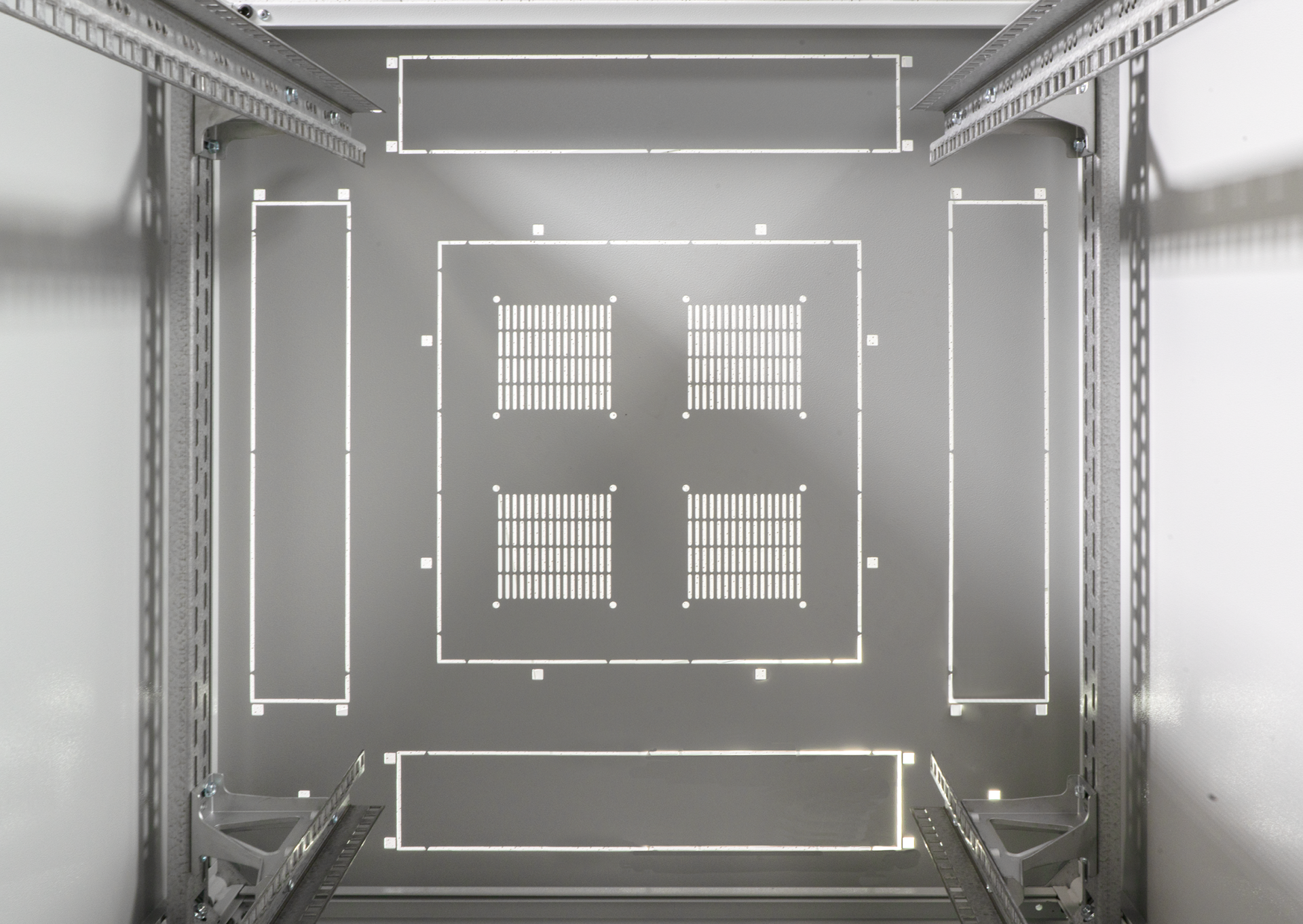

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Technical properties

Cabinet Series: PRO
Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482,6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: With powder coating
Type of back door: without
Type of front door: without
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: False
With earthing: True
With front door: False
With roof plate: True
With sidewall: False
With socket: False

Variants

Item no. Name Depth Width Colour Number of height units Höhe RAL-Nummer Anzahl der Türen
PRO-4780GR.0D 19" Network Cabinet PRO-Modular 47U, 800x1000 mm, RAL7035 1000 mm 800 mm grey 47 U 2186 mm 7035 -
PRO-4780TS.0D 19" Network Cabinet PRO-Modular 47U, 800x1000 mm, RAL9005 1000 mm 800 mm black 47 U 2186 mm 9005 -
PRO-4280GR.0D 19" Network Cabinet PRO-Modular 42U, 800x1000 mm, RAL7035 1000 mm 800 mm grey 42 U 1963 mm 7035 -
PRO-4280TS.0D 19" Network Cabinet PRO-Modular 42U, 800x1000 mm, RAL9005 1000 mm 800 mm black 42 U 1963 mm 9005 -

accessory

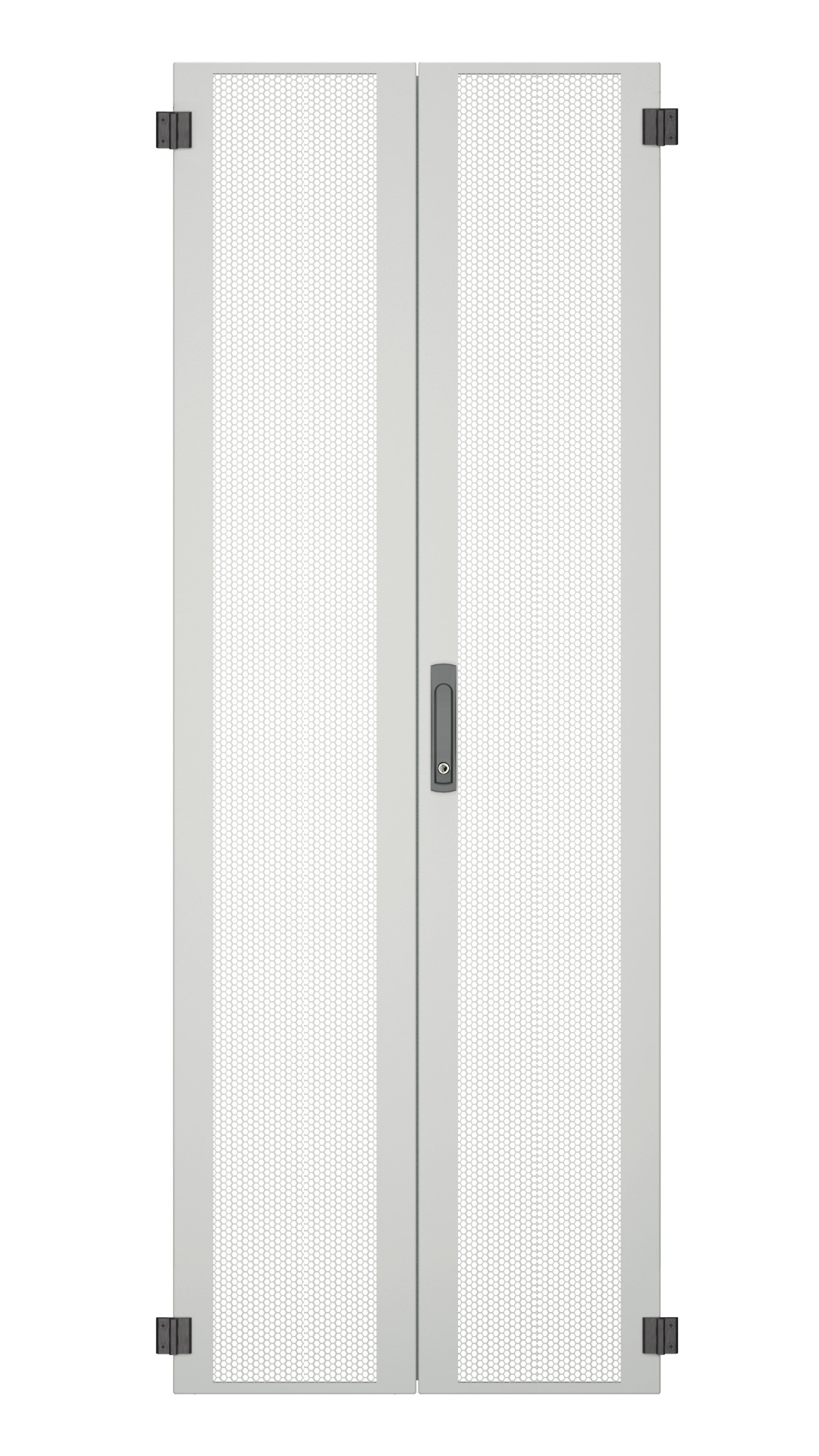

Door for PRO 47U, W=800, Steel perf., 2-Part, TH, RAL7035

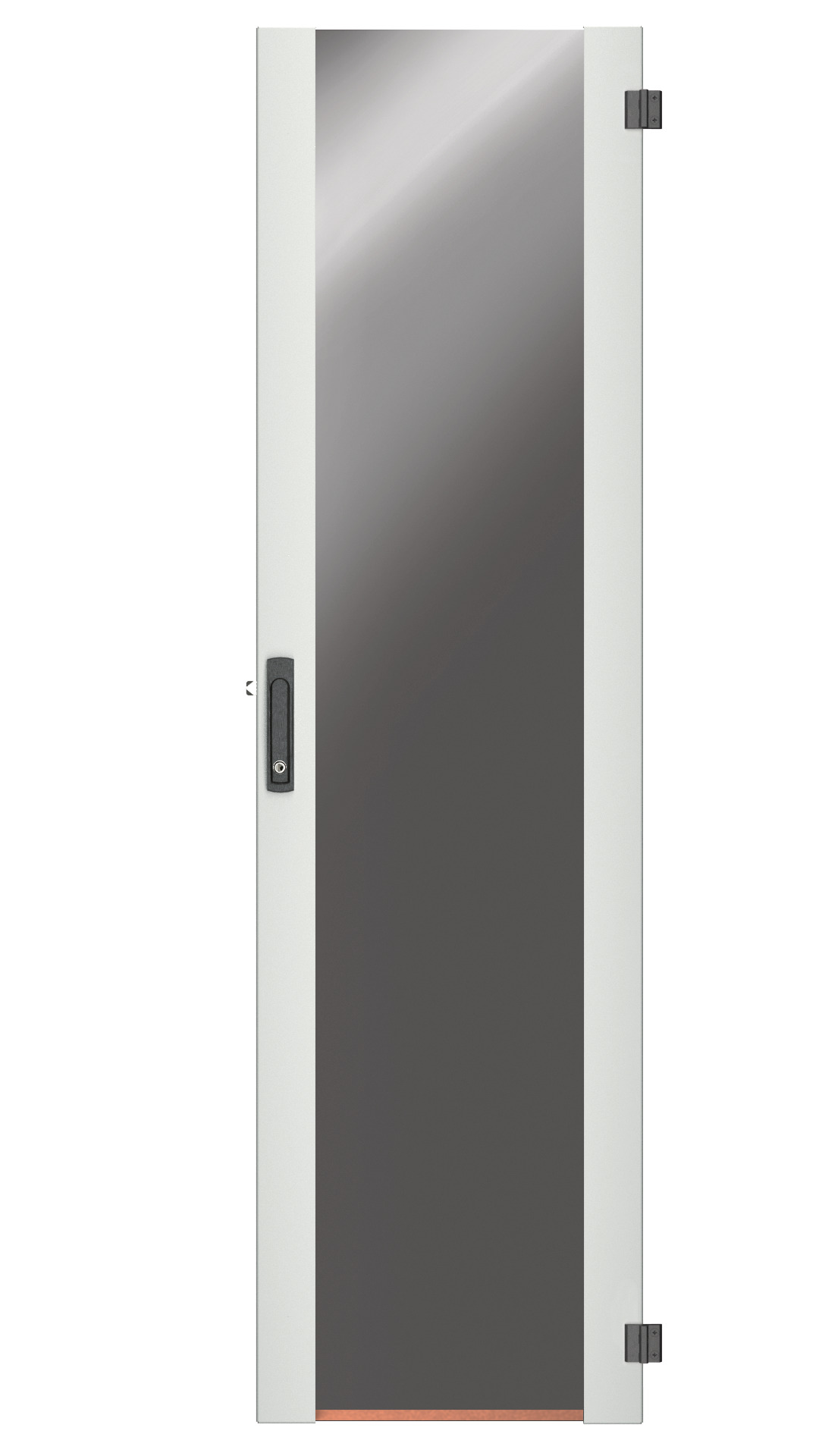

Door for PRO 47U, W=800, Glass, 1-Part, TH, RAL7035

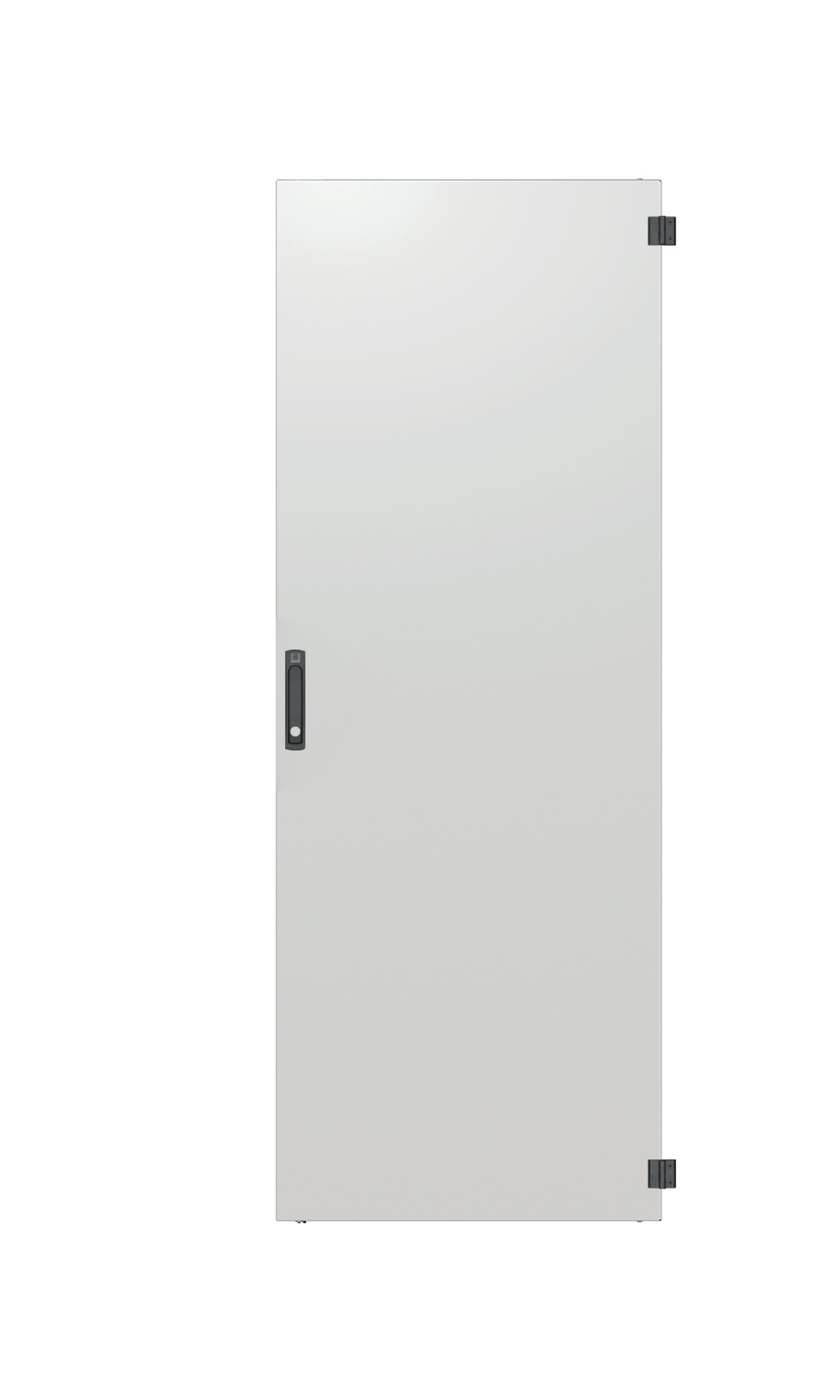

Door for PRO 47U, W=800, Steel, 1-Part, TH, RAL7035
Roof Fan 2-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035

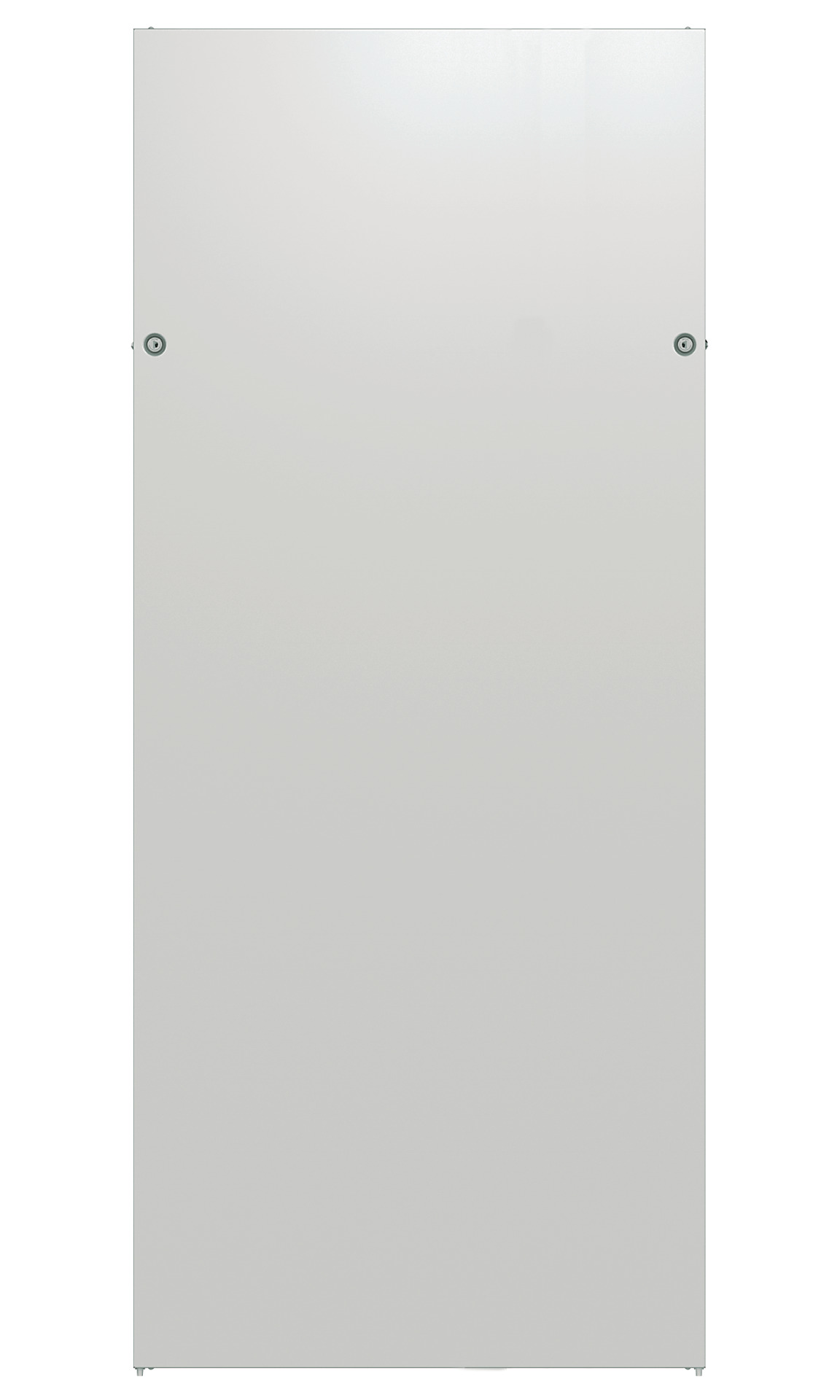

Side Wall for PRO 47U, T=1000, 1-Part, RAL7035
Door for PRO 47U, W=800, Steel, 2-Part, TH, RAL7035
Roof Fan 4-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035
Door for PRO 47U, W=800, Steel, 1-Part, LL, RAL7035, Rear Door
Plinth for PRO 800x1000 mm, H=100 mm, RAL7035

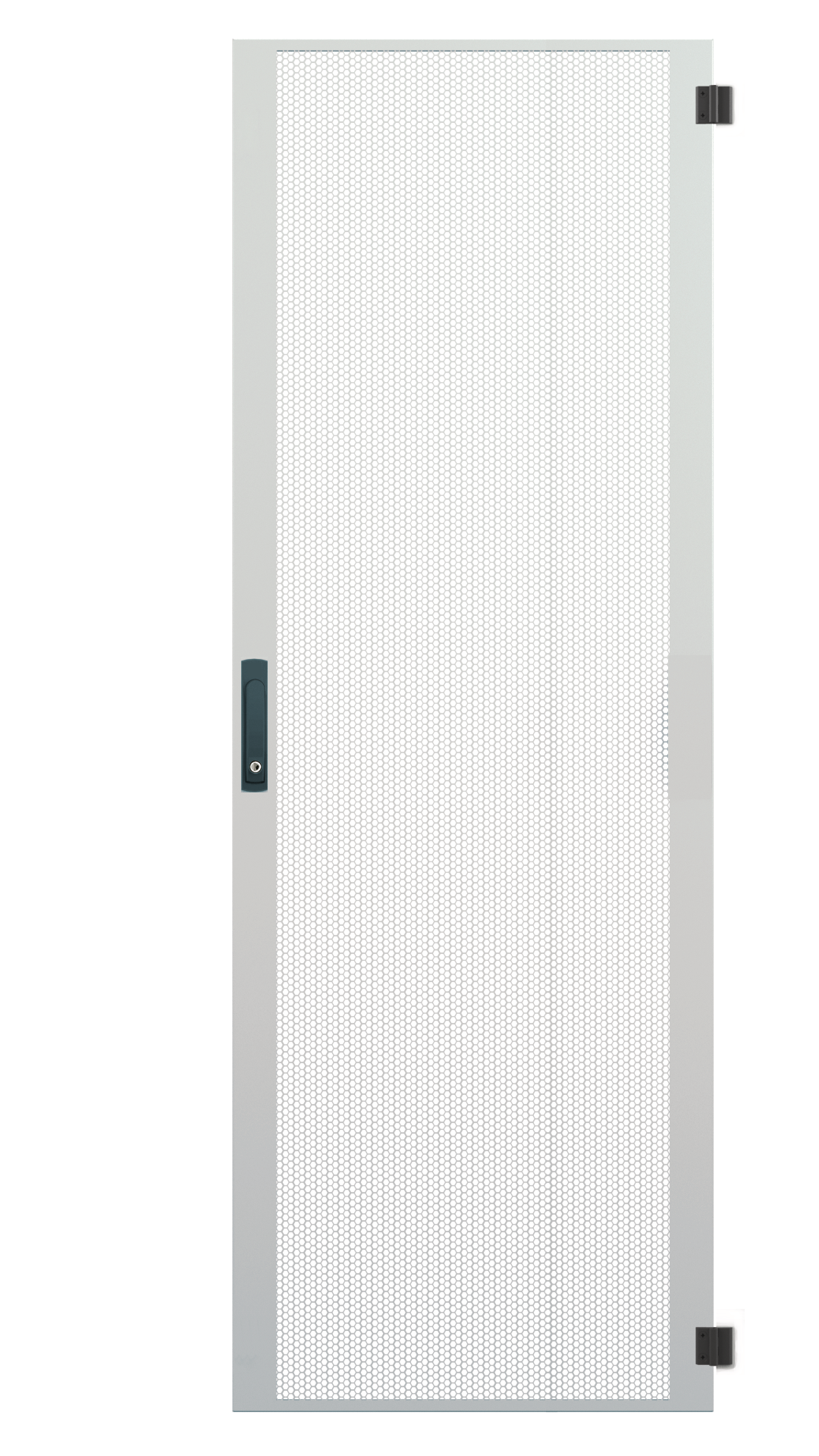

Door for PRO 47U, W=800, Steel perf., 1-Part, TH, RAL7035
