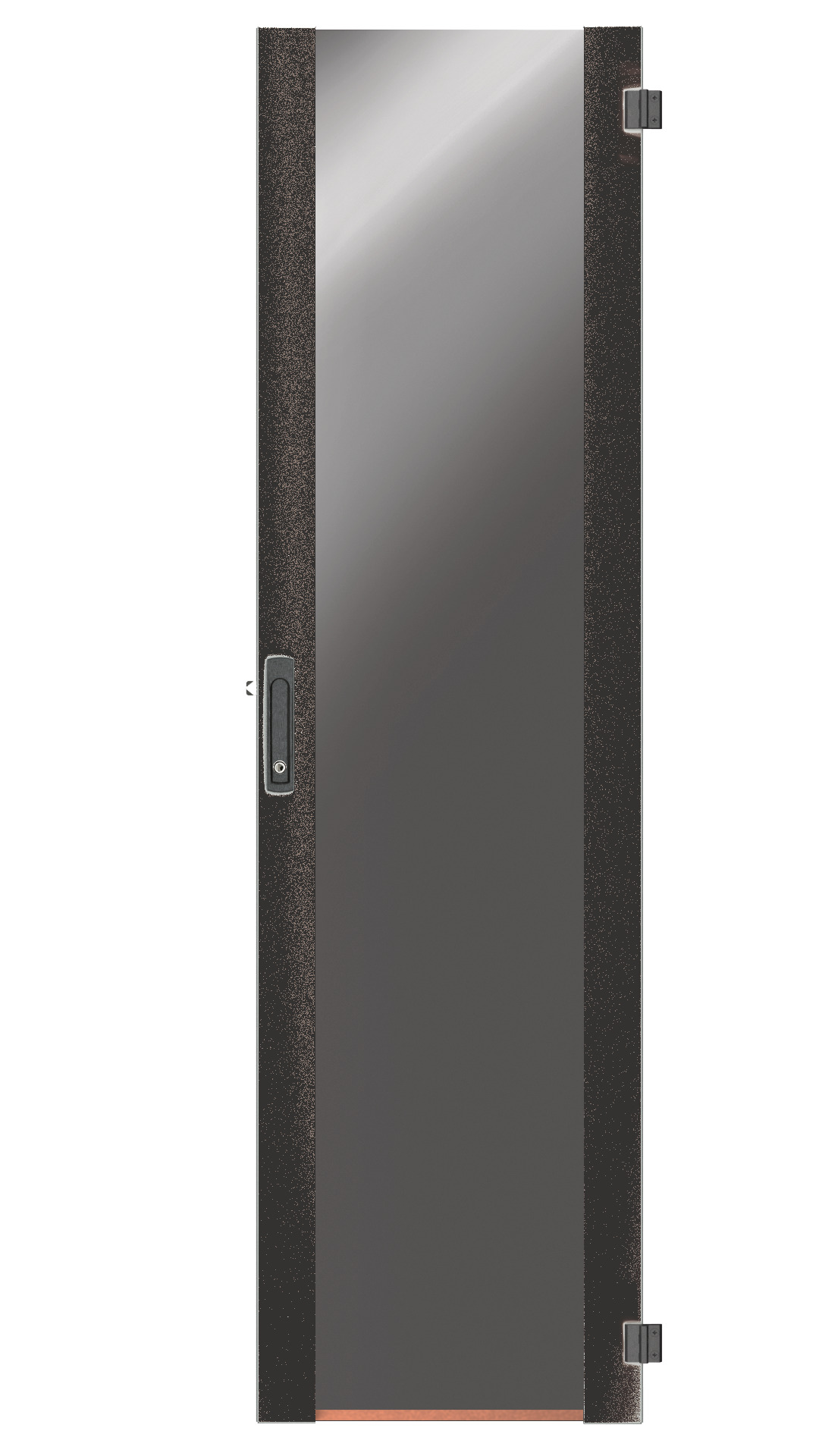

Glass Door for PRO 42U, 1-Part, Width 800 mm, 3-Pt.-Locking
Door for PRO 42U, W=800, Glass, 1-Part, TH, RAL9005
Item number:
PRO-TUR428G1.TS
EAN no.:
4049759220761
Product information for Door for PRO 42U, W=800, Glass, 1-Part, TH, RAL9005
1-part glass door for 42U cabinets PRO in width 800 mm
Window made of certified safety glass (thickness 5 mm)
3-point-locking with turning handle and profile half-cylinder acc. to DIN18252 / EN1303 (PHC exchangeable by customer)
Door opening angle 180°
Paint finish (steel elements) RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
Window made of certified safety glass (thickness 5 mm)
3-point-locking with turning handle and profile half-cylinder acc. to DIN18252 / EN1303 (PHC exchangeable by customer)
Door opening angle 180°
Paint finish (steel elements) RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Material: | Glass |
| Model: | Stop door |
| Profile half-cylinder exchangeable: | True |
| Surface finishing: | Powder coating |
| Type of closure: | Rotating handle with triple-point bar locking |
| Version as glazed door: | True |
Variants
| Item no. | Name | Building width for cabinet build in | Height | Color | Width | RAL-number | EMC-version | Version as door for disconnecting switch interlocking | |
|---|---|---|---|---|---|---|---|---|---|
| PRO-TUR428G1.GR | Door for PRO 42U, W=800, Glass, 1-Part, TH, RAL7035 | 800 mm | 1963 mm | grey | 800 mm | 7035 | False | False | |
| PRO-TUR428G1.TS | Door for PRO 42U, W=800, Glass, 1-Part, TH, RAL9005 | 800 mm | 1963 mm | black | 800 mm | 9005 | False | False |
Safety instructions
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
