FTTH Dropcable SC pre-assembled
Prices only visible for logged in users
Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 50m
Item number:
FTTH-DROP-SC-50
EAN no.:
4049759266653
Product information for Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 50m

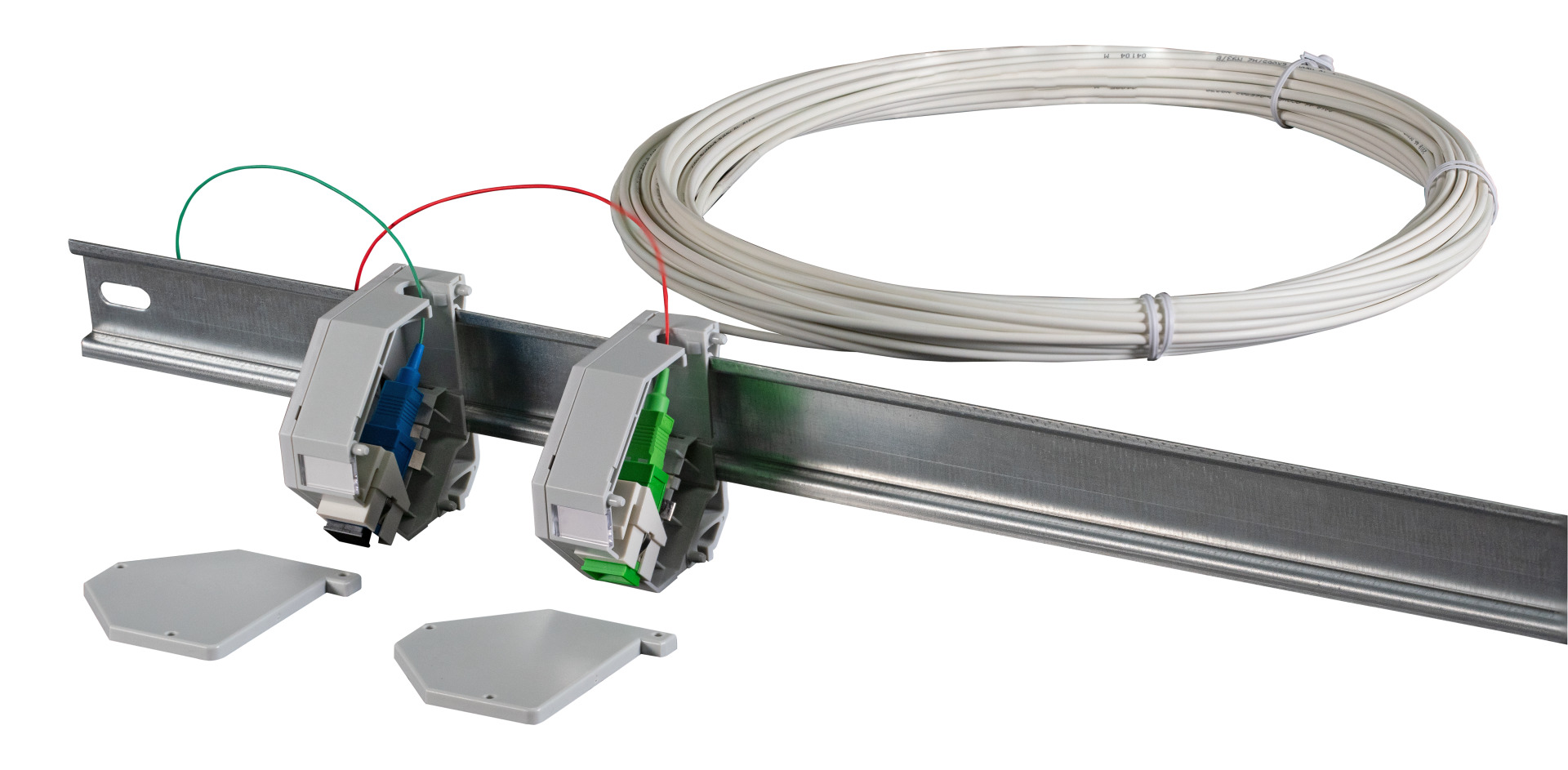

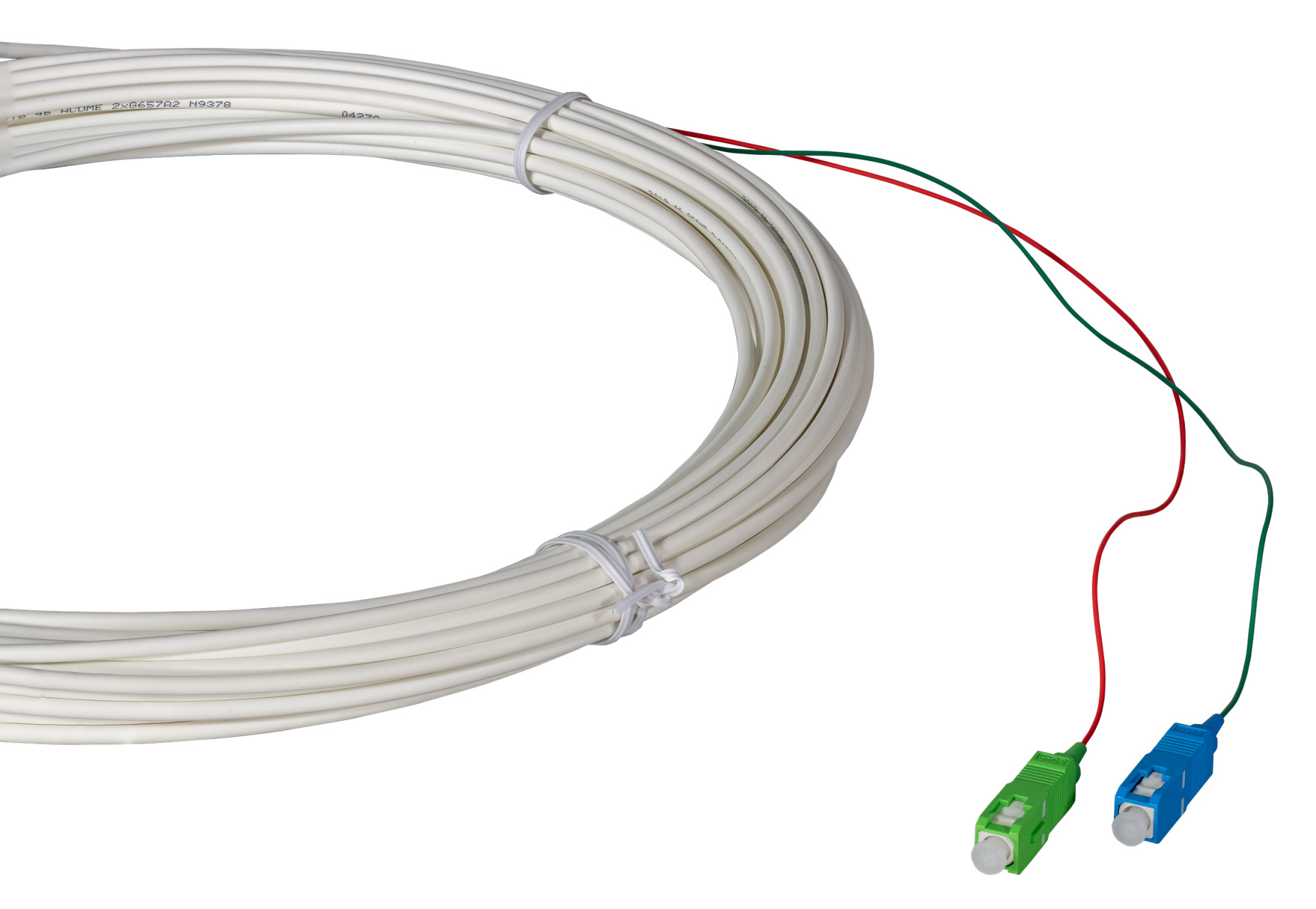

One-sided pre-assembled fiber optic drop cable with one SC/PC connector and one SC/APC connector. Fittingly assembled to be used in CPE's due to a different whip length of the two fibers.
Technical properties

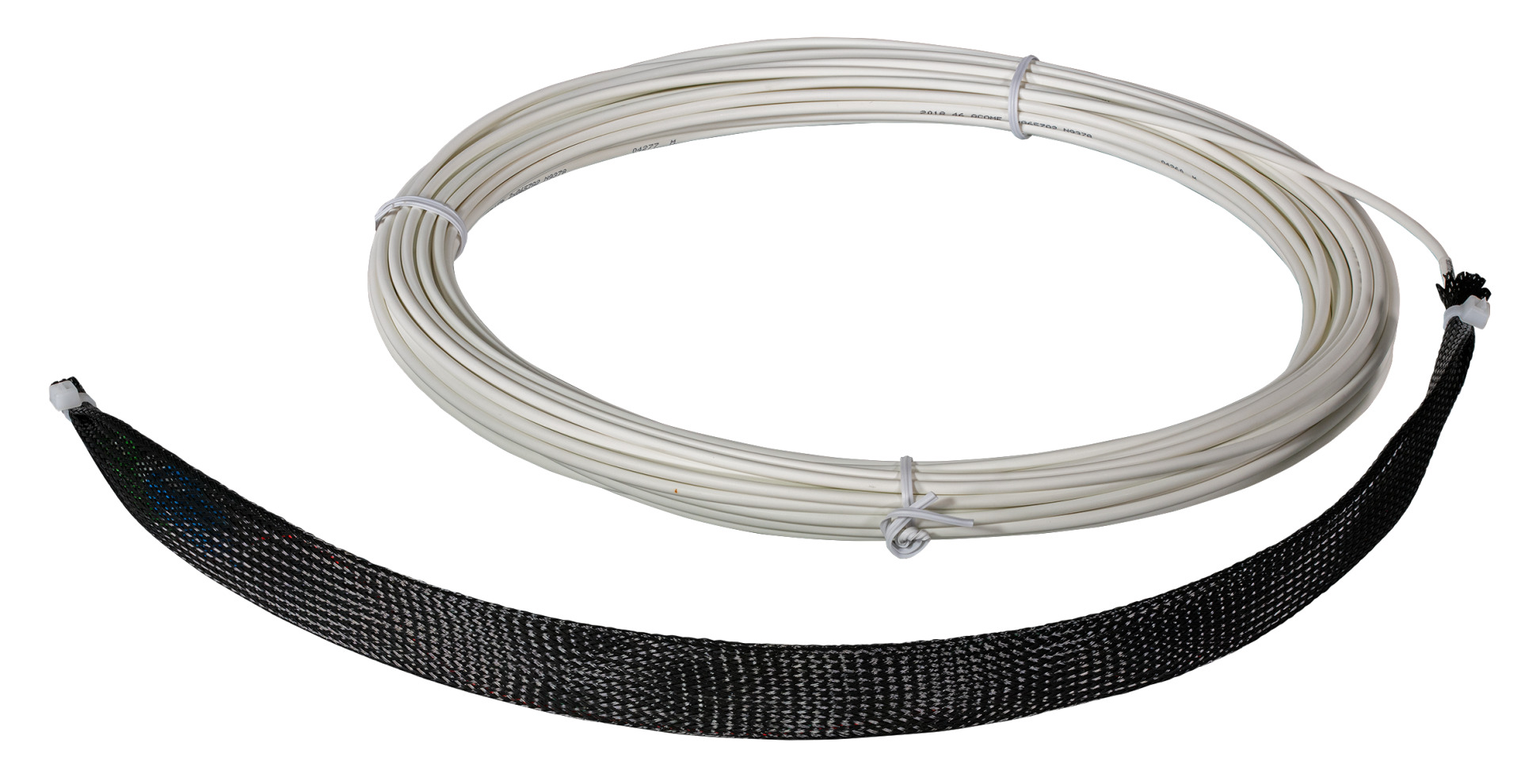

| Anti-kink sleeve: | put-on |
|---|---|
| Cable Conform to Standard: | IEC 60793-2 |
| Cable type: | Breakout |
| Cable Ø: | 3 mm |
| Cabling standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | G657A2 acc. to ITU-T G.657 |
| Colour outer sheath: | white |
| Connector Conform to Standard: | IEC 61754-4 |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. IEC60332-1 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket Material: | LSZH |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -5 – 70 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Side 2A: | 1 x SC/APC 9/125µ |
| Side 2B: | 1 x SC 9/125µ |
| Side A: | open |
| Storage Temperature: | -40 – 70 °C |
Variants
| Item no. | Name | Length | |
|---|---|---|---|
| FTTH-DROP-SC-20 | Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 20m | 20.0 m | |
| FTTH-DROP-SC-30 | Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 30m | 30.0 m | |
| FTTH-DROP-SC-40 | Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 40m | 40.0 m | |
| FTTH-DROP-SC-50 | Drop cable SC-SC/APC 1 side assembled, SM G657A2, 2 fiber, white, Dca, 50m | 50.0 m |
