DSub plugs, IDC contacts, flat version
Prices only visible for logged in users

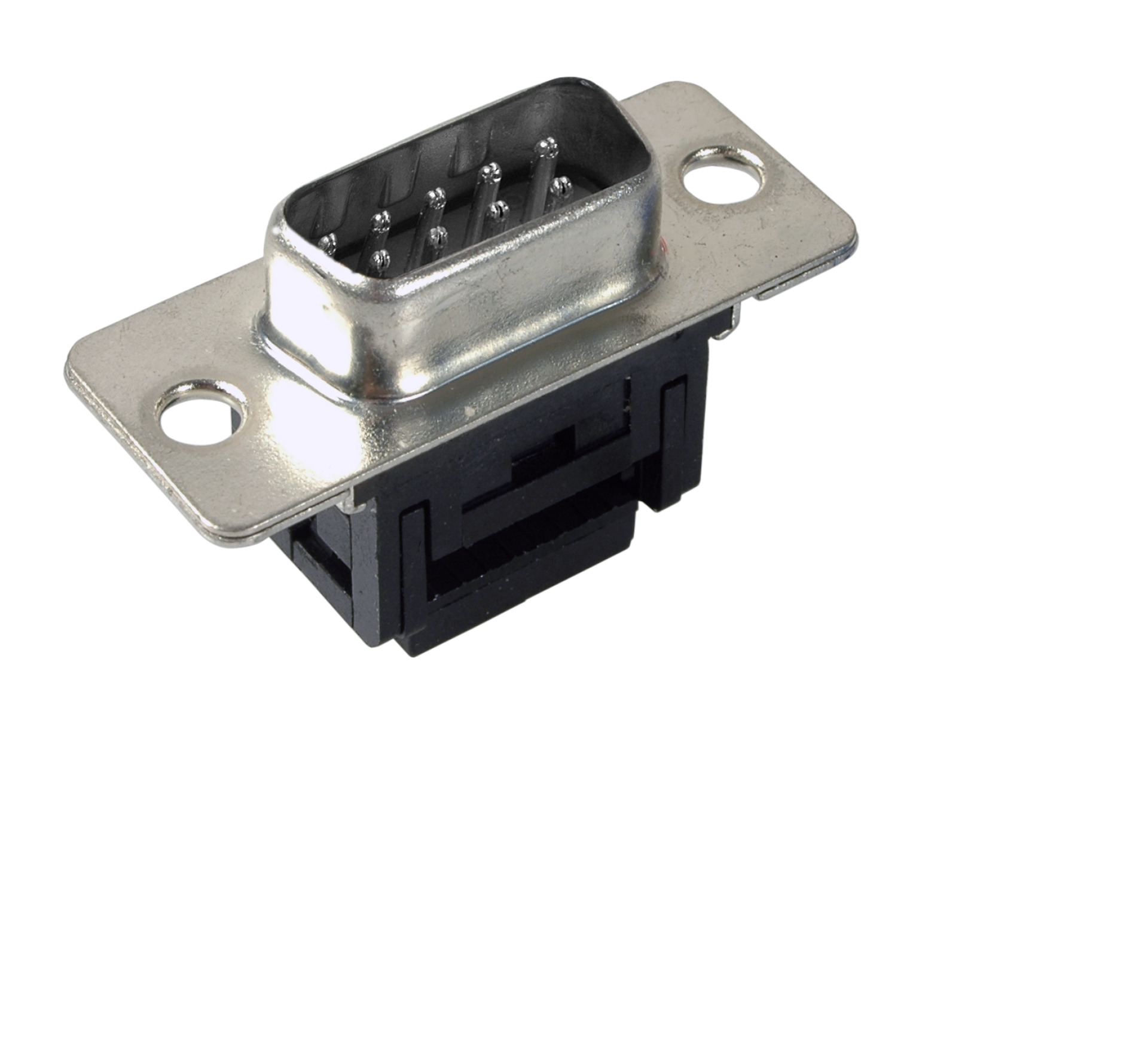

DSub Plug, IDC contacts flat version,E-DFF 09 LPIII/Z
Item number:
29060.1
EAN no.:
4049759038427
Product information for DSub Plug, IDC contacts flat version,E-DFF 09 LPIII/Z
• Quality level III
• 50 mating cycles
Contact material: Brass with nickel gold plating
• 50 mating cycles
Contact material: Brass with nickel gold plating
Technical properties
| Connection type: | other |
|---|---|
| Contact type: | male |
| Model: | plug |
Variants
| Item no. | Name | Type | Number of poles | |
|---|---|---|---|---|
| 29060.1 | DSub Plug, IDC contacts flat version,E-DFF 09 LPIII/Z | EDSF 09 LPIII/Z | 9 | |
| 29061.1 | DSub Plug, IDC contacts flat version,E-DFF 15 LPIII/Z | EDSF 15 LPIII/Z | 15 | |
| 29062.1 | DSub Plug, IDC contacts flat version,E-DFF 25 LPIII/Z | EDSF 25 LPIII/Z | 25 | |
| 29063.1 | DSub Plug, IDC contacts flat version,E-DFF 37 LPIII/Z | EDSF 37 LPIII/Z | 37 |
used with
