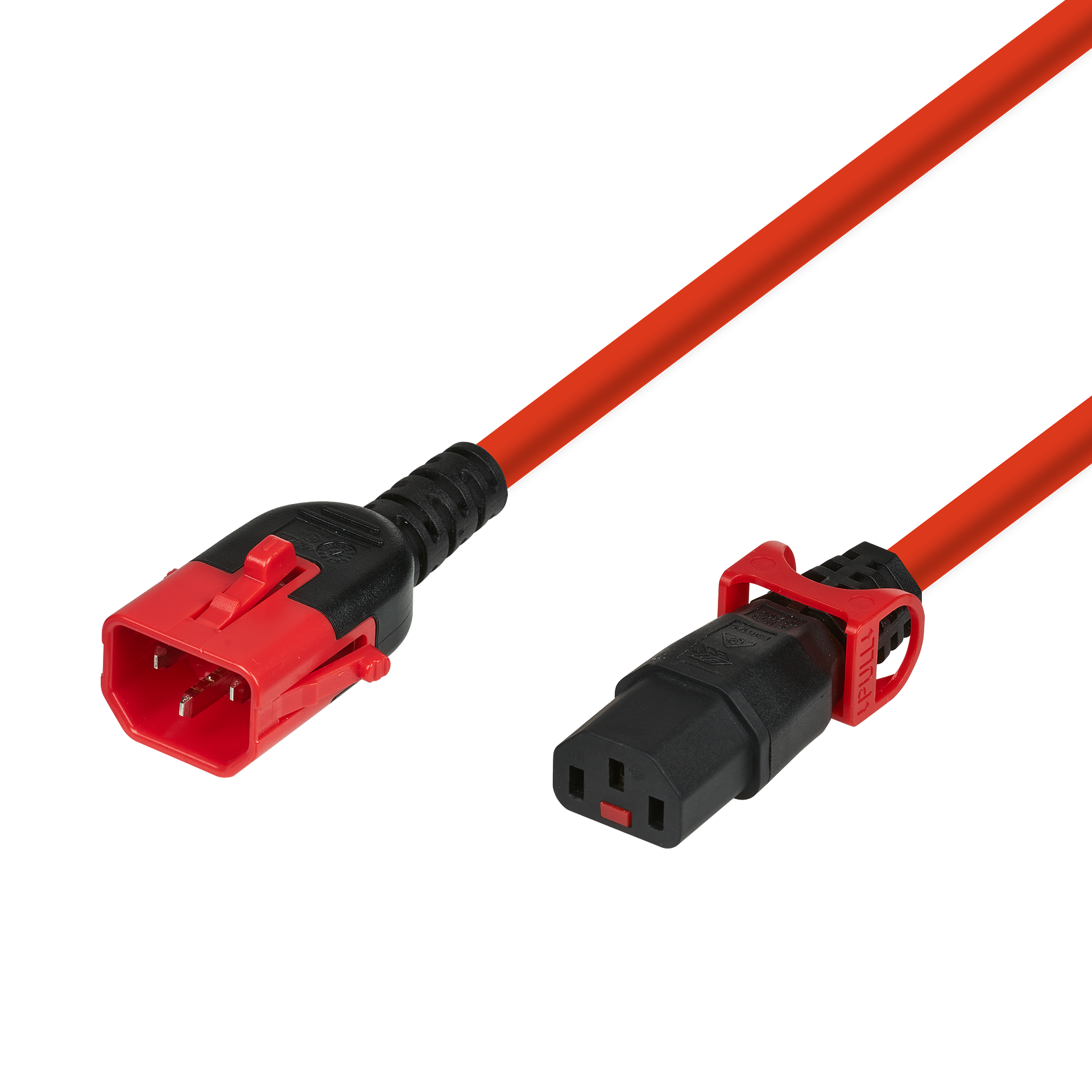

Extension Cable Dual-Lock C14 - C13, Red
Extension Cable C14 - C13, Dual Lock, Red, 2 m
Item number:
EK620RT.2
EAN no.:
5056313247231
Product information for Extension Cable C14 - C13, Dual Lock, Red, 2 m
With „Dual-Lock“: prevents accidentally removing of the C13 jack from devices
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
Technical properties
| (Halogenfree): | False |
|---|---|
| Colour outer sheath: | red |
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 5 – 70 °C |
| With cord switch: | False |
Variants
| Item no. | Name | Nominal voltage | Nominal current | With protective conductor | Colour outer sheath | Degree of protection | Length | Leiternennquerschnitt | Außendurchmesser ca. | |
|---|---|---|---|---|---|---|---|---|---|---|
| EK620RT.0,5 | Extension Cable C14 - C13, Dual Lock, Red, 0.5 m | – 250 V | 10 A | True | red | IP20 | 0.5 m | 1,04 (AWG17) mm² | 8,0 mm | |
| EK620RT.1 | Extension Cable C14 - C13, Dual Lock, Red, 1 m | – 250 V | 10 A | True | red | IP20 | 1.0 m | 1,04 (AWG17) mm² | 8,0 mm | |
| EK620RT.2 | Extension Cable C14 - C13, Dual Lock, Red, 2 m | – 250 V | 10 A | True | red | IP20 | 2.0 m | 1,04 (AWG17) mm² | 8,0 mm |
