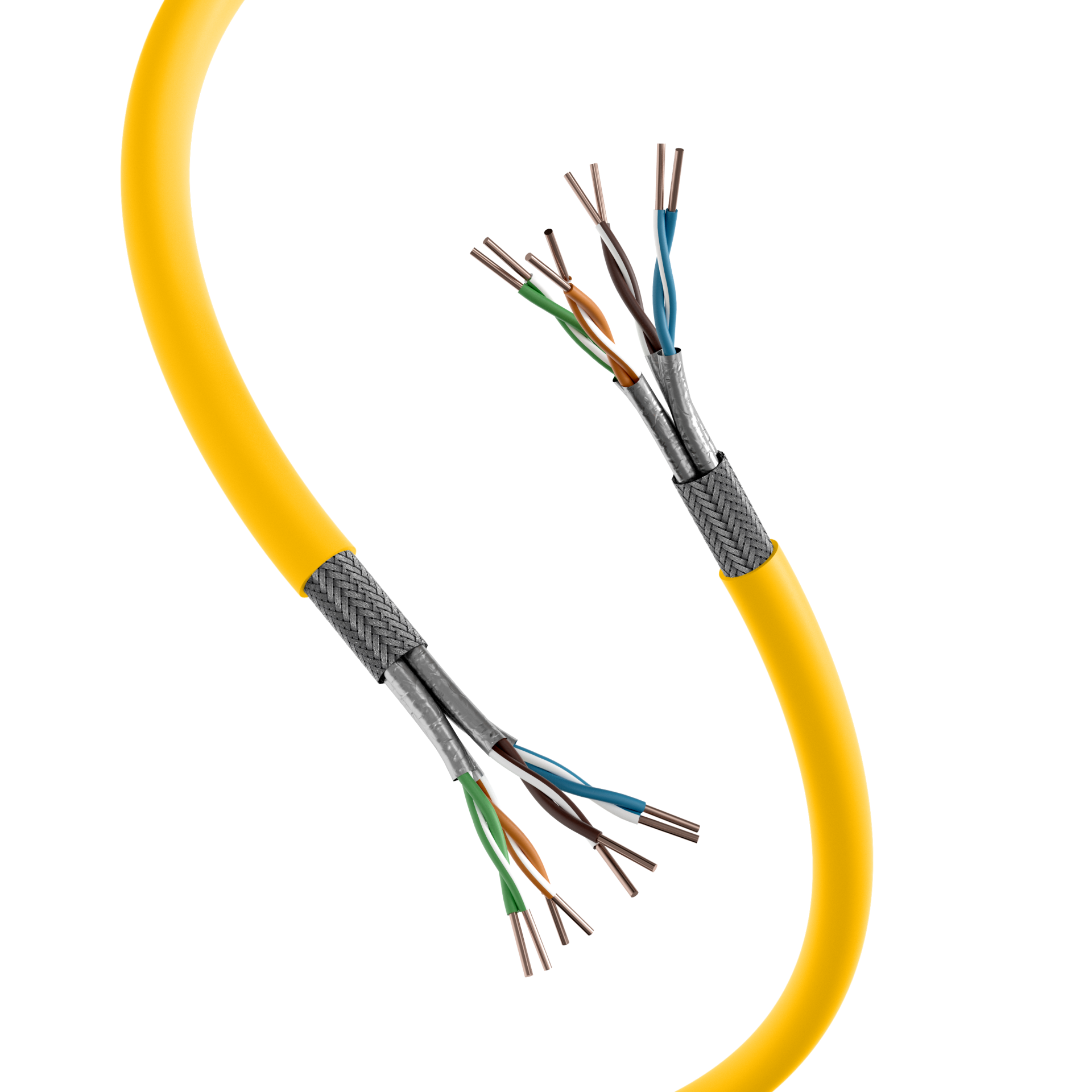

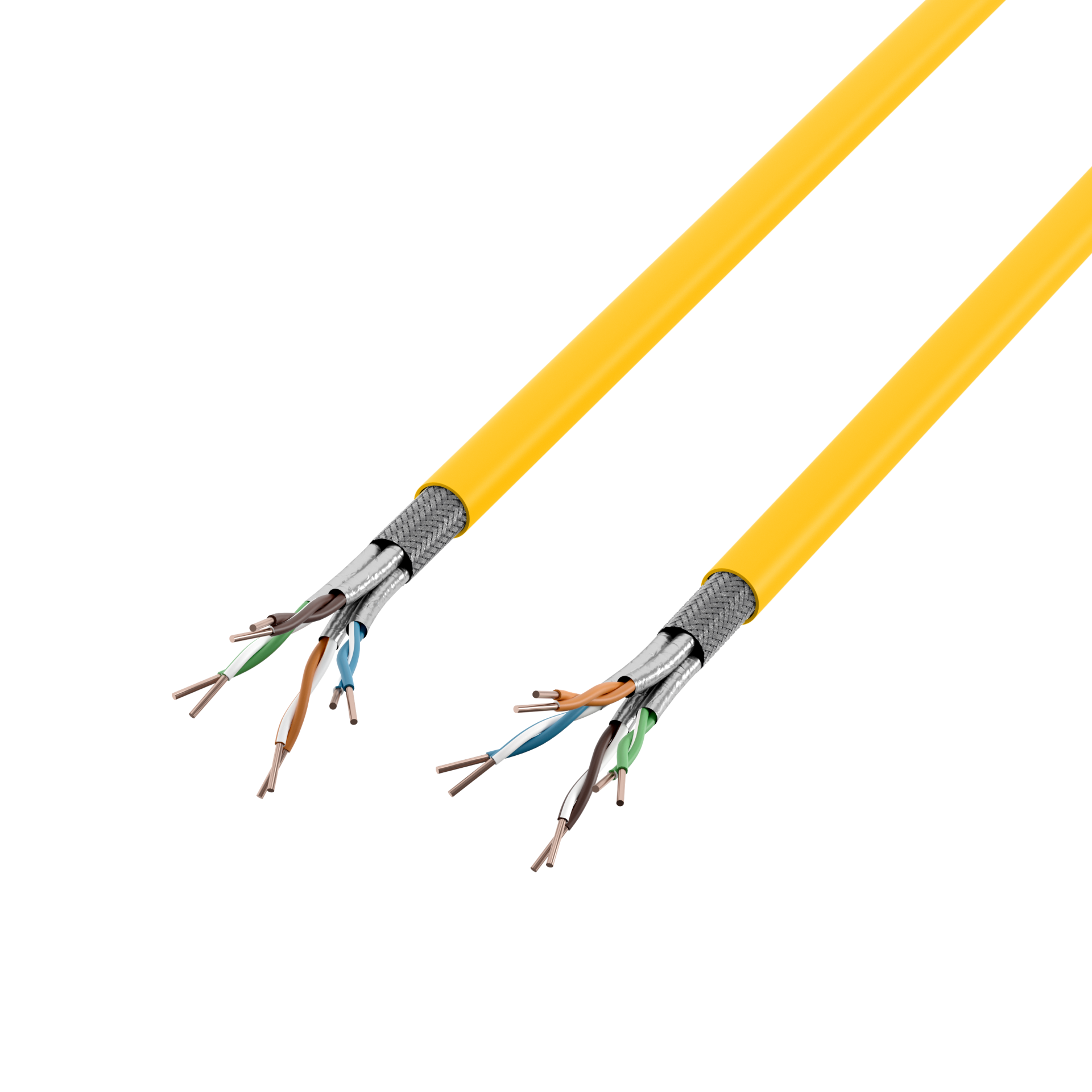

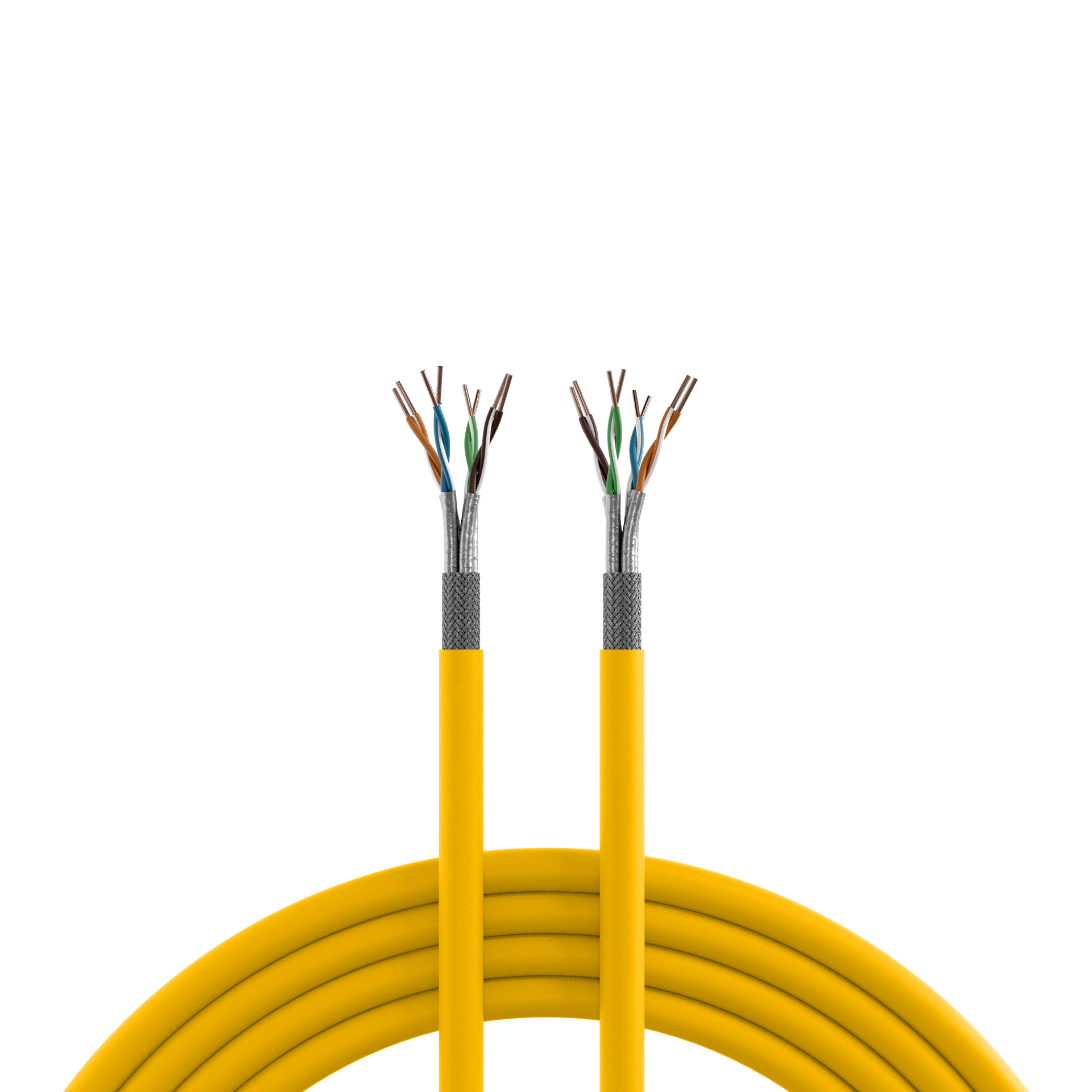

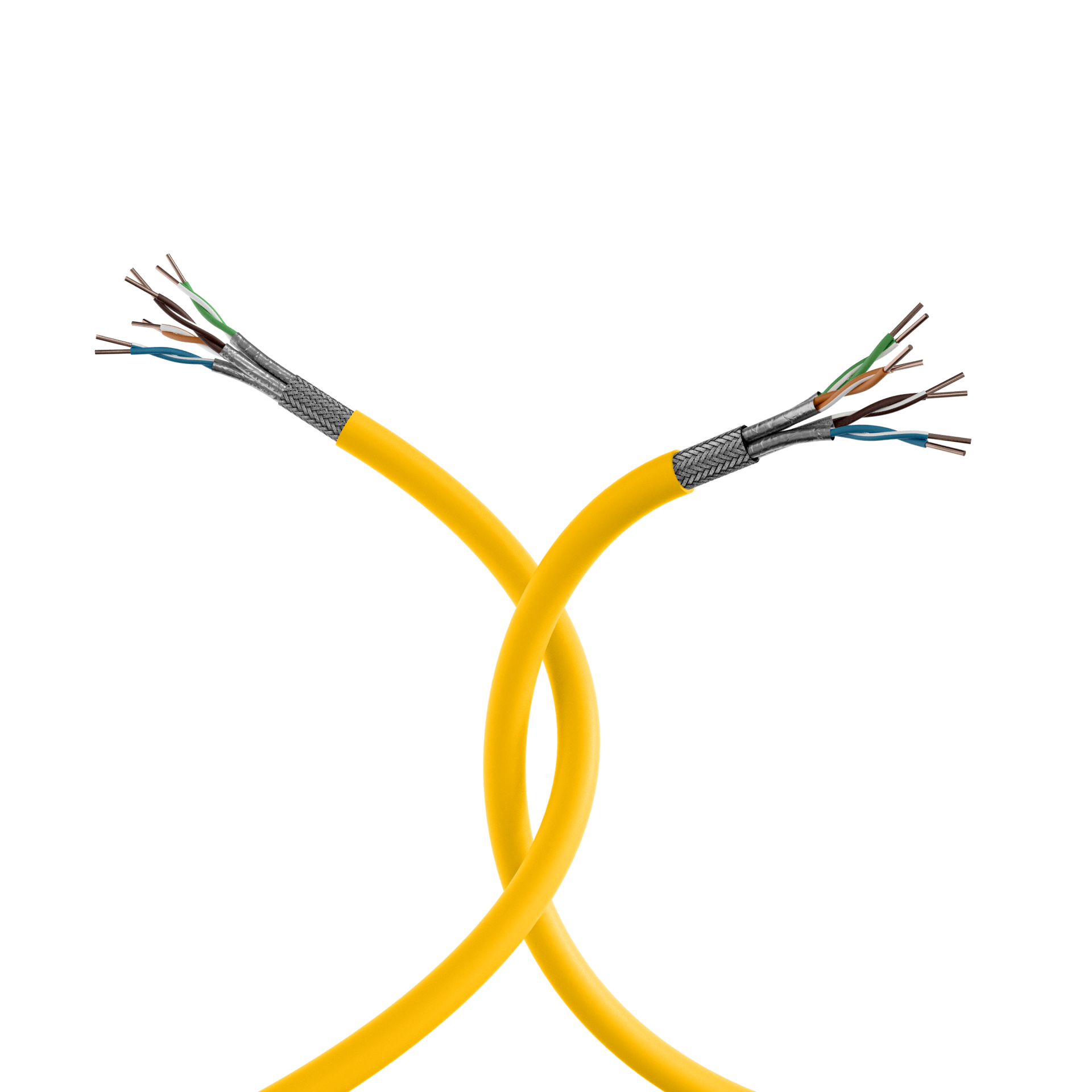

INFRALAN® Cat.7A 1500 AWG22,S/FTP 4P ,CPR Cca,25Gbit/s ready,rape yellow RAL1021
Item number: 999830.1-CPR
EAN no.: 4049759249984
meter

Product information for INFRALAN® Cat.7A 1500 AWG22,S/FTP 4P ,CPR Cca,25Gbit/s ready,rape yellow RAL1021

The INFRALAN® installation cable 99983.x-CPR is constructed for transmissions up to 1500 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). The individual stranded pairs are protected with a screen foil (PiMF) and a total braided shield against radiation into the cable, as well as this excellent protection prevents the radiation of signals from the cable out. This shielding guarantees compliance with the interference emission according to Class B EN 55022, as well as immunity to interference according to EN 55024. The stranding of the individual pairs is optimized in such a way that the delay skew between the pairs (skew) with the greatest possible decoupling (crosstalk) is minimal. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

Technical properties

AWG-size: 22/1
Bending radius (dynamic): ≥ 70 mm
Bending radius (static): ≥ 35 mm
Cable: EN 50288-9-1
IEC 61156-7
Cable Construction: S/FTP
Cable silicone free: True
Cabling standards: EN 50173-1
ISO/IEC 11801
Capacity to earth: ≤ 1200 pF/km
Category: 7A
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Cu, tinned
Core identification: Colour
Core insulation: foam-skin PE
Coupling attenuation: ≥ 85 dB
Coupling attenuation Type: Type 1
Diameter conductor: 0.64 mm
Dielectric strength DC: 1 kV/1 min
Directive/Regulation: REACH 1907/2006/EC
RoHS 2011/65/UE
Euro class: Cca
Flame retardant: acc. EN 60332-1
Halogen free: acc. EN 60754-1/2
Halogen free (acc. EN 50267-2-2): True
Halogen free (according to EN 60754-1/2): True
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 5000 MOhm/km
Jacket Material: FRNC-B
Loop resistance: ≤ 120 Ohm/km
Low smoke: acc. EN 61034-2
Low smoke (according to EN 61034-2): True
Max. Freuqency: 1500 MHz
NVP value: 78 %
Operating temperature, storage: 0 – 50 °C
Permitted cable outer temperature after assembling without vibration: -20 – 60 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+

acc. to IEEE802.3bt 4PPoE
Resistance unbalance: ≤ 2 %
Screen over stranding: braiding
Screen over stranding element: Foil
Separation class acc. EN50174-2: D
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transfer impedance at 1MHz: ≤ 5 mOhm/m
Transfer impedance at 10MHz: ≤ 5 mOhm/m
Transfer impedance at 30MHz: ≤ 5 mOhm/m
Transfer impedance at 100MHz: ≤ 10 mOhm/m
Transmission standards: IEEE 802.3 10Mbit to 10Gbit
UV resistance: no

Variants

Item no. Name RAL colour Colour outer sheath Number of cores Type Length Cu-Zahl Gewicht Max. Zugkraft Außendurchmesser ca. Brandlast
999830.1-CPR INFRALAN® Cat.7A 1500 AWG22,S/FTP 4P ,CPR Cca,25Gbit/s ready,rape yellow RAL1021 RAL1021 yellow 8 simplex 1.0 m 38 kg/km 75 kg/km 190 N 8,6 mm 0,69 MJ/m
999830.100-CPR INFRALAN® Cat.7A 1500 AWG22,S/FTP 4P CPR,Cca,25 GBit/s ready,rape yellow RAL1021 RAL1021 yellow 8 simplex 100.0 m 38 kg/km 75 kg/km 190 N 8,6 mm 0,69 MJ/m
999830.500-CPR INFRALAN® Cat.7A 1500 AWG22,S/FTP 4P ,CPR Cca,25Gbit/s ready,rape yellow RAL1021 RAL1021 yellow 8 simplex 500.0 m 38 kg/km 75 kg/km 190 N 8,6 mm 0,69 MJ/m
999830DX.500-CPR INFRALAN®Cat.7A 1500 AWG22,S/FTP,2x4P,CPR Cca,25Gbit/s ready,rape yellow RAL1021 RAL1021 yellow 2x8 duplex 500.0 m 76 kg/km 150 kg/km 380 N 8,6x17,5 mm 1,38 MJ/m
