Plinth Universal, Height 100 mm, RAL7035
Prices only visible for logged in users

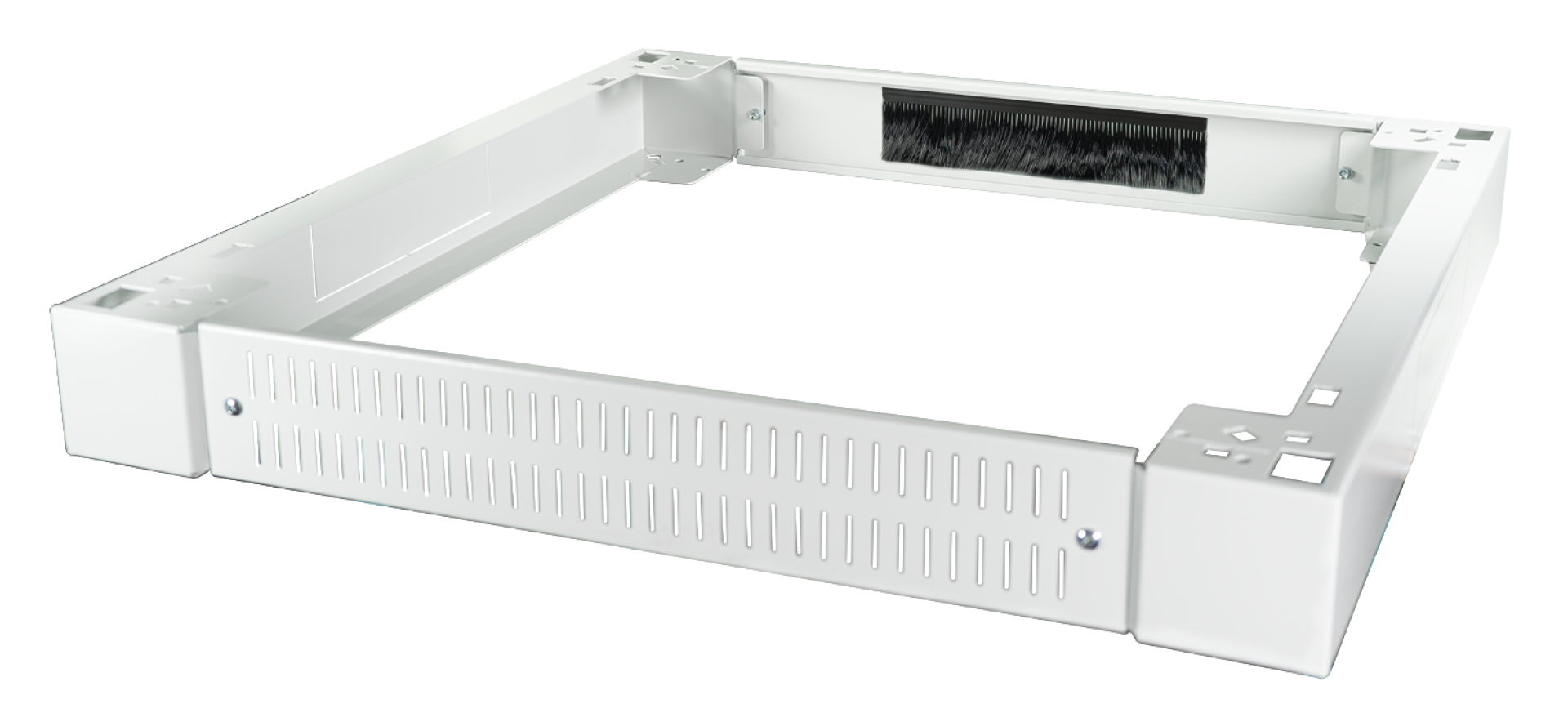

Plinth 600 x 800 mm, H=100 mm, RAL7035
Item number:
691750GR.68PB
EAN no.:
4049759251437
Product information for Plinth 600 x 800 mm, H=100 mm, RAL7035
Side and rear elements with pre-punched openings for cable entry
Front cover perforated
Suitable for mounting at cabinet seris PRO and Classic:
For use with PRO the feet included with the cabinet are suitable
For use with Classic, 1 x set PRO-NIV01 is necessary - please order separately
Plinth height 100 mm
Suitable for mounting of leveling feet M12
Stackable to 200 mm plinth height possible by screwing of 2 plinths
Material steel sheet
Paint finish RAL7035, light grey
Scope of delivery: 1 x plinth, 1 x brush, mounting material
Front cover perforated
Suitable for mounting at cabinet seris PRO and Classic:
For use with PRO the feet included with the cabinet are suitable
For use with Classic, 1 x set PRO-NIV01 is necessary - please order separately
Plinth height 100 mm
Suitable for mounting of leveling feet M12
Stackable to 200 mm plinth height possible by screwing of 2 plinths
Material steel sheet
Paint finish RAL7035, light grey
Scope of delivery: 1 x plinth, 1 x brush, mounting material
Technical properties
Cabinet Series: |
Classic PRO |
---|---|
Levellable: | True |
Material: | Steel |
Model: | Base complete |
Suitable for aeration/de-aeration: | True |
Suitable for cable patch: | True |
Suitable for outdoor set-up: | False |
Variants
Item no. | Name | Suitable for enclosure building width | Height | Colour | Suitable for enclosure building depth | Breite | Tiefe | RAL-Nummer | |
---|---|---|---|---|---|---|---|---|---|
691750GR.66PB | Plinth Universal, 600 x 600 mm, H=100 mm, RAL7035 | 600 mm | 100 mm | grey | 600 mm | 600 mm | 600 mm | 7035 | |
691750GR.68PB | Plinth 600 x 800 mm, H=100 mm, RAL7035 | 600 mm | 100 mm | grey | 800 mm | 600 mm | 800 mm | 7035 | |
691750GR.60PB | Plinth 600 x 1000 mm, H=100 mm, RAL7035 | 600 mm | 100 mm | grey | 1000 mm | 600 mm | 1000 mm | 7035 | |
691750GR.62PB | Plinth 600 x 1200 mm, H=100 mm, RAL7035 | 600 mm | 100 mm | grey | 1200 mm | 600 mm | 1200 mm | 7035 | |
691750GR.86PB | Plinth 800 x 600 mm, H=100 mm, RAL7035 | 800 mm | 100 mm | grey | 600 mm | 800 mm | 600 mm | 7035 | |
691750GR.88PB | Plinth 800 x 800 mm, H=100 mm, RAL7035 | 800 mm | 100 mm | grey | 800 mm | 800 mm | 800 mm | 7035 | |
691750GR.80PB | Plinth 800 x 1000 mm, H=100 mm, RAL7035 | 800 mm | 100 mm | grey | 1000 mm | 800 mm | 1000 mm | 7035 | |
691750GR.82PB | Plinth 800 x 1200 mm, H=100 mm, RAL7035 | 800 mm | 100 mm | grey | 1200 mm | 800 mm | 1200 mm | 7035 |
