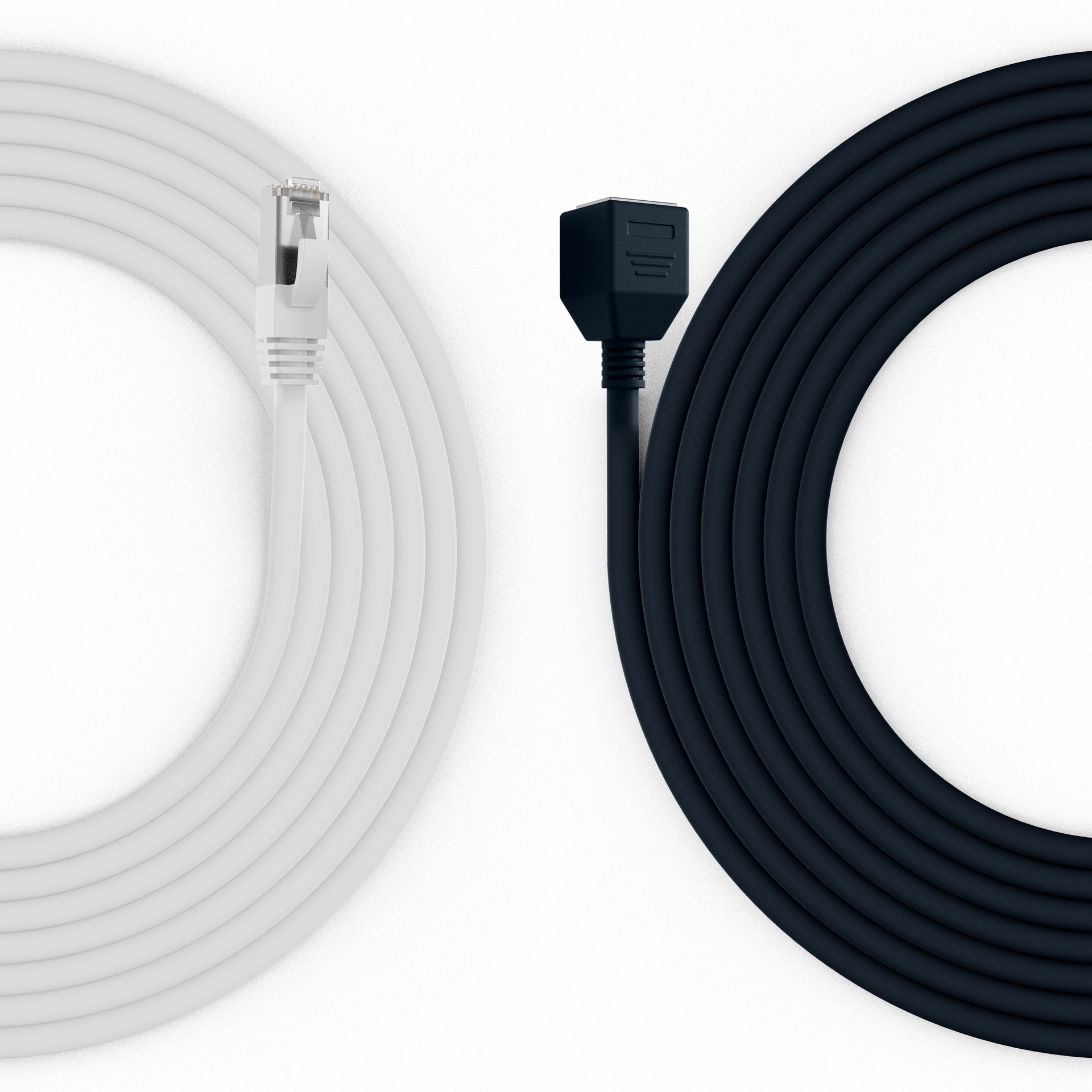

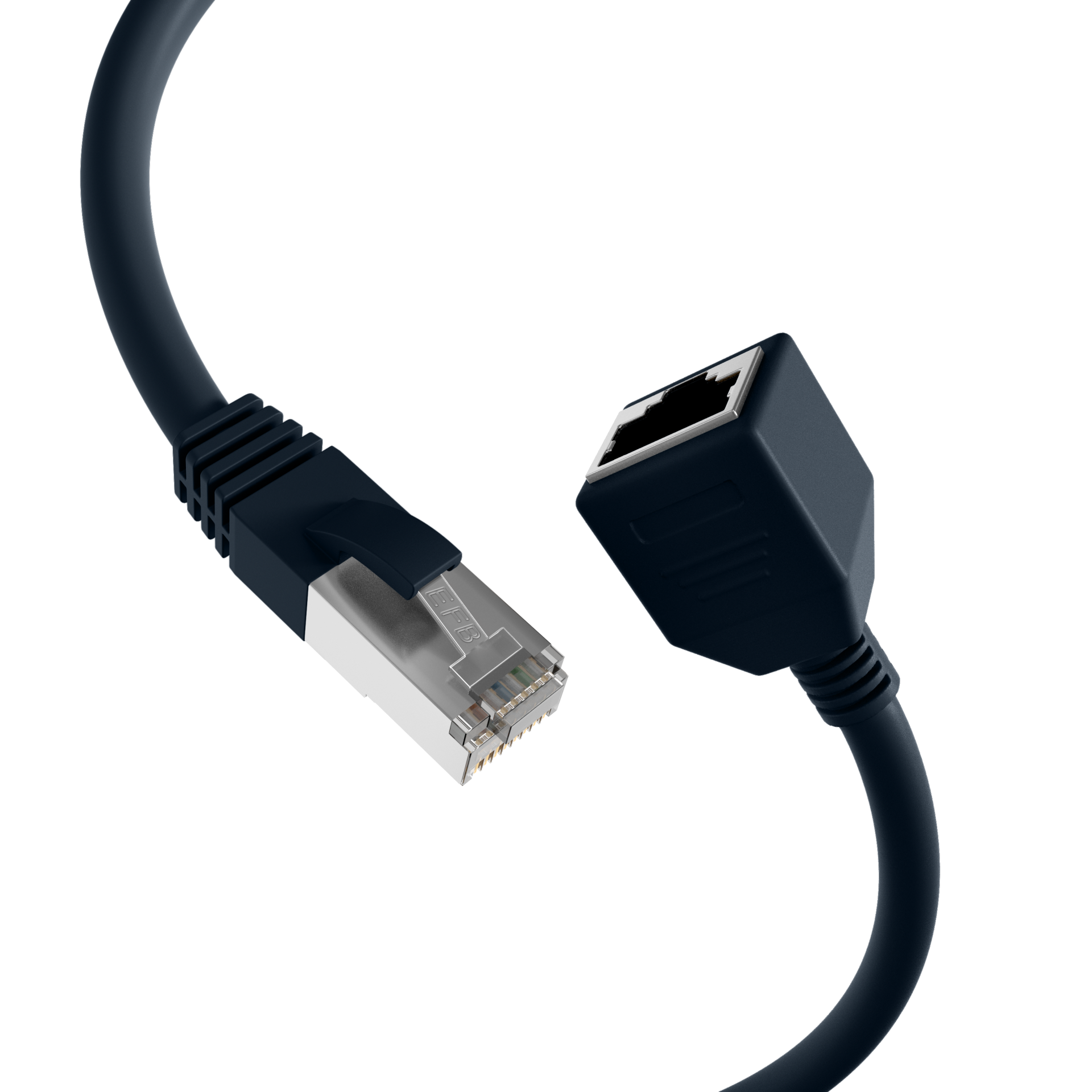

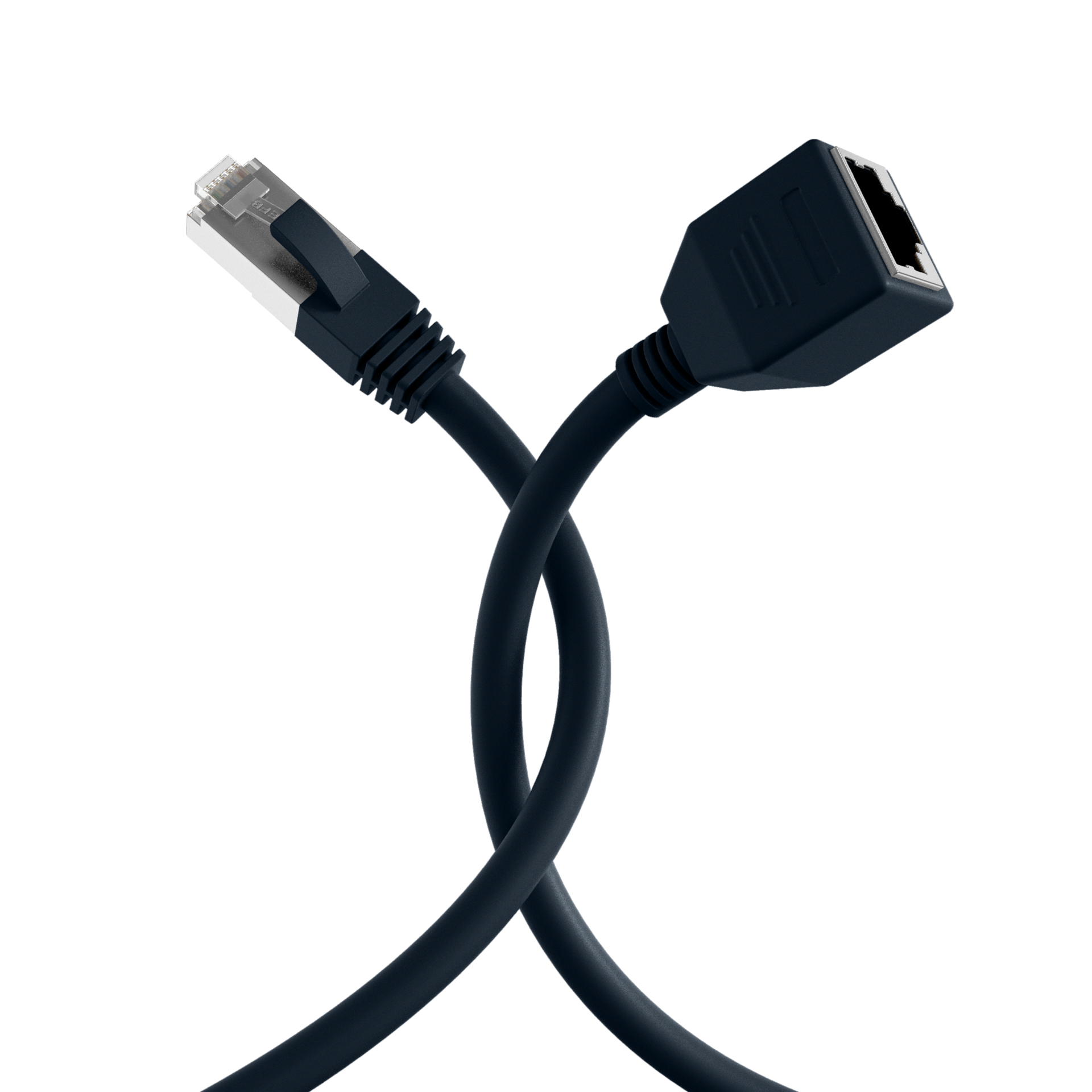

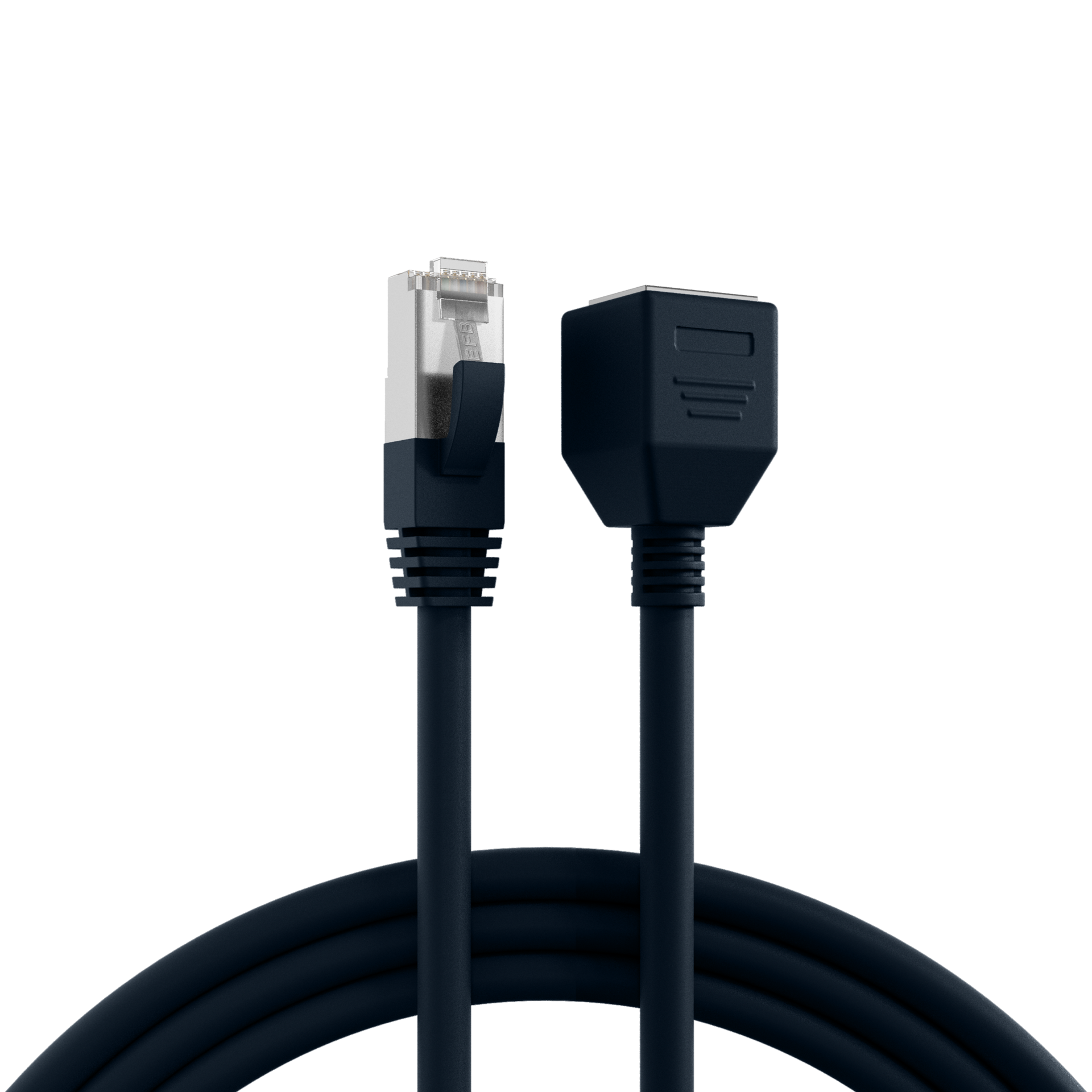

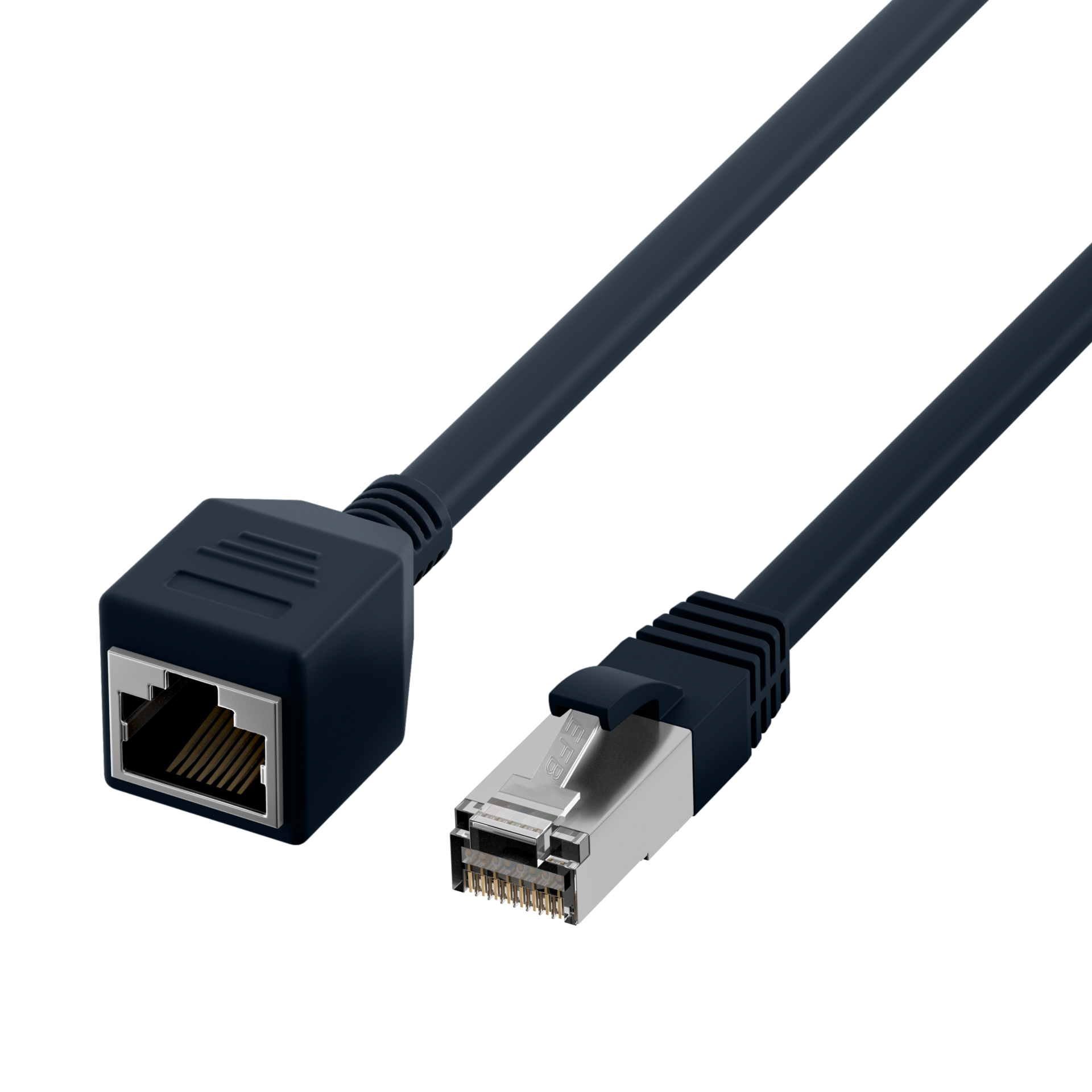

RJ45 Extension Cat.6A S/FTP LSZH AWG26 black
Prices only visible for logged in users
RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 5m
Item number:
K5546SW.5
EAN no.:
4049759260989
Product information for RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 5m
Shielded RJ45 patch cable extension Cat.6A for transmissions according to ISO11801 for up to 10Gbit/s.
You have already installed a patch cable in your study/office. Previously, the cable was sufficient up to your device, but now that the office has been remodelled, it is no longer sufficient. Instead of replacing the entire patch cable because it has been laid at great expense, simply connect the RJ45 patch cable extension in the length that suits you to your end device.
In addition, the short version of the patch cable extension can be used to protect your device connections. Especially in the home office, with a lot of assembly and disassembly of the e.g. notebook, the socket of the notebook is heavily stressed. This can be circumvented by "interposing" the patch cable extension, because here you are then stressing the socket of the extension.
The RJ45 patch cable extension Cat.6A can be used with any conventional devices with RJ45 interface, such as computers, notebooks, DSL modems, routers, switches, game consoles, televisions and many more.
You have already installed a patch cable in your study/office. Previously, the cable was sufficient up to your device, but now that the office has been remodelled, it is no longer sufficient. Instead of replacing the entire patch cable because it has been laid at great expense, simply connect the RJ45 patch cable extension in the length that suits you to your end device.
In addition, the short version of the patch cable extension can be used to protect your device connections. Especially in the home office, with a lot of assembly and disassembly of the e.g. notebook, the socket of the notebook is heavily stressed. This can be circumvented by "interposing" the patch cable extension, because here you are then stressing the socket of the extension.
The RJ45 patch cable extension Cat.6A can be used with any conventional devices with RJ45 interface, such as computers, notebooks, DSL modems, routers, switches, game consoles, televisions and many more.
Technical properties
AWG-size: | 26/7 |
---|---|
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 500MHz |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | black |
Colour outer sheath: | black |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 Standard |
Contact Resistance: | 30 mΩ |
Contacts: | 3 µ" gold plated |
Current Rating: | max. 1 A |
Insulation Resistance: | 10 MΩ |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Mating cycles: | 750 |
Model: | Shielded |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.2 mm |
POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | www.efb-elektronik.de |
Raw cable: | Cat.6A |
Suitable for degree of protection (IP): | IP20 |
Temperature Range (Operation): | -15 – 60 °C |
Temperature Range (Storage): | -20 – 75 °C |
Transmission: |
2.5Gbit 5Gbit 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Variants
Item no. | Name | Length | Längentoleranz | |
---|---|---|---|---|
K5546SW.1 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 1m | 1.0 m | ±5 % | |
K5546SW.2 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 2m | 2.0 m | ±5 % | |
K5546SW.3 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 3m | 3.0 m | ±5 % | |
K5546SW.5 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 5m | 5.0 m | ±5 % | |
K5546SW.10 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 10m | 10.0 m | ±5 % |
