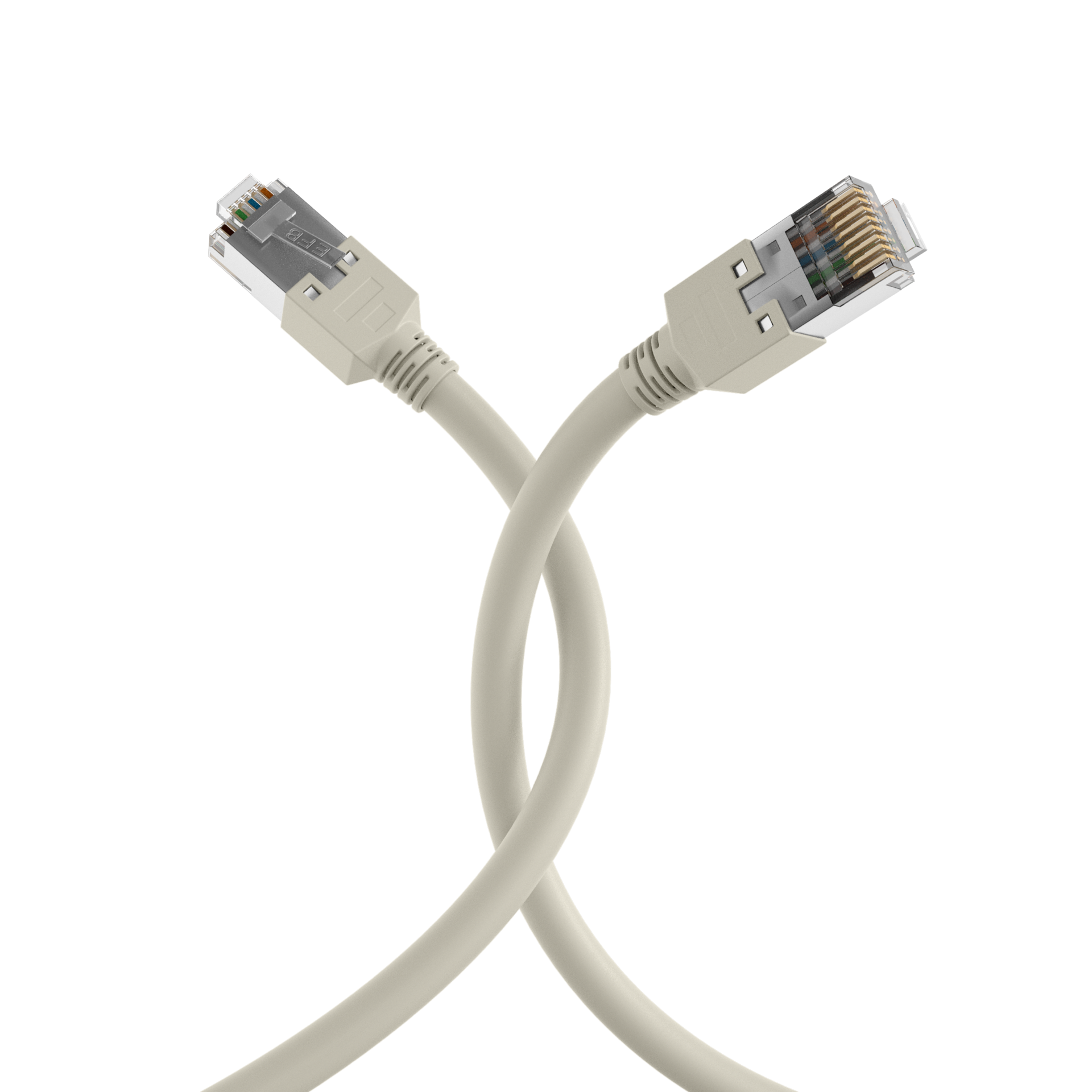

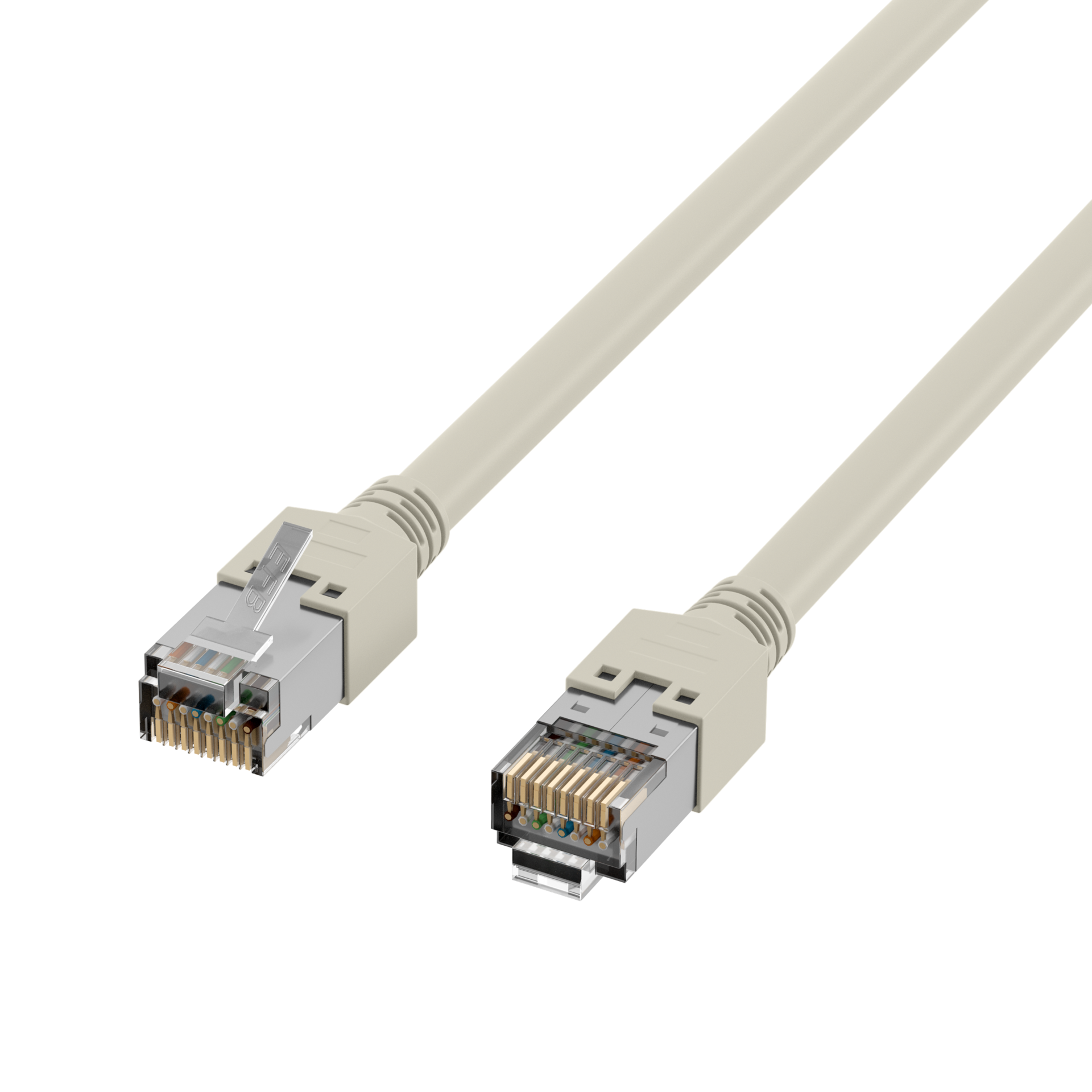

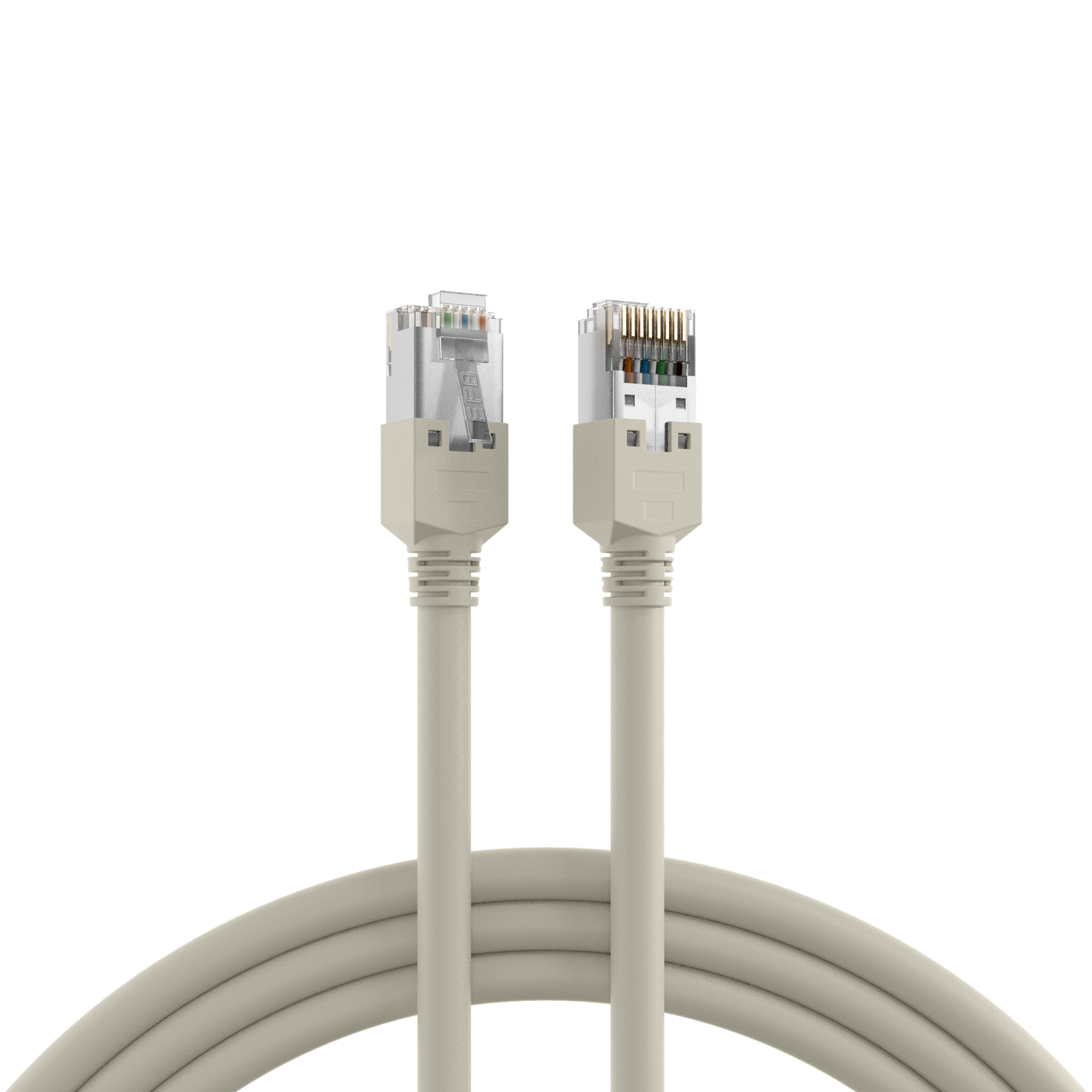

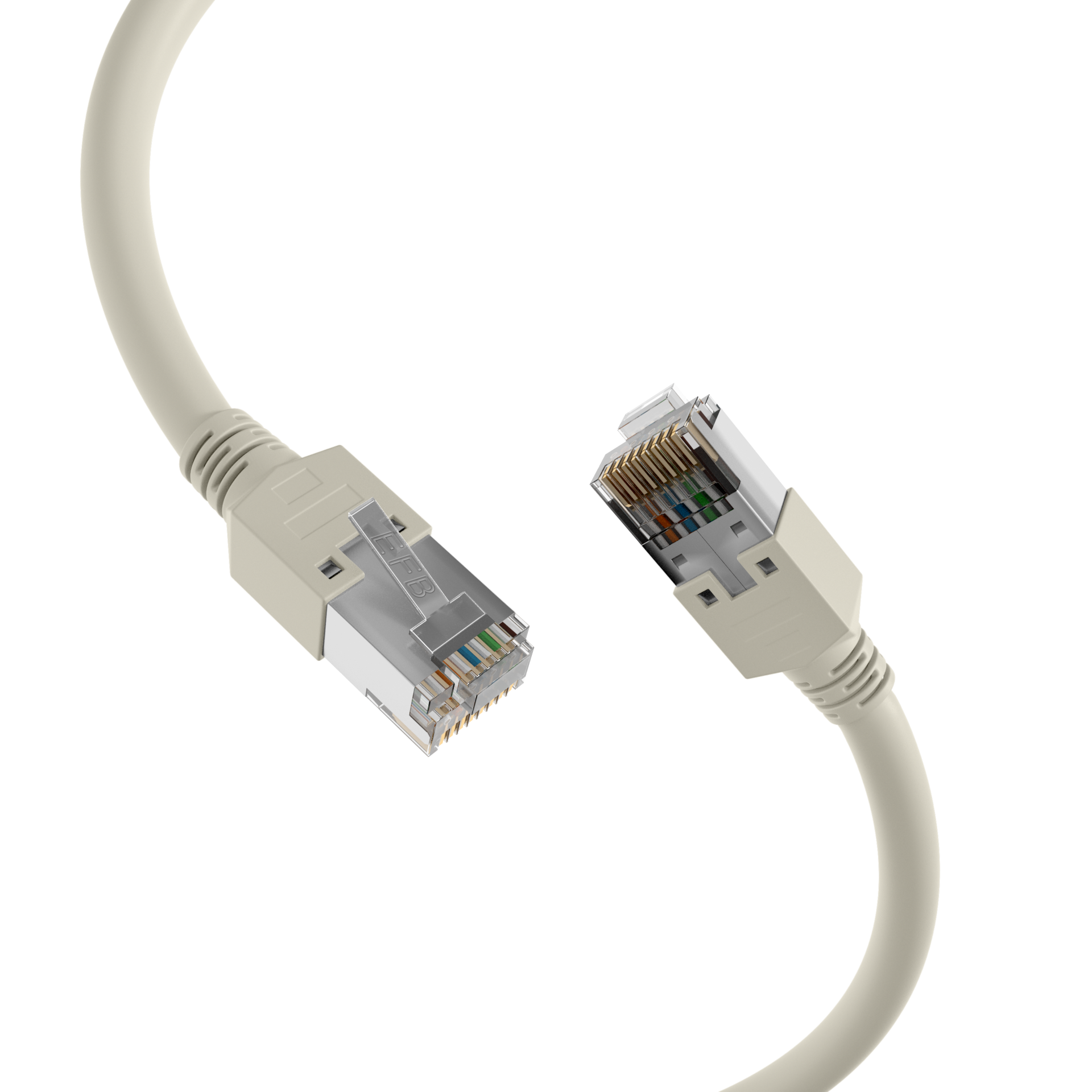

Name: RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 10m
Brand: EFB-Elektronik
SKU: K8701.10
Availability: InStock

RJ45 Patch Cord Cat.5e S/UTP PVC Dätwyler 5502 TM11 grey

RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 10m

Item number: K8701.10

EAN no.: 4049759009267

Length

Please log in to view and order prices.

Get notified when the product is back in stock:

Piece

Please enable JavaScript

You need JavaScript to submit this form because of the CAPTCHA verification.

Description

Product information for RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 10m

RJ45 patch cable Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed

The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.

Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.

The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.

Technical properties

AWG-size:	26/7
Allocation:	acc. TIA/EIA 568B
Anti-kink sleeve:	put-on
Area of application:	Industrial Ethernet
Area of application:	Structured cabling
Bending radius:	>20 mm
Cable construction:	4x2
Cable shape:	rund
Cable type:	S/UTP
Cable type acc. to Manufacturer:	Dätwyler CU 5502 flex
Cabling standard:	EN50173
Cabling standard:	ISO/IEC 11801
Cabling standard:	ANSI/TIA-568
Category:	5e
Colour anti-kink sleeve:	grey
Colour outer sheath:	grey
Conductive shield:	360° shield contact
Conductor Material:	Copper
Conductor resistance DC:	113 Ω/km
Connector:	IEC 60603-7-3
Connector type:	TM11
Contacts:	Gold plated
Current capacity:	max. 1 A
Fire retardant version:	acc. IEC60332-1
Halogen free:	No
Harmonised Standard:	EN 50575
Impedance:	100 ±15 Ω
Jacket material:	Polyvinylchlorid (PVC)
Length imprint:	False
Locking lever:	False
Loop resistance:	225 Ω/km
Mating cycles:	≥750
Model:	shielded
NVP value:	76
Oil resistant:	no
Operating-/ tempering voltage:	max. 50 V DC
Operating Temperature:	-20 – 60 °C
Outer diameter of the cable:	5.1 mm
Ozone resistance:	No
Pin assignment:	1:1
Resistant to chemicals:	False
Suitable for degree of protection (IP):	IP20
Tape width:	100MHz
Temperature Range (Installation):	0 – 50 °C
Temperature Range (Operation):	-20 – 60 °C
Test voltage:	1000 (V DC, 1min) core/core und core/screen
Transmission:	2.5Gbit
Type of connector connection 1:	RJ45 8(8)
Type of connector connection 2:	RJ45 8(8)
UL approbated:	False
UV resistant:	no

Variants

Item no.	Name	Length	POE class	Length tolerance
K8701.0,15	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 0,15m	0.15 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.025	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 0,25m	0.25 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.0,50	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 0,5m	0.5 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.1	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 1m	1.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.1,5	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 1,5m	1.5 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.2	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 2m	2.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.3	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 3m	3.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K8701.5	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 5m	5.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K8701.7,5	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 7,5m	7.5 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K8701.10	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 10m	10.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.15	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 15m	15.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.20	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 20m	20.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.25	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 25m	25.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.30	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 30m	30.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at	±5 %	Select variants
K8701.40	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 40m	40.0 m	PoE acc. to IEEE802.3af	±5 %	Select variants
K8701.50	RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 grey 50m	50.0 m	No	±5 %	Select variants
