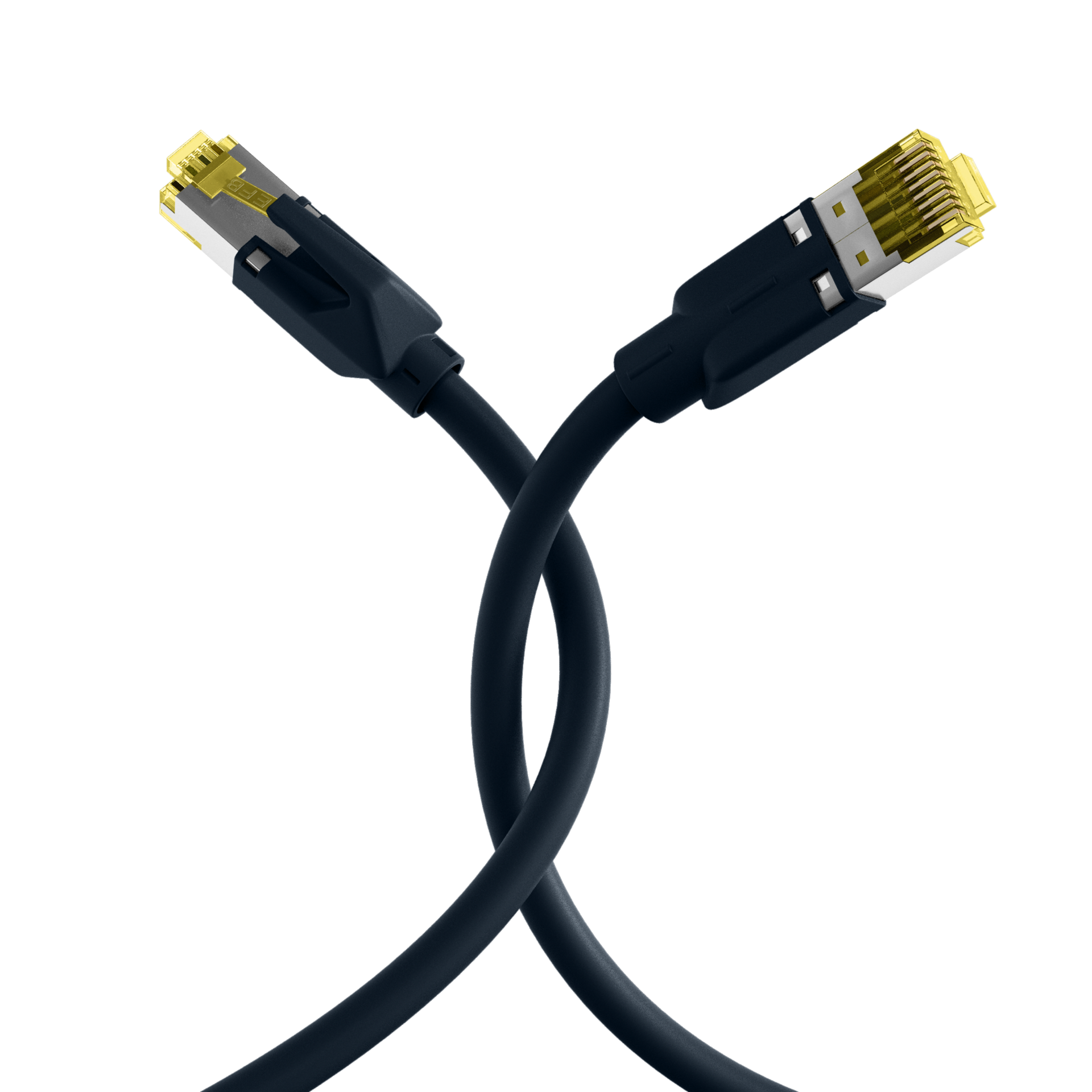

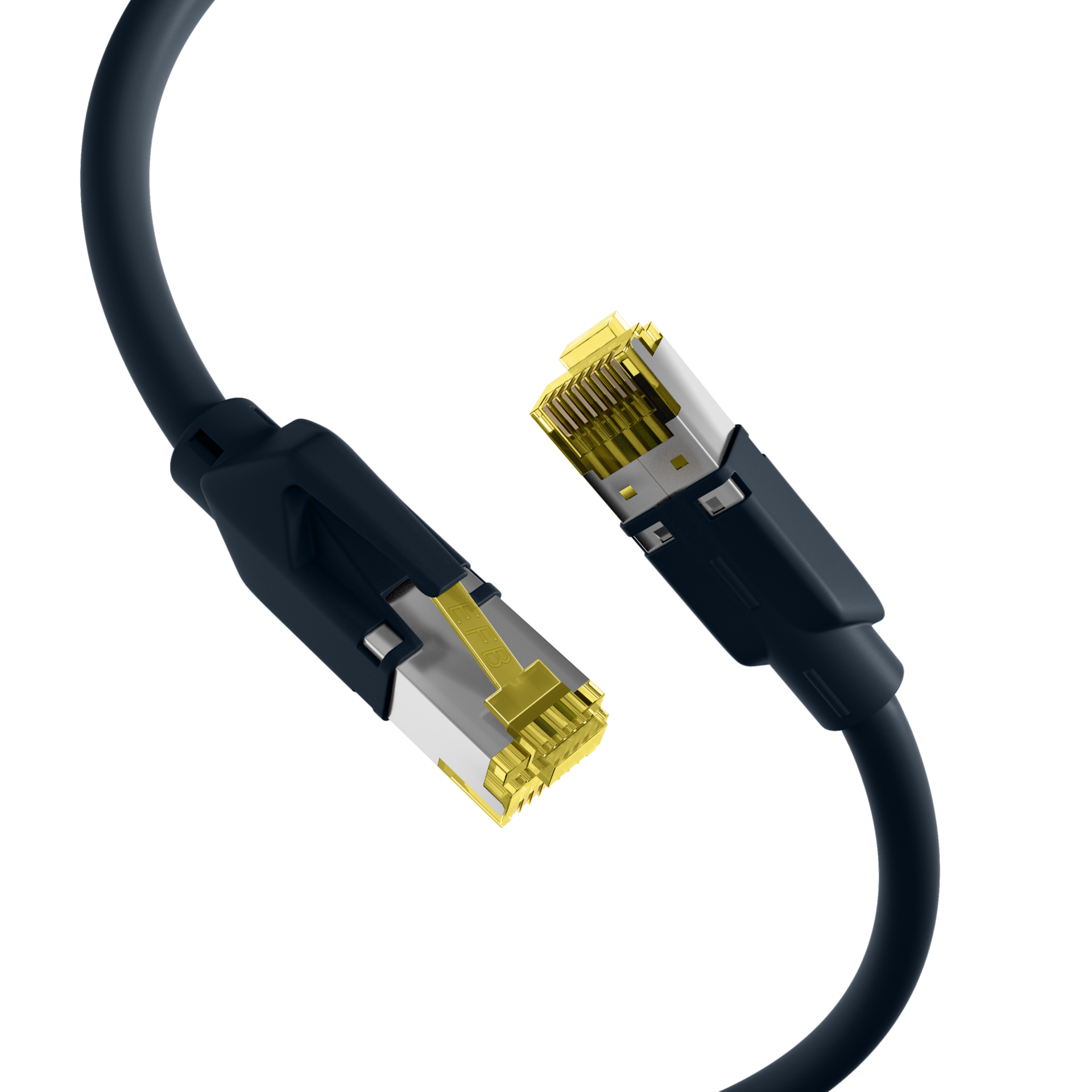

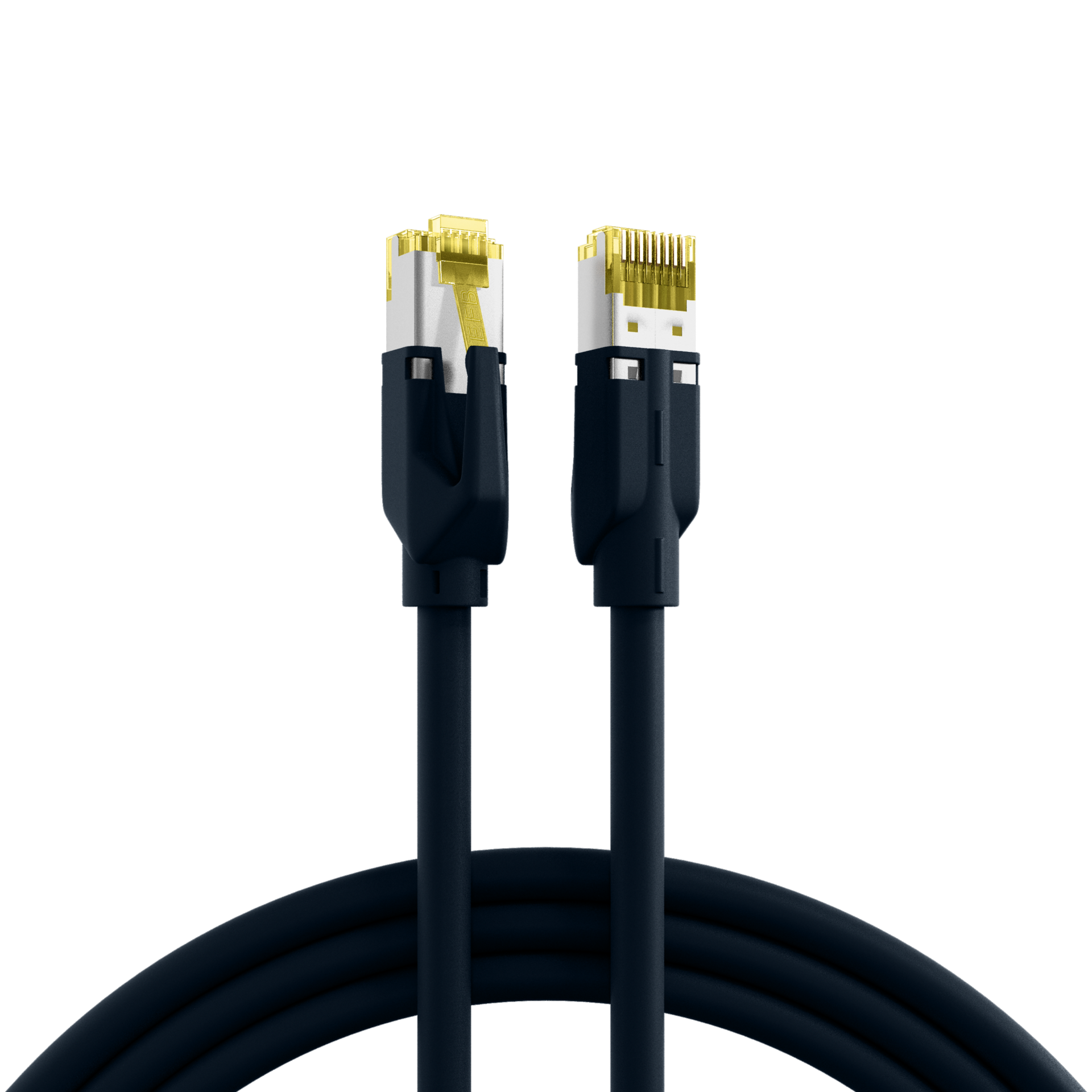

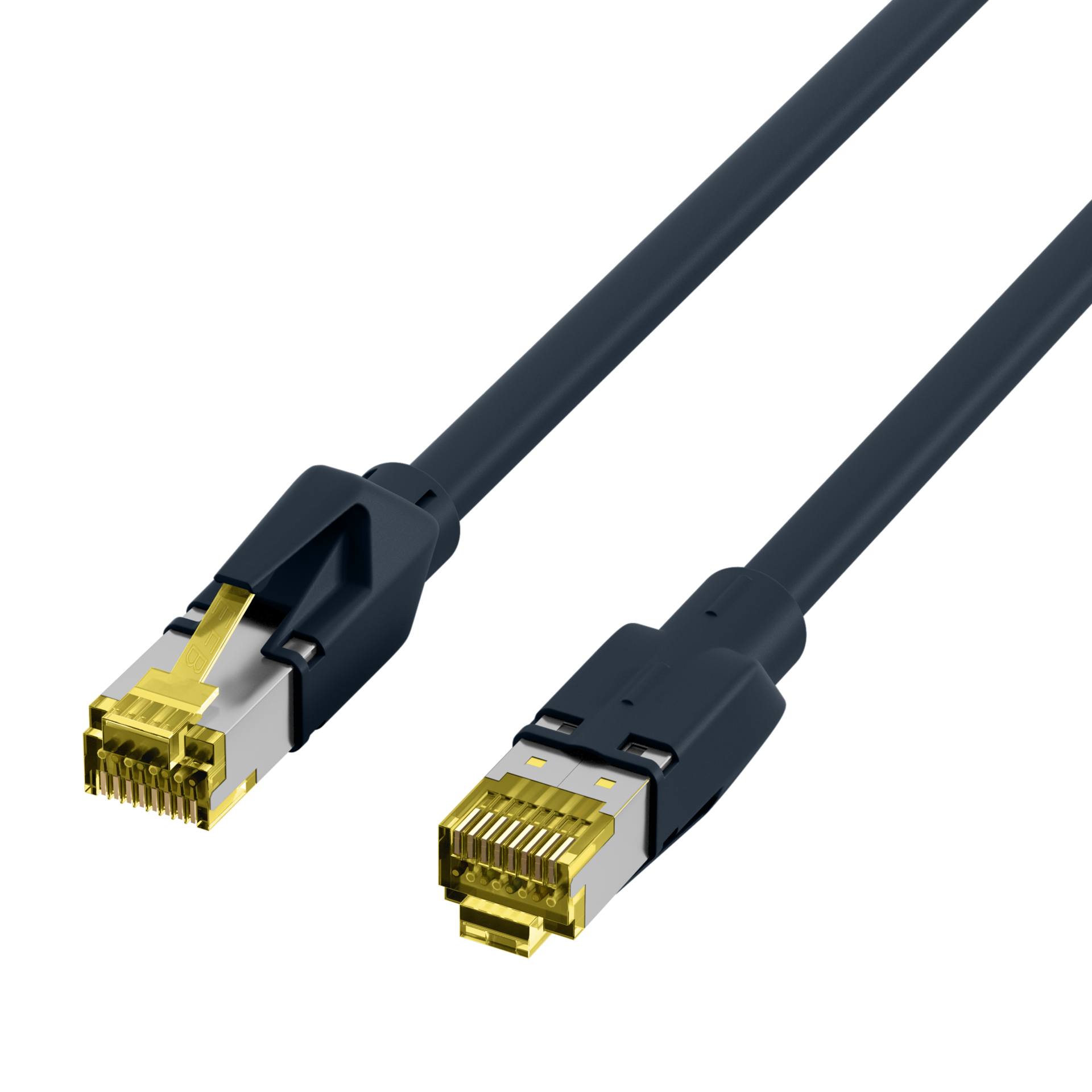

RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black
RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 15m
Item number:
K3130.15
EAN no.:
4049759236250
Product information for RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 15m
RJ45 patch cable Cat.6A S/FTP PUR Cat.7 raw cable TM31
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyurethane (PUR)
• Sheath properties: UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is according to TIA/EIA 568B and is 1: 1.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyurethane (PUR)
• Sheath properties: UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is according to TIA/EIA 568B and is 1: 1.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
Technical properties
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka Patch Pro flex Cat 7 |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 125 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM31 yellow |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | No |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | ≥ 500 MΩ |
| Jacket material: | Polyurethan (PUR) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 250 Ω/km |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 75 |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 60 °C |
| Outer diameter of the cable: | 6.4 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet*** |
| Raw cable: | Cat.7 |
| Resistance unbalance: | ≤ 2 % |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | True |
Variants
| Item no. | Name | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K3130.0,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.1 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.1,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 1,5m | 1.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.2 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 2m | 2.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.3 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 3m | 3.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.5 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.7,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K3130.10 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 10m | 10.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.15 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 15m | 15.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.20 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.25 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 25m | 25.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K3130.30 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 30m | 30.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K3130.50 | RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 50m | 50.0 m | No | ±5 % |
