RJ45 Patch Cord Cat.6A U/UTP LSZH

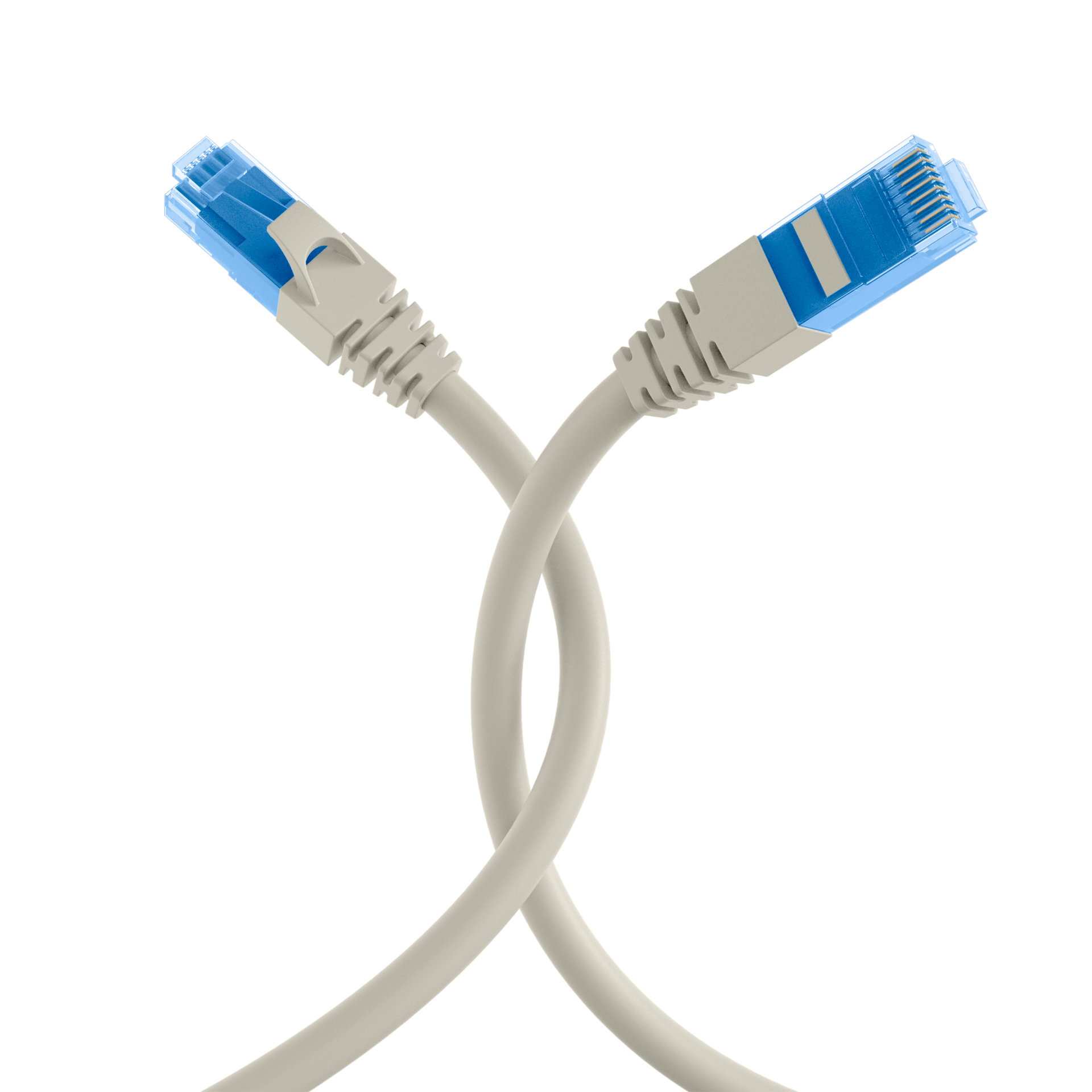

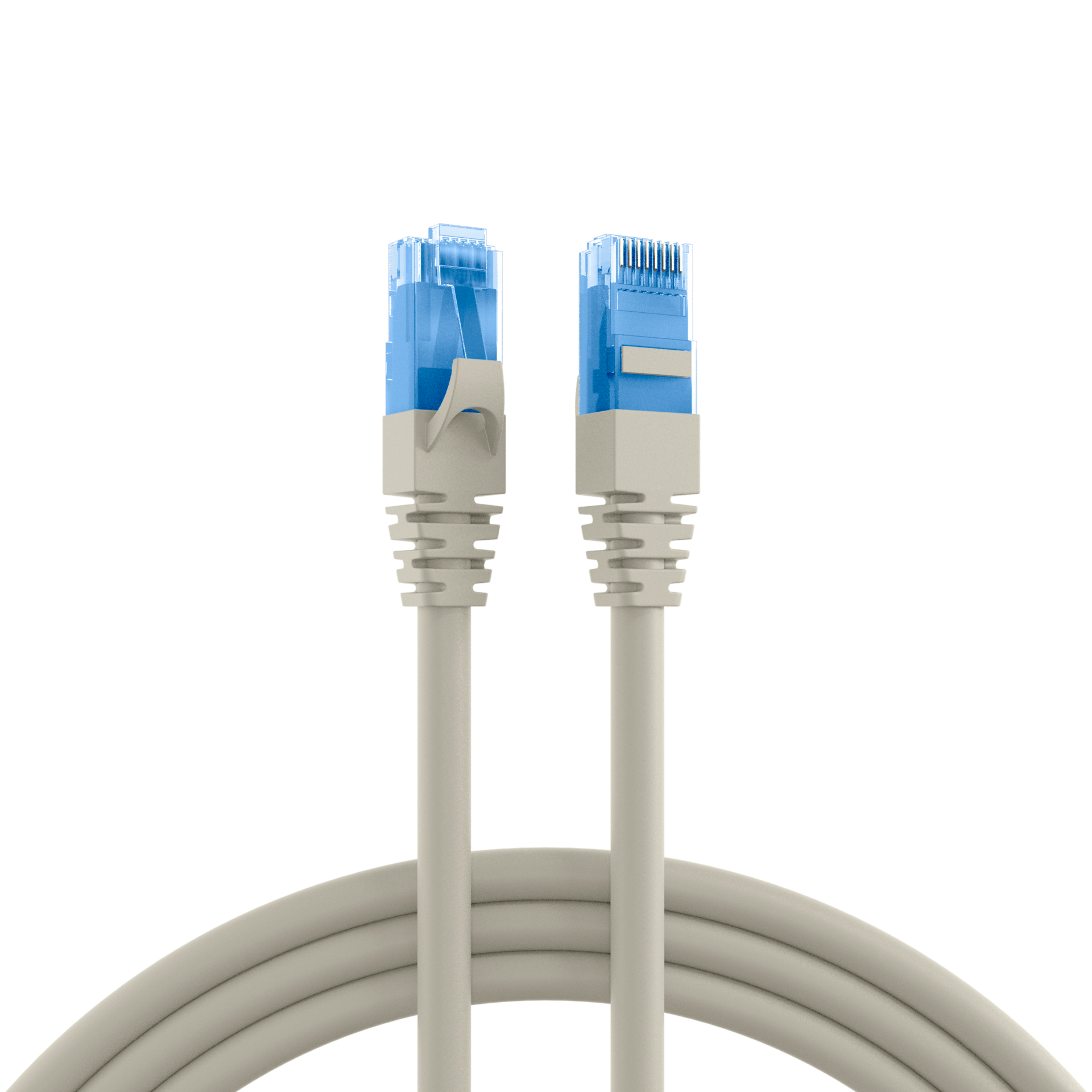

RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz grey 7,5m
Item number:
K8103GR.7,5
EAN no.:
4049759034443
Product information for RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz grey 7,5m
The unshielded Cat.6A RJ45 premium patch cable ensures very good characteristics for 10 Gigabit Ethernet applications. The patch cable is 100% tested. A label on the cable with the serial number guarantees traceability. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Cast anti-kink grommet, slim design
Serial number: Label on cable
Measurement protocol included
Cross section 4 x 2 x AWG24/7
Cast anti-kink grommet, slim design
Serial number: Label on cable
Measurement protocol included
Technical properties
| AWG-size: | 24/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Data center |
| Area of application: | Structured cabling |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling standard: | ANSI/TIA-568-C.2 |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-41 |
| Connector type: | RJ45 standard blue |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Low smoke: | True |
| Mating cycles: | ≥750 |
| Model: | unshielded |
| NVP value: | 0 % |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 6.0 mm |
| Pin assignment: | 1:1 |
| Printing: | UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Length tolerance | |
|---|---|---|---|---|
| K8103GR.10 | RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz grey 10m | 10.0 m | ±5 % | |
| K8103GR.15 | RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz grey 15m | 15.0 m | - | |
| K8103GR.7,5 | RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz grey 7,5m | 7.5 m | ±5 % |
