Splice box LC 9/125µ OS2 extendable
Splice box LC 9/125µ OS2 extendable, 48 pigtails stripped/24 adapters
Item number:
BA71921L48
EAN no.:
4049759284565
Product information for Splice box LC 9/125µ OS2 extendable, 48 pigtails stripped/24 adapters

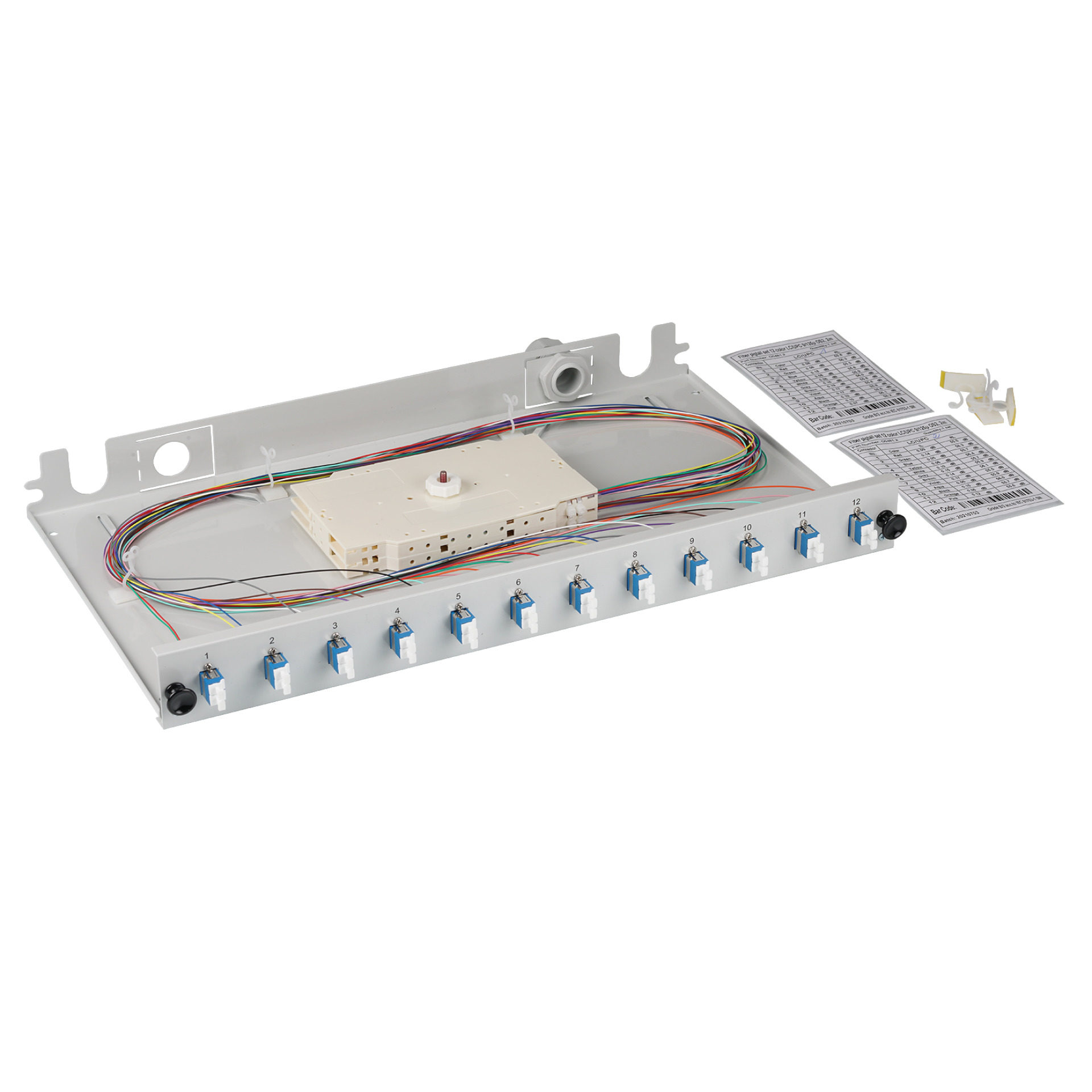

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| Item no. | Name | Type of connector external | Color | Pigtail | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| BA71921L12 | Splice box LC 9/125µ OS2 extendable, 12 pigtails stripped/ 6 adapters | LC-Duplex | grey | 12 x LC | 12 | 6 | 7035 | LC-Duplex | blue | |
| BA71921L24 | Splice box LC 9/125µ OS2 extendable, 24 pigtails stripped/12 adapters | LC-Duplex | grey | 24 x LC | 12 | 12 | 7035 | LC-Duplex | blue | |
| BA71921L48 | Splice box LC 9/125µ OS2 extendable, 48 pigtails stripped/24 adapters | LC-Duplex | grey | 48 x LC | 24 | 24 | 7035 | LC-Duplex | blue |
