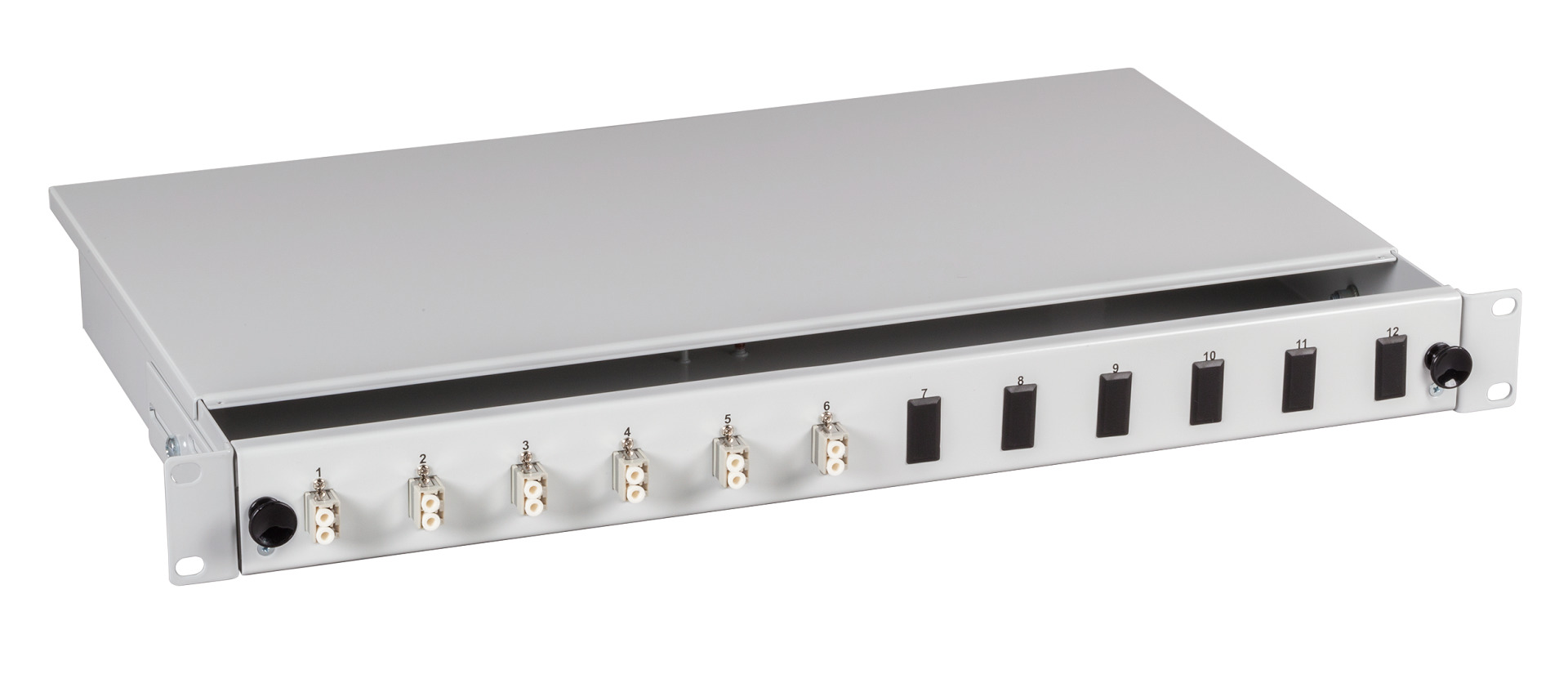

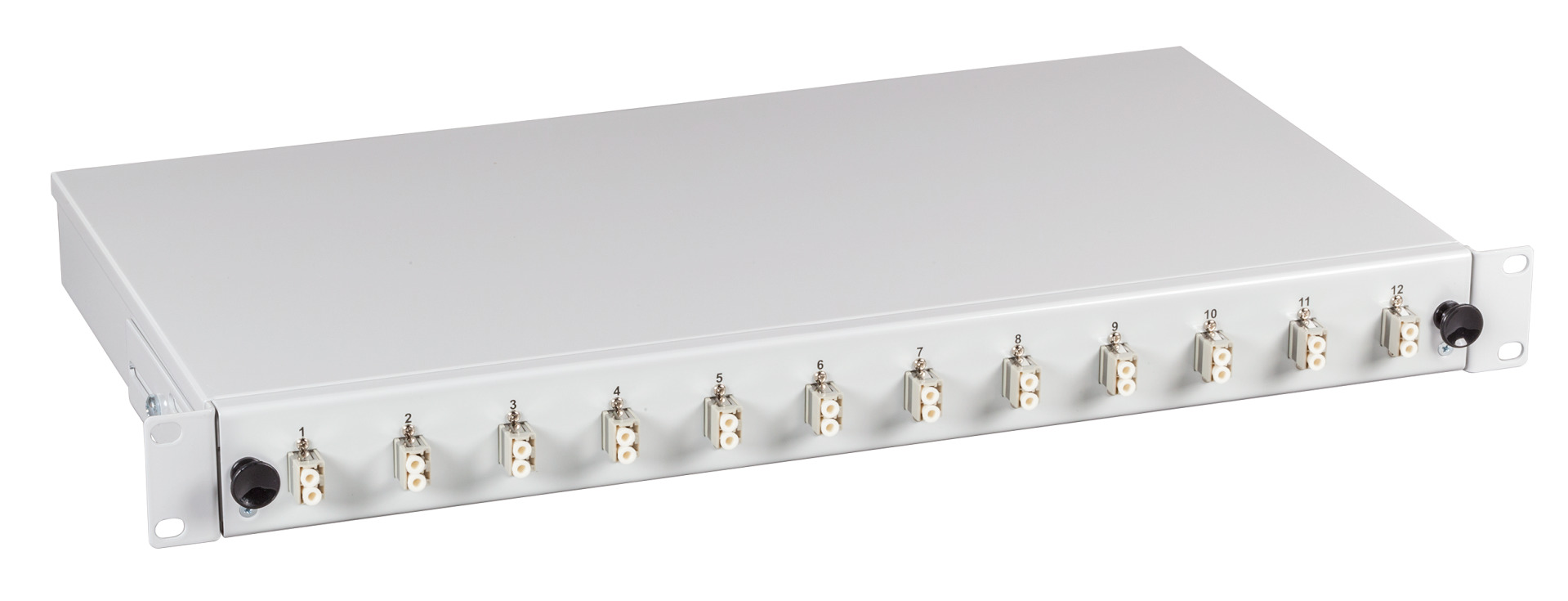

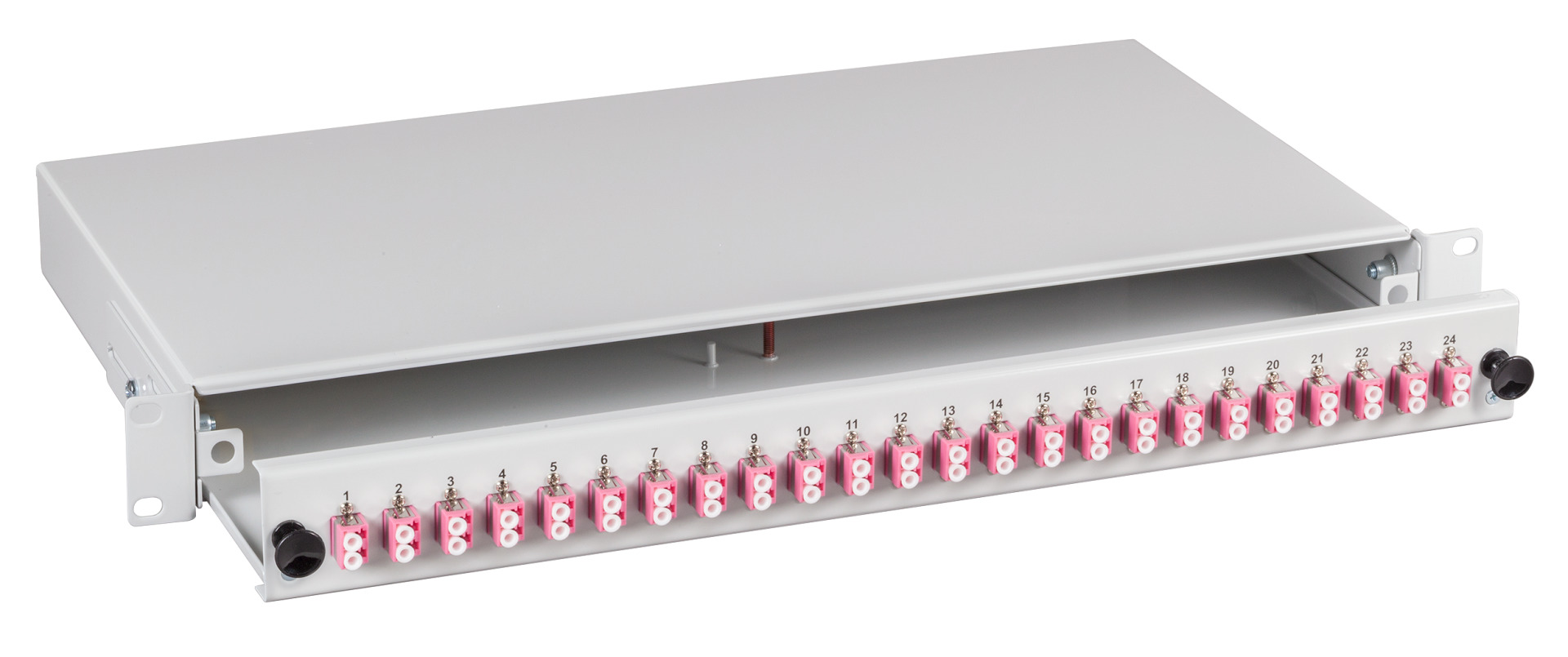

Splicebox sliding unit, with LC-Duplex metal adapter and stripped pigtails, OM4
Splicebox LC 50/125µ OM4 extendable 48 Pigtails stripped/24 Adapter
Item number:
BA71902.48OM4
EAN no.:
4049759075521
Product information for Splicebox LC 50/125µ OM4 extendable 48 Pigtails stripped/24 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | Type of connector external | With number of couplings/adapters | Pigtail | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| BA71902.12OM4 | Splicebox LC 50/125µ OM4 extendable 12 Pigtails stripped/6 Adapter | 12 | LC-Duplex | 6 | 12 x LC | grey | 7035 | LC-Duplex | metall | |
| BA71902.24OM4 | Splicebox LC 50/125µ OM4 extendable 24 Pigtails stripped/12 Adapter | 12 | LC-Duplex | 12 | 24 x LC | grey | 7035 | LC-Duplex | metall | |
| BA71902.48OM4 | Splicebox LC 50/125µ OM4 extendable 48 Pigtails stripped/24 Adapter | 24 | LC-Duplex | 24 | 48 x LC | grey | 7035 | LC-Duplex | metall | |
| BA71902TS.24OM4 | Splicebox bk LC 50/125µ OM4 extendable 24 Pigtails stripped/12 Adapter | 12 | LC-Duplex | 12 | 24 x LC | black | 9005 | LC-Duplex | metall | |
| BA71902TS.48OM4 | Splicebox bk LC 50/125µ OM4 extendable 48 Pigtails stripped/24 Adapter | 24 | LC-Duplex | 24 | 48 x LC | black | 9005 | LC-Duplex | metall |
