Partially Assembled Splice Boxes SC- SC, sliding version, OM4
Prices only visible for logged in users

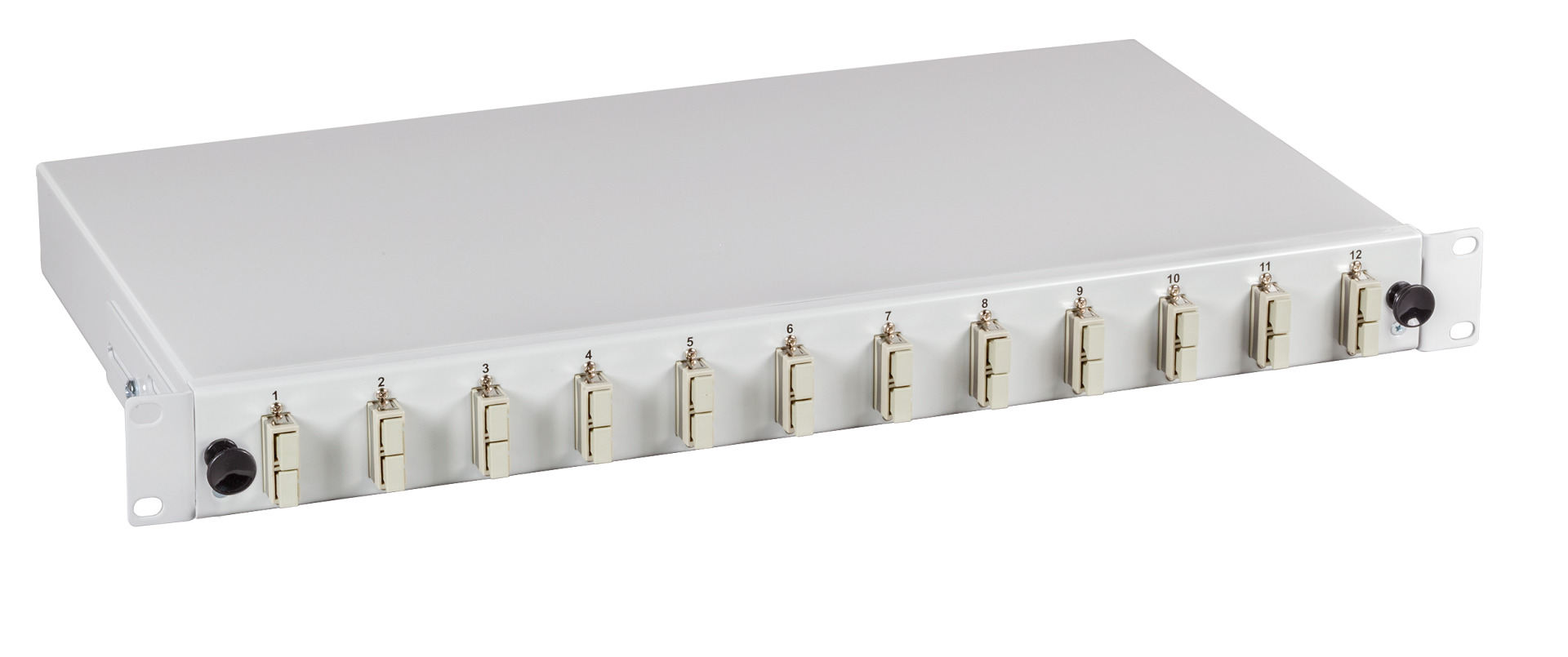

Splicebox partially assembled SC OM4 extendable 12 Adapter
Item number:
B61203.12OM4
EAN no.:
4049759172923
Product information for Splicebox partially assembled SC OM4 extendable 12 Adapter
Partly assembled splice box with adapters
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing sliding unit
front panel screwed
plastic adapters
cable entries at the rear
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing sliding unit
front panel screwed
plastic adapters
cable entries at the rear
Technical properties
Adapters: | SC |
---|---|
Depth: | 244.0 mm |
Fibre class: | OM4 |
Fibre type: | Multi mode 50/125 |
Height: | 44.5 mm |
Mounting method: | 482.6 mm (19 inch) mounting |
Number of height units: | 1 U |
Sliding: | sliding version |
Width: | 483.0 mm |
With front plate: | True |
With housing: | True |
With pigtails: | False |
Variants
Item no. | Name | Suitable for number of couplings/adapters | Type of connector external | Colour | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
---|---|---|---|---|---|---|---|---|---|
B61203.6OM4 | Splicebox partially assembled SC OM4 extendable 6 Adapter | 12 | SC-duplex | grey | 6 | 7035 | SC-Duplex | violett | |
B61203.12OM4 | Splicebox partially assembled SC OM4 extendable 12 Adapter | 12 | SC-duplex | grey | 12 | 7035 | SC-Duplex | violett | |
B61203.24OM4 | Splicebox partially assembled SC OM4 extendable 24 Adapter | 24 | SC-duplex | grey | 24 | 7035 | SC-Duplex | violett |
