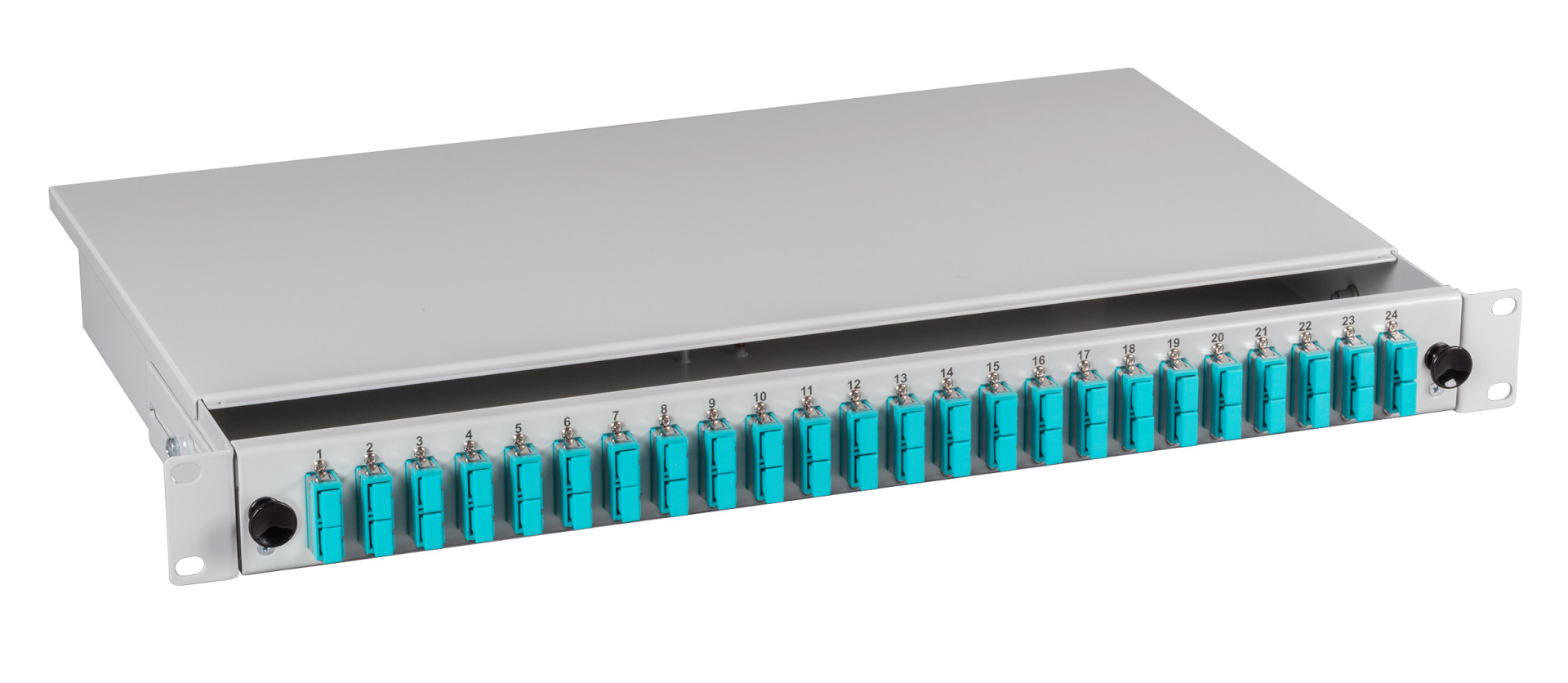

Splicebox sliding unit, with SC-Duplex plastic adapters and stripped pigtails, OM3
Prices only visible for logged in users
Splicebox SC 50/125µ OM3 extendable 24 Pigtails stripped/12 Adapter
Item number:
BA71203.24OM3
EAN no.:
4049759043643
Product information for Splicebox SC 50/125µ OM3 extendable 24 Pigtails stripped/12 Adapter
completely assembled splice box with adapters and coloured pigtails.
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | Colour | Type of connector external | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|

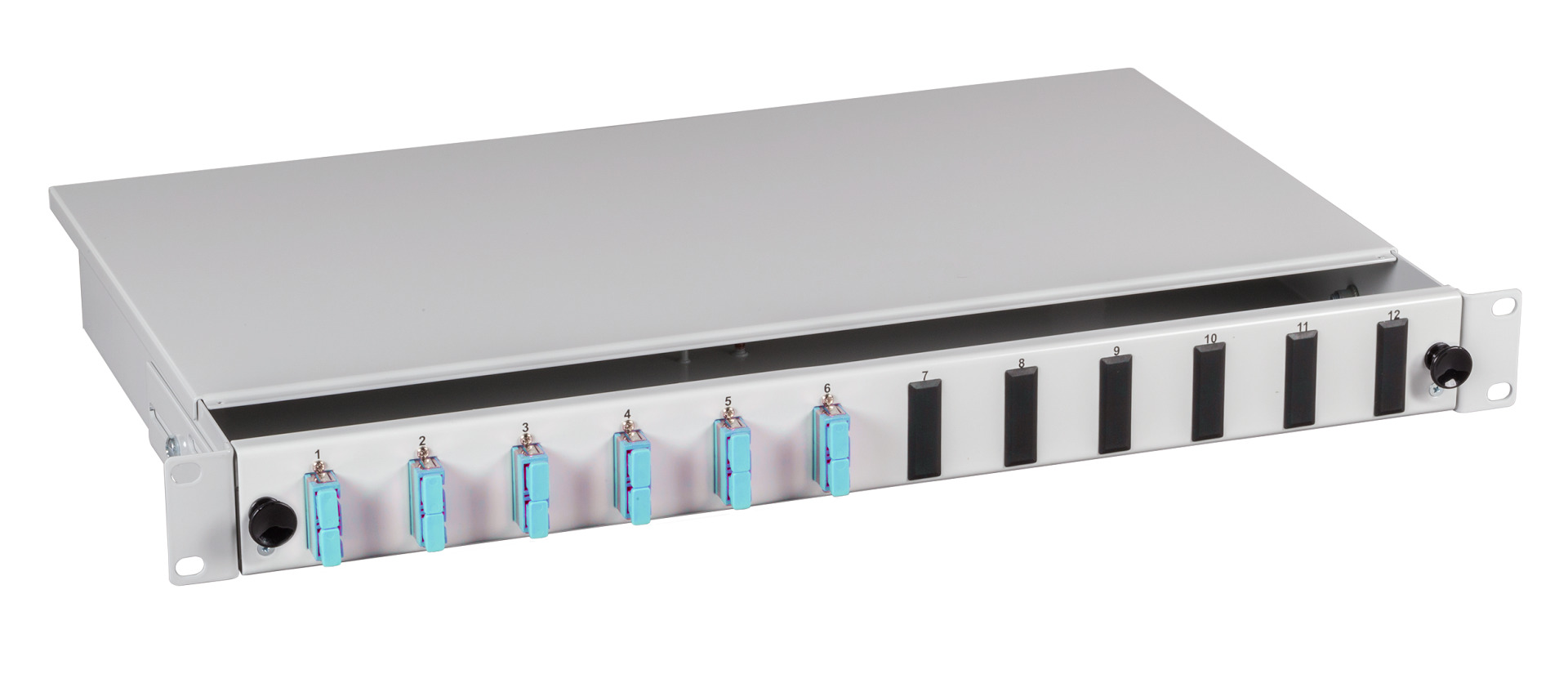

| BA71203.12OM3 | Splicebox SC 50/125µ OM3 extendable 12 Pigtails stripped/6 Adapter | 12 | grey | SC-Duplex | 6 | 12 x SC | 7035 | SC-Duplex | aqua | |
| BA71203.24OM3 | Splicebox SC 50/125µ OM3 extendable 24 Pigtails stripped/12 Adapter | 12 | grey | SC-duplex | 12 | 24 x SC | 7035 | SC-Duplex | aqua | |
| BA71203.48OM3 | Splicebox SC 50/125µ OM3 extendable 48 Pigtails stripped/24 Adapter | 48 | grey | SC-Duplex | 24 | 48 x SC | 7035 | SC-Duplex | aqua | |
| BA71203TS.12OM3 | Splicebox bk SC 50/125µ OM3 extendable 12 Pigtails stripped/6 Adapter | 12 | black | SC-duplex | 6 | 12 x SC | 9005 | SC-Duplex | aqua | |
| BA71203TS.24OM3 | Splicebox bk SC 50/125µ OM3 extendable 24 Pigtails stripped/12 Adapter | 12 | black | SC-duplex | 12 | 24 x SC | 9005 | SC-Duplex | aqua | |
| BA71203TS.48OM3 | Splicebox bk SC 50/125µ OM3 extendable 48 Pigtails stripped/24 Adapter | 24 | black | SC-Duplex | 24 | 48 x SC | 9005 | SC-Duplex | aqua |
