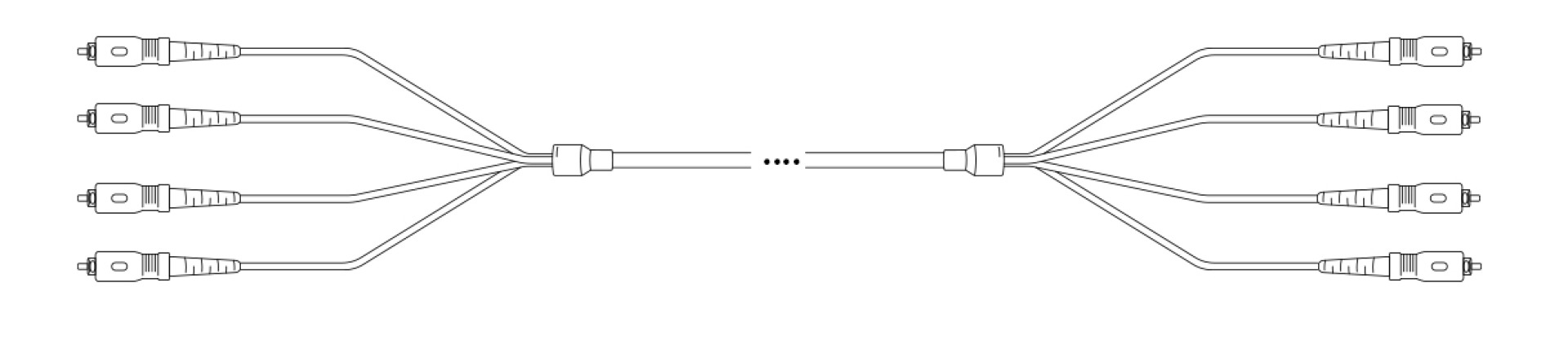

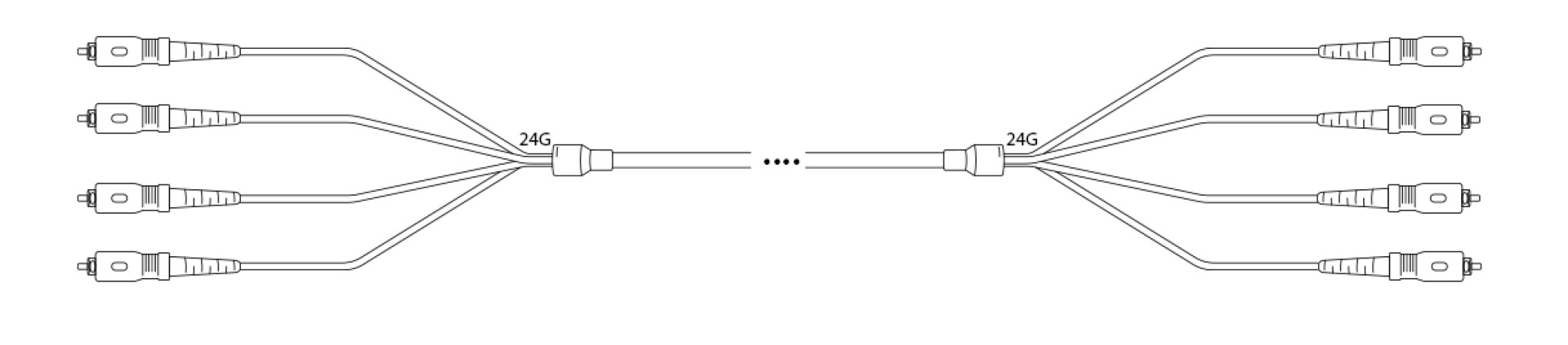

Universal Cable U-DQ(ZN) BH OM4 50/125µm SC/SC
U-DQ(ZN)BH OM4 50/125µm SC/SC 48G 1,0m
Item number:
O8191.1OM4
EAN no.:
4049759208424
Product information for U-DQ(ZN)BH OM4 50/125µm SC/SC 48G 1,0m
Characteristics and advantages of Trunk cables:2 up to 48 fibers per cable (other Trunks available on request) Pre-assembled, polished and factory-tested Both-sided assembled with stepped plug whips Ready to use, no need for expensive splice- and measuring equipment With Premium or Standard cable divider at customers choice Attenuation protocol for each assembled connector included in delivery All possible combinations of connectors like LC, E2000®, SC and ST available Identification with cable markers Delivery depending on length and type: one way drum or cable ring
Technical properties
| Category: | OM4 |
|---|---|
| Coding: | 1:1 |
| Colour outer sheath: | black |
| Connector connection 1: | SC |
| Connector connection 2: | SC |
| Crossed: | False |
| Fibre type: | OM4 50/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Operating Temperature: | -20 – 60 °C |
| Storage Temperature: | -40 – 80 °C |
| With rodent protection: | True |
Variants
| Item no. | Name | Length | Number of connectors connection 1 | Number of connectors connection 2 | Number of fibres | |
|---|---|---|---|---|---|---|
| O8301.1OM4 | U-DQ(ZN)BH OM4 50/125µm SC/SC 4G 1,0m | 1.0 m | 4 | 4 | 4 | |
| O8321.1OM4 | U-DQ(ZN)BH OM4 50/125µm SC/SC 8G 1,0m | 1.0 m | 8 | 8 | 8 | |
| O8341.1OM4 | U-DQ(ZN)BH OM4 50/125µm SC/SC 12G 1,0m | 1.0 m | 12 | 12 | 12 | |
| O8382.1OM4 | U-DQ(ZN)BH OM4 50/125µm SC/SC 24G 1,0m | 1.0 m | 24 | 24 | 24 | |
| O8191.1OM4 | U-DQ(ZN)BH OM4 50/125µm SC/SC 48G 1,0m | 1.0 m | 48 | 48 | 48 |
