Universal Cable U-DQ(ZN) BH OM4 50/125µm ST/ST

Prices only visible for logged in users

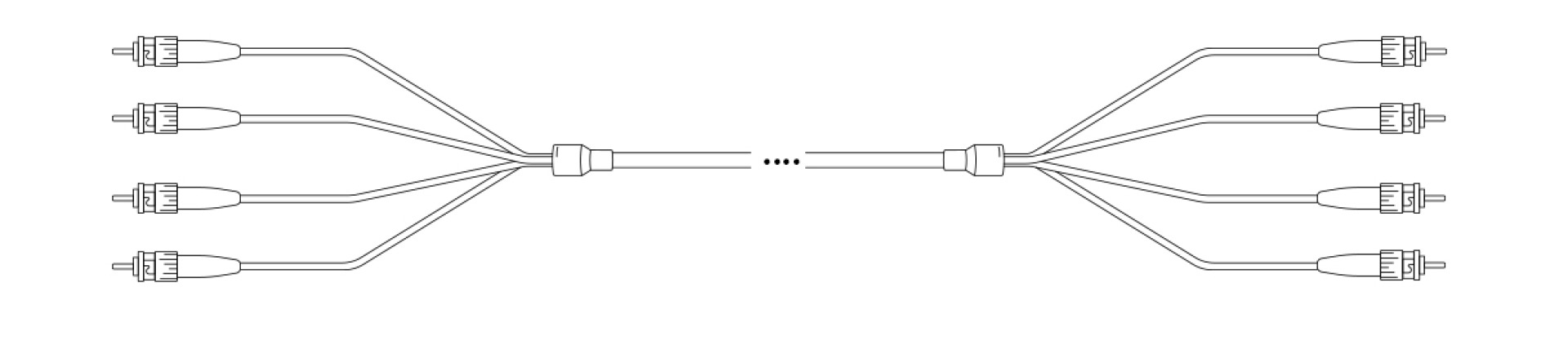

U-DQ(ZN)BH OM4 50/125µm ST/ST 8G 1,0m
Item number: O8221.1OM4
EAN no.: 4049759091835
Piece

Product information for U-DQ(ZN)BH OM4 50/125µm ST/ST 8G 1,0m

Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring

Technical properties

Category: OM4
Coding: 1:1
Colour outer sheath: black
Connector connection 1: ST
Connector connection 2: ST
Crossed: False
Fibre type: OM4 50/125
Flame retardant: According to EN 50265-2-1
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Operating Temperature: -20 – 60 °C
Storage Temperature: -40 – 80 °C
With rodent protection: True

Variants

Item no. Name Length Number of connectors connection 1 Number of connectors connection 2 Number of fibres
O8201.1OM4 U-DQ(ZN)BH OM4 50/125µm ST/ST 4G 1,0m 1.0 m 4 4 4

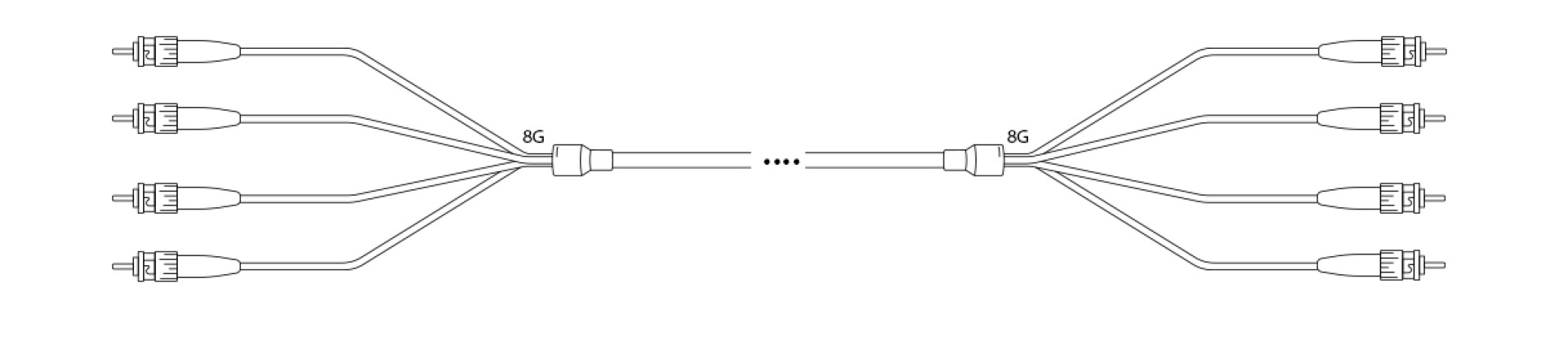

O8221.1OM4 U-DQ(ZN)BH OM4 50/125µm ST/ST 8G 1,0m 1.0 m 8 8 8
O8241.1OM4 U-DQ(ZN)BH OM4 50/125µm ST/ST 12G 1,0m 1.0 m 12 12 12

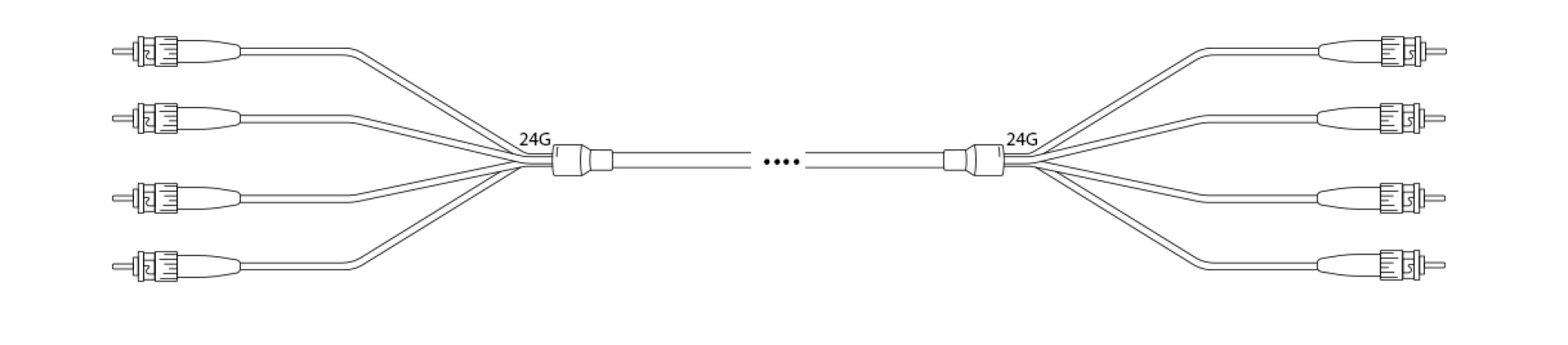

O8381.1OM4 U-DQ(ZN)BH OM4 50/125µm ST/ST 24G 1,0m 1.0 m 24 24 24
O8192.1OM4 U-DQ(ZN)BH OM4 50/125µm ST/ST 48G 1,0m 1.0 m 48 48 48

accessory

PG16 Cable Glands conical grey, RAL7035
M20 Cable Glands grey, RAL7035
Drawing-In Tube with PG screwing, 1m

necessary tools

Professional Fiber Optic Tool Case
