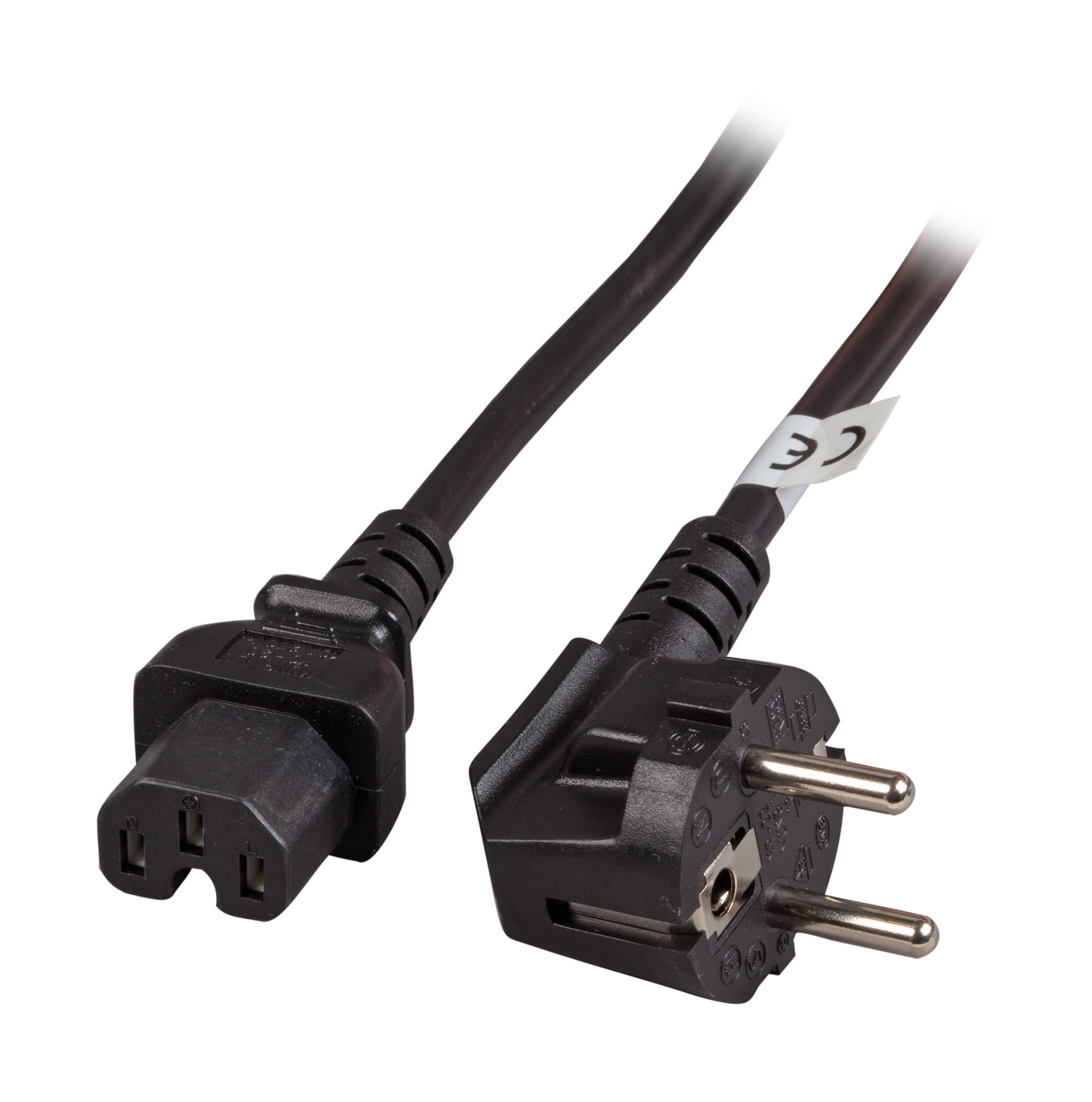

Warm Device Cable CEE 7/7 90° to C15 180°
Warm Device Cable CEE 7/7 90° to C15, Black, 3 m, 3 x 1.00 mm²
Item number:
EK625.3V2
EAN no.:
4049759295233
Product information for Warm Device Cable CEE 7/7 90° to C15, Black, 3 m, 3 x 1.00 mm²
Plug CEE7/7 90° to warm device plug (female) C15 180°
Raw cable H05RN-F 3G (rubber cable)
10 A / 250 V VDE tested
Colour black
Raw cable H05RN-F 3G (rubber cable)
10 A / 250 V VDE tested
Colour black
Technical properties
| Colour outer sheath: | black |
|---|---|
| Connection 1: | Socket outlet with protective contact, right-angled |
| Connection 2: | Hot device plug, female |
| Halogen free: | No |
| Jacket material: | rubber |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | -35 – 70 °C |
| With cord switch: | False |
Variants
| Item no. | Name | Colour outer sheath | Nominal current | With protective conductor | Degree of protection | Nominal voltage | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|
| EK625.1V2 | Warm Device Cable CEE 7/7 90° to C15, Black, 1 m, 3 x 1.00 mm² | black | 10 A | True | IP20 | – 250 V | 1.0 m | 0.75 mm² | 7.0 mm | |
| EK625.2V2 | Warm Device Cable CEE 7/7 90° to C15, Black, 2 m, 3 x 1.00 mm² | black | 10 A | True | IP20 | – 250 V | 2.0 m | 0.75 mm² | 7.0 mm | |
| EK625.3V2 | Warm Device Cable CEE 7/7 90° to C15, Black, 3 m, 3 x 1.00 mm² | black | 10 A | True | IP20 | – 250 V | 3.0 m | 1.00 mm² | 7.3 mm |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
