Backframe for Wall X-Rack

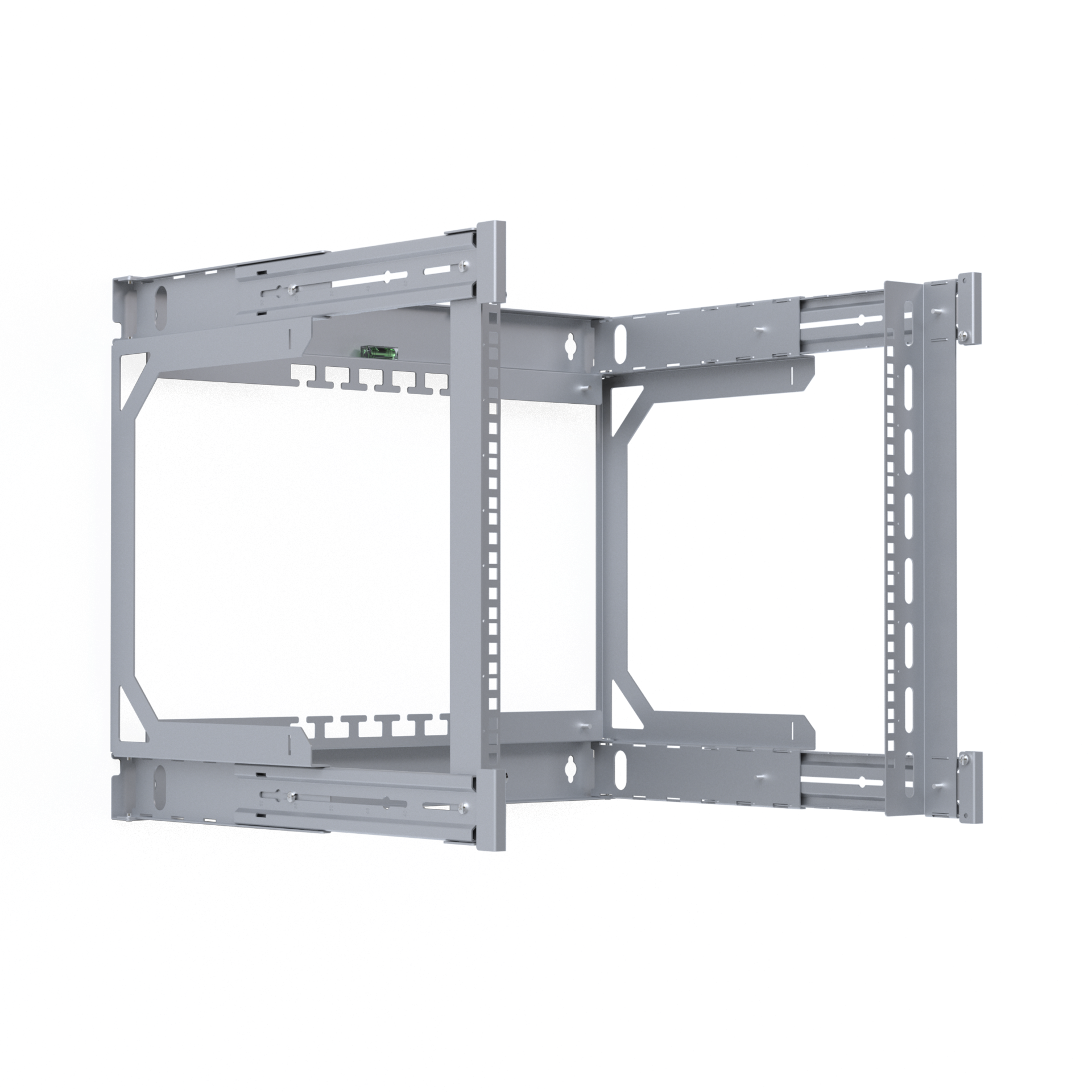

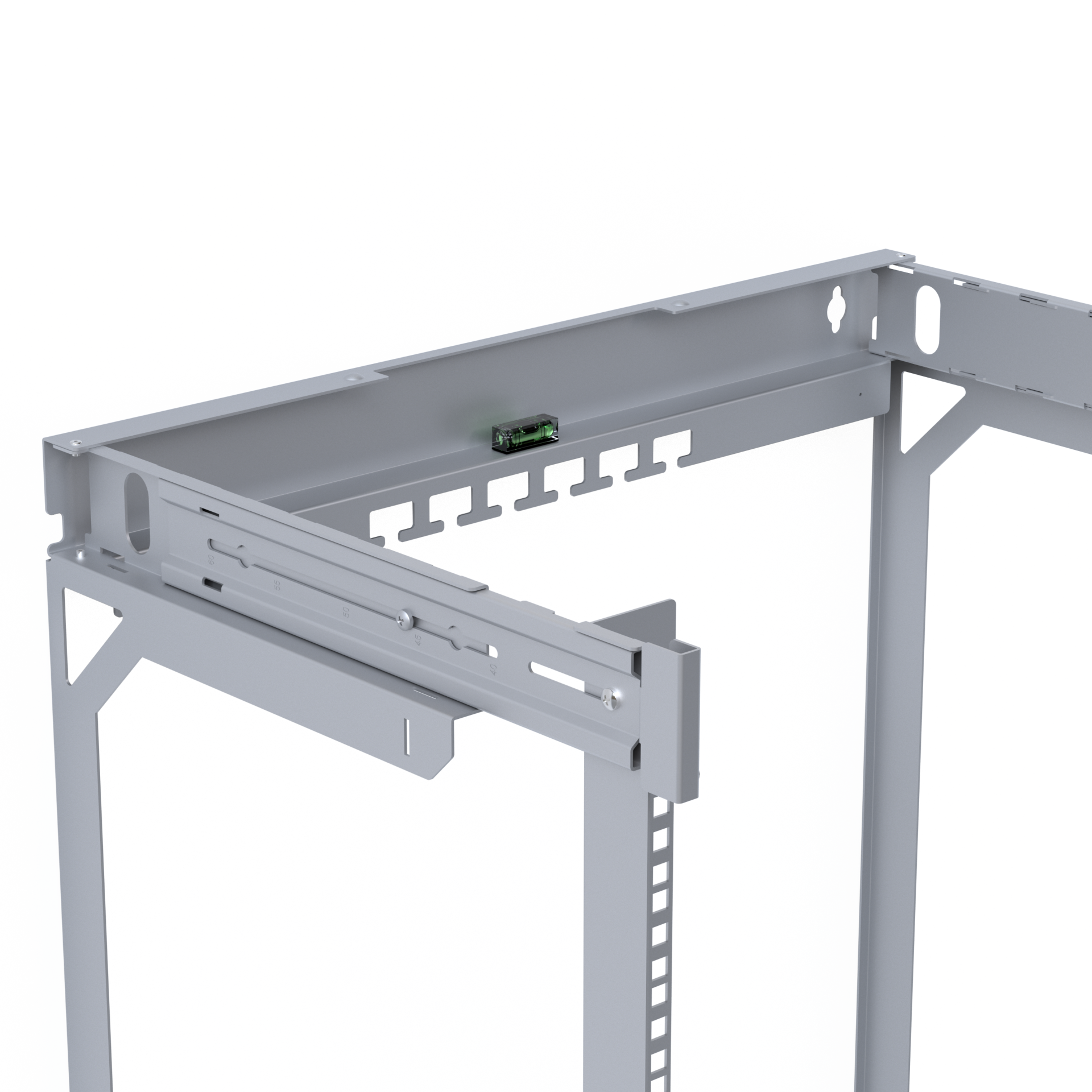

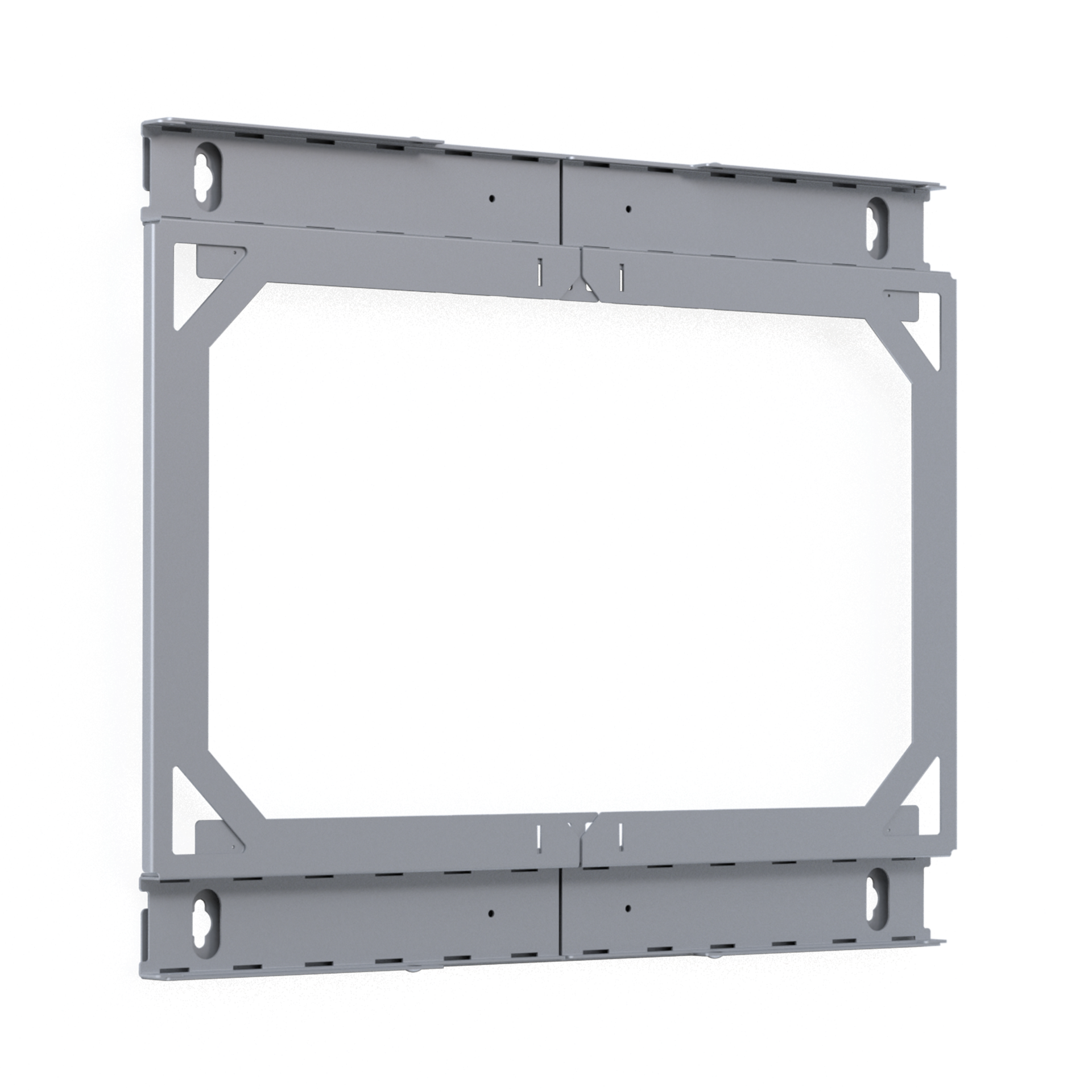

Backframe for Wall X-Rack 400-600mm 9U 600x500mm El-galvinized 1/3
Item number:
WGX-BF09
EAN no.:
4049759323042
Product information for Backframe for Wall X-Rack 400-600mm 9U 600x500mm El-galvinized 1/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation.
The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job.
By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.
Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm
19” profiles depth-adjustable
100% Protection against installation error due to equal roof and bottom
Maximum load 60 kg for static equal distribution
Protection degree IP20 when using the outer cover
El-galvanised steel plates for higher quality
Arrangement for cable strain relief in top and bottom
Side walls + roof and bottom elements can be ordered separately
M5 screw pin, for grounding connection in all 4 frame corners
General data:
Modular spacing 19” inch, 482,6 mm
Material & surface inner parts El-galvanised Z275, steel plate
Degree of protection IP20
Maximum load 60 kg
Width 600 mm
Height 9U:500 mm / 12U: 600 mm / 15U: 766 mm
Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile
Packaging Package no 1 of 3, recycled cartonboard
The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job.
By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.
Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm
19” profiles depth-adjustable
100% Protection against installation error due to equal roof and bottom
Maximum load 60 kg for static equal distribution
Protection degree IP20 when using the outer cover
El-galvanised steel plates for higher quality
Arrangement for cable strain relief in top and bottom
Side walls + roof and bottom elements can be ordered separately
M5 screw pin, for grounding connection in all 4 frame corners
General data:
Modular spacing 19” inch, 482,6 mm
Material & surface inner parts El-galvanised Z275, steel plate
Degree of protection IP20
Maximum load 60 kg
Width 600 mm
Height 9U:500 mm / 12U: 600 mm / 15U: 766 mm
Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile
Packaging Package no 1 of 3, recycled cartonboard
Technical properties
| Cabinet Series: | 19" Wall Housing X-Rack, un-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | False |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 0 |
| Surface finishing: | Zinc coated |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | False |
| With roof plate: | False |
| With sidewall: | False |
Variants
| Item no. | Name | Depth | Max. Load | Width | Height | Number of height units | |
|---|---|---|---|---|---|---|---|
| WGX-BF09 | Backframe for Wall X-Rack 400-600mm 9U 600x500mm El-galvinized 1/3 | 400-600 mm | 60 kg | 600 mm | 500 mm | 9 U | |
| WGX-BF12 | Backframe for Wall X-Rack 400-600mm 12U 600x600mm El-galvinized 1/3 | 400-600 mm | 60 kg | 600 mm | 600 mm | 12 U | |
| WGX-BF15 | Backframe for Wall X-Rack 400-600mm 15U 600x766mm El-galvinized 1/3 | 400-600 mm | 60 kg | 600 mm | 766 mm | 15 U |
