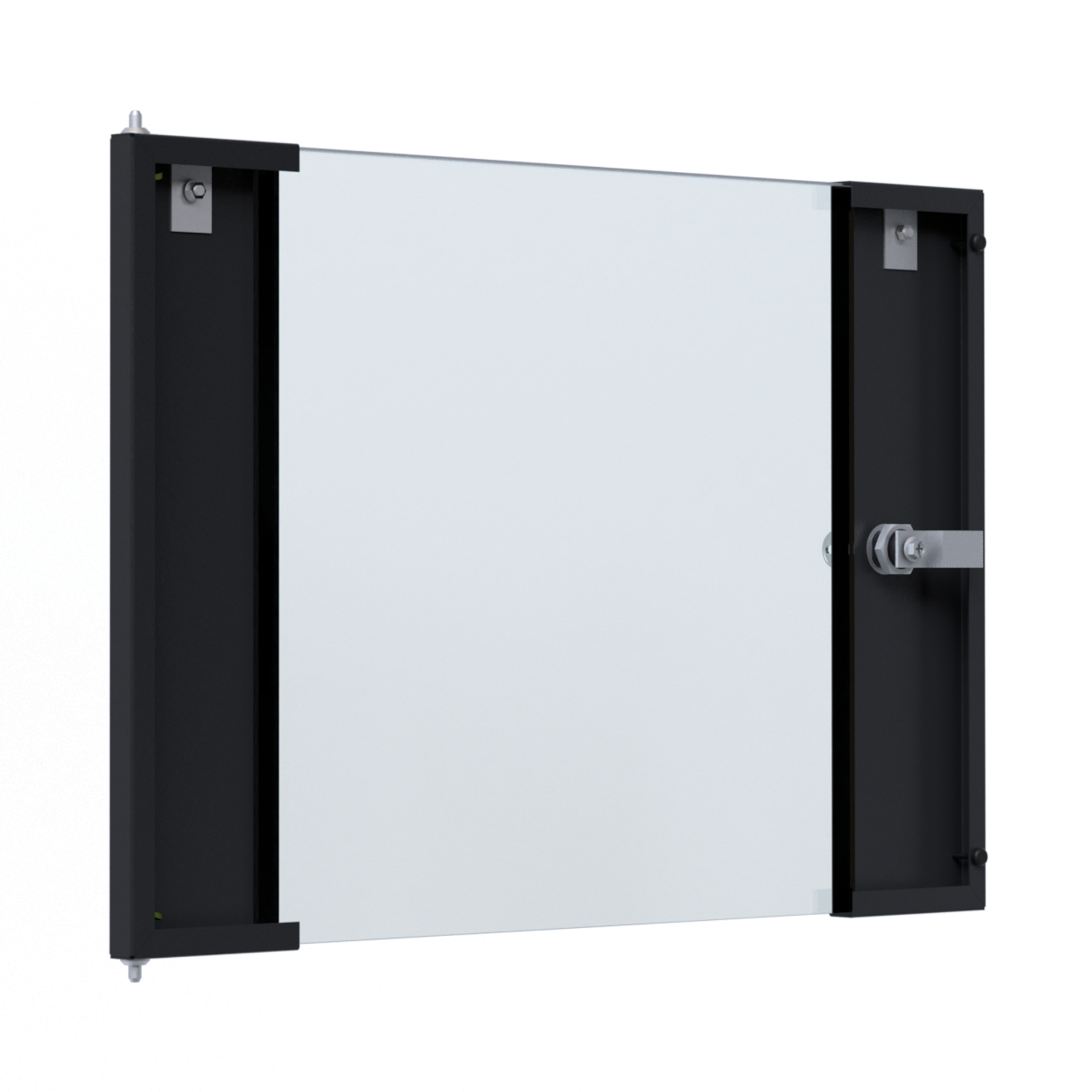

Wall X-Rack Glass door
Wall X-Rack Glass door 9U black RAL9005 3/3
Item number:
WGX-TUR09TS.G
EAN no.:
4049759323141
Product information for Wall X-Rack Glass door 9U black RAL9005 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation.
The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job.
Glass front door with steel frame and window of certified safety glass (thickness 4 mm)
Door stop left- or right sided possible
Adjustable door hinges to secure correct leveling of the door.
Protection degree IP20
4 mm² Grounding wire and additional electrical connection between steel parts
Notes:
Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989.
The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.G
General Data:
Material & surface front door Steel frame with hardened and tempered glass
Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door
Degree of protection IP20
Width 600 mm
Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm
Packaging Package no.3 of 3 : recycled cartonboard
Paint finish RAL7035, light grey / RAL9005, jet black
The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job.
Glass front door with steel frame and window of certified safety glass (thickness 4 mm)
Door stop left- or right sided possible
Adjustable door hinges to secure correct leveling of the door.
Protection degree IP20
4 mm² Grounding wire and additional electrical connection between steel parts
Notes:
Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989.
The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.G
General Data:
Material & surface front door Steel frame with hardened and tempered glass
Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door
Degree of protection IP20
Width 600 mm
Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm
Packaging Package no.3 of 3 : recycled cartonboard
Paint finish RAL7035, light grey / RAL9005, jet black
Technical properties
| Cabinet Series: | X-Rack |
|---|---|
| Degree of protection: | IP20 |
| Material: | Glas |
| Model: | Anschlagtür |
| Profile half-cylinder exchangeable: | Nein |
| Surface finishing: | pulverbeschichtet |
| Type of closure: | Einpunkt-Vorreiberschließung |
| Version as glazed door: | Ja |
Variants
| Item no. | Name | Color | Building width for cabinet build in | Breite | Höhe | RAL-Nummer | EMV-Ausführung | Ausführung als Tür für Trennschalterverriegelung | |
|---|---|---|---|---|---|---|---|---|---|
| WGX-TUR09GR.G | Wall X-Rack Glass door 9U grey RAL7035 3/3 | grey | 600 mm | 600 mm | 500 mm | 7035 | Nein | Nein | |
| WGX-TUR09TS.G | Wall X-Rack Glass door 9U black RAL9005 3/3 | schwarz | 600 mm | 600 mm | 500 mm | 9005 | Nein | Nein | |
| WGX-TUR12GR.G | Wall X-Rack Glass door 12U grey RAL7035 3/3 | grey | 600 mm | 600 mm | 600 mm | 7035 | Nein | Nein | |
| WGX-TUR12TS.G | Wall X-Rack Glass door 12U black RAL9005 3/3 | schwarz | 600 mm | 600 mm | 600 mm | 9005 | Nein | Nein | |
| WGX-TUR15GR.G | Wall X-Rack Glass door 15U grey RAL7035 3/3 | grey | 600 mm | 600 mm | 766 mm | 7035 | Nein | Nein | |
| WGX-TUR15TS.G | Wall X-Rack Glass door 15U black RAL9005 3/3 | schwarz | 600 mm | 600 mm | 766 mm | 9005 | Nein | Nein |
