Wall X-Rack outer cover w/o door
Wall X-Rack outer cover w/o door 9U black RAL9005 2/3
Item number:
WGX-O09TS.S
EAN no.:
4049759323080
Product information for Wall X-Rack outer cover w/o door 9U black RAL9005 2/3

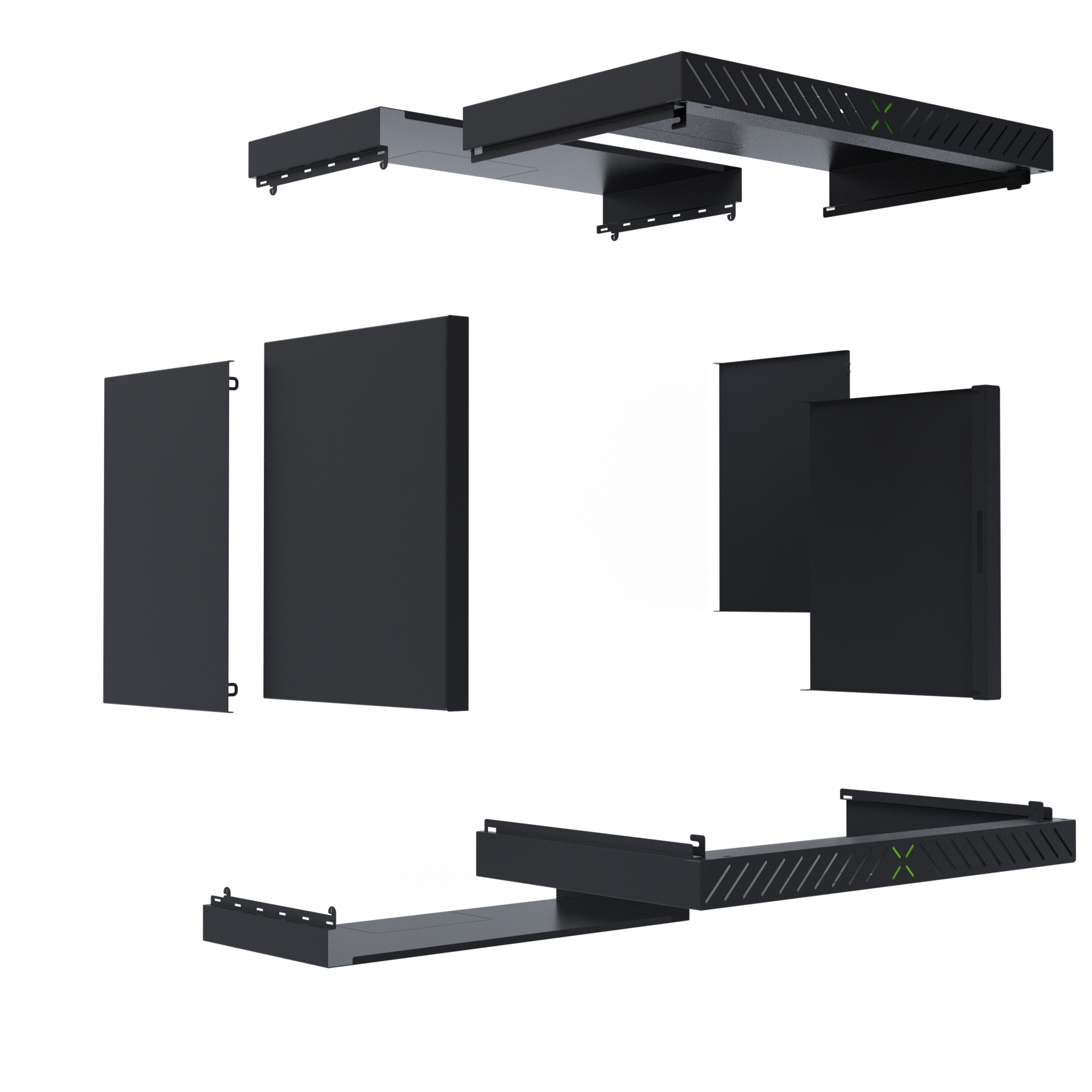

New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided.
For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm

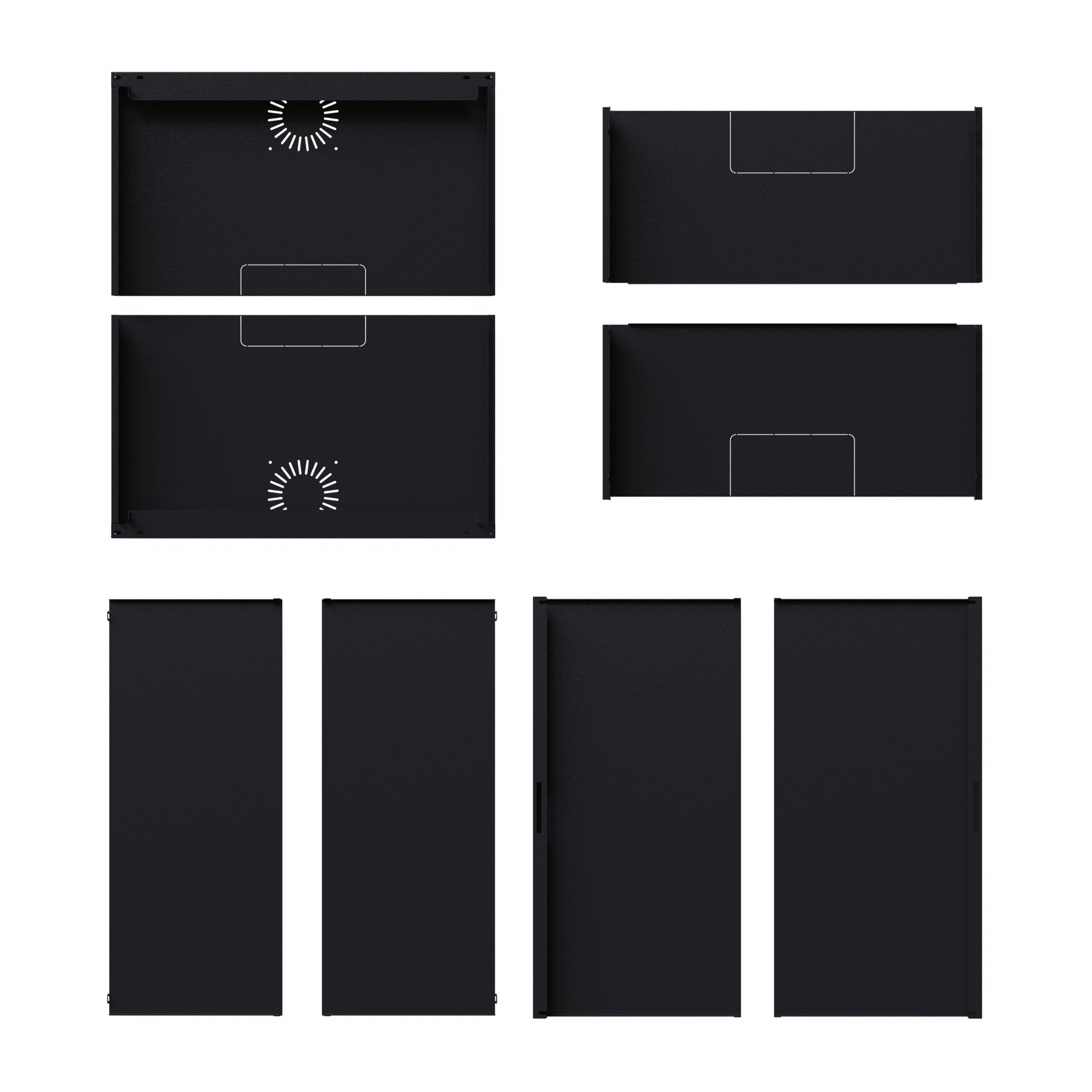

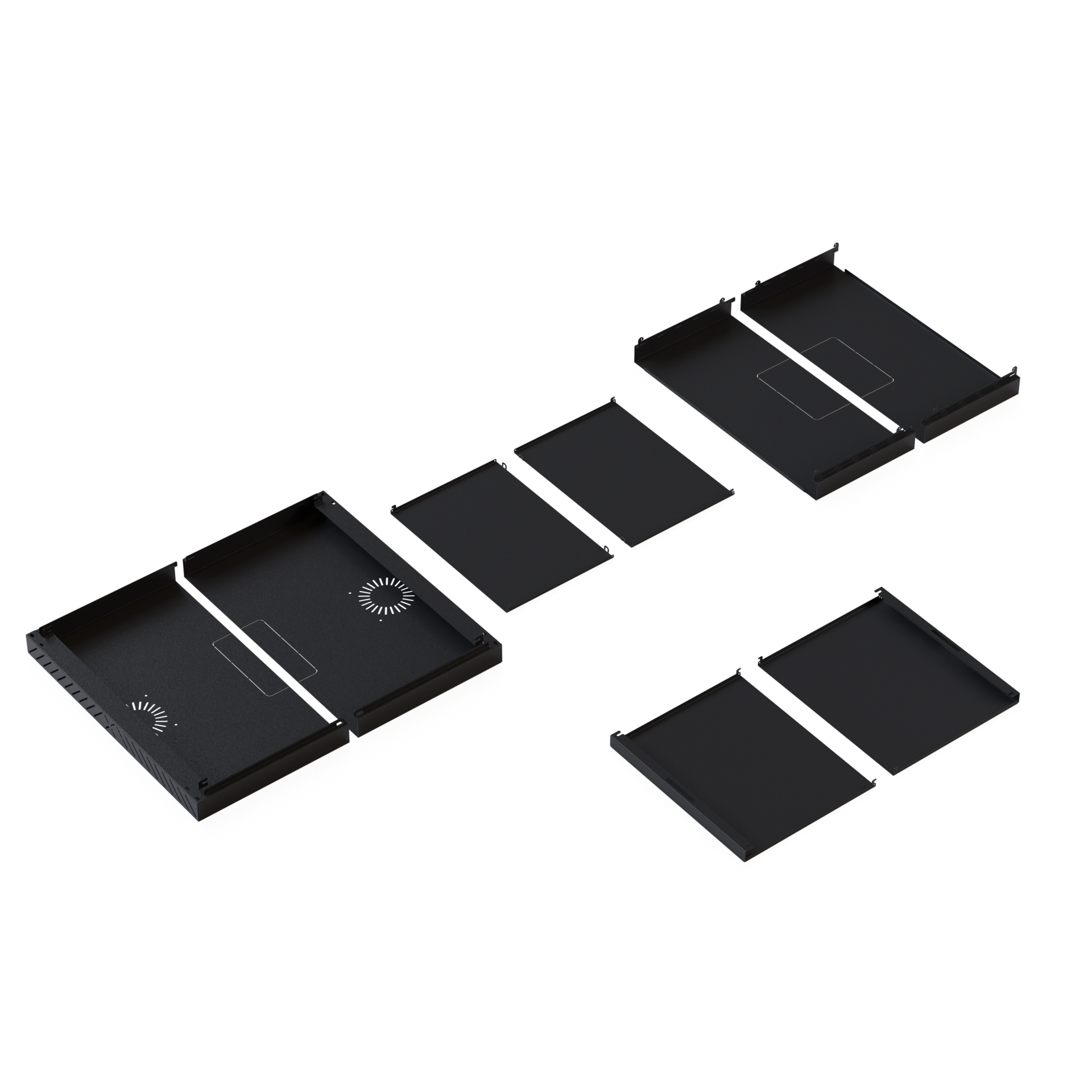

100% Protection against installation error. Left/right side plates and roof/bottom plates are equal
Steel front door. Possibility to hinge left or right.
Adjustable door hinges to secure correct leveling of the door.
Secured sidewalls, only to be dismantled from front side behind the front door.
190x90 mm Cable entries in roof and bottom.
Mounting holes for single fan-units Art.-No 691664 in roof and bottom
Protection degree IP20
El-gavanised steel plates for higher quality
Side walls, roof and bottom plates El-galv. powder coating light grey or jet black
Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles
General Data:
Type of ventilation Passive
Active ventilation Mounting holes for 1 x fan unit in roof & bottom
Material & surface side plates El-galvanized Z275, steel plate, powder coating
Material & surface top&buttom El-galvanized Z275, steel plate, powder coating
Material & surface front door Steel plate door, powder coated, window of certified safety glass
Front door hinges Easy pin hinge for left or right side. Adjustable leveling of the door
Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA
Side walls locking Protected against unauthorized access.
Degree of protection IP20
Width 600 mm
Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm
Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Packaging Package no.2 of 3: recycled cartonboard
Paint finish RAL7035, light grey / RAL9005, jet black
For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm
100% Protection against installation error. Left/right side plates and roof/bottom plates are equal
Steel front door. Possibility to hinge left or right.
Adjustable door hinges to secure correct leveling of the door.
Secured sidewalls, only to be dismantled from front side behind the front door.
190x90 mm Cable entries in roof and bottom.
Mounting holes for single fan-units Art.-No 691664 in roof and bottom
Protection degree IP20
El-gavanised steel plates for higher quality
Side walls, roof and bottom plates El-galv. powder coating light grey or jet black
Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles
General Data:
Type of ventilation Passive
Active ventilation Mounting holes for 1 x fan unit in roof & bottom
Material & surface side plates El-galvanized Z275, steel plate, powder coating
Material & surface top&buttom El-galvanized Z275, steel plate, powder coating
Material & surface front door Steel plate door, powder coated, window of certified safety glass
Front door hinges Easy pin hinge for left or right side. Adjustable leveling of the door
Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA
Side walls locking Protected against unauthorized access.
Degree of protection IP20
Width 600 mm
Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm
Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Packaging Package no.2 of 3: recycled cartonboard
Paint finish RAL7035, light grey / RAL9005, jet black
Technical properties
| Cabinet Series: | X-Rack |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | Ja |
| Material: | Stahl |
| Model: | mit Festrahmen |
| Modular spacing: | 482,6 mm (19 Zoll) |
| Mounting level: | vorne |
| Number of cartons: | 1 |
| Number of doors: | 0 |
| Surface finishing: | pulverbeschichtet |
| Type of profile rail: | L-förmig |
| Type of ventilation: | passiv |
| With earthing: | Ja |
| With front door: | Nein |
| With roof plate: | Ja |
| With sidewall: | Ja |
Variants
| Item no. | Name | Depth | Max. Load | Color | Width | Height | Number of height units | RAL-Nummer | |
|---|---|---|---|---|---|---|---|---|---|
| WGX-O09GR.S | Wall X-Rack outer cover w/o door 9U grey RAL7035 2/3 | 400-600 mm | 60 kg | grey | 600 mm | 500 mm | 9 U | 7035 | |
| WGX-O09TS.S | Wall X-Rack outer cover w/o door 9U black RAL9005 2/3 | 400-600 mm | 60 kg | schwarz | 600 mm | 500 mm | 9 U | 9005 | |
| WGX-O12GR.S | Wall X-Rack outer cover w/o door 12U grey RAL7035 2/3 | 400-600 mm | 60 kg | grey | 600 mm | 600 mm | 12 HE | 7035 | |
| WGX-O12TS.S | Wall X-Rack outer cover w/o door 12U black RAL9005 2/3 | 400-600 mm | 60 kg | schwarz | 600 mm | 600 mm | 12 HE | 9005 | |
| WGX-O15GR.S | Wall X-Rack outer cover w/o door 15U grey RAL7035 2/3 | 400-600 mm | 60 kg | grey | 600 mm | 766 mm | 15 HE | 7035 | |
| WGX-O15TS.S | Wall X-Rack outer cover w/o door 15U black RAL9005 2/3 | 400-600 mm | 60 kg | schwarz | 600 mm | 766 mm | 15 HE | 9005 |
